dimensions VOLVO C70 1999 Owners Manual

Maintain correct tire pressure.
Drive smoothly: avoid fast starts, hard braking and tire screeching.
Tire wear increases with speed.
Correct front wheel alignment is very important.
Unbalanced wheels impair tire economy and driving comfort.
If the wheels are rotated, they should be kept on the same side of the car so that they revolve in the same direction
as prior to rotation.
Hitting curbs or potholes can damage the tires and/or wheels permanently.
Flat spots
All tires become warm during use. After cooling, when the vehicle is parked, the tires have a tendency to distort
slightly, forming flat spots. These flat spots can cause vibrations similar to the vibrations caused by unbalanced wheels.
They do, however, disappear when the tire warms up. The degree to which the flat spots form depends on the type of
cord used in the tire. Remember that, in cold weather, it takes longer for the tire to warm up and consequently longer
for the flat spot to disappear.
CAUTION: The car must not be driven with wheels of different dimensions. The use of different size wheels can
seriously damage your car's transmission.
pg. 77 Wheels and tires (cont.)
Snow chains

Snow tire chains can be used on your Volvo with the following restrictions:
Snow chains should be installed on front wheels only. Use only Volvo approved snow chains.
Snow chains may be mounted on tire dimension 195/65R15. Tire dimension 205/55R16 requires a special type of
snow chain. Consult your Volvo retailer.
If accessory, aftermarket or "custom" tires and wheels are installed and are of a size different than the original tires
and wheels, chains in some cases CANNOT be used. Snow chains cannot be used on those turbo-charged models fitted
with all-season tires 225/50R16 or 225/45R17 or 225/40R18. Sufficient clearances between chains and brakes,
suspension and body components must be maintained.
Some strap -on type chains will interfere with brake components and therefore CANNOT be used.
Consult your Volvo retailer for additional snow chain information.
CAUTION:
Check local regulations regarding the use of snow chains before installing.
Always follow the chains manufacturer's installation instructions carefully. Install chains as tightly as possible and
re-tighten periodically.
Never exceed the chain manufacture's specified maximum speed limit. (Under no circumstances should that limit
be higher than 30 mph (45 km/h).
Avoid bumps, holes or sharp turns when driving with snow chains.
The handling of the vehicle can be adversely affected when driving with chains. Avoid fast or sharp turns as well
as locked wheel braking.
Snow tires, studded tires *
Tires for winter use:
Owners who live in or regularly commute through areas with sustained periods of snow or icy driving
conditions are strongly advised to fit suitable winter tires to help retain the highest degree of traction.
It is important to install winter tires on all four wheels to help retain traction during cornering, braking and
accelerating. Failure to do so could reduce traction to an unsafe level or adversely affect handling. Do not mix tires of
ProCarManuals.com

that a removed wheel can be reinstalled in its original position (as when changing over to winter tires/wheels).
CAUTION:
The car must not be driven with wheels of different dimensions or with a spare tire other than the one that came
with the car. The use of different size wheels can seriously damage your car's transmission.
pg. 83 Wheel changing (cont.)

Jack attachment
There is a jack attachment located in the center on each side of the car. Position the jack on the bar in the attachment
as shown in illustration A above and crank while simultaneously guiding the base of the jack to the ground. The base
of the jack must be flat on a level, firm, non-slippery surface. Before raising the car check that the jack is still
correctly positioned in the attachment. Raise the vehicle until both wheels on the side of the car where the jack is
attached are lifted off the ground. Unscrew the wheel bolts completely and carefully remove the wheel so as not to
damage the thread on the studs.
Installing the wheel
Clean the contact surfaces on the wheel and hub. Lift the wheel and place it on the hub. Make sure that you align the
wheel with the guide stud on the wheel hub prior to installation. Install the wheel bolts crosswise (see illustration) and
tighten by turning lightly clockwise. Lower the vehicle to the ground and alternately tighten the nuts to 81 ft. lbs. (110
Nm). Install the wheel cap (where applicable).

Correct tightening order for wheel bolts
WARNING!
The jack's attachment must engage the bar in the jack attachment (A). The car's weight must not rest on the jack's
attachment (B).
Be sure the jack is on a firm, level, non-slippery surface.
Never allow any part of your body to be extended under a car supported by a jack.
Use the jack intended for the car when replacing a wheel. For any other job, use stands to support the end of the
car being worked on.
Apply the parking brake, select position P (automatic transmission) or Reverse gear (manual transmission).
Block the wheels standing on the ground, use rigid wooden blocks or large stones.
The jack should be kept well-greased.
ProCarManuals.com

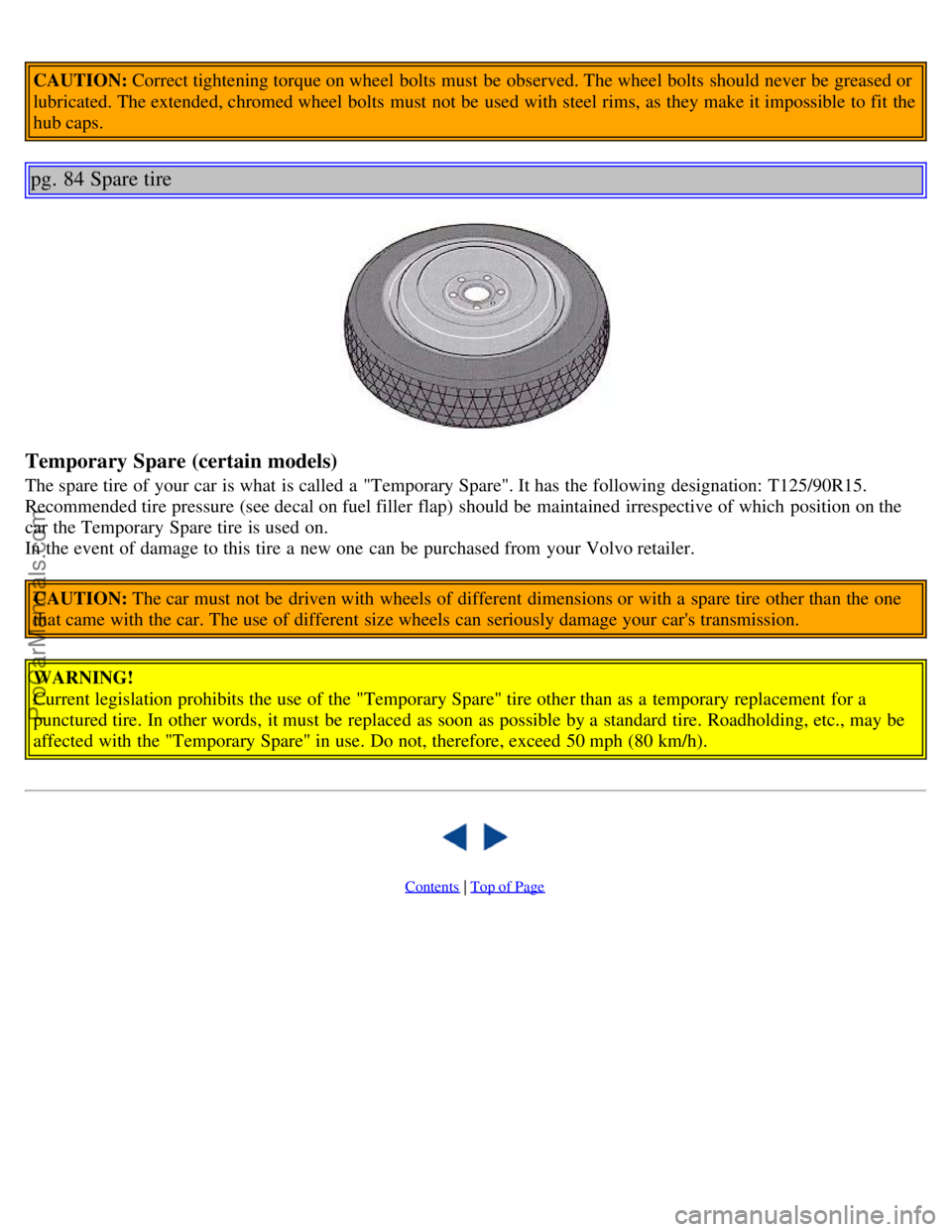

CAUTION: Correct tightening torque on wheel bolts must be observed. The wheel bolts should never be greased or
lubricated. The extended, chromed wheel bolts must not be used with steel rims, as they make it impossible to fit the
hub caps.
pg. 84 Spare tire
Temporary Spare (certain models)
The spare tire of your car is what is called a "Temporary Spare". It has the following designation: T125/90R15.
Recommended tire pressure (see decal on fuel filler flap) should be maintained irrespective of which position on the
car the Temporary Spare tire is used on.
In the event of damage to this tire a new one can be purchased from your Volvo retailer.
CAUTION: The car must not be driven with wheels of different dimensions or with a spare tire other than the one
that came with the car. The use of different size wheels can seriously damage your car's transmission.
WARNING!
Current legislation prohibits the use of the "Temporary Spare" tire other than as a temporary replacement for a
punctured tire. In other words, it must be replaced as soon as possible by a standard tire. Roadholding, etc., may be
affected with the "Temporary Spare" in use. Do not, therefore, exceed 50 mph (80 km/h).

Contents | Top of Page
ProCarManuals.com

Chapter 9 - Specifications
pg. 123 Specifications
Specifications

This chapter contains facts and figures pertaining to the technical specifications of your car.
Oil/Fluids specifications
124
Engine specifications125
Cooling/fuel/distributor ignition systems126
Front/rear suspensions126
Transmission, Capacities, Vehicle loading127
Electrical system/bulbs128
Dimensions and weights129
Service manuals, Road assistance130
pg. 124 Oil/fluid specifications
Oil quality

Meeting API specification SG, SG/CD, SH or Energy Conserving (EC) II
For best fuel economy and engine protection, consult with your authorized Volvo retailer for recommended oils. Oil
with a different quality rating may not provide adequate engine protection. Synthetic oils complying with oil quality
requirements are recommended for : driving in areas of sustained temperature extremes (hot or cold), when towing a
trailer over long distances or for prolonged driving in mountainous areas.
Extra oil additives must not be used unless advised by an authorized Volvo retailer.
NOTE: SAE 15 W -40 oil should only be used in extreme operating conditions such as trailer towing in sustained
ambient temperatures over 104° F (40° C). However, SAE 10W -30 synthetic oil would be a better alternative in such
conditions.
SAE 15W-30 should not be used under normal operating conditions.
Viscosity (stable ambient temperatures):
Engine oilQuality: Meeting API specification SG or
SH Capacity (incl. filter): 6.1 US qts. (5.8
liters)*
Automatic transmission
fluid Quality:
ATF Dexron IIE/ III and Mercon Capacity: 8 US qts. (7.6 liters)
ProCarManuals.com

pg. 188 Index
A
ABS........................................17Adjusting headligh.........................86Air conditioning...........................35Air mix....................................33Air vents..................................33Airbag (SIPS)...............................8Airbag (SRS)................................4Alarm......................................44Ambient temperature sensor.................25Anti -lock Brake System (ABS).........17, 19,70Ashtrays...................................31Audio systems
General information.....................184
SC-813..................................132 SC-816..................................145 SC-900/901..............................161Auto -dim (rear -view mirror)................48Automatic car washing.....................103Automatic daytime running lights...........24Automatic transmission........60,61,62,63,127 Driving mode selector....................62Automatic transmission fluid..........117,124
B
Battery................................72,128Battery drain - avoiding...................54Battery maintenance.......................122Booster cushion............................11Brake failure warning light.............17,18Brake fluid...........................116,124Brake fluid warning light..................18Brake system............................70,71Brake warning light........................17Break -in period............................56Bulb failure warning....................17,19Bulbs.....................................128Bulbs - replacing..........................85
C
Capacities................................127Catalytic converter........................69Central locking button.....................36Chains (snow)..............................77Changing a wheel...........................82Child booster cushion......................11Child Restraint Anchorages..................9Child safety...............................11Clock......................................16Clock - resetting..........................25Clutch fluid..............................116Coolant - checking/changing...............120Coolant level sensor.......................19Coolant level warning light................17Cooling system.........................64,126Courtesy lights - front....................49Cruise control.............................29
D
Daytime running lights.....................24Demister - rear window.....................23Dimensions................................129Distributor ignition system...............126Distributor ignition system...............187Doors and locks............................42Drive belt................................118Driving economy............................58
ProCarManuals.com
