service VOLVO C70 2000 User Guide

2 0 0 0
VOLVO C70
Chapter 8 - Volvo Service
pg. 105 Volvo Service
Service an investment
An investment which will pay dividends in the form of improved reliability, durability and resale value. Label information
106
Maintenance service, Warranty107
Maintenance schedule108-109
Servicing110-111
Fuel/emissions systems112
Lubrication113
Engine oil114-115
Power steering fluid, Brake/clutch system fluid reservoir116
Windshield washer nozzle, Washer fluid reservoir117
Coolant118
Engine compartment119
Battery maintenance120
pg. 106 Label information
1 Vehicle Emission Control Information
Your Volvo is designed to meet all applicable emission standards, as evidenced by the certification label on the
underside of the hood. For further information regarding these regulations, please consult your Volvo retailer.
2 Vacuum hose routing
(underside of hood)
ProCarManuals.com

3 Loads and Tire Pressures
(on rear edge of passenger's door)
4 Model plate
Vehicle Identification Number (VIN). Codes for color and upholstery, etc. This plate is located in the engine
compartment, on the inside of the left front fender.
5 Vehicle Identification Number (VIN) *
The VIN plate is located on the top left surface of the dashboard. The VIN is also stamped on the right hand door
pillar.
6 Federal Motor Vehicle Safety Standards (FMVSS) specifications (USA) and Ministry of Transport (CMVSS)
standards (Canada)
Your Volvo is designed to meet all applicable safety standards, as evidenced by the certification label on the rear edge
of the driver's door. For further information regarding these regulations, please consult your Volvo retailer.
* The Vehicle Identification Number (VIN) should always be quoted in all correspondence concerning your vehicle
with the retailer and when ordering parts.
** These decals are located on the underside of the hood.
All specifications are subject to change without notice.
pg. 107 Maintenance service, Warranty
Maintenance service
Volvo advises you to follow the service program which is outlined in the "Maintenance Records Manual". This
ProCarManuals.com

maintenance program contains inspections and services necessary for the proper function of your car. The maintenance
services contain several checks which require special instruments and tools and therefore must be performed by a
qualified technician. To keep your Volvo in top condition, specify time tested and proven Genuine Volvo Parts and
Accessories.
The Federal Clean Air Act U.S.
The Clean Air Act requires vehicle manufacturers to furnish written instructions to the ultimate purchaser to assure the
proper functioning of those components that control emissions. The maintenance instructions listed in the "Servicing"
section of this Manual represent the minimum maintenance required. These services are not covered by the warranty.
You will be required to pay for labor and material used. Refer to your Warranty booklet for further details.
Maintenance services
Your Volvo has passed several major inspections before being delivered to you, according to Volvo specifications. The
maintenance services outlined in this book should be performed as indicated. The extended maintenance service
intervals make it even more advisable to follow this program. Inspection and service should also be performed any
time a malfunction is observed or suspected. It is recommended that receipts for vehicle emission services be retained
in the event that questions arise concerning maintenance. See your "Maintenance Records Manual".
Applicable warranties U.S.
In accordance with U.S. Federal Regulations, the following list of applicable U.S. warranties is provided. For Canadian
specification vehicles, see your separate warranty booklet.
· New Car Limited Warranty
· Parts and Accessories Limited Warranty
· Corrosion Protection Limited Warranty
· Seat belt and Supplemental Restraint Systems Limited Warranty
· Emission Design and Defect Warranty
· Emission Performance Warranty
These are the Federal warranties; other warranties are provided as required by state law. Refer to your separate
Warranty booklet for detailed information concerning each of the warranties.
pg. 108 Maintenance schedule2000
MAINTENANCE SCHEDULE C70
For complete maintenance information, please refer to your
Warranty and Service Records Information Booklet.
ProCarManuals.com

A = Adjust (Correct if necessary)
R = Replace
I = Inspect (Correct or Replace if necessary)
L = Lubricate
Maintenance Operationthousand miles 7.51522.5 3037.5 4552.5 6067.5 7582.5
90 2
(thousand km)(12)(24) (36)(48) (60)(72) (84)(96) (108) (120)(132)(144)
EMISSION SYSTEM MAINTENANCE
Engine oil and filter
1R R RR RR RR R RRR
Engine drive belt (accessory belt) R
Air cleaner filter R R R
Spark plugs R R R
Automatic transmission fluid I I I I I I
Timing belt - all engines
3
1) See section "Engine oil" for detailed information.
NOTE: The oil should be changed at these intervals, after 750 hours of driving or after 12 months,
whichever occurs first.
2) For services beyond 90,000 miles (144,000 km), please refer to the Warranty and Service Records
Information Booklet".
3) For proper functioning of the vehicle and its emission control systems, the timing belt and tensioner must be
replaced every 105,000 miles (168,000 km).
pg. 109 Maintenance schedule
2000
MAINTENANCE SCHEDULE C70
A = Adjust (Correct if necessary)
R = Replace
I = Inspect (Correct or Replace if necessary)
L = Lubricate
Maintenance Operationthousand miles 7.51522.5 3037.5 4552.5 6067.5 7582.5 90
(thousand km)(12)(24)(36) (48)(60) (72)(84)(96)(108) (120) (132)(144)
EMISSION SYSTEM MAINTENANCE
Engine
Fuel line filter
1
PCV nipple (orifice)/hoses, clean I I
Battery (check charge and electrolyte level) II II II I I I II I
ProCarManuals.com

· If the fuel filler cap is not closed tightly or if the engine is running when the car is refueled, the Malfunction Indicator
Lamp may indicate a fault.
· During a transitional period, a small number of service stations may still have fuel nozzles that are not compatible
with the fuel filler neck on cars equipped with the evaporative control system (ORVR) mandated by the U.S.
Environmental Protection Agency and the California Air Resources Board. If you experience difficulties in refueling
your vehicle, please ask the gas station attendant for assistance.
CAUTION:
Fuel must not be siphoned from the fuel tank. This will damage the Evaporative control system.
pg. 113 Lubrication
No.Lubrication point lubricant
1 Hood lock and latch Oil
2 Door stop and hinges Oil
3 Sun roof wind deflector (visible when sun roof is open) Oil, low temperature grease
4 Door lock catch plate Oil
5 Power antenna WD 40 or similar
6 Locks Volvo teflon lock spray
7 Trunk lock catch plate Low temperature grease
8 Front seat side rail and latch Oil
To avoid rattles and unnecessary wear, the body should be lubricated at regular service intervals. This should be done
by an authorized Volvo retailer.

Contents | Top of Page
ProCarManuals.com

2 0 0 0
VOLVO C70
Chapter 9 - Specifications
pg. 121 Specifications
Specifications
This chapter contains facts and figures pertaining to the technical specifications of your car. Oil/fluids specifications
122
Engine specifications123
Cooling/fuel/distributor ignition systems124
Front/rear suspensions124
Transmission, Capacities, Vehicle loading125
Electrical system/bulbs126
Dimensions and weights127
Service manuals, Road assistance128
pg. 122 Oil/fluid specifications
Oil quality
Meeting API specification SJ, SJ/CF, or SJ/Energy Conserving
For best fuel economy and engine protection, consult with your authorized Volvo retailer for recommended oils. Oil
with a different quality rating may not provide adequate engine protection.
Synthetic oils complying with oil quality requirements are recommended for: driving in areas of sustained temperature
extremes (hot or cold), when towing a trailer over long distances or for prolonged driving in mountainous areas.
Extra oil additives must not be used unless advised by an authorized Volvo retailer.
Viscosity (stable ambient temperatures):
ProCarManuals.com

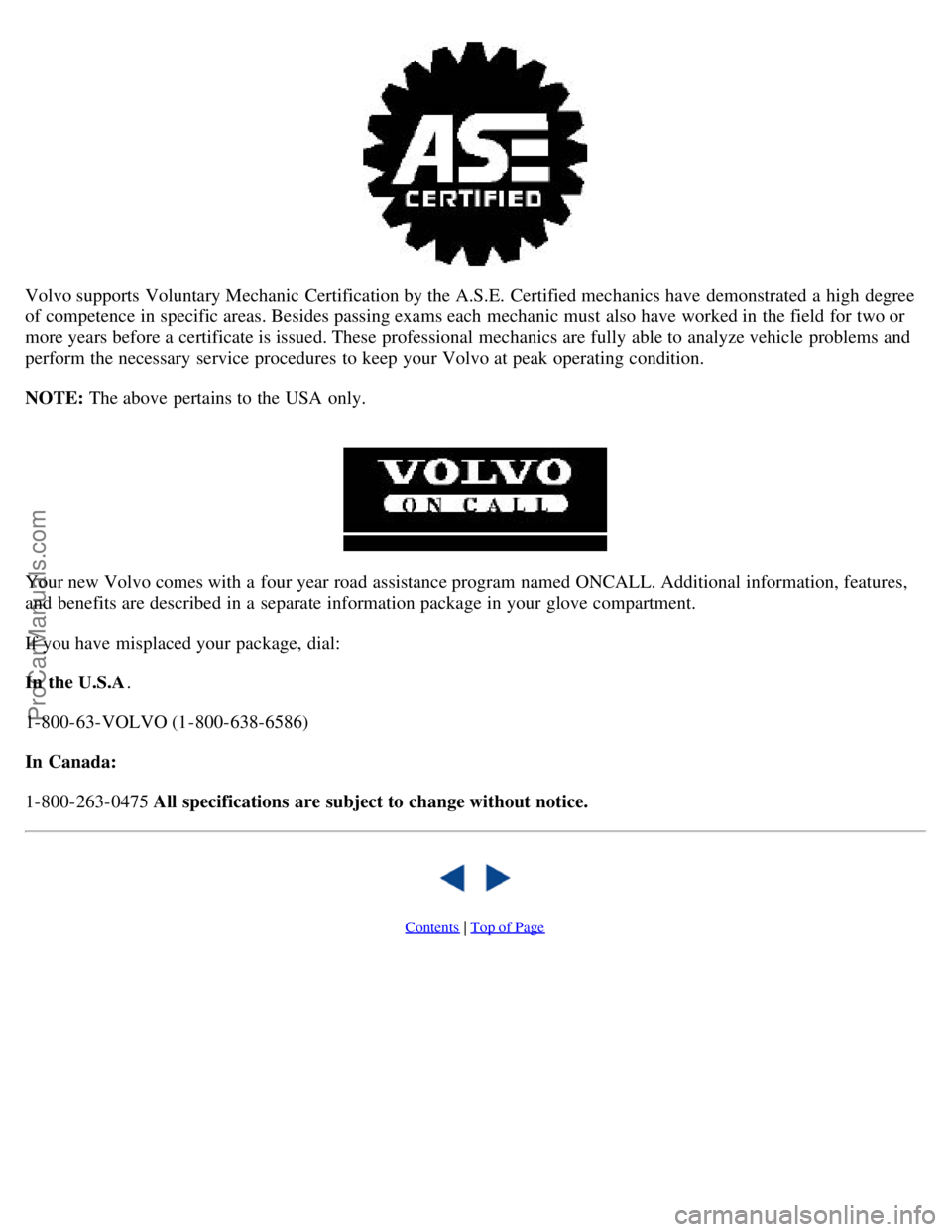

Volvo supports Voluntary Mechanic Certification by the A.S.E. Certified mechanics have demonstrated a high degree
of competence in specific areas. Besides passing exams each mechanic must also have worked in the field for two or
more years before a certificate is issued. These professional mechanics are fully able to analyze vehicle problems and
perform the necessary service procedures to keep your Volvo at peak operating condition.
NOTE: The above pertains to the USA only.
Your new Volvo comes with a four year road assistance program named ONCALL. Additional information, features,
and benefits are described in a separate information package in your glove compartment.
If you have misplaced your package, dial:
In the U.S.A .
1-800-63-VOLVO (1-800-638-6586)
In Canada:
1-800-263-0475 All specifications are subject to change without notice.

Contents | Top of Page
ProCarManuals.com

Immobilizer (start inhibitor)42
Instrument illumination22
Instruments14,15
J
Jack53
,82,83
Jump starting70
K
Keyless entry system43
Keylock59
Keys42
Kick -down61,63
Kickdown62,64
L
Label information106
Lifting the car110
Locks42
Long load storage50
Lubrication113
Lumbar support46
M
Maintenance schedule108
Maintenance service107
Malfunction indicator lamp17,18
Manual transmission60,125
Manual transmission fluid122
Memory function - front seats46
Mirrors - rear/side view48
O
Occupant safety13
Octane rating57
Odometer16
Oil (engine)114,115,122
Oil pressure warning light18
On-call128
P
Paint touchup100
Parking brake17,30
Parking brake reminder light18
Parking lights20
Polishing103
Power seats46,47
Power steering fluid116,122
R
Radio
ProCarManuals.com

General information182
SC813130
SC-816143
SC-900/901159
Radio Data System - RDS164
Reading lights49
Rear (side) windows - opening37
Rear fog light17,22
Rear suspension124
Rear window demister23
Rear/side-view mirrors48
Refueling57
Remote control (central locking system)43
Remote keyless entry system43
Replacing bulbs86,87,88,89,90
Replacing fuses91
Reporting safety defects13
Roadholding67
Roof rails/racks67
S
Safety defects - reporting13
Seat belt maintenance13
Seat belts2,3,11
Automatic Locking Retractor11
Emergency Locking Retractor11
Seat belts - cleaning104
Seats46
Seats - heated30
Securing cargo54
Service reminder indicator17,19
Servicing110,111,112
Shift lock59
Shiftlock61,63
Shiftlock release (override)97
Side Impact Protection System (SIPS)8
Side-view mirrors - heated23
SIPS8
Snow chains77
Snow tires77
Spare tire84
Spare tire (sedan)53
Spark plugs124
Spark plugs - replacing124
Specifications121
