width VOLVO C70 2000 Owners Manual

2 0 0 0
VOLVO C70
Chapter 5 - Wheels and tires
pg. 75 Wheels and tires
The handling and riding comfort of the vehicle is dependent on the inflation pressure and the type of tires fitted. Read
the following pages carefully. General information, Wear indicator, Tire economy, Flat spots
76
Snow chains, Snow tires77
Inflation pressure78
Uniform tire quality grading79
pg. 76 Wheels and tires
General information
Your vehicle is equipped with tires according to the tire information label located on the rear facing side of the
right front door.
The following is an example of a tire designation code 225/50R16:
225 = tire width in mm.
50 = tire profile. This is the relationship (in percent) between the section height and width of the tire.
R = radial tires.
16 = diameter in inches.
The tires have good road holding characteristics and offer good handling on dry and wet surfaces. It should be noted
however that the tires have been developed to give these features on snow/icefree surfaces. Certain models are
equipped with "all-season" tires, which provide a somewhat higher degree of road holding on slippery surfaces
than tires without the "all-season" rating. However, for optimum road holding on icy or snow covered roads we
recommend suitable winter tires on all four wheels. When replacing tires, be sure that the new tires are the same
size designation, type (radial) and preferably from the same manufacturer, on all four wheels. Otherwise there is a risk
of altering the car's roadholding and handling characteristics.
ProCarManuals.com

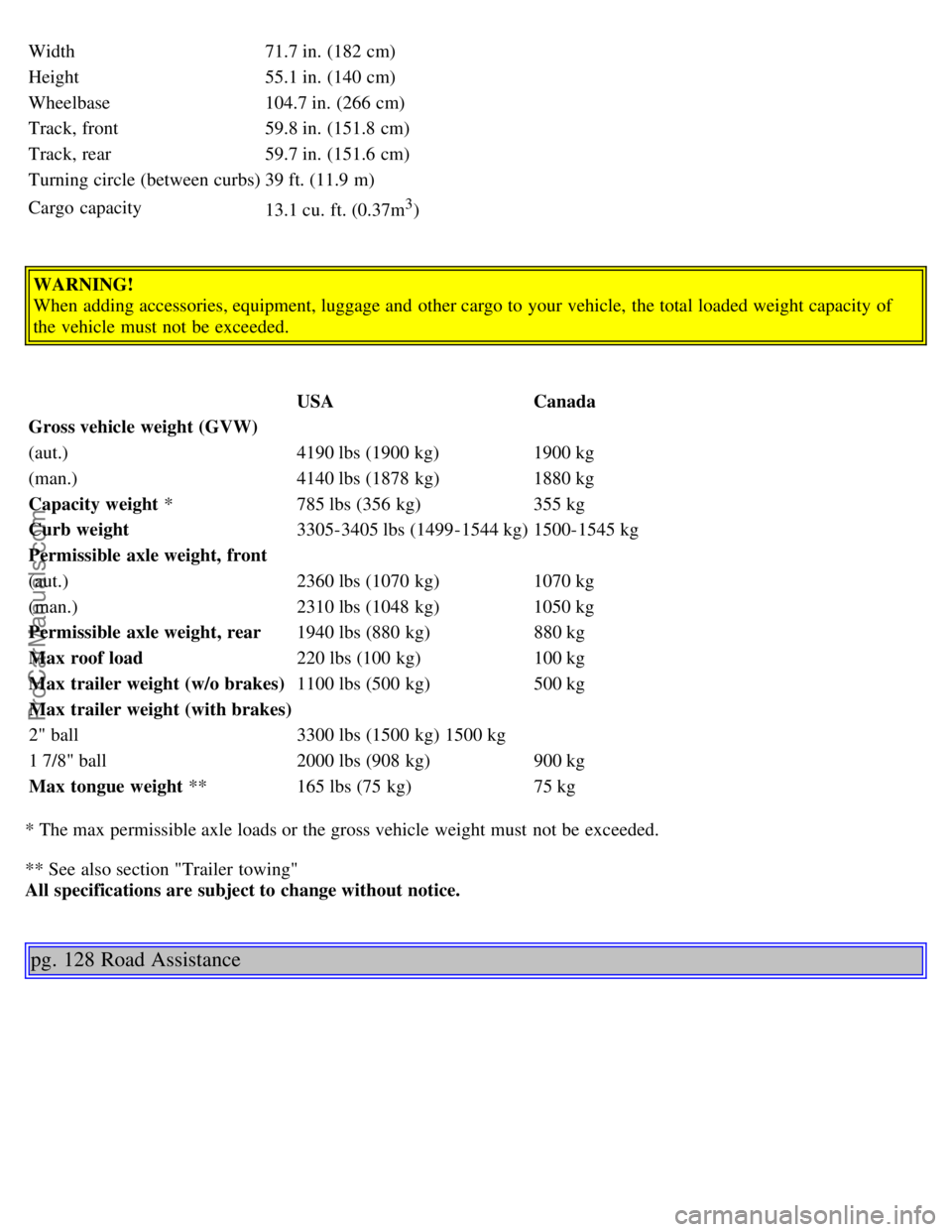

Width71.7 in. (182 cm)
Height55.1 in. (140 cm)
Wheelbase 104.7 in. (266 cm)
Track, front 59.8 in. (151.8 cm)
Track, rear 59.7 in. (151.6 cm)
Turning circle (between curbs) 39 ft. (11.9 m)
Cargo capacity 13.1 cu. ft. (0.37m
3)
WARNING!
When adding accessories, equipment, luggage and other cargo to your vehicle, the total loaded weight capacity of
the vehicle must not be exceeded. USACanada
Gross vehicle weight (GVW)
(aut.) 4190 lbs (1900 kg)1900 kg
(man.) 4140 lbs (1878 kg)1880 kg
Capacity weight * 785 lbs (356 kg) 355 kg
Curb weight 3305-3405 lbs (1499-1544 kg)1500-1545 kg
Permissible axle weight, front
(aut.) 2360 lbs (1070 kg)1070 kg
(man.) 2310 lbs (1048 kg)1050 kg
Permissible axle weight, rear 1940 lbs (880 kg)880 kg
Max roof load 220 lbs (100 kg)100 kg
Max trailer weight (w/o brakes) 1100 lbs (500 kg)500 kg
Max trailer weight (with brakes)
2" ball 3300 lbs (1500 kg) 1500 kg
1 7/8" ball 2000 lbs (908 kg)900 kg
Max tongue weight **165 lbs (75 kg) 75 kg
* The max permissible axle loads or the gross vehicle weight must not be exceeded.
** See also section "Trailer towing"
All specifications are subject to change without notice.
