VOLVO C70 2006 Owners Manual

Not checking the oil level regularly can result in serious engine damage if the oil level becomes too low.
Oil that is lower than the specified quality can damage the engine.
Always add oil of the same type and viscosity as already used.
Never fill oil above the MAX mark. This could cause an increase in oil consumption.
WARNING!
Do not allow oil to spill onto or come into contact with hot exhaust pipe surfaces.
pg. 159 Maintenance and servicing
Fluids
Washer fluid
The washer fluid reservoir is located in the engine compartment and holds approximately 6.8 US qts (6.5 liters).
During cold weather, the reservoir should be filled with windshield washer solvent containing antifreeze.
Coolant
Normally, the coolant does not need to be changed. If the system must be drained, consult your Volvo retailer.
NOTE: Do not top off with water only. This reduces the rust-protective and antifreeze qualities of the coolant and has
a lower boiling point. It can also cause damage to the cooling system if it should freeze. Top off with Volvo Genuine
Coolant/Antifreeze only (a 50/ 50 mix of water and antifreeze).
CAUTION!
ProCarManuals.com

The cooling system must always be kept filled to the correct level, and the level must be between the MIN and
MAX marks. If it is not kept filled, there can be high local temperatures in the engine which could result in damage.
Different types of antifreeze/coolant may not be mixed. Check coolant regularly!
WARNING!
Never remove the radiator cap while the engine is warm. Wait until the vehicle cools.
If it is necessary to top off the coolant when the engine is warm, unscrew the expansion tank cap slowly so that the
overpressure dissipates.
pg. 160 Maintenance and servicing
Fluids
Brake fluid
The brake fluid should always be between the MIN and MAX marks on the side of the reservoir. Check, without
removing the cap, that there is sufficient fluid in the reservoir.
Fluid type: DOT 4+ boiling point >536°F (280°C), P/N 9437433
Replace: The fluid should be replaced according to the intervals specified in the Warranty and Service Records
Information booklet. When driving under extremely hard conditions (mountain driving, etc), it may be necessary to
replace the fluid more often. Consult your Volvo retailer. Always entrust brake fluid changing to a trained and
qualified Volvo service technician.
Power steering fluid
The fluid level should always be between the MIN and MAX marks.
ProCarManuals.com

Fluid type: Volvo power steering fluid or equivalent.
Replace: No fluid change required
WARNING!
If a problem should occur in the power steering system or if the vehicle has no electrical current and must be towed,
it is still possible to steer the vehicle. However, keep in mind that greater effort will be required to turn the steering
wheel.
pg. 161 Maintenance and servicing
Wiper blades
Replacing windshield wiper blades
Fold out the wiper arm and fold out the wiper blade at a 90° angle to the wiper arm.
Pull off the wiper blade from the attachment, straight to the side.
Slide in a new wiper blade at a 90° angle to the wiper arm.
Fold in the wiper blade under the metal plate and fold the wiper arm down.
NOTE: The wiper blades are different lengths. The blade on the driver's side is longer than the one on the passenger's
side.
ProCarManuals.com

pg. 162 Maintenance and servicing
Battery
Battery maintenance
Driving habits and conditions, climate, the number of starts, etc., all affect the service life and function of the battery.
In order for your battery to perform satisfactorily, keep the following in mind:
Check the fluid level in each cell in the battery every 24 months or every 15,0001 miles (24,000 km), whichever is
sooner. The fluid should be at the level shown in the illustration above (A). Do not overfill.
Use a screw driver to open the caps and a flashlight to inspect the level.
If necessary, add distilled water. The level should never be above the indicator (A).
The fluid level should be checked if the battery has been recharged.
After inspection, be sure the cap over each battery cell is securely in place.
Check that the battery cables are correctly connected and properly tightened.
Never disconnect the battery when the engine is running, or when the key is in the ignition. This could damage the
vehicle's electrical system.
ProCarManuals.com

The battery should be disconnected from the vehicle when a battery charger is used directly on the battery.
WARNING!
PROPOSITION 65 WARNING!
Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals known to the state of
California to cause cancer and reproductive harm. Wash hands after handling.
1. More frequently in warm climates.
pg. 163 Maintenance and servicing
Battery
Battery replacement
Switch off the ignition and remove the key.
Unscrew the cover over the battery.
Wait at least 5 minutes after switching off the ignition before disconnecting the battery so that all information in the
vehicle's electrical system can be stored in the control modules.
Remove the cover and unscrew the front side of the battery box using a screwdriver.
Disconnect the battery negative (ground)
Release the clamp holding the battery.
Disconnect the positive cable and lift out the battery.
Install the new battery in the reverse order.
WARNING!
Never expose the battery to open flame or electric spark.
Do not smoke near the battery.
ProCarManuals.com

Battery fluid contains sulfuric acid. Do not allow battery fluid to contact eyes, skin, fabrics or painted surfaces. If
contact occurs, flush the affected area immediately with water. Obtain medical help immediately if eyes are affected.
pg. 164 Maintenance and servicing
Bulbs
Bulbs used in the car1. Low beam headlight 55W H11
2. Bi -Xenon headlight (option) 35W D2S
3. High beam headlight 55W HB3
4. Brake light, Rear fog light P21/W5
5. Turn signal, front/ rear (amber bulb) PY21W
6. Tail lights, Parking light, Side marker light P21/W5
7. Footwell lighting, cargo compartment light W5W
8. Vanity mirror 1,2W
9. License plate lighting,
Parking light in headlight housing
Side turn signal (amber bulb) W5W
10. Front fog light (option) 55W H11
NOTE:
Never touch the glass of bulbs with your fingers. Grease and oils from your fingers vaporize in the heat and will
leave a deposit on the reflector, which will damage it.
The optional Bi -Xenon headlight bulbs contain trace amounts of mercury. These bulbs should always be disposed
of by a trained and qualified Volvo service technician.
Certain bulbs not listed here should only be replaced by a trained and qualified Volvo service technician.
pg. 165 Maintenance and servicing
Replacing front bulbs
ProCarManuals.com

Removing the headlight housing
The entire headlight housing must be lifted out when replacing the high/low beam, parking light, turn signal, and side
marker bulbs. To lift out the housing:
Remove the key from the ignition and turn the headlight switch to position 0.
Open the hood.
Pull up the headlight housing's retaining pin (1)
Pull the headlight housing to one side and then forward (2).
Disconnect the wiring connector.
Lift out the headlight housing and place it on a soft surface to avoid scratching the lens.
After the defective bulb has been replaced, reinsert the housing in the reverse order. Check that the retaining pin is
correctly inserted.
WARNING!
Bi -Xenon headlights (option) - due to the high voltage used by these headlights, these bulbs should only be replaced
by a trained and qualified Volvo service technician.
Low beam bulb
Open the hood.
Remove the headlight housing.
Press the retaining clamps to the sides.
Release the bulb's retaining spring by pressing it to the right, and then moving it outward and downward.
Pull out the bulb.
Disconnect the wiring connector from the bulb. Installing a new bulb.
Insert the new bulb. It can only be installed in one position.
ProCarManuals.com

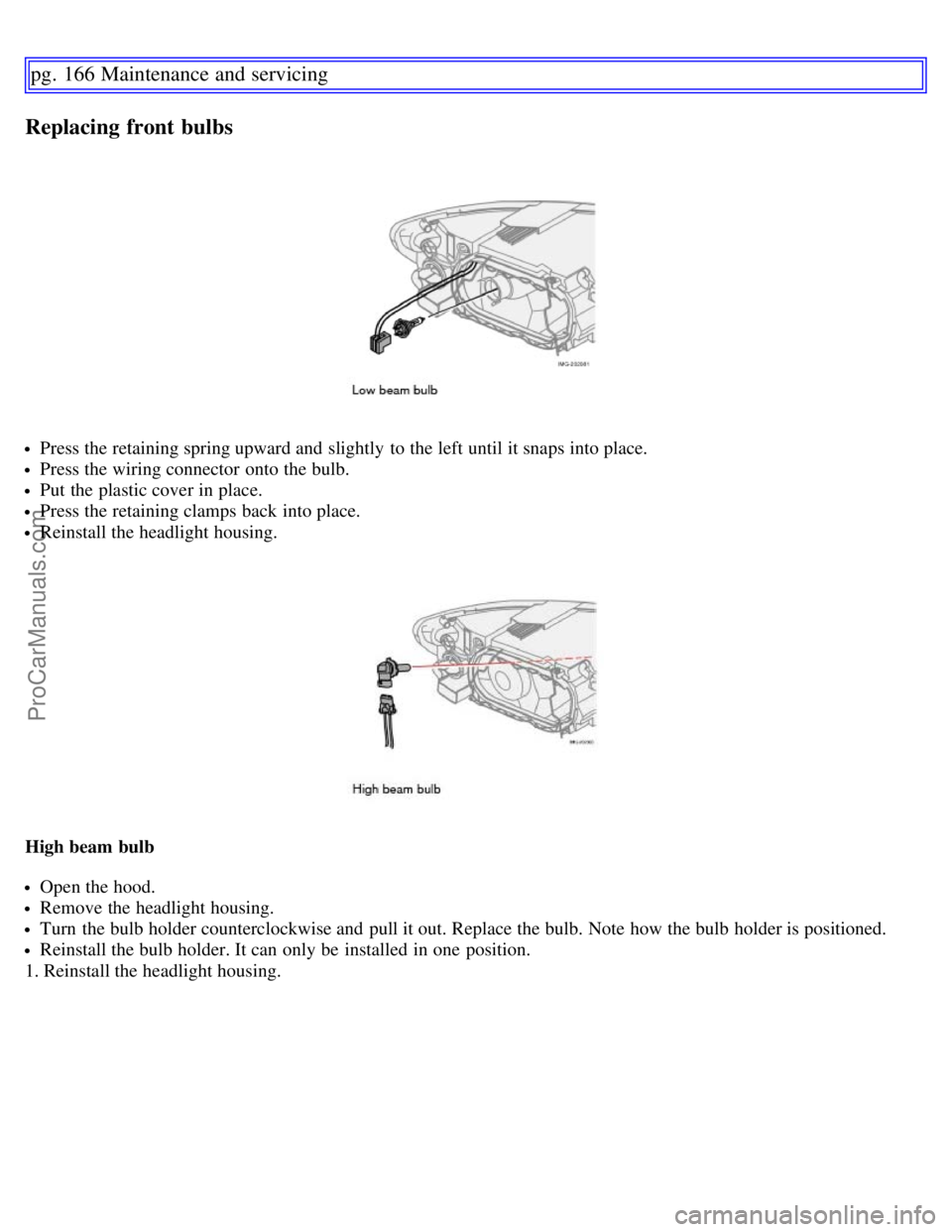

pg. 166 Maintenance and servicing
Replacing front bulbs
Press the retaining spring upward and slightly to the left until it snaps into place.
Press the wiring connector onto the bulb.
Put the plastic cover in place.
Press the retaining clamps back into place.
Reinstall the headlight housing.
High beam bulb
Open the hood.
Remove the headlight housing.
Turn the bulb holder counterclockwise and pull it out. Replace the bulb. Note how the bulb holder is positioned.
Reinstall the bulb holder. It can only be installed in one position.
1. Reinstall the headlight housing.
ProCarManuals.com

Parking light bulb
Pull out the bulb holder with a pair of pliers. The bulb holder should not be pulled out by the wire.
Replace the bulb.
Press the bulb holder back into place. It can only be installed in one position.
pg. 167 Maintenance and servicing
Replacing front bulbs
Turn signal
Turn the bulb holder counterclockwise and remove it.
Remove the bulb from the holder by pressing it in and twisting it counterclockwise.
Insert a new bulb and reinstall the bulb holder in the headlight housing.
ProCarManuals.com

Side marker light
Turn the bulb holder counterclockwise, pull it out, and replace the bulb.
Reinstall the bulb holder. It can only be installed in one position.
Front fog light (option)
Switch off all lights and turn the key to position 0.
Remove the panel around the fog light housing. Depress the tabs around the edges as shown in the illustration in the
right column.
Unscrew both torx screws in the fog light housing and remove it.
Disconnect the connector from the bulb.
Turn the bulb counterclockwise and pull it out.
Install the new bulb in its seat and turn it clockwise.
Reconnect the connector to the bulb.
Secure the fog light housing with the screws and press the panel back into place.
pg. 168 Maintenance and servicing
Replacing bulbs in the trunk
