11 Specifications
Dimensions and weights
11

271
PositionDimension
GTrack, front60.1 in. (155 cm)
HTrack, rear61.4 in. (156 cm)
ILoad width, floor28 in. (71 cm)
JWidth72.3 in. (184 cm)
KWidth encl. door mirrors79.6 in. (202 cm)
Weights
CategoryUSACanada
Gross vehicle weight4560 lbs2070 kg
Capacity weight640 lbs290 kg
Permissible axle weight, front2440 lbs1110 kg
Permissible axle weight, rear2370 lbs1075 kg
Curb weight3810 lbs1720 kg
Max. trailer weight (w/o brakes)1540 lbsAll models: 700 kg
Max. trailer weight (with brakes)2000 lbsAll models: 900 kg
Max. tongue weight165 lbsAll models: 75 kg

11 Specifications
Dimensions and weights
11
272
CAUTION
The maximum permissible axle loads and/
or the gross vehicle weight must not be
exceeded.
WARNING
When adding accessories, equipment, lug-
gage and other cargo to your vehicle, the
total capacity weight must not be exceeded.

11 Specifications
Fuel, oils, and fluids
11

273 Specifications and capacities
CategorySpecificationCapacity
Fuel tankOctane rating: unleaded gasoline, minimum
octane requirement AKI 87, recommended rat-
ing AKI 91 or above.15.9 US gallons (60 liters)
Engine oil (with filter replacement)See page 274 for information on engine oil
specifications.6.1 US quarts (5.8 liters)
Automatic transmission oilJWS 33098.14 US quarts (7.7 liters)
CoolantVolvo original coolant/antifreeze (50/50 mix-
ture of water and anti-freeze)10.5 US quarts (10 liters) – models with automatic
transmission
Brake fluidDOT 4+ boiling point >536 °F (280 °C), P/N
94374330.63 US quarts (0.6 liters)
Power steering fluidWSS M2C204-A or equivalent1.3 US quarts (1.2 liters) – system and reservoir com-
bined
Washer fluid reservoirUse washer fluid solvent in cold weather con-
ditions.4.2 US qts (4 liters)
Air conditioning systemRefrigerant – R134a1.2 lbs. (530 grams)

11 Specifications
Fuel, oils, and fluids
11
274
NOTE
The transmission oil does not normally need
to be changed during the service life of the
vehicle. However, it may be necessary to
replace the oil if the vehicle is often driven
in areas of sustained temperature extremes
(hot or cold), when towing a trailer over long
distances, for prolonged driving in moun-
tainous areas, or if the vehicle is often driven
short distances in temperatures under 40 °F
(5 °C).

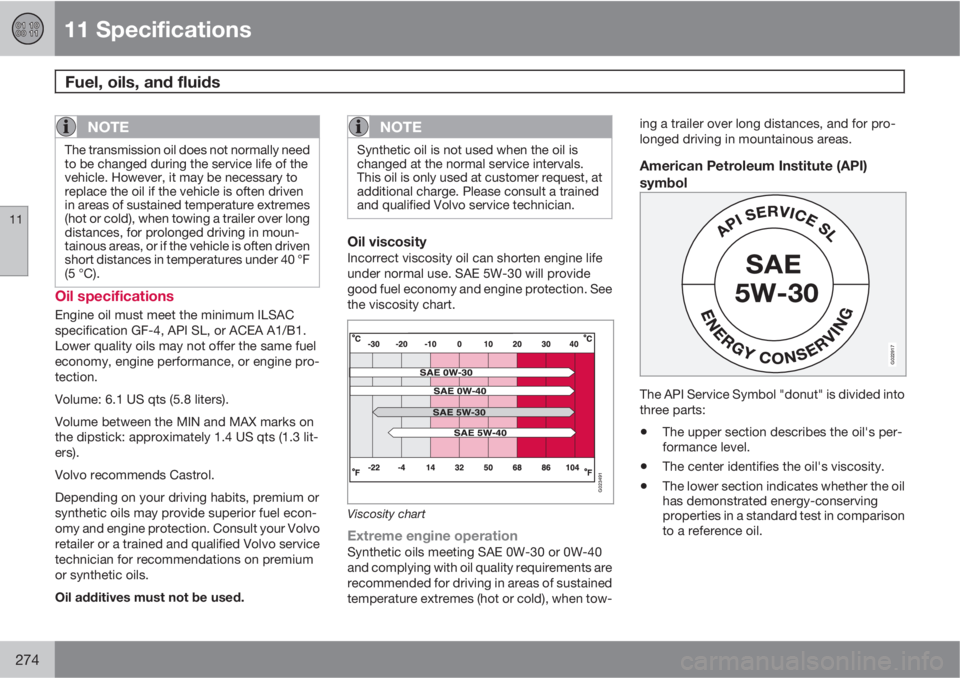

Oil specifications
Engine oil must meet the minimum ILSAC
specification GF-4, API SL, or ACEA A1/B1.
Lower quality oils may not offer the same fuel
economy, engine performance, or engine pro-
tection.
Volume: 6.1 US qts (5.8 liters).
Volume between the MIN and MAX marks on
the dipstick: approximately 1.4 US qts (1.3 lit-
ers).
Volvo recommends Castrol.
Depending on your driving habits, premium or
synthetic oils may provide superior fuel econ-
omy and engine protection. Consult your Volvo
retailer or a trained and qualified Volvo service
technician for recommendations on premium
or synthetic oils.
Oil additives must not be used.
NOTE
Synthetic oil is not used when the oil is
changed at the normal service intervals.
This oil is only used at customer request, at
additional charge. Please consult a trained
and qualified Volvo service technician.
Oil viscosityIncorrect viscosity oil can shorten engine life
under normal use. SAE 5W-30 will provide
good fuel economy and engine protection. See
the viscosity chart.
G023491
Viscosity chart
Extreme engine operationSynthetic oils meeting SAE 0W-30 or 0W-40
and complying with oil quality requirements are
recommended for driving in areas of sustained
temperature extremes (hot or cold), when tow-ing a trailer over long distances, and for pro-
longed driving in mountainous areas.
American Petroleum Institute (API)
symbol
G022917
The API Service Symbol "donut" is divided into
three parts:
•The upper section describes the oil's per-
formance level.
•The center identifies the oil's viscosity.
•The lower section indicates whether the oil
has demonstrated energy-conserving
properties in a standard test in comparison
to a reference oil.

11 Specifications
Engine specifications
11

275
Engine designationB5254T7
OutputA
kW/rps
hp/rpm169/83
227/5000
TorqueA
Nm/rps
ft. lbs./rpm320/25-80
236/1500-4800
No. of cylinders5
Displacement (liters/cubic inches)2.52/153.8
Bore (mm/in.)83/3.27
Stroke (mm/in.)93.2/3.67
Compression ratio9.0:1
Spark plugs
type
gap inches/mm
tightening torque ft. lbs./Nm
Volvo kit no. 30650379
0.027 in./0.7mm
22.5 ft. lbs./30 Nm
AThe engine specifications for output and torque listed in this table are based on the use of premium fuel.
Charge air cooler (Intercooler)
The engine employs a turbo-compressor to
force air into the engine intake manifold and a
charge air cooler to cool the compressed inletair. The resulting increase in air flow raises
pressure in the intake manifold and increases
engine power over that developed by the nor-
mally-aspirated engine. The charge air cooler(which resembles a radiator) is located
between the turbo-compressor and intake
manifold.

11 Specifications
Engine specifications
11
276
Fuel system
The engine is equipped with a multiport fuel
injection system.

11 Specifications
Electrical system
11

* Option/accessory, for more information, see Introduction.277 General information
12-volt system with voltage controlled gener-
ator. Single wire system in which the chassis
and engine block are used as conductors,
grounded on the chassis.
Battery
Voltage12 V
Cold start capacity (CCA)700 AA
Reserve capacity (RC)135 min
Capacity (Ah)80
AModels equipped with the Premium Sound audio system,
the Volvo Navigation System and/or keyless drive.
If the battery must be replaced, replace it with
one with the same cold start capacity and
reserve capacity as the original (see the decal
on the battery).
WARNING
PROPOSITION 65 WARNING!
Battery posts, terminals, and related acces-
sories contain lead and lead compounds,
chemicals known to the state of California
to cause cancer and reproductive harm.
Wash hands after handling.
Bulbs used in the car
BulbOutputType
Low beam headlights (models with halogen headlights)55WH7
High beam headlights (models with halogen headlights)65WH9
High beam headlights (models with Active Bending Lights* only)55WH7
Back-up lights, rear fog light21WP21W
Front turn signals24WPY24WSW

11 Specifications
Electrical system
11
278* Option/accessory, for more information, see Introduction.

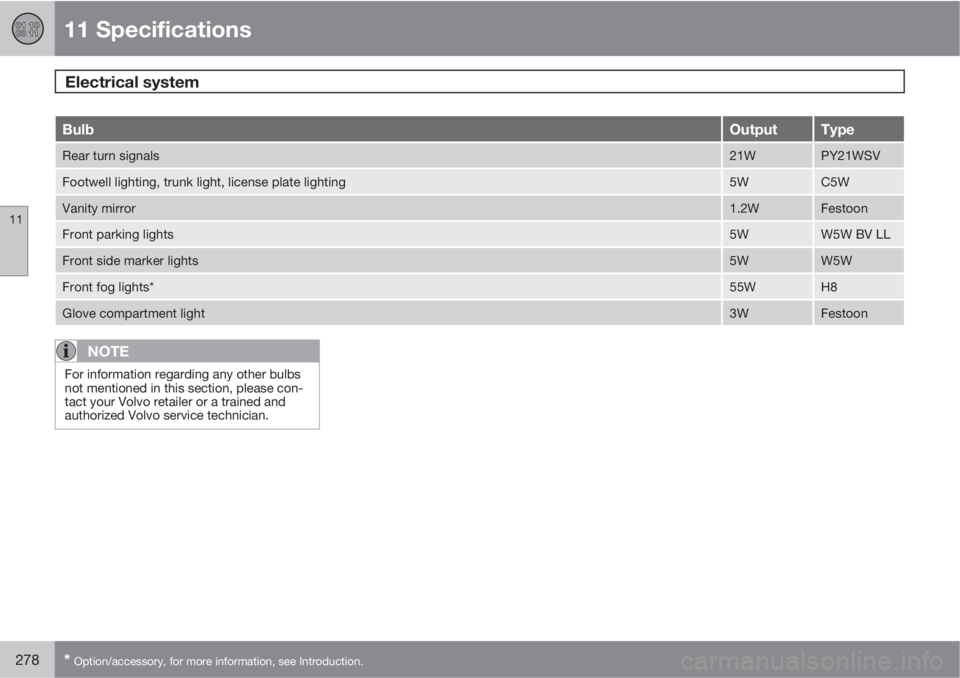

BulbOutputType
Rear turn signals21WPY21WSV
Footwell lighting, trunk light, license plate lighting5WC5W
Vanity mirror1.2WFestoon
Front parking lights5WW5W BV LL
Front side marker lights5WW5W
Front fog lights*55WH8
Glove compartment light3WFestoon
NOTE
For information regarding any other bulbs
not mentioned in this section, please con-
tact your Volvo retailer or a trained and
authorized Volvo service technician.

11 Specifications
Three-way catalytic converter
11

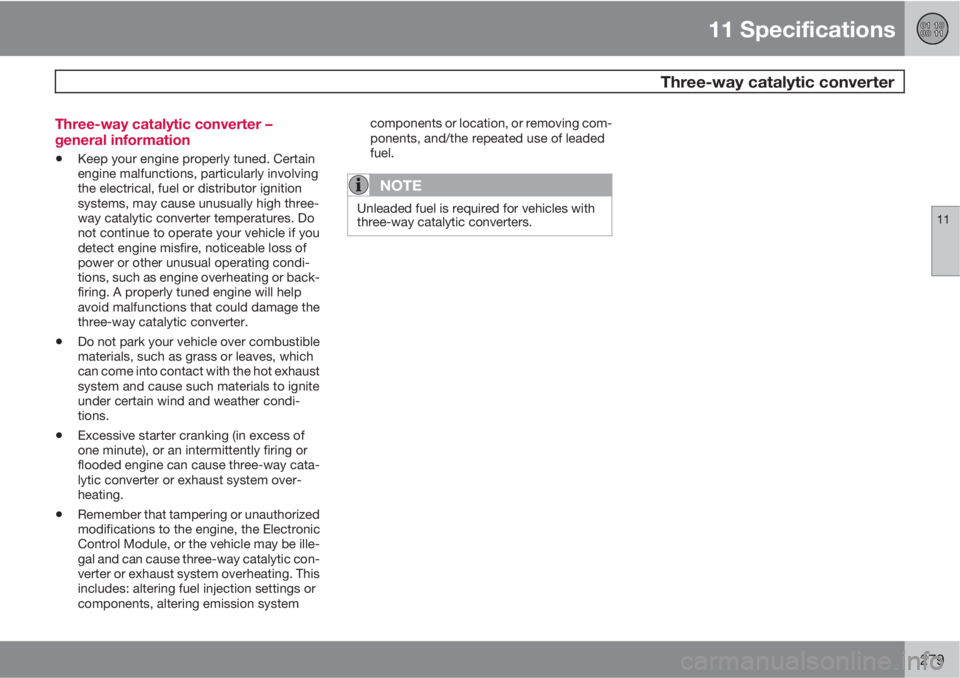

279 Three-way catalytic converter –
general information
•Keep your engine properly tuned. Certain
engine malfunctions, particularly involving
the electrical, fuel or distributor ignition
systems, may cause unusually high three-
way catalytic converter temperatures. Do
not continue to operate your vehicle if you
detect engine misfire, noticeable loss of
power or other unusual operating condi-
tions, such as engine overheating or back-
firing. A properly tuned engine will help
avoid malfunctions that could damage the
three-way catalytic converter.
•Do not park your vehicle over combustible
materials, such as grass or leaves, which
can come into contact with the hot exhaust
system and cause such materials to ignite
under certain wind and weather condi-
tions.
•Excessive starter cranking (in excess of
one minute), or an intermittently firing or
flooded engine can cause three-way cata-
lytic converter or exhaust system over-
heating.
•Remember that tampering or unauthorized
modifications to the engine, the Electronic
Control Module, or the vehicle may be ille-
gal and can cause three-way catalytic con-
verter or exhaust system overheating. This
includes: altering fuel injection settings or
components, altering emission systemcomponents or location, or removing com-
ponents, and/the repeated use of leaded
fuel.
NOTE
Unleaded fuel is required for vehicles with
three-way catalytic converters.

11 Specifications
Overview of information and warning symbols
11
280* Option/accessory, for more information, see Introduction.

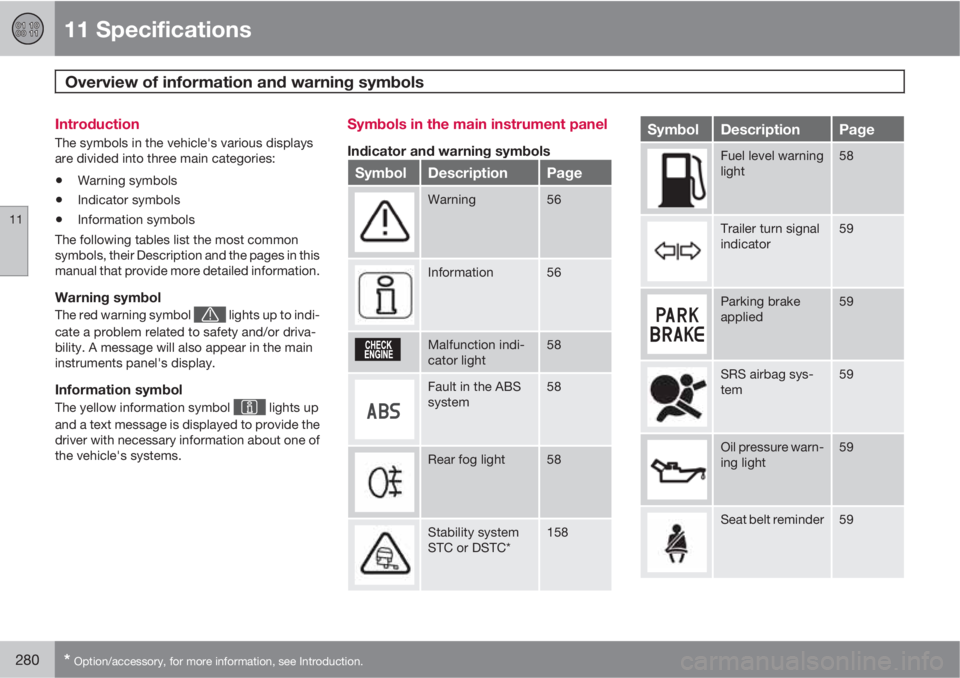

Introduction
The symbols in the vehicle's various displays
are divided into three main categories:
•Warning symbols
•Indicator symbols
•Information symbols
The following tables list the most common
symbols, their Description and the pages in this
manual that provide more detailed information.
Warning symbol
The red warning symbol lights up to indi-
cate a problem related to safety and/or driva-
bility. A message will also appear in the main
instruments panel's display.
Information symbol
The yellow information symbol lights up
and a text message is displayed to provide the
driver with necessary information about one of
the vehicle's systems.
Symbols in the main instrument panel
Indicator and warning symbols
SymbolDescriptionPage
Warning56
Information56
Malfunction indi-
cator light58
Fault in the ABS
system58
Rear fog light58
Stability system
STC or DSTC*158
SymbolDescriptionPage
Fuel level warning
light58
Trailer turn signal
indicator59
Parking brake
applied59
SRS airbag sys-
tem59
Oil pressure warn-
ing light59
Seat belt reminder59
