Page 7 of 294
Contents
7
09
09 Maintenance and servicing
Volvo maintenance.................................. 214
Maintaining your car............................... 215
Hood.......................................................217
Engine compartment............................... 218
Engine oil................................................ 219
Fluids...................................................... 221
Wiper blades........................................... 223
Battery..................................................... 224
Replacing bulbs...................................... 226
Fuses...................................................... 234
10
10 Audio
Introduction ............................................ 244
Audio functions....................................... 245
Radio functions....................................... 251

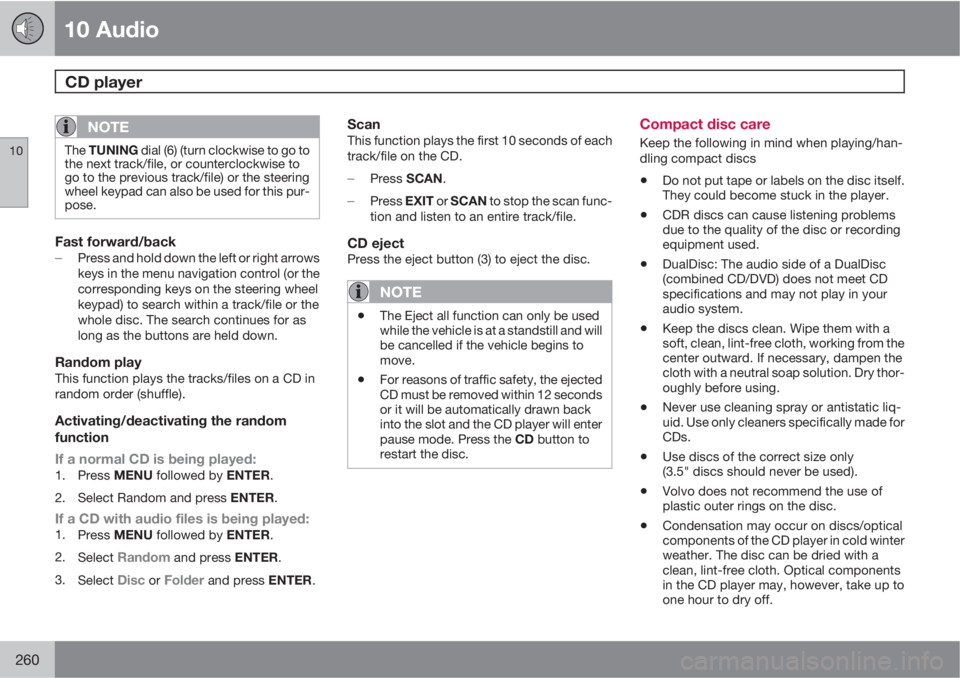

CD player................................................ 259
Audio menu............................................. 262
Bluetooth
® hands-free connection......... 263
11
11 Specifications
Label information.................................... 270
Dimensions and weights......................... 272
Fuel, oils, and fluids................................ 275
Engine oil................................................ 277
Engine specifications.............................. 278
Electrical system..................................... 280
Three-way catalytic converter................. 281
Overview of information and warning sym-
bols......................................................... 282
Volvo programs....................................... 284
Page 242 of 294
242
Introduction .......................................................................................... 244
Audio functions..................................................................................... 245
Radio functions..................................................................................... 251
CD player.............................................................................................. 259
Audio menu........................................................................................... 262
Bluetooth
® hands-free connection....................................................... 263
Page 245 of 294
10 Audio
Audio functions
10
245 Audio system controls
VOLUME dial
AM/FM – select a radio band
MODE – select a sound source
TUNING dial
SOUND button
Navigation controls/menu selections
VolumeUse the volume dial (1) or the buttons in the
steering wheel keypad to adjust the volume
level. The volume level is also adjusted auto-matically according to the vehicle's speed, see
page 249 for more information on this func-
tion.
Selecting a sound source
Press AM/FM (2) repeatedly to toggle
between FM1, FM2, and AM.
Press MODE (3) repeatedly to toggle
between the CD player and the external
sound source AUX, USB, the optional Sir-
ius satellite radio or BT
1.
The currently selected sound source will be
shown in the display.
Daytime/twilight displayIn daylight the information in the center console
screen is displayed against a light background.
In darkness it is displayed against a dark back-
ground.
Steering wheel keypad
G026424
Steering wheel keypad
The four buttons on the steering wheel keypad
can also be used to control the audio system.
These buttons can be used to adjust volume,
shift between preset stations and change CD
tracks. Press one of the two left-hand buttons
briefly to change to the next/previous preset
radio station, or to go to the next/previous track
on a CD. Press and hold down these buttons
to search within a track on a CD.
1Bluetooth Ÿ streaming audio
Page 246 of 294
10 Audio
Audio functions
10
246
USB/AUX connector
Connectors in the center console
AUX socket
USB connector
An auxiliary device, such as an iPod Ÿ
2, MP3
player or a USB flash drive can be connected
to the audio system via the connectors in the
center console storage compartment. A stand-
ard cable from an iPod Ÿ or MP3 player can be
routed under the cover to the connector(s) in
the storage compartment.If the device is being charged through a 12-volt
socket while it is connected to the AUX or port,
sound quality may be impaired.
A sound source must be chosen, depending on
the device that has been connected:
1.
Use MODE to select
iPod or USB. The textConnect device will be displayed.
2. Connect the device to the connector in the
center console storage compartment (see
the illustration).
The text
LOADING will be displayed while the
system loads the files (folder structure) on the
device. This may take a short time.
When information about the files (the folder
structure) on the device has been loaded, the
resulting list includes information on the artist,
genre and song title.
To navigate in the folder structure, press
ENTER and scroll up and down the folders
using the arrow buttons (on the audio system
control panel or on the steering wheel keypad).
Press the right arrow button to select a folder.
Press the left arrow button to go up a level in
the folder structure. Press ENTER to go down
a level in the folder structure.
Tracks can be selected in two ways:
Turn the Tuning knob (no. 4 in the illustra-
tion on page 251) clockwise or counter-
clockwise.
Use the right or left arrow keys on the nav-
igation control (no. 5 in the illustration on
page 251) to select the desired track. The
arrow keys on the steering wheel keypad
can also be used in the same way.
NOTE
•The system supports a number of
iPod Ÿ models produced in 2005 or later.
•In order to help avoid damage to the
USB socket, it will be switched off if
there is a short circuit or if the con-
nected device uses too much current
(which can happen if the device does
not comply with the USB standard). The
USB socket will reactivate the next time
the ignition is switched on if the problem
no longer exists. If the problem persists,
contact a trained and authorized Volvo
service technician.
USB flash driveTo simplify the use of a USB flash drive, it is
advisable to only store music files on the drive.
It will take considerably longer for the system
2Registered trademark of Apple Computer Inc.
Page 247 of 294
10 Audio
Audio functions
10
247
to index the files on the drive if it contains any-
thing other than compatible music files.
NOTE
•The system supports removable media
that uses the USB 2.0 standard and the
FAT32 file system. It can index up to
1,000 folders and a maximum of 254
sub-folders/files for each folder. How-
ever, the highest folder level can sup-
port up to 1,000 sub-folders/files.
•When using a longer type of USB
device, connecting it with a USB
adapter cable will help reduce mechan-
ical wear on the USB socket and on the
device.
MP3 playerMany MP3 players have a file indexing system
that is not supported by the vehicle's audio
system. In order to use an MP3 player, the sys-
tem must be set to USB Removable device/
Mass Storage Device.
iPod Ÿ
An iPod Ÿ receives current and its battery is
charged through the connecting cord. How-
ever, if the iPod's battery is completely
drained, it should be recharged before the
iPod Ÿ is connected to the audio system.
NOTE
When an iPod Ÿ is used as a sound source,
the vehicle's audio system has a menu
structure similar to the one in the iPod
Ÿ. See
the iPod's manual for detailed information.
For further information, refer to the accessory
manual USB/iPod Ÿ Music Interface.
Adjusting volume for an external deviceThe volume of an external device may be dif-
ferent from the volume of the internal sound
sources such as the CD player or the radio. It
the external device's volume is too high, the
quality of the sound may be impaired. To help
prevent this, adjust the external device's input
volume as follows:
1. While playing the radio or a CD, lower the
audio volume to about one-quarter.
2.
Switch to
AUX mode on the audio system
by pressing the MODE button.
3. Connect the headphone output from your
music player to the AUX input using a cable
with a stereo 3.5 mm miniplug at both
ends.
4. Set your music player's headphone vol-
ume to three-quarters using the player's
volume controls.5.
Press MENU on the audio system, and
navigate to
AUX input volume.
6. Turn the volume knob to raise or lower the
AUX input volume until you hear music at
a comfortable level.
7. If there is distortion, lower your music play-
er's headphone volume until the distortion
goes away.
8. Finally, exit the menu and adjust the audio
volume to a comfortable level.
Bluetooth Ÿ streaming audio (BT)The vehicle's audio system is equipped with
Bluetooth Ÿ, which makes it possible to play
streaming audio files from a Bluetooth Ÿ device
such as a cell phone or personal digital assis-
tant (PDA). Navigation and control of the device
can be done through the vehicle's center con-
sole control panel or the steering wheel key-
pad. On certain external devices, it is also pos-
sible to change tracks from the device itself.
In order to listen streaming audio, BT must be
selected as a sound source (see page 245) and
a Bluetooth
Ÿ device must be connected
(paired) with the audio system. See page 263
for more information.
Page 248 of 294
10 Audio
Audio functions
10
248
NOTE
Any Bluetooth media players used must
support Audio/Video Remote Control Pro-
file (AVRCP) and Advanced Audio Distribu-
tion Profile (A2DP). The player must use
AVRCP version 1.3 and A2DP 1.2. If older
versions of these standards are used, cer-
tain features (e.g., scan or random) may not
function.
Not all cell phones or media players are fully
compatible with the vehicle's Bluetooth sys-
tem. A list of compatible devices is available
at you Volvo retailer or at www.volvo-
cars.us.
Listening to streaming audioPress MODE several times to select BT as a
sound source.
Audio files on the connected device can be
selected in three ways:
•Turn the TUNING dial (4) in either direction.
•Use the navigation bottons / (6) to
select an audio file.
•Use the / buttons on the steering
wheel keypads.
Sound settings
Optimal sound reproductionThe audio system is calibrated for optimal
sound reproduction through the use of digital
signal processing. This calibration takes into
account the speakers, amplifier, cabin acous-
tics, the seating position of the listener, etc., for
each combination of vehicle and audio system.
There is also dynamic calibration that takes
into account the setting of the volume control,
radio reception, and the vehicle's speed. The
sound settings described in this manual, such
as
BASS, TREBLE, and Equalizer front…/Equalizer rear… are only intended to enable
the user to adapt sound reproduction to his/her
personal preferences.
1.
Press SOUND (5). Press this button
repeatedly until you come to the setting
that you wish to change.
2.
Turn the TUNING dial (4) to make the
desired setting.
The following settings can be made:
BASS–set the bass level
TREBLE–set the treble level
BALANCE–set the left/right sound balance
FADER–set the front/rear sound balance
Subwoofer (accessory)–set the level for the
subwoofer (bass speaker)
CENTER–make settings for the center speaker
SURROUND–make settings for surround
sound
Subwoofer (accessory)To switch the subwoofer on or off:
1.
Press MENU followed by ENTER.
2.
Select
AUDIO SETTINGS and press
ENTER.
3.
Select
SUBWOOFER and press ENTER.
Surround soundSurround sound settings are used to
balance sound levels throughout the
vehicle. Surround settings for the var-
ious sound sources are made sepa-
rately.
G021216
Page 259 of 294
10 Audio
CD player
10
259 CD function controls
MENU NAVIGATION CONTROL–press
the up or down arrow keys to scroll in a
menu, or the keys on the left/right sides of
the control to change CD tracks/fast for-
ward/back
CD eject button
CD slot
MODE button
TUNING dial for selecting tracks
CD player
Playing a CDStart the CD player by pressing the MODE but-
ton (5) and inserting a disc in the slot (4). If there
is already a disc inserted, it will begin to play.
NOTE
If a CD is in the slot when the audio system
is in CD mode, the CD will be played auto-
matically.
CD eject
Press the eject button (3) to eject the disc.
CD PauseWhen the audio system volume is turned off
completely, the CD player will pause and will
resume playing when the volume is turned up
again.
Audio filesIn addition to playing normal music CDs, the
CD player can also play discs containing files
in mp3 or wma format.
NOTE
Certain discs that are copy protected can-
not be read by the player.
When a disc with audio files is inserted in the
player, the player scans the disc's folders
before it begins playing the files. The length of
time that this takes depends on the quality of
the disc.
Navigating the disc and playing tracksIf a disc with audio files is in the CD player,
press ENTER to display a list of folders on the
disc.
Use the up and down arrows in the navigation
control (see the illustration on page 259) to
move among the folders on the disc. Audio files
have the
symbol and folders containing
these files have the
symbol. Press
ENTER to play a selected folder or a file.
When the music file has been played, the
player will continue to play the rest of the files
in the current folder. When all of the files in the
folder have been played, the player will auto-
matically go to the next folder and play the files
in it.
Press the left or right arrow key on the naviga-
tion control if the entire name of the current
track does not fit in the display.
Changing tracksBriefly press the left or right arrow keys on the
MENU NAVIGATION CONTROL to skip to the
previous or next track/file.
Page 260 of 294
10 Audio
CD player
10
260
NOTE
The TUNING dial (6) (turn clockwise to go to
the next track/file, or counterclockwise to
go to the previous track/file) or the steering
wheel keypad can also be used for this pur-
pose.
Fast forward/back
Press and hold down the left or right arrows
keys in the menu navigation control (or the
corresponding keys on the steering wheel
keypad) to search within a track/file or the
whole disc. The search continues for as
long as the buttons are held down.
Random playThis function plays the tracks/files on a CD in
random order (shuffle).
Activating/deactivating the random
function
If a normal CD is being played:
1.
Press MENU followed by ENTER.
2.
Select Random and press ENTER.
If a CD with audio files is being played:1.
Press MENU followed by ENTER.
2.
Select
Random and press ENTER.
3.
Select
Disc or Folder and press ENTER.
ScanThis function plays the first 10 seconds of each
track/file on the CD.
Press SCAN.
Press EXIT or SCAN to stop the scan func-
tion and listen to an entire track/file.
CD ejectPress the eject button (3) to eject the disc.
NOTE
•The Eject all function can only be used
while the vehicle is at a standstill and will
be cancelled if the vehicle begins to
move.
•For reasons of traffic safety, the ejected
CD must be removed within 12 seconds
or it will be automatically drawn back
into the slot and the CD player will enter
pause mode. Press the CD button to
restart the disc.
Compact disc care
Keep the following in mind when playing/han-
dling compact discs
•Do not put tape or labels on the disc itself.
They could become stuck in the player.
•CDR discs can cause listening problems
due to the quality of the disc or recording
equipment used.
•DualDisc: The audio side of a DualDisc
(combined CD/DVD) does not meet CD
specifications and may not play in your
audio system.
•Keep the discs clean. Wipe them with a
soft, clean, lint-free cloth, working from the
center outward. If necessary, dampen the
cloth with a neutral soap solution. Dry thor-
oughly before using.
•Never use cleaning spray or antistatic liq-
uid. Use only cleaners specifically made for
CDs.
•Use discs of the correct size only
(3.5" discs should never be used).
•Volvo does not recommend the use of
plastic outer rings on the disc.
•Condensation may occur on discs/optical
components of the CD player in cold winter
weather. The disc can be dried with a
clean, lint-free cloth. Optical components
in the CD player may, however, take up to
one hour to dry off.
Page 261 of 294
10 Audio
CD player
10
261
•Never attempt to play a damaged CD.
•When not in use, the discs should be
stored in their covers. Avoid storing discs
in excessive heat, direct sunlight or in
dusty locations.
Page 287 of 294
12 Index
12
287
Bulbs
headlights........................................... 226
list of................................................... 232
Bulbs, replacing....................................... 226
C
Capacities, fluids..................................... 275
Capacity weight............................... 185, 273
Catalytic converter, three-way................. 281
CD player................................................. 259
Cell phone, hands-free connection......... 263
Central locking system - remote key....... 122
Chains...................................................... 188
Changing a wheel.................................... 199
Child restraints
recalls and registration......................... 40
Child restraint systems.............................. 41
booster cushions.................................. 47
ISOFIX/LATCH anchors........................ 48
Child safety................................................ 39
booster cushions.................................. 47
child restraint systems.......................... 41Climate system
air distribution....................................... 95
air vents................................................ 90
Electronic Climate Control.................... 91
Interior Air Quality System.................... 92
passenger compartment filter.............. 88
recirculation.......................................... 92
refrigerant.....................................88, 275
Climate system, general information......... 88
Clock
setting................................................... 81
Cold weather precautions........................ 141
Compact disc care..................................260
Compass in rearview mirror....................... 78
Conserving electrical current................... 142
Convertible top (Power retractable hard
top)........................................................... 106
Coolant.................................................... 275
changing............................................. 221
checking level of................................. 221
Courtesy lighting...................................... 111
Crash mode............................................... 38
Cruise control............................................ 72
Cup holders.....................................113, 116
Curb weight.....................................185, 273
D
Daytime running lights.........................64, 65
Detachable key blade.............................. 124
Detachable trailer hitch............................ 166
Dimensions.............................................. 272
Disconnecting the front passenger’s air-
bag............................................................. 29
Display.......................................................61
Dolby Pro Logic II (DPL II)........................ 248
Door mirrors............................................... 79
Door Mounted Inflatable Curtain system
(DMIC)........................................................ 34
Driver distraction warning.......................... 15
Driving economically................................ 140
Driving through water..............................140
DSTC, stability system............................ 158
E
Economical driving.................................. 140
Electrical current – conserving................ 142
Electrical system...................................... 280
