roof VOLVO C70 2012 Owner´s Manual

04 Interior
Front seats
04
104
NOTE
The memory function in the remote key
operates independently the memory func-
tion in the seat.
WARNING
•Because the driver's seat can be
adjusted with the ignition off, children
should never be left unattended in the
car.
•Movement of the seat can be STOPPED
at any time by pressing any button on
the power seat control panel.
•Do not adjust the seat while driving. The
seat should be adjusted so that the
brake pedal can be depressed fully. In
addition, position the seat as far rear-
ward as comfort and control allow.
•The seat rails on the floor must not be
obstructed in any way when the seat is
in motion.
Adjusting the front seat head restraints
The front seat head restraints are designed so
that they can be adjusted to two different
height positions.
NOTE
•When the vehicle leaves the factory, the
front seat head restraints will be in the
lower position.
•Due to the low roofline of the Volvo C70,
it is necessary to have the front seat
head restraints in the lowest position if
you wish to fold the seat's backrest for-
ward or operate the power retractable
hard top.
The head restraints should be put in the upper
or lower position according to the height of the
occupant of the seat.
The upper edge of the head restraint should be
at least on a level with the upper-most point of
the seat occupant's ear (see illustration).
To raise or lower a head restraint:
Raising or lowering a head restraint1. Release the head restraint by pressing the
button underneath its left side, at the base
of the support (see the illustration).
2. Move the head restraint until it clicks
(locks) into the upper or lower position.

04 Interior
Power retractable hard top
04
106

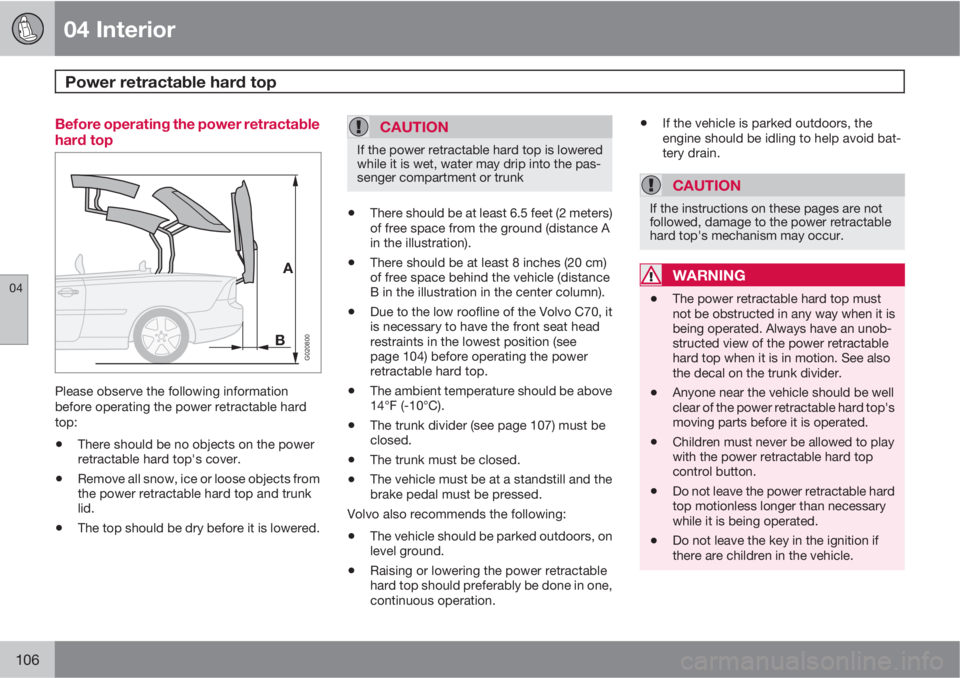

Before operating the power retractable
hard top
A
BG020800
Please observe the following information
before operating the power retractable hard
top:
•There should be no objects on the power
retractable hard top's cover.
•Remove all snow, ice or loose objects from
the power retractable hard top and trunk
lid.
•The top should be dry before it is lowered.
CAUTION
If the power retractable hard top is lowered
while it is wet, water may drip into the pas-
senger compartment or trunk
•There should be at least 6.5 feet (2 meters)
of free space from the ground (distance A
in the illustration).
•There should be at least 8 inches (20 cm)
of free space behind the vehicle (distance
B in the illustration in the center column).
•Due to the low roofline of the Volvo C70, it
is necessary to have the front seat head
restraints in the lowest position (see
page 104) before operating the power
retractable hard top.
•The ambient temperature should be above
14°F (-10°C).
•The trunk divider (see page 107) must be
closed.
•The trunk must be closed.
•The vehicle must be at a standstill and the
brake pedal must be pressed.
Volvo also recommends the following:
•The vehicle should be parked outdoors, on
level ground.
•Raising or lowering the power retractable
hard top should preferably be done in one,
continuous operation.
•If the vehicle is parked outdoors, the
engine should be idling to help avoid bat-
tery drain.
CAUTION
If the instructions on these pages are not
followed, damage to the power retractable
hard top's mechanism may occur.
WARNING
•The power retractable hard top must
not be obstructed in any way when it is
being operated. Always have an unob-
structed view of the power retractable
hard top when it is in motion. See also
the decal on the trunk divider.
•Anyone near the vehicle should be well
clear of the power retractable hard top's
moving parts before it is operated.
•Children must never be allowed to play
with the power retractable hard top
control button.
•Do not leave the power retractable hard
top motionless longer than necessary
while it is being operated.
•Do not leave the key in the ignition if
there are children in the vehicle.

04 Interior
Power retractable hard top
04
108

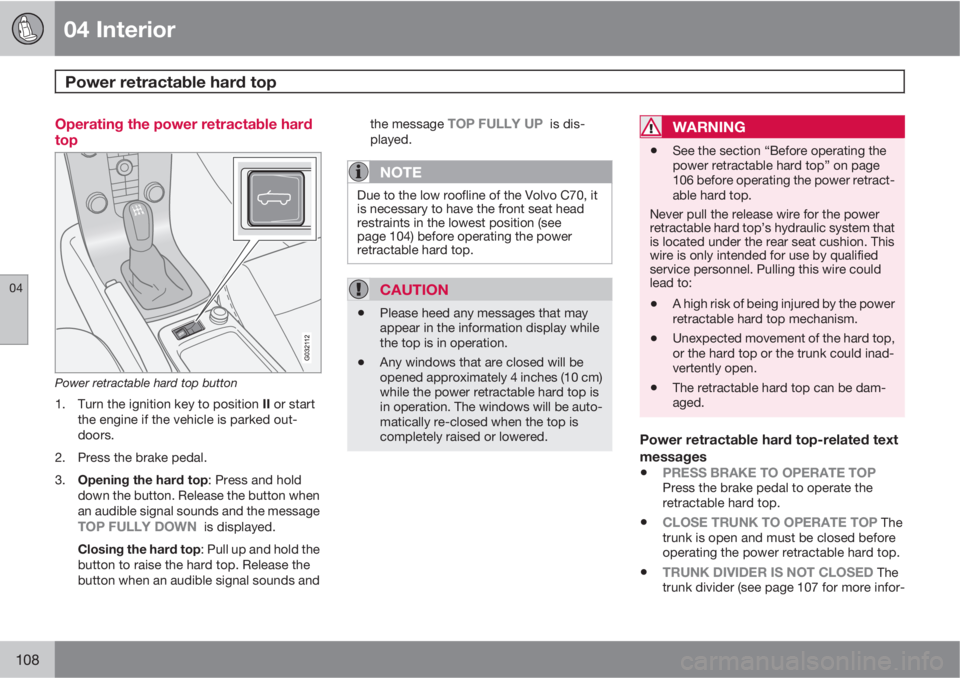

Operating the power retractable hard
top
Power retractable hard top button
1.
Turn the ignition key to position II or start
the engine if the vehicle is parked out-
doors.
2. Press the brake pedal.
3.
Opening the hard top: Press and hold
down the button. Release the button when
an audible signal sounds and the message
TOP FULLY DOWN is displayed.
Closing the hard top: Pull up and hold the
button to raise the hard top. Release the
button when an audible signal sounds andthe message
TOP FULLY UP is dis-
played.
NOTE
Due to the low roofline of the Volvo C70, it
is necessary to have the front seat head
restraints in the lowest position (see
page 104) before operating the power
retractable hard top.
CAUTION
•Please heed any messages that may
appear in the information display while
the top is in operation.
•Any windows that are closed will be
opened approximately 4 inches (10 cm)
while the power retractable hard top is
in operation. The windows will be auto-
matically re-closed when the top is
completely raised or lowered.
WARNING
•See the section “Before operating the
power retractable hard top” on page
106 before operating the power retract-
able hard top.
Never pull the release wire for the power
retractable hard top’s hydraulic system that
is located under the rear seat cushion. This
wire is only intended for use by qualified
service personnel. Pulling this wire could
lead to:
•A high risk of being injured by the power
retractable hard top mechanism.
•Unexpected movement of the hard top,
or the hard top or the trunk could inad-
vertently open.
•The retractable hard top can be dam-
aged.
Power retractable hard top-related text
messages
•PRESS BRAKE TO OPERATE TOPPress the brake pedal to operate the
retractable hard top.
•CLOSE TRUNK TO OPERATE TOP The
trunk is open and must be closed before
operating the power retractable hard top.
•TRUNK DIVIDER IS NOT CLOSED The
trunk divider (see page 107 for more infor-

10 Audio
Radio functions
10

255

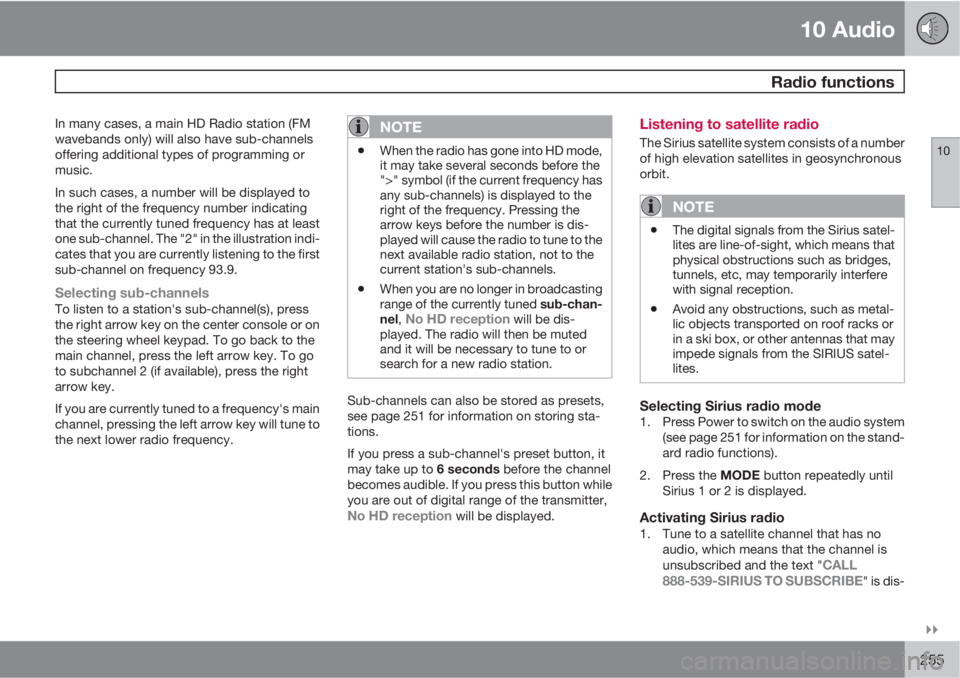

In many cases, a main HD Radio station (FM
wavebands only) will also have sub-channels
offering additional types of programming or
music.
In such cases, a number will be displayed to
the right of the frequency number indicating
that the currently tuned frequency has at least
one sub-channel. The "2" in the illustration indi-
cates that you are currently listening to the first
sub-channel on frequency 93.9.
Selecting sub-channelsTo listen to a station's sub-channel(s), press
the right arrow key on the center console or on
the steering wheel keypad. To go back to the
main channel, press the left arrow key. To go
to subchannel 2 (if available), press the right
arrow key.
If you are currently tuned to a frequency's main
channel, pressing the left arrow key will tune to
the next lower radio frequency.
NOTE
•When the radio has gone into HD mode,
it may take several seconds before the
">" symbol (if the current frequency has
any sub-channels) is displayed to the
right of the frequency. Pressing the
arrow keys before the number is dis-
played will cause the radio to tune to the
next available radio station, not to the
current station's sub-channels.
•When you are no longer in broadcasting
range of the currently tuned sub-chan-
nel,
No HD reception will be dis-
played. The radio will then be muted
and it will be necessary to tune to or
search for a new radio station.
Sub-channels can also be stored as presets,
see page 251 for information on storing sta-
tions.
If you press a sub-channel's preset button, it
may take up to 6 seconds before the channel
becomes audible. If you press this button while
you are out of digital range of the transmitter,
No HD reception will be displayed.
Listening to satellite radio
The Sirius satellite system consists of a number
of high elevation satellites in geosynchronous
orbit.
NOTE
•The digital signals from the Sirius satel-
lites are line-of-sight, which means that
physical obstructions such as bridges,
tunnels, etc, may temporarily interfere
with signal reception.
•Avoid any obstructions, such as metal-
lic objects transported on roof racks or
in a ski box, or other antennas that may
impede signals from the SIRIUS satel-
lites.
Selecting Sirius radio mode1. Press Power to switch on the audio system
(see page 251 for information on the stand-
ard radio functions).
2.
Press the MODE button repeatedly until
Sirius 1 or 2 is displayed.
Activating Sirius radio1. Tune to a satellite channel that has no
audio, which means that the channel is
unsubscribed and the text "
CALL
888-539-SIRIUS TO SUBSCRIBE" is dis-

11 Specifications
Dimensions and weights
11

273
PositionDimensionIn (mm)
FLoad height, roof up
Load height, roof down20.4 (525)
10.2 (265)
GTrack, front60.1 (1550)
HTrack, rear61.4 (1560)
ILoad width, floor37.8 (960)
JWidth72.3 (1836)A
KWidth incl. door mirrors (folded out)79.6 in. (2025)
LWidth incl. door mirrors (folded in)72.7 in. (1847)
AModels with optional keyless drive 72.9 in. (1851)
Weights
CategoryUSACanada
Gross vehicle weight4560 lbs2070 kg
Capacity weight640 lbs290 kg
Permissible axle weight, front2440 lbs1110 kg
Permissible axle weight, rear2370 lbs1075 kg
Curb weight3810-3820 lbs1720-1740 kg
Max. trailer weight (w/o brakes)1653 lbsAll models: 750 kg
