VOLVO C70 2013 Owner´s Manual

09 Maintenance and servicing
Replacing bulbs09

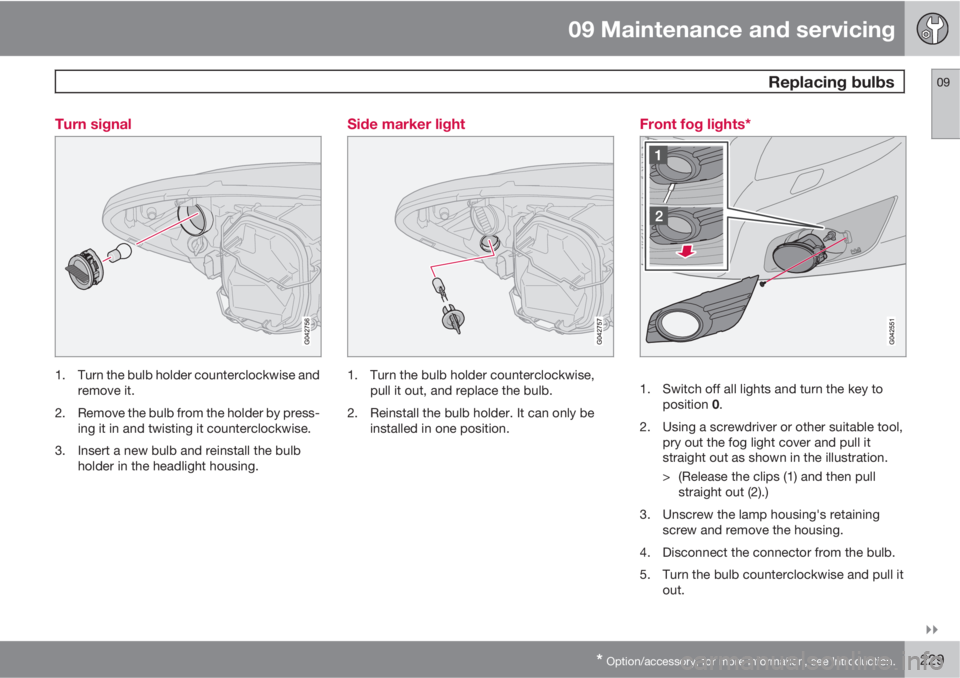

* Option/accessory, for more information, see Introduction.229 Turn signal
1. Turn the bulb holder counterclockwise and
remove it.
2. Remove the bulb from the holder by press-
ing it in and twisting it counterclockwise.
3. Insert a new bulb and reinstall the bulb
holder in the headlight housing.
Side marker light
1. Turn the bulb holder counterclockwise,
pull it out, and replace the bulb.
2. Reinstall the bulb holder. It can only be
installed in one position.
Front fog lights*
1. Switch off all lights and turn the key to
position 0.
2. Using a screwdriver or other suitable tool,
pry out the fog light cover and pull it
straight out as shown in the illustration.
> (Release the clips (1) and then pull
straight out (2).)
3. Unscrew the lamp housing's retaining
screw and remove the housing.
4. Disconnect the connector from the bulb.
5. Turn the bulb counterclockwise and pull it
out.

09 Maintenance and servicing
Replacing bulbs 09
230

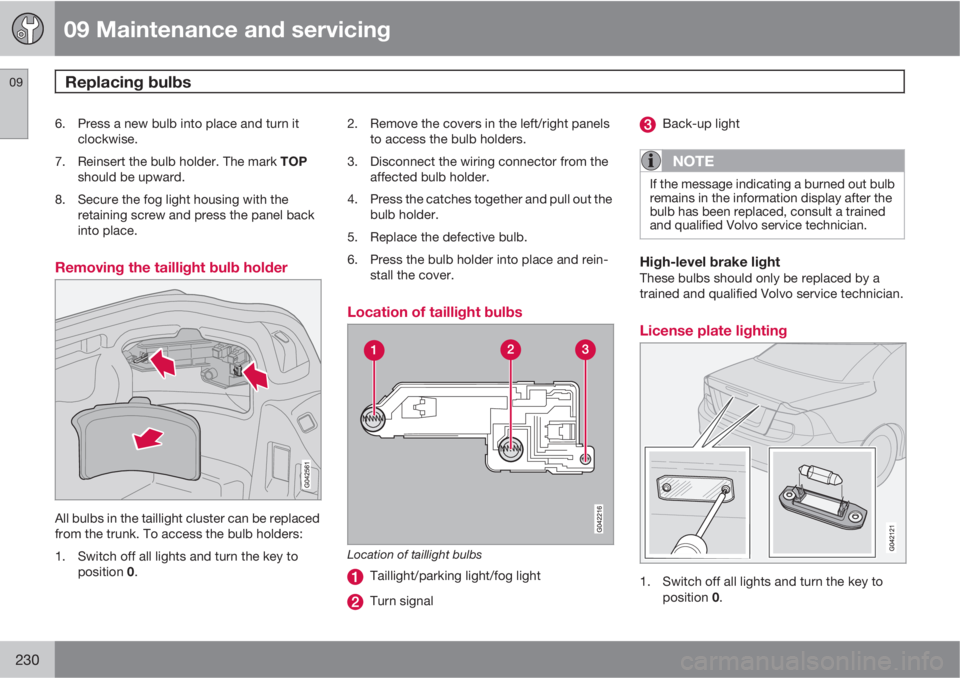

6. Press a new bulb into place and turn it
clockwise.
7.
Reinsert the bulb holder. The mark TOP
should be upward.
8. Secure the fog light housing with the
retaining screw and press the panel back
into place.
Removing the taillight bulb holder
All bulbs in the taillight cluster can be replaced
from the trunk. To access the bulb holders:
1. Switch off all lights and turn the key to
position 0.2. Remove the covers in the left/right panels
to access the bulb holders.
3. Disconnect the wiring connector from the
affected bulb holder.
4. Press the catches together and pull out the
bulb holder.
5. Replace the defective bulb.
6. Press the bulb holder into place and rein-
stall the cover.
Location of taillight bulbs
Location of taillight bulbs
Taillight/parking light/fog light
Turn signal
Back-up light
NOTE
If the message indicating a burned out bulb
remains in the information display after the
bulb has been replaced, consult a trained
and qualified Volvo service technician.
High-level brake lightThese bulbs should only be replaced by a
trained and qualified Volvo service technician.
License plate lighting
1. Switch off all lights and turn the key to
position 0.

09 Maintenance and servicing
Replacing bulbs09

231

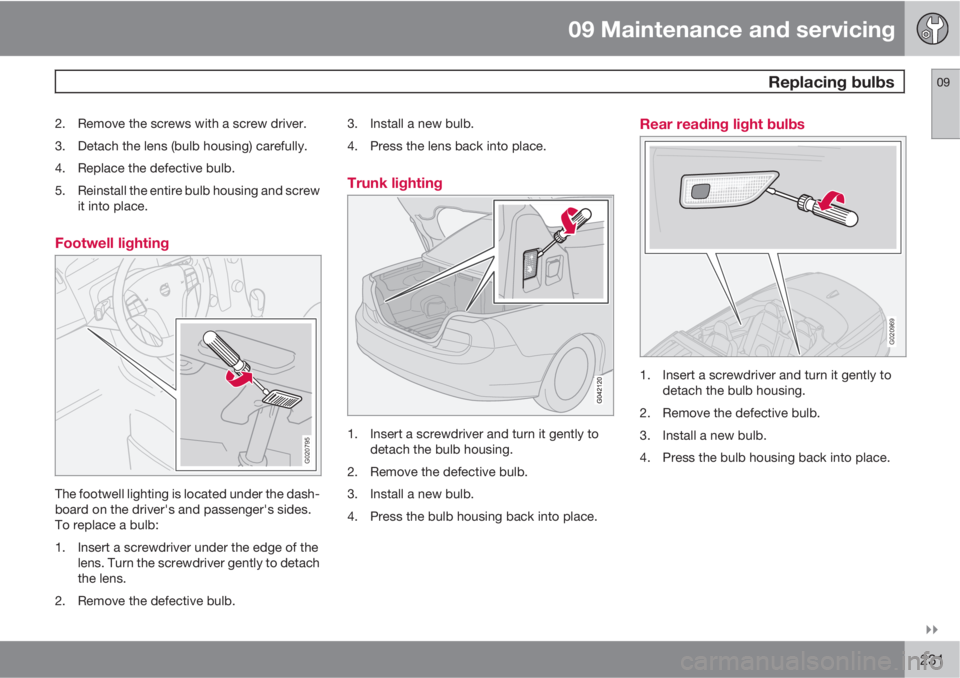

2. Remove the screws with a screw driver.
3. Detach the lens (bulb housing) carefully.
4. Replace the defective bulb.
5. Reinstall the entire bulb housing and screw
it into place.
Footwell lighting
G020795
The footwell lighting is located under the dash-
board on the driver's and passenger's sides.
To replace a bulb:
1. Insert a screwdriver under the edge of the
lens. Turn the screwdriver gently to detach
the lens.
2. Remove the defective bulb.3. Install a new bulb.
4. Press the lens back into place.
Trunk lighting
1. Insert a screwdriver and turn it gently to
detach the bulb housing.
2. Remove the defective bulb.
3. Install a new bulb.
4. Press the bulb housing back into place.
Rear reading light bulbs
G020969
1. Insert a screwdriver and turn it gently to
detach the bulb housing.
2. Remove the defective bulb.
3. Install a new bulb.
4. Press the bulb housing back into place.

09 Maintenance and servicing
Replacing bulbs 09
232* Option/accessory, for more information, see Introduction.

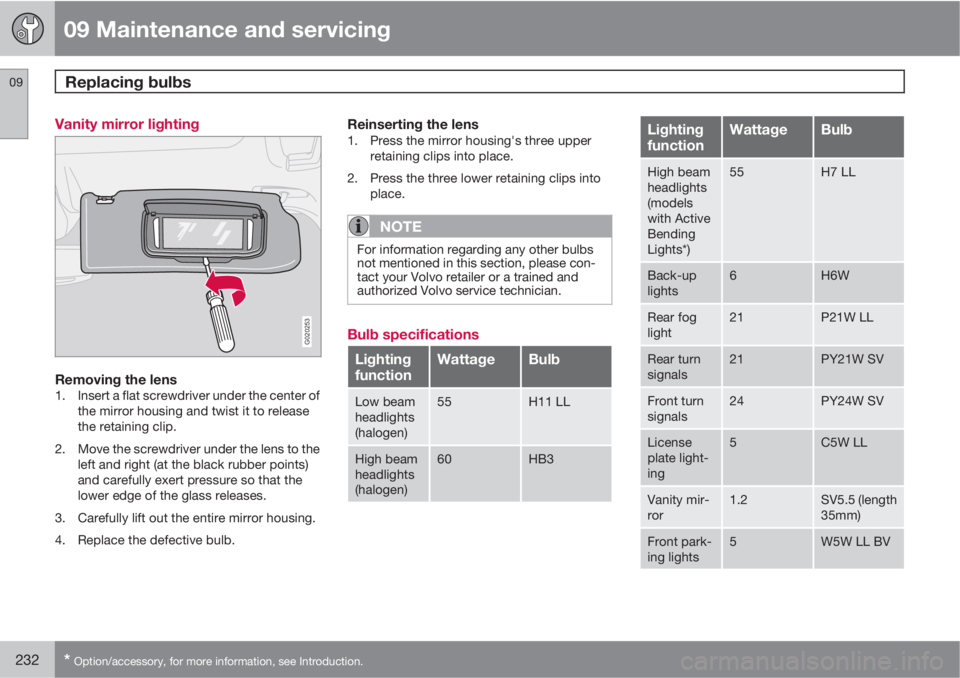

Vanity mirror lighting
G020253
Removing the lens1. Insert a flat screwdriver under the center of
the mirror housing and twist it to release
the retaining clip.
2. Move the screwdriver under the lens to the
left and right (at the black rubber points)
and carefully exert pressure so that the
lower edge of the glass releases.
3. Carefully lift out the entire mirror housing.
4. Replace the defective bulb.
Reinserting the lens1. Press the mirror housing's three upper
retaining clips into place.
2. Press the three lower retaining clips into
place.
NOTE
For information regarding any other bulbs
not mentioned in this section, please con-
tact your Volvo retailer or a trained and
authorized Volvo service technician.
Bulb specifications
Lighting
functionWattageBulb
Low beam
headlights
(halogen)55H11 LL
High beam
headlights
(halogen)60HB3
Lighting
functionWattageBulb
High beam
headlights
(models
with Active
Bending
Lights*)55H7 LL
Back-up
lights6H6W
Rear fog
light21P21W LL
Rear turn
signals21PY21W SV
Front turn
signals24PY24W SV
License
plate light-
ing5C5W LL
Vanity mir-
ror1.2SV5.5 (length
35mm)
Front park-
ing lights5W5W LL BV

09 Maintenance and servicing
Replacing bulbs09
* Option/accessory, for more information, see Introduction.233

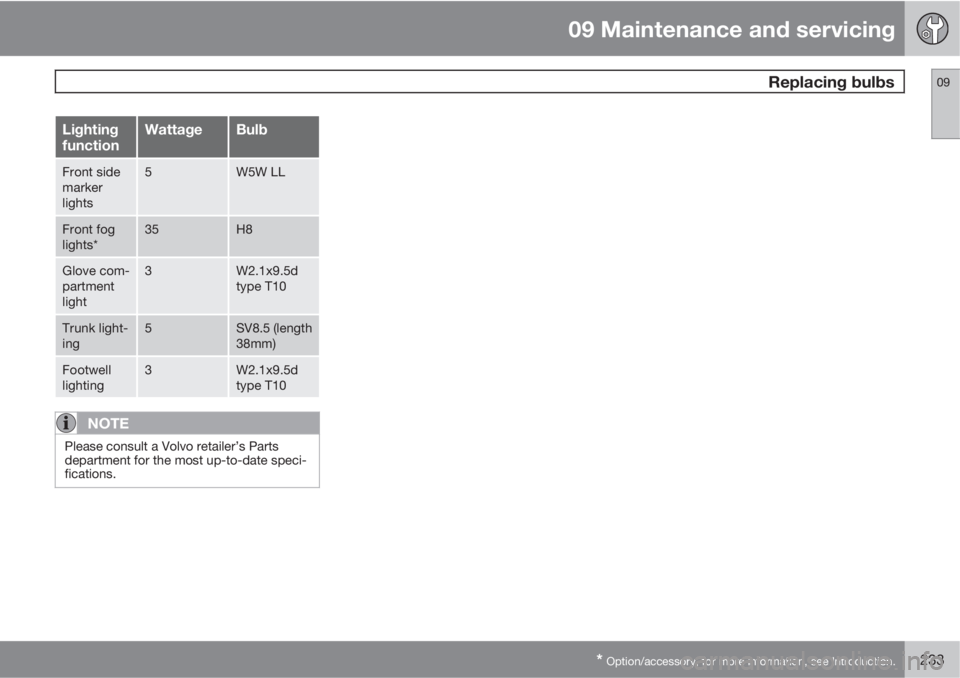

Lighting
functionWattageBulb
Front side
marker
lights5W5W LL
Front fog
lights*35H8
Glove com-
partment
light3W2.1x9.5d
type T10
Trunk light-
ing5SV8.5 (length
38mm)
Footwell
lighting3W2.1x9.5d
type T10
NOTE
Please consult a Volvo retailer’s Parts
department for the most up-to-date speci-
fications.

09 Maintenance and servicing
Fuses 09
234
Replacing fuses
There are relay/fuse boxes located in the
engine compartment and the passenger com-
partment.
If an electrical component fails to function, this
may be due to a blown fuse. The easiest way
to see if a fuse is blown is to remove it.
To do so:
1. Pull the fuse straight out. If a fuse is difficult
to remove, special fuse removal tools are
located on the inside of the fuse box cov-
ers.
2. From the side, examine the curved metal
wire in the fuse to see if it is intact.
3. If the wire is broken, insert a new fuse of
the same color and amperage (written on
the fuse).
If fuses burn out repeatedly, have the electrical
system inspected by a trained and qualified
Volvo service technician.
WARNING
Never use metal objects or fuses with higher
amperage than those stated on the follow-
ing pages. Doing so could seriously damage
or overload the vehicle's electrical system.

09 Maintenance and servicing
Fuses09

235 Fuse box in the engine compartment
G007446
The fuse box in the engine compartment has
positions for 36 fuses.
•Fuses 1–18 are relays/circuit breakers and
should only be removed or replaced by an
authorized Volvo service technician.
•Fuses 19–36 may be changed at any time
when necessary.
Several extra fuses and a fuse removal tool to
assist in removing/replacing fuses can be
found on the underside of the fuse box cover
in the engine compartment.

09 Maintenance and servicing
Fuses 09
236
Fuses in the engine compartment
G020250
1.Coolant fan (radiator)50A
2.Power steering80A
3.Feed to passenger com-
partment fuse box60A
4.Feed to passenger com-
partment fuse box60A
5.Element, climate unit80A
6.Not in use
7.ABS pump30A
8.ABS valves20A
9.Engine functions30A
10.Climate system blower40A
11.Headlight washers, climate
system blower, power
retractable hard top20A
12.Feed to heated rear window30A
13.Starter motor relay30A
14.Trailer connector (acces-
sory)40A
15.Power retractable hard top30A
16.Feed to audio system40A
17.Windshield wipers30A
18.Feed to passenger com-
partment fuse box40A
19.Not in use
20.Horn15A
21.Not in use
22.Subwoofer25A

09 Maintenance and servicing
Fuses09

* Option/accessory, for more information, see Introduction.237
23.Engine control module
(ECM)/transmission control
module (TCM)10A
24.Not in use
25.Not in use
26.Ignition switch15A
27.A/C compressor10A
28.Not in use
29.Front fog lights*15A
30.Not in use
31.Not in use
32.Fuel injectors10A
33.Heated oxygen sensor, vac-
uum pump20A
34.Ignition coils, climate unit
pressure sensor10A
35.Engine sensor valves, A/C
relay, relay coil, PTC ele-
ment oil trap, canister, mass
air meter15A
36.Engine control module
(ECM), throttle sensor10A

09 Maintenance and servicing
Fuses 09
238
Fuse box in the passenger compartment
G020601
The fuse box in the passenger compartment is
located under the glove compartment.
To access the fuses:
1. Remove the upholstery covering the fuse
box by first pressing in the center pins in
the mounting clips approximately 0.5 in
(1 cm) with a small screwdriver and then
pulling the clips out.
2. Turn both retaining screws (2) counter-
clockwise until they release.
3. Fold down the fuse box (3) half way. Pull it
toward the seat until it stops. Fold it down
completely. The fuse box can be unhooked
completely.
4. Replace the blown fuse.
5. Close the fuse box in reverse order.6. Pull the center pins fully out of the mount-
ing clips, secure the upholstery with the
mounting clips and press the pins into the
mounting clips again. The mounting clips
then expand, holding the upholstery in
position.
