VOLVO C70 CONVERTIBLE 2010 Owner´s Manual

04 Interior
Power retractable hard top
04

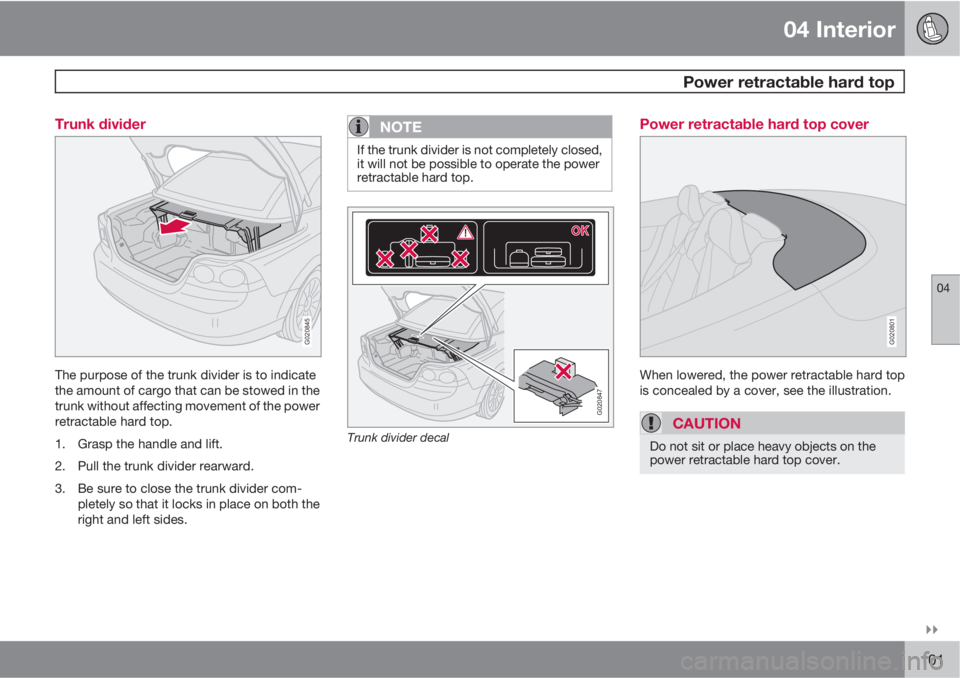

101 Trunk divider
G020845
The purpose of the trunk divider is to indicate
the amount of cargo that can be stowed in the
trunk without affecting movement of the power
retractable hard top.
1. Grasp the handle and lift.
2. Pull the trunk divider rearward.
3. Be sure to close the trunk divider com-
pletely so that it locks in place on both the
right and left sides.
NOTE
If the trunk divider is not completely closed,
it will not be possible to operate the power
retractable hard top.
G020847
Trunk divider decal
Power retractable hard top cover
G020801
When lowered, the power retractable hard top
is concealed by a cover, see the illustration.
CAUTION
Do not sit or place heavy objects on the
power retractable hard top cover.

04 Interior
Power retractable hard top
04
102
Operating the power retractable hard
top
G032112
Power retractable hard top button
1.
Turn the ignition key to position II or start
the engine if the vehicle is parked out-
doors.
2. Press the brake pedal.
3.
Opening the hard top: Press and hold
down the button. Release the button when
an audible signal sounds and the message
TOP FULLY DOWN is displayed.
Closing the hard top: Pull up and hold the
button to raise the hard top. Release the
button when an audible signal sounds and
the message
TOP FULLY UP is displayed.
CAUTION
•Please heed any messages that may
appear in the information display while
the top is in operation.
•Any windows that are closed will be
opened approximately 4 inches (10 cm)
while the power retractable hard top is
in operation. The windows will be auto-
matically re-closed when the top is
completely raised or lowered.
WARNING
•See the section “Before operating the
power retractable hard top” on page
100 before operating the power retract-
able hard top.
Never pull the release wire for the power
retractable hard top’s hydraulic system that
is located under the rear seat cushion. This
wire is only intended for use by qualified
service personnel. Pulling this wire could
lead to:
•A high risk of being injured by the power
retractable hard top mechanism.
•Unexpected movement of the hard top,
or the hard top or the trunk could inad-
vertently open.
•The retractable hard top can be dam-
aged.
Power retractable hard top-related text
messages
•PRESS BRAKE TO OPERATE TOPPress the brake pedal to operate the
retractable hard top.
•CLOSE TRUNK TO OPERATE TOP The
trunk is open and must be closed before
operating the power retractable hard top.
•TRUNK DIVIDER IS NOT CLOSED The
trunk divider (see page 101 for more infor-
mation) must be closed before operating
the power retractable hard top.
•TOP INOPERATIVE LOW BATTERY The
battery's charge is too low to operate the
power retractable hard top. In this case,
the top can only be raised. Start the engine,
or if necessary, have the battery charged
before operating the top.
•TOP IS UNLOCKED The power retracta-
ble hard top is not fully up or down. Press/
pull and hold the button again to complete
the operation.
•TOO HOT OR COLD TO OPERATE
TOP The power retractable hard top
mechanism has overheated, or the ambi-
ent temperature is below 14° F (-10° C). If
the mechanism has overheated, wait for
approximately 5 minutes (the message in
the information display will disappear) and
try to lower or raise the top again.

04 Interior
Power retractable hard top
04

103

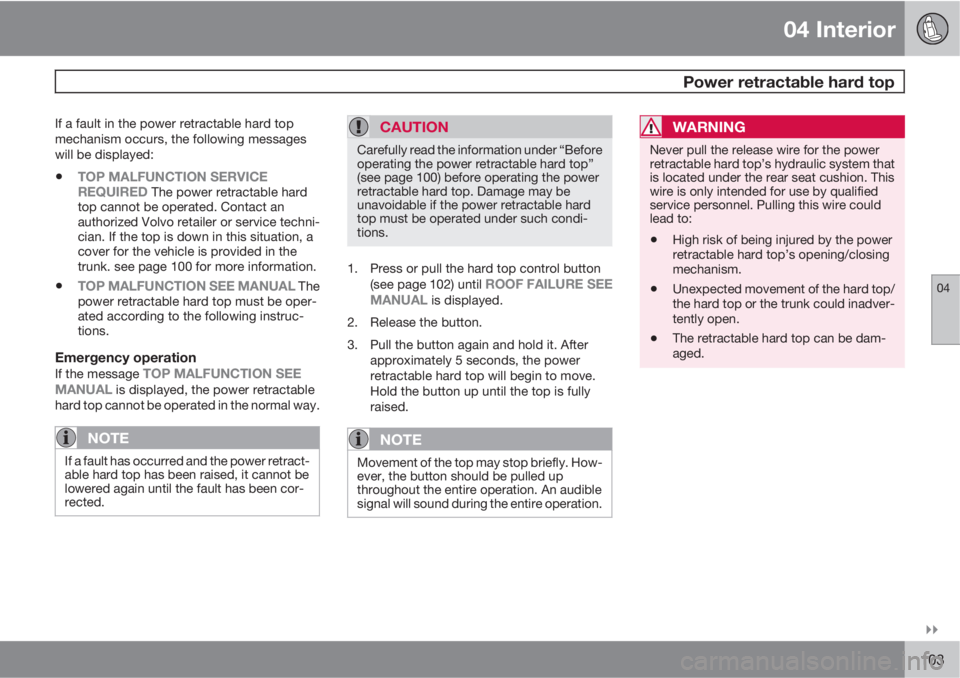

If a fault in the power retractable hard top
mechanism occurs, the following messages
will be displayed:
•TOP MALFUNCTION SERVICE
REQUIRED The power retractable hard
top cannot be operated. Contact an
authorized Volvo retailer or service techni-
cian. If the top is down in this situation, a
cover for the vehicle is provided in the
trunk. see page 100 for more information.
•TOP MALFUNCTION SEE MANUAL The
power retractable hard top must be oper-
ated according to the following instruc-
tions.
Emergency operation
If the message TOP MALFUNCTION SEE
MANUAL is displayed, the power retractable
hard top cannot be operated in the normal way.
NOTE
If a fault has occurred and the power retract-
able hard top has been raised, it cannot be
lowered again until the fault has been cor-
rected.
CAUTION
Carefully read the information under “Before
operating the power retractable hard top”
(see page 100) before operating the power
retractable hard top. Damage may be
unavoidable if the power retractable hard
top must be operated under such condi-
tions.
1. Press or pull the hard top control button
(see page 102) until ROOF FAILURE SEE
MANUAL is displayed.
2. Release the button.
3. Pull the button again and hold it. After
approximately 5 seconds, the power
retractable hard top will begin to move.
Hold the button up until the top is fully
raised.
NOTE
Movement of the top may stop briefly. How-
ever, the button should be pulled up
throughout the entire operation. An audible
signal will sound during the entire operation.
WARNING
Never pull the release wire for the power
retractable hard top’s hydraulic system that
is located under the rear seat cushion. This
wire is only intended for use by qualified
service personnel. Pulling this wire could
lead to:
•High risk of being injured by the power
retractable hard top’s opening/closing
mechanism.
•Unexpected movement of the hard top/
the hard top or the trunk could inadver-
tently open.
•The retractable hard top can be dam-
aged.

04 Interior
Power retractable hard top
04
104

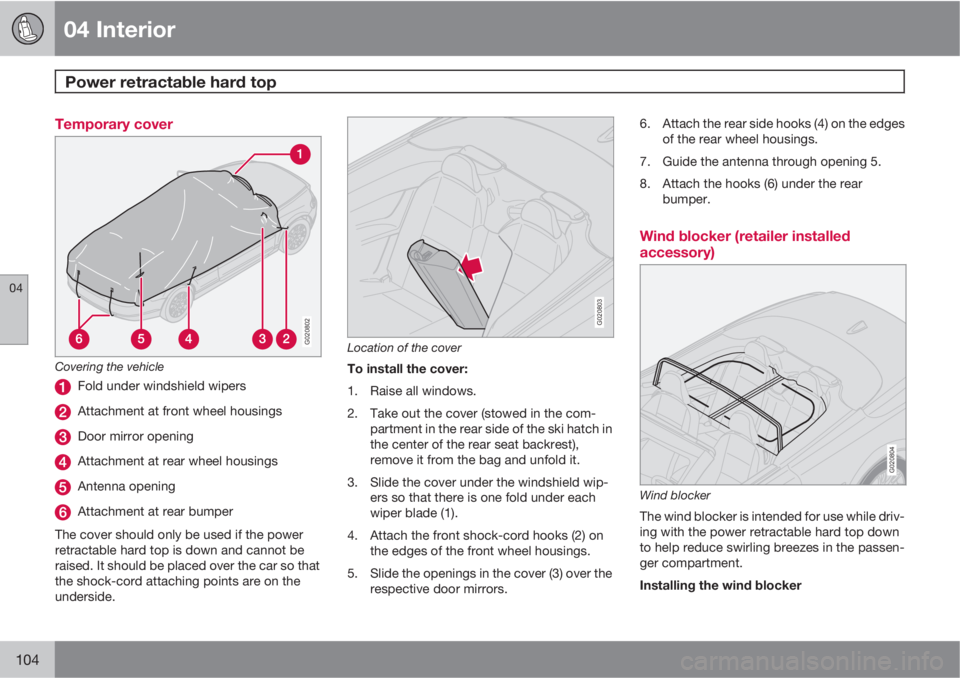

Temporary cover
G020802
Covering the vehicle
Fold under windshield wipers
Attachment at front wheel housings
Door mirror opening
Attachment at rear wheel housings
Antenna opening
Attachment at rear bumper
The cover should only be used if the power
retractable hard top is down and cannot be
raised. It should be placed over the car so that
the shock-cord attaching points are on the
underside.
G020803
Location of the cover
To install the cover:
1. Raise all windows.
2. Take out the cover (stowed in the com-
partment in the rear side of the ski hatch in
the center of the rear seat backrest),
remove it from the bag and unfold it.
3. Slide the cover under the windshield wip-
ers so that there is one fold under each
wiper blade (1).
4. Attach the front shock-cord hooks (2) on
the edges of the front wheel housings.
5. Slide the openings in the cover (3) over the
respective door mirrors.6. Attach the rear side hooks (4) on the edges
of the rear wheel housings.
7. Guide the antenna through opening 5.
8. Attach the hooks (6) under the rear
bumper.
Wind blocker (retailer installed
accessory)
G020804
Wind blocker
The wind blocker is intended for use while driv-
ing with the power retractable hard top down
to help reduce swirling breezes in the passen-
ger compartment.
Installing the wind blocker

04 Interior
Power retractable hard top
04
105
1. Unfold the wind blocker to its full width.
2. Unfold the supports on both rear sides.
3. Slide the winder blocker’s rear supports
under the rear head restraints so that they
rest on the upper edge of the backrest.
4. Press the side lock tabs into the holes in
the side panels until they click into place.
5. Raise the wind blocker.
The zipper in the wind blocker can be opened
to place or access objects in the rear seat.
CAUTION
Slide in the supports carefully to avoid dam-
aging the upholstery.
WARNING
•Make sure the wind blocker is securely
attached. An improperly secured wind
blocker may cause injury to occupants
of the vehicle or to other motorists.
•No one should be allowed to sit in the
rear seat when the wind blocker is in
place.
When not in use, the wind blocker should be
stored in its bag, in the trunk, against the rear
seat backrest.

04 Interior
Interior lighting
04
106
Interior lighting
G020805
Front courtesy lights and reading lights
Front driver's side reading light, on/off
Courtesy lighting
Front passenger's side reading light, on/off
The front seat reading lights can be switched
on and off by pressing buttons (1) or (3) when
the ignition key is position I or II, or when the
engine is running.
The courtesy lighting (2) can be set to three
positions:

Press the left side of the button: the interior
courtesy lighting turns on.
Neutral position: the interior courtesy light-
ing comes on when a door is opened, and
is switched off 10 seconds after the door is
closed.

Press the right side of the button: the inte-
rior courtesy lighting stays off.
Courtesy lighting – automatic function
The interior lighting has a built-in automatic
function that switches on the courtesy lighting
for 30 seconds when:
•the car is unlocked from the outside using
the key blade or remote key
•the engine is switched off and the ignition
key is turned to the 0 position.
The courtesy lighting lights up or remains on
for 5 minutes when:
•one of the doors is opened and left open.
•the courtesy lighting has not been
switched off (the right side of button 2
depressed).
The automatic lighting goes out when:
•the engine is started
•the car is locked from the outside using the
key blade or remote key.
If the courtesy lighting is not switched off man-
ually, it will be turned off automatically5 minutes after the engine has been switched
off.
Footwell lightingThe footwell (and courtesy lighting) comes on
or goes off when one of the side doors is
opened or closed.
Rear reading lights
G020806
Rear reading lights
The rear reading lights can be switched on or
off by pressing the respective buttons, and
function if the ignition key is in positions I, II, or
if the engine is running.
The courtesy lighting can be switched on or off
within 30 minutes after the engine has been

04 Interior
Interior lighting
04
107
switched off, or after a door has been opened
or closed.
These lights switch off automatically 5 minutes
after the engine has been switched off.

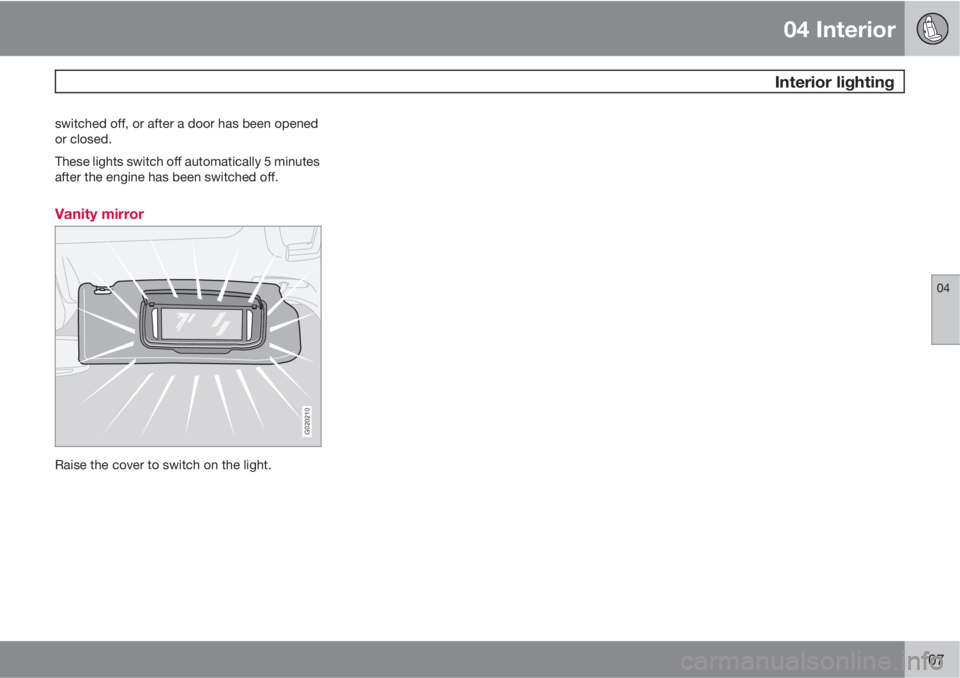

Vanity mirror
G020210
Raise the cover to switch on the light.

04 Interior
Storage compartments
04
108

04 Interior
Storage compartments
04

109

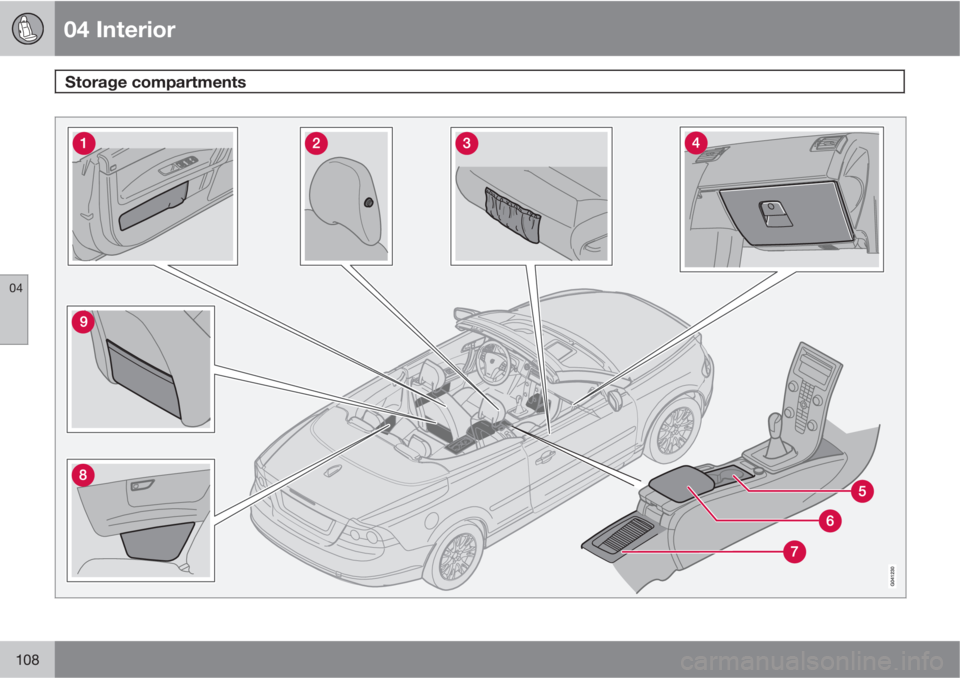

Lockable storage compartment in door
Jacket hanger (intended for light garments
only)
Storage pocket on front side of front seat
cushion
Glove compartment
Cup holders
Storage compartment for e.g., CDs
Cup holders for rear seat passengers
Storage compartments in rear side panels
Storage compartment on rear side of front
seat backrests.
WARNING
•Anchor any heavy objects to prevent
them from moving during sudden stops.
•Packages on the rear parcel shelf can
obscure vision and may become dan-
gerous projectiles in the event of a sud-
den stop or an accident.

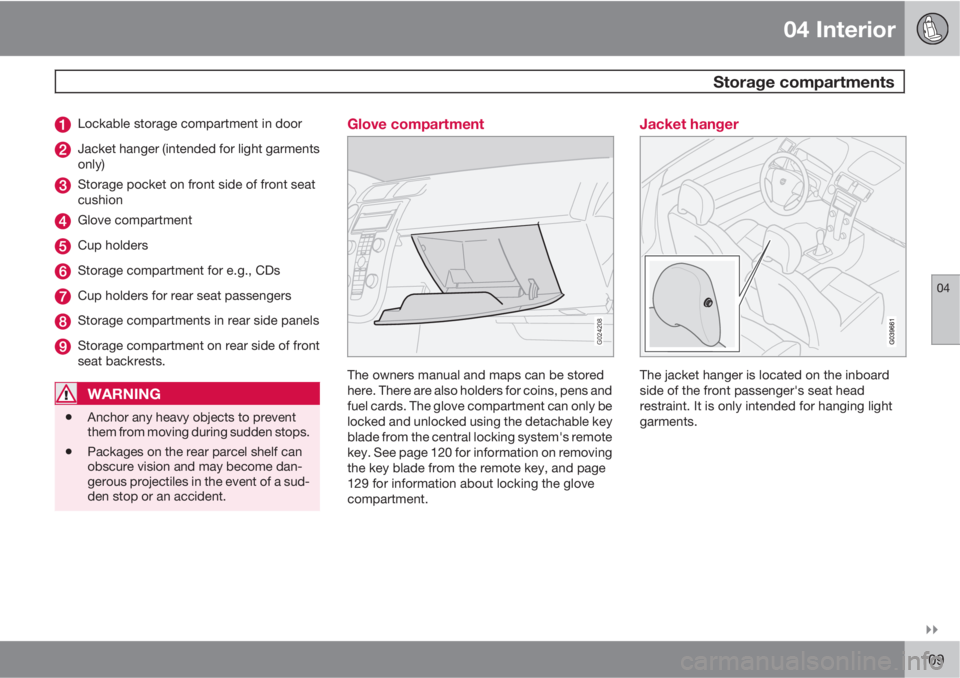

Glove compartment
G024208
The owners manual and maps can be stored
here. There are also holders for coins, pens and
fuel cards. The glove compartment can only be
locked and unlocked using the detachable key
blade from the central locking system's remote
key. See page 120 for information on removing
the key blade from the remote key, and page
129 for information about locking the glove
compartment.
Jacket hanger
The jacket hanger is located on the inboard
side of the front passenger's seat head
restraint. It is only intended for hanging light
garments.

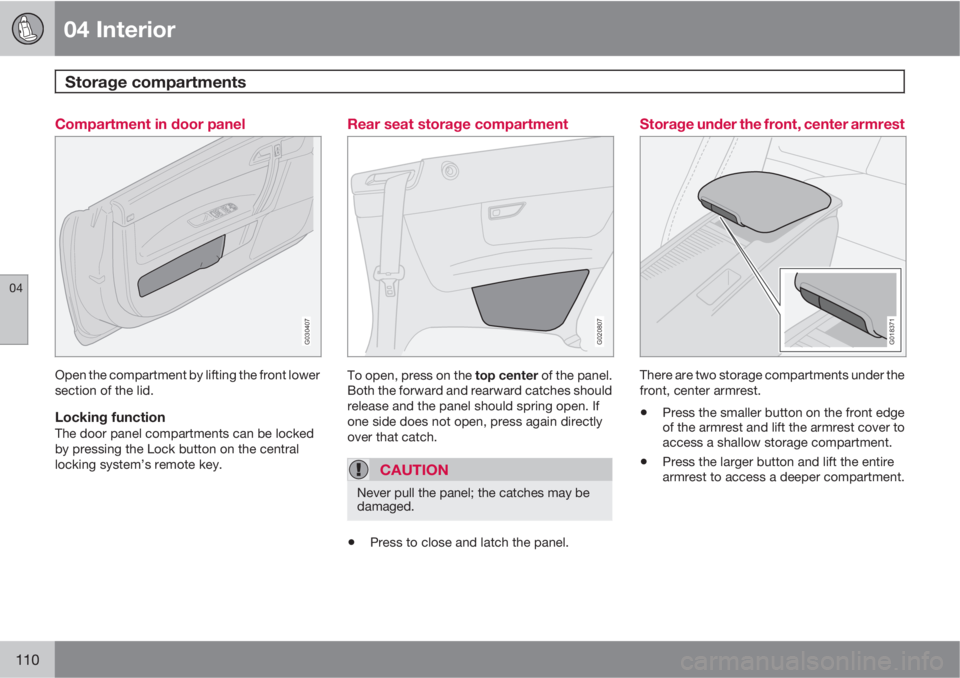

04 Interior
Storage compartments
04
110
Compartment in door panel
G030407
Open the compartment by lifting the front lower
section of the lid.
Locking functionThe door panel compartments can be locked
by pressing the Lock button on the central
locking system’s remote key.
Rear seat storage compartment
G020807
To open, press on the top center of the panel.
Both the forward and rearward catches should
release and the panel should spring open. If
one side does not open, press again directly
over that catch.
CAUTION
Never pull the panel; the catches may be
damaged.
•Press to close and latch the panel.
Storage under the front, center armrest
G018371
There are two storage compartments under the
front, center armrest.
•Press the smaller button on the front edge
of the armrest and lift the armrest cover to
access a shallow storage compartment.
•Press the larger button and lift the entire
armrest to access a deeper compartment.
