VOLVO C70 CONVERTIBLE 2010 Owner´s Manual

10 Audio

10
261

G000000
262
Label information.................................................................................. 264
Dimensions and weights....................................................................... 266
Fuel, oils, and fluids..............................................................................269
Engine oil............................................................................................... 271
Engine specifications............................................................................ 272
Electrical system................................................................................... 274
Three-way catalytic converter............................................................... 276
Volvo programs..................................................................................... 277

11
SPECIFICATIONS

11 Specifications

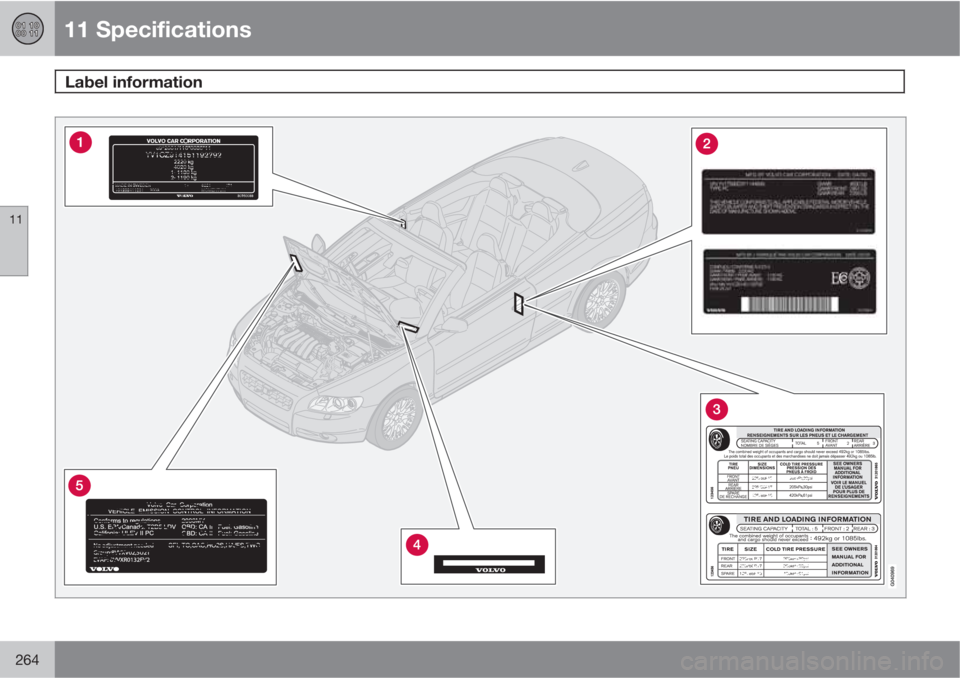

Label information
11
264

11 Specifications
Label information
11
265
Model plate
Vehicle Identification Number (VIN). Codes for
color and upholstery, etc.
Federal Motor Vehicle Safety
Standards (FMVSS) specifications (USA)
and Ministry of Transport (CMVSS)
standards (Canada)
Your Volvo is designed to meet all applicable
safety standards, as evidenced by the certifi-
cation label on the driver's side B-pillar (the
structural member at the side of the vehicle, at
the rear of the driver's door opening). For fur-
ther information regarding these regulations,
please consult your Volvo retailer.
Loads and Tire Pressures
The appearance of the decal will vary, depend-
ing on the market for which the vehicle is
intended.
Canadian models have the upper decal.
U.S. models have the lower decal.
Vehicle Identification Number (VIN)1
The VIN plate is located on the top left surface
of the dashboard. The VIN is also stamped on
the right hand door pillar.
Vehicle Emission Control Information
Your Volvo is designed to meet all applicable
emission standards, as evidenced by the cer-
tification label on the underside of the hood.
For further information regarding these regula-
tions, please consult your Volvo retailer.
1The Vehicle Identification Number (VIN) should always be quoted in correspondence concerning your vehicle with the retailer and when ordering parts.

11 Specifications
Dimensions and weights
11
266
Dimensions
PositionDimension
AWheelbase103.9 in. (264 cm)
BLength175.9 in. (447 cm)
CLoad length, floor33.5 in. (85 cm)
DTrunk lid up7.9 in. (20 cm)
E1Height57.2 in. (145 cm)
E2Height78.7 in. (200 cm)
FLoad height, roof up
Load height, roof down20.4 in. (52 cm)
10.2 in. (26 cm)

11 Specifications
Dimensions and weights
11

267
PositionDimension
GTrack, front60.1 in. (155 cm)
HTrack, rear61.4 in. (156 cm)
ILoad width, floor28 in. (71 cm)
JWidth72.3 in. (184 cm)
KWidth encl. door mirrors79.6 in. (202 cm)
Weights
CategoryUSACanada
Gross vehicle weightManual: 4540 lbs
Automatic: 4560 lbs2060 kg
2070 kg
Capacity weightAll models: 640 lbs290 kg
Permissible axle weight, frontAll models: 2440 lbs1110 kg
Permissible axle weight, rearAll models: 2370 lbs1075 kg
Curb weightAll models: 3770–3800 lbs1710–1725 kg
Max. trailer weight (w/o brakes)All models: 1540 lbsAll models: 700 kg
Max. trailer weight (with brakes)All models: 2000 lbsAll models: 900 kg
Max. tongue weightAll models: 165 lbsAll models: 75 kg

11 Specifications
Dimensions and weights
11
268
CAUTION
The maximum permissible axle loads and/
or the gross vehicle weight must not be
exceeded.
WARNING
When adding accessories, equipment, lug-
gage and other cargo to your vehicle, the
total capacity weight must not be exceeded.

11 Specifications
Fuel, oils, and fluids
11

269 Specifications and capacities
CategorySpecificationCapacity
Fuel tankOctane rating: unleaded gasoline, minimum
octane requirement AKI 87, recommended rat-
ing AKI 91 or above.15.9 US gallons (60 liters)
Engine oil (with filter replacement)See page 271 for information on engine oil
specifications.6.1 US quarts (5.8 liters)
Automatic transmission oilJWS 33098.14 US quarts (7.7 liters)
Manual transmission oilBOT 350 M36-speed: 2.0 US quarts (1.9 liters) – turbo models
CoolantVolvo original coolant/antifreeze (50/50 mix-
ture of water and anti-freeze)10.5 US quarts (10 liters) – models with automatic
transmission
10 US quarts (9.5 liters) – models with manual trans-
mission
Brake fluidDOT 4+ boiling point >536 °F (280 °C), P/N
94374330.63 US quarts (0.6 liters)
Power steering fluidWSS M2C204-A or equivalent1.3 US quarts (1.2 liters) – system and reservoir com-
bined
Washer fluid reservoirUse washer fluid solvent in cold weather con-
ditions.6.8 US quarts (6.5 liters)
Air conditioning systemRefrigerant – R134a1.2 lbs. (530 grams)

11 Specifications
Fuel, oils, and fluids
11
270
NOTE
The transmission oil does not normally need
to be changed during the service life of the
vehicle. However, it may be necessary to
replace the oil if the vehicle is often driven
in areas of sustained temperature extremes
(hot or cold), when towing a trailer over long
distances, for prolonged driving in moun-
tainous areas, or if the vehicle is often driven
short distances in temperatures under 40 °F
(5 °C).
