01 Safety
Booster cushions01
41 Securing a booster cushion
G026517
Position the child correctly on the booster cushion
and fasten the seat belt
WARNING
A child seat should never be used in the
front passenger seat of any vehicle with a
front passenger airbag – not even if the
Passenger airbag off symbol near the
rear-view mirror is illuminated (on vehicles
equipped with Occupant Weight Sensor). If
the severity of an accident were to cause the
airbag to inflate, this could lead to serious
injury or death to a child seated in this posi-
tion.
Booster cushions are recommended for chil-
dren who have outgrown convertible seats.
1. Place the booster cushion in the rear seat
of the vehicle.
2. With the child properly seated on the
booster cushion, attach the seat belt to or
around the cushion according to the man-
ufacturer's instructions.
3. Fasten the seat belt by inserting the latch
plate into the buckle (lock) until a distinct
click is audible.
4. Ensure that the seat belt is pulled taut and
fits snugly around the child.
WARNING
•The hip section of the three-point seat
belt must fit snugly across the child's
hips, not across the stomach.
•The shoulder section of the three-point
seat belt should be positioned across
the chest and shoulder.
•The shoulder belt must never be placed
behind the child's back or under the
arm.

01 Safety
ISOFIX lower anchors 01
42

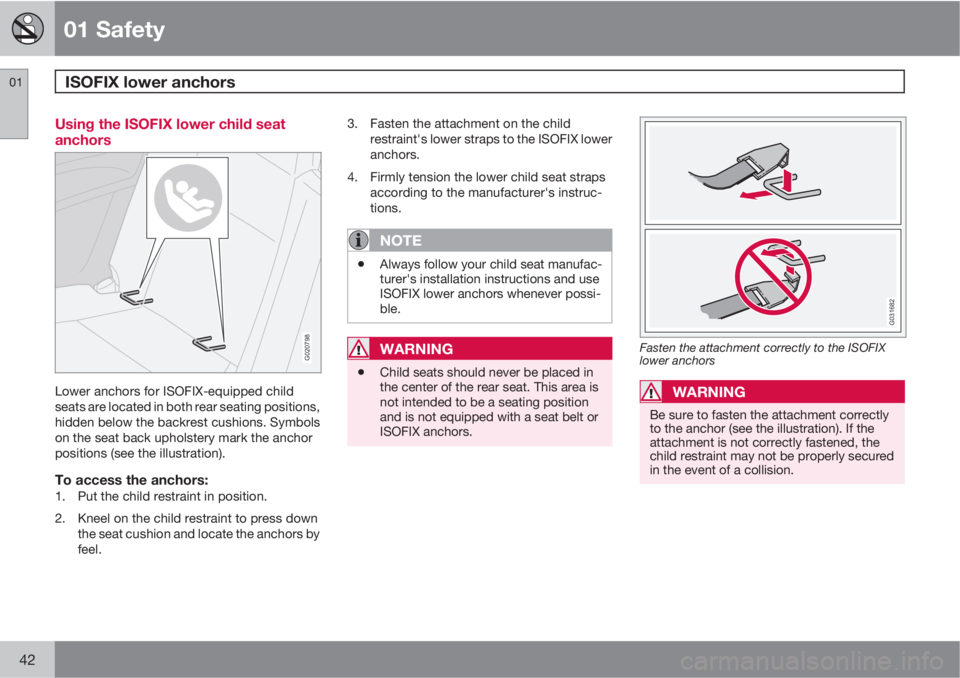

Using the ISOFIX lower child seat
anchors
G020798
Lower anchors for ISOFIX-equipped child
seats are located in both rear seating positions,
hidden below the backrest cushions. Symbols
on the seat back upholstery mark the anchor
positions (see the illustration).
To access the anchors:1. Put the child restraint in position.
2. Kneel on the child restraint to press down
the seat cushion and locate the anchors by
feel.3. Fasten the attachment on the child
restraint's lower straps to the ISOFIX lower
anchors.
4. Firmly tension the lower child seat straps
according to the manufacturer's instruc-
tions.
NOTE
•Always follow your child seat manufac-
turer's installation instructions and use
ISOFIX lower anchors whenever possi-
ble.
WARNING
•Child seats should never be placed in
the center of the rear seat. This area is
not intended to be a seating position
and is not equipped with a seat belt or
ISOFIX anchors.
G031682
Fasten the attachment correctly to the ISOFIX
lower anchors
WARNING
Be sure to fasten the attachment correctly
to the anchor (see the illustration). If the
attachment is not correctly fastened, the
child restraint may not be properly secured
in the event of a collision.

01 Safety
Child restraint registration and recalls01
43 Registering a child restraint
Child restraints could be recalled for safety
reasons. You must register your child restraint
to be reached in a recall. To stay informed
about child safety seat recalls, be sure to fill out
and return the registration card that comes
with new child restraints.
Child restraint recall information is readily avail-
able in both the U.S. and Canada. For recall
information in the U.S., call the U.S. Govern-
ment's Auto Safety Hotline at 1-800-424-9393.
In Canada, visit Transport Canada's Child
Safety website at http://www.tc.gc.ca/
roadsafety/childsafety/menu.htm.

G020901
44* Option/accessory, for more information, see Introduction.
Instrument overview................................................................................ 46
Instrument panel..................................................................................... 49
Indicator and warning symbols............................................................... 51
Symbols – instrument panel.................................................................... 53
Information display.................................................................................. 56
12-volt sockets....................................................................................... 58
Lighting panel.......................................................................................... 59
Left-side steering wheel lever................................................................. 61
Trip computer.......................................................................................... 63
Cruise control*........................................................................................ 65
Right-side steering wheel lever............................................................... 67
Steering wheel adjustment, Hazard warning flashers............................. 69
Parking brake.......................................................................................... 70
Power windows....................................................................................... 71
Mirrors..................................................................................................... 72
Personal settings.................................................................................... 75
HomeLink® Wireless Control System*................................................... 77

02
INSTRUMENTS AND CONTROLS

02 Instruments and controls

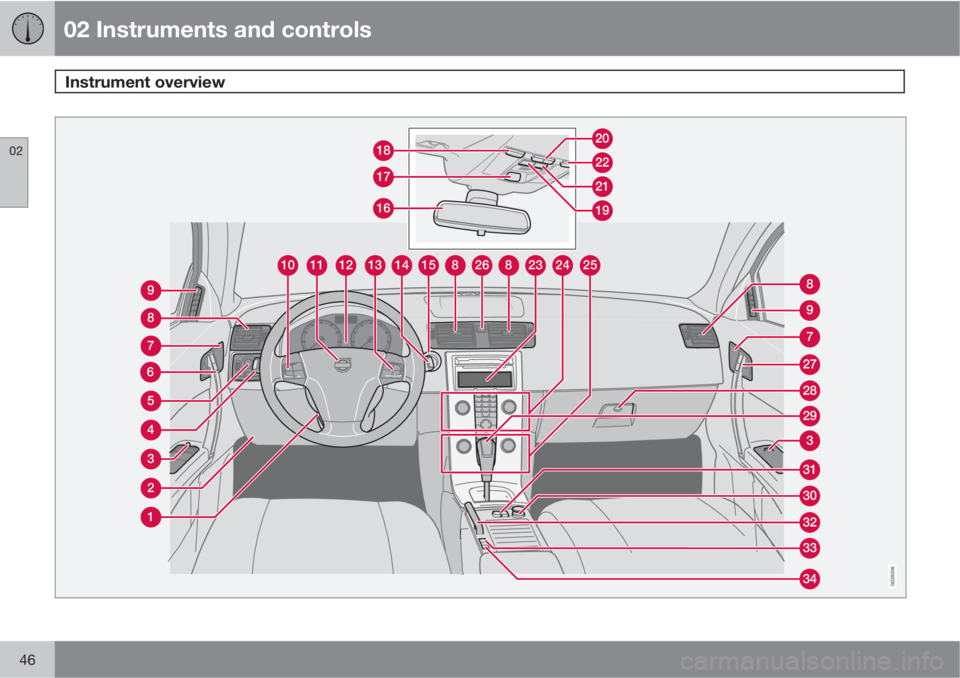

Instrument overview
02
46
2681512101113148232425
27
30
31
29
3
28
8
7
32
34
33
9
7
6
8
9
16
17
1822
20
21
19
3
2
1
5
4
G028206

02 Instruments and controls
Instrument overview
02

* Option/accessory, for more information, see Introduction.47
Steering wheel adjustment
Hood opener
Controls in front doors
Left steering wheel lever
Lighting panel, fuel filler door opener
Door open handle and locking button
Lock indicator light
Climate system air vent
Side window air vent
Cruise control
Horn, airbag
Main instrument panel
Audio controls
Right steering wheel lever
Ignition switch
Rear-view mirror
Seat belt reminder and Occupant
Weight Sensor indicator
Driver's side reading light
Movement detector*, alarm sensor
Courtesy lighting switch
Position for accessory switch
Passenger's side reading light
Display for climate control, personal
settings, and audio system
Controls for personal settings and
audio system
Controls for climate system
Hazard warning flashers
Door open handle, and locking button
Glove compartment
Gear selector
12-volt socket
Switch for raising/lowering the power
retractable hard top
Parking brake
Position for optional equipment
Position for optional equipment

02 Instruments and controls
Instrument overview
02
48
Control panel in driver's door
G032088
Power windows
Door mirror button, driver's side
Door mirror adjustment control
Door mirror button, passenger's side

02 Instruments and controls
Instrument panel
02

49 Instrument panel
891112131410G031465
4 3 2
567
1
Speedometer
Turn signal, left
Warning symbol – See the following pages
for additional information.
Information display – The display presents
information and warning messages, the
ambient temperature, clock, etc. When the
ambient temperature is between 23 °F and
36 °F (–5 °C and +2 °C), a snowflake sym-
bol is shown in the display. This symbol
serves as a warning for possible slippery
road surfaces. Please note that this symbol
does not indicate a fault with your car. At
low speeds, or when the car is not moving,the temperature readings may be slightly
higher than the actual ambient tempera-
ture.
Information symbol – See the following
pages for additional information.
Turn signal, right
Tachometer – Shows engine speed in
thousands of revolutions per minute (rpm).
Do not drive continuously with the needle
in the red area of the dial, which indicates
maximum allowable engine rpm range.
Instead, shift to a higher gear or slow the
vehicle down. The engine management
system will automatically prevent exces-sively high engines speeds. This will be
noticeable as a pronounced unevenness in
engine speed.
Indicator and information symbols
Fuel gauge, see page 269 for fuel tank vol-
ume. When a warning light in the gauge
comes on, the vehicle should be refueled
as soon as possible, see page 63 for
more information on fuel level and con-
sumption in the "Trip computer” section.
High beam indicator
Function display – This window displays
information on functions such as the

02 Instruments and controls
Instrument panel
02
50
odometer, trip odometers, optional rain
sensor, and cruise control.
Trip odometer reset button – The trip
odometers are used to measure short dis-
tances. Press the button briefly to switch
between the odometer for the car's total
mileage and the two trip odometers, T1
and T2. A long press (more than 2 seconds)
resets the currently selected trip odometer.
Temperature gauge – The gauge indicates
the temperature of the engine cooling sys-
tem. If the temperature is abnormally high
and the needle enters the red zone, a mes-
sage is shown in the display. Bear in mind
that auxiliary lamps in front of the air intake
reduce the cooling capacity at high outside
temperatures and high engine loads.
Indicator and warning symbols
