VOLVO S40 2009 Owner´s Manual

04 Interior
Storage compartments
04``111 Storage under the front, center armrest
G018371
There are two storage compartments under the
front, center armrest.•
Press the smaller button on the front edge
of the armrest and lift the armrest cover to
access a shallow storage compartment.
•
Press the larger button and lift the entire
armrest to access a deeper compartment.
CD storage
G026704
The deep storage compartment has room for
10 CD jewel cases. These cases must be
inserted with their spines upward in order to
allow space for 10 cases in the storage com-
partment
Cup holders in the center console
G018372
Two cup holders are located under the sliding
cover in the center console.
The cup holders can be lifted out if necessary.
To do so, grasp the indentation on the rear
edge of the cup holder and lift.
To put the cup holder back in place:
1. Slide the two locating tabs in the front side
of the cup holder into the two correspond-
ing recesses in the center console storage
space.
2. Press down the rear edge of the cup
holder.
To close the sliding cover, grasp the underside
of the front edge and pull.

04 InteriorStorage compartments
04112
Storage compartment behind the gear
lever
G019623
If the buttons for optional equipment are not
installed, the recess behind the gear lever can
be used as a storage compartment for coins,
etc.

04 Interior
Rear seat
04``113 Rear seat head restraints
G020765
Adjust the head restraint verticallyEach of the rear seat head restraints can be
adjusted vertically to suit the height of the pas-
senger. The upper edge of the head restraint
should be on a level with the midpoint of the
rear side of the passenger's head (see illustra-
tion).
WARNING
The center rear seat head restraint should
only be in its lowest position when this seat
is NOT occupied. When the center position
is occupied, the head restraint should be
correctly adjusted to the passenger’s
height.
•
To raise: Slide the head restraint up to the
desired height.
•
To lower: Press the catch at the base of the
right support and press the head restraint
down.
•
To remove: Pull the head restraint up far as
possible. Press the catch at the base of the
right support and pull the head restraint out
of the its holders.
Folding down the rear seat backrests
G020790
Both sections of the rear seat backrest can be
folded down, together or separately, to enable
you to transport long objects. Before folding
down the rear seat backrests, the outboardseat belts can be attached to the clothes hook
as shown in the illustration.
NOTE
When the seat backs are folded down, the
head restraints may be damaged if they are
not removed. The center head restraint
must also be removed when transporting
heavy loads.
G014845
Rear edge of seat cushionCatchFolding down the backrestLocation of the head restraint in the seat
cushion

04 InteriorRear seat
04114
To fold down one or both sections:
1. Grasp the rear edge of the seat cushion
and pull it forward.
2. Pull the catch on the upper outboard edge
of the backrest upward and forward to
release the backrest lock. A red lock indi-
cator is visible when the backrest is not
locked in the upright position.
3. Fold the backrest down partially and
remove the outboard head restraints.
Press the center head restraint down com-
pletely or remove it.
4. Place the head restraints in the plastic
tubes, which are now accessible on the
under side of the seat cushions.
NOTE
When folding down the rear seat backrests,
remove the plug in the rear 12 volt socket to
help avoid marks in the upholstery.
WARNING
•
The red lock indicator is VISIBLE when
the backrest is NOT locked in position
and hidden when the backrest is cor-
rectly locked in place. When the back-
rest is in the upright position, it must
always be correctly locked in place.
•
When the rear seat is folded down, do
not place heavy objects against the
backs of the front seats. This places a
severe strain on the folded down back-
rest of the rear seat. Be sure to secure
cargo.
•
Cargo must not be stacked higher than
the top of seat backs. This will reduce
the possibility of luggage, etc. becom-
ing projectiles during sudden maneu-
vers, rapid braking or an accident.

04 Interior
Trunk
04
115 Load anchoring eyelets
G018099
The eyelets in the trunk can be used to fasten
accessory load and lashing straps, load nets,
and other load anchors.

116
Remote control and key blade.............................................................. 118
Valet locking ......................................................................................... 122
Keyless drive (option as available)........................................................ 123
Locking and unlocking.......................................................................... 127
Child safety locks.................................................................................. 129
Alarm (option)........................................................................................ 130

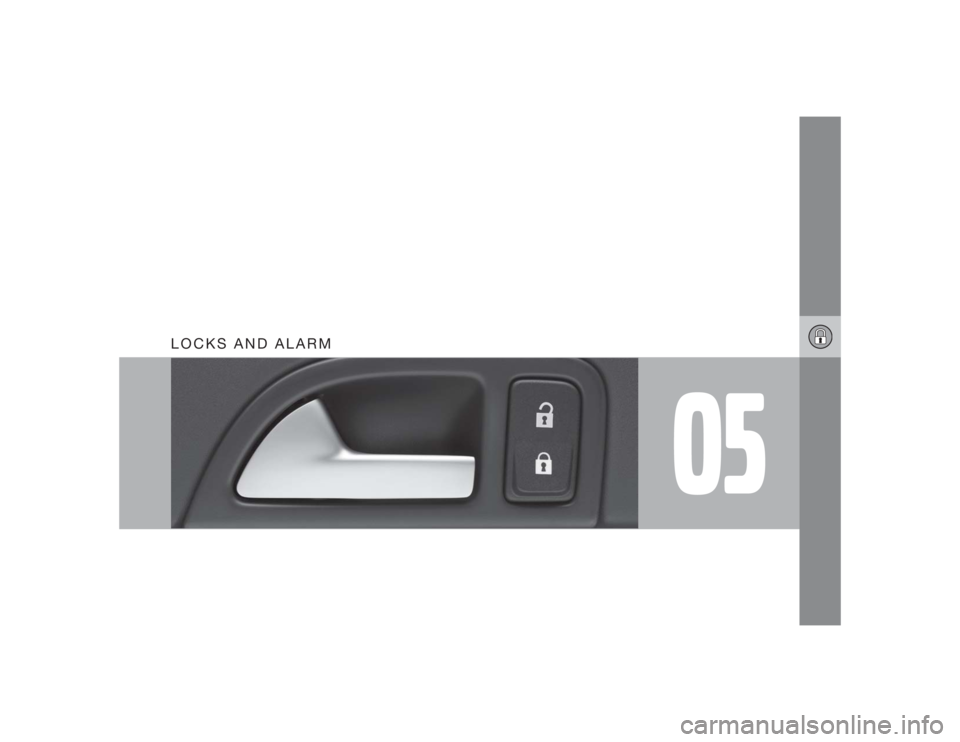

05
LOCKS AND ALARM

05 Locks and alarmRemote control and key blade
05118
Remote controlsTwo remote controls that also function as igni-
tion keys are provided with your car. The
remote controls contain detachable metal key
blades for manually locking or unlocking the
driver's door and the glove compartment.
USA – FCC ID: LTQVO315TX
This device complies with part 15 of the FCC
rules. Operation is subject to the following con-
ditions: (1) This device may not cause harmful
interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.
Canada – IC: 3659AVO315TX
Operation is subject to the following condi-
tions: (1) this device may not cause interfer-
ence, and (2) this device must accept any
interference, including interference that may
cause undesired operation of the device.Loss of a remote controlIf either of the remote controls is lost, the other
must be taken with the car to a Volvo retailer.
As an anti-theft measure, the code of the lost
remote control must be erased from the sys-
tem.
Each key blade has a unique code, which is
used if new key blades are required. A maxi-mum of six remote controls/key blades can be
programmed and used for one car.
Immobilizer (start inhibitor)Each of the keys supplied with your car con-
tains a coded transponder. The code in the key
is transmitted to an antenna in the ignition
switch where it is compared to the code stored
in the start inhibitor module. The car will start
only with a properly coded key. If you misplace
a key, take the other keys to an authorized
Volvo retailer for reprogramming as an antitheft
measure.
USA – FCC ID: LTQWFS 125VO
This device complies with part 15 of the FCC
rules. Operation is subject to the following con-
dition: (1) This device may not cause harmful
interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.
Canada – IC: 3659A-WFS125VO
Operation is subject to the following condi-
tions: (1) this device may not cause interfer-
ence, and (2) this device must accept any
interference, including interference that may
cause undesired operation of the device.
CAUTION
Never use force on the narrow section of the
remote control – this is where the trans-
ponder is located. The car cannot be started
if the transponder is damaged.Remote control functions
G019402
Lock – Press the Lock button on the
remote once to lock all doors and the trunk.
The turn signals will flash once to confirm
locking.

05 Locks and alarm
Remote control and key blade
05``119
NOTE
The car can also be locked if a door is open
(does not apply to vehicles with the optional
keyless drive).Unlock – Press the Unlock button on the
remote once to unlock the driver's door.
After a short pause, press the Unlock but-
ton a second time within 10 seconds to
unlock the other doors and the trunk. A
long press (at least several seconds) opens
all side windows.
NOTE
•
The turn signals flash to confirm that the
vehicle has been correctly locked/
unlocked with the remote control or the
optional keyless drive. When locking the
vehicle, the turn signals will flash a con-
firmation only if all the doors are
securely closed and locked. Flashing
confirmation for locking and unlocking
may be customized in the vehicle's Per-
sonal settings menu, see page 83 for
more information.
•
The two-step unlocking function can be
changed so that one press of the
Unlock button unlocks all of the doors
and the trunk. See Personal settings
page 83 for more information.
•
Automatic relocking: If the doors are
unlocked, the locks will automatically reen-
gage (re-lock) and the alarm will rearm after
2 minutes unless a door or the trunk has
been opened.
•
Automatic locking: When the car starts to
move, the doors and trunk can be locked
automatically. This feature can be turned
on or off, see Personal settings on page
83 for more information.
•
Airbag deployment will automatically
attempt to unlock the doors.
Approach lighting – As you approach the
car: Press the button on the remote control
to illuminate the area around the car in dark
conditions. Pressing the button once lights
up the interior lighting, parking lights, and
license plate lighting. These lights will
switch off automatically after 30, 60 or
90 seconds. See the Personal settings pa
ge 83 for information about adjusting the
time setting.Unlock trunk – Press the button once to
disarm the alarm system and unlock only
the trunk. After closing, the trunk will not
automatically relock. Press Lock to relock
it and rearm the alarm.NOTE
This function will unlock, but not pop open,
the trunk.Panic alarm – This button can be used to
attract attention during emergency situa-
tions. To activate the panic alarm, press
and hold the red button for at least 3 sec-
onds or press it twice within 3 seconds.
The turn signals and horn will be activated.
The panic alarm will stop automatically
after 30 seconds. To deactivate, wait
approximately 5 seconds and press the red
button again.

05 Locks and alarmRemote control and key blade
05120
NOTE
This button will NOT unlock the car.Weak battery in the remote control
G019406
When the battery begins to lose its charge, the
Information symbol in the instrument panel
(see page 55) lights up and
KEY BATTERY
LOW VOLTAGE
is shown in the information
display.
Replacing the battery in the remote
controlIf the range of the transmitter is noticeably
reduced, this indicates that the battery (type
CR 2450, 3V) is weak and should be replaced.
To replace the battery:
1. Place the remote control with the keypad
downward. Pry open the cover with a small
slotted screwdriver.
2. Remove the cover.
CAUTION
When replacing the battery, avoid touching
the electrical circuitry in the other half of the
remote control.3. Note how the + and – sides of the battery
are positioned on the inside of the cover
(see the underside of the cover).
4. Pry out and replace the battery. Avoid
touching the battery and its contact surfa-
ces with your fingers.
5. Press the cover back into place.
The old battery should be disposed of properly
at a recycling center or by a trained and quali-
fied Volvo service technician.
Key blade
G019403
Removing the key bladeThe key blade can be removed from the remote
control. When removed, it can be used as fol-
lows:•
To lock/unlock the driver’s door
•
To lock/unlock the glove compartment,
see page 128
•
For valet locking (see page 122)
Removing the key blade
Slide the spring loaded catch to the side.While holding the catch, pull the key blade
out of the remote control.
