VOLVO S40 2009 Owner´s Manual

02 Instruments and controls

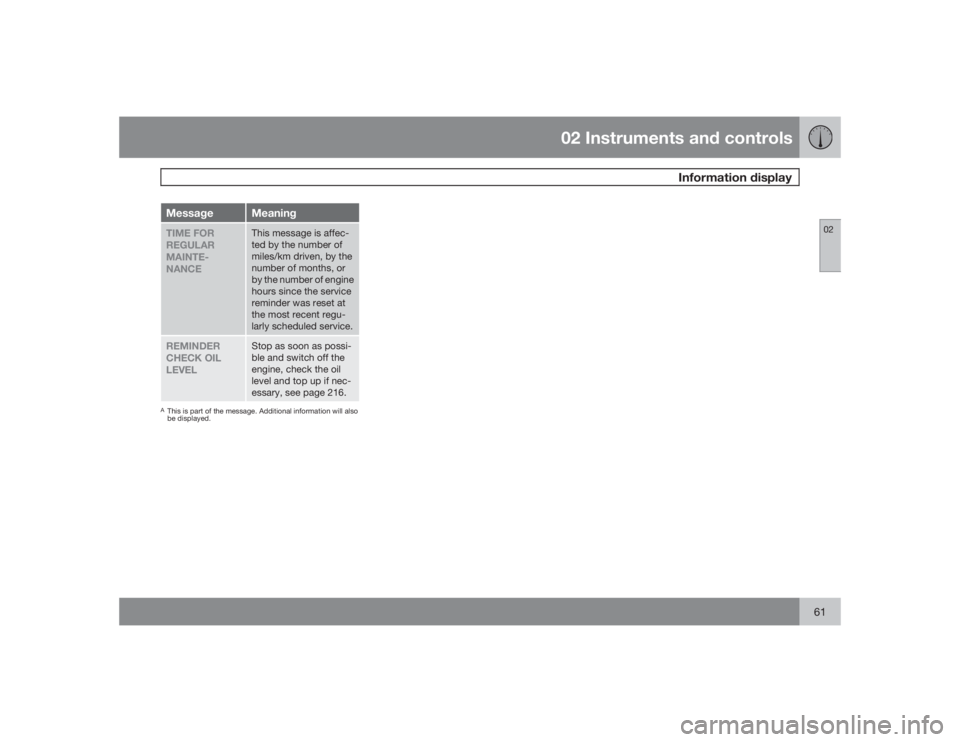

Information display
0261
Message
Meaning
TIME FOR
REGULAR
MAINTE-
NANCE
This message is affec-
ted by the number of
miles/km driven, by the
number of months, or
by the number of engine
hours since the service
reminder was reset at
the most recent regu-
larly scheduled service.
REMINDER
CHECK OIL
LEVEL
Stop as soon as possi-
ble and switch off the
engine, check the oil
level and top up if nec-
essary, see page 216.
AThis is part of the message. Additional information will also
be displayed.

02 Instruments and controls12-volt sockets
0262
12-volt socket (front seat)
G026349
12-volt socket, auxiliary equipmentThe 12-volt socket can be used to plug in cer-
tain accessories such as cellular telephones,
etc. The maximum current is 10 A. The key
must be in position I (or higher) for the auxiliary
socket to function.Ashtrays/cigarette lighterThe auxiliary socket can also be used for a cig-
arette lighter
1, and ashtrays, which can be pur-
chased from your Volvo retailer.
NOTE
The cover should be kept on when the aux-
iliary socket is not in use.Auxiliary equipmentThe buttons to the left of the 12-volt socket can
be used for Volvo-installed optional or auxiliary
equipment.12-volt socket (rear seat)
G029082
NOTE
The 12-volt socket in the rear seat cannot
function as a cigarette lighter.
1Accessory.

02 Instruments and controls
Lighting panel
02``63
G026415
Pos.
LightingDaytime running lights off. High
beam flash only.Parking lightsDaytime running lights. High
beams and high beam flash can
be used in this position.
Parking lightsThe front and rear parking lights can be turned
on even when the ignition is switched off.
±
Turn switch (1) to the parking light position.
The license plate lights also illuminate when the
parking lights are switched on.Headlights1.
Turn the ignition key to position II.
2. The low beam headlights (daytime running
lights) illuminate automatically, except
when the light switch (1) is in the parking
light position
1.
NOTE
See page 66 for information on switching
between high and low beams.
Active Bi-Xenon Lights (ABL)–option
G026507
Lighting panel, vehicles with Active Bi-Xenon
Ÿ
headlightsWhen the ABL function is activated, the head-
light beams adjust laterally to help light up a
curve according to movements of the steering
wheel.
This function can be activated by turning the
lighting switch to the ABL position (indicated
by the arrow in the illustration). The indicator
light
in the ABL symbol will illuminate.
The function can be deactivated by turning the
lighting switch counterclockwise to one of the
other lighting positions.
1On Canadian models, the daytime running lights will remain on with the light switch in this position.

02 Instruments and controlsLighting panel
0264
G020789
Headlight pattern with ABL deactivated (left) and
activated (right)
NOTE
•
This function can only be activated in
twilight or dark conditions, and only
when the vehicle is in motion.
•
If the indicator light flashes, this indi-
cates a fault in the ABL system. A text
message will also be displayed.
Brake lightsThe brake lights come on automatically when
the brakes are applied.Fog lightsFront fog lights (option)The front fog lights can be used in combination
with either the headlights or the parking lights.
1.
Turn the ignition key to position II.
2. Press button (3) to turn on the front fog
lights.
An indicator light in the button illuminates when
the front fog lights are on.Rear fog lightThe single rear fog light is located in the driver's
side taillight cluster.
The rear fog light will only function in combi-
nation with the high/low beam headlights or the
optional front fog lights.
1.
Turn the ignition key to position II.
2. Press button (5) to turn on the rear fog light.
An indicator light in the button illuminates when
the rear fog light is on.
NOTE
The rear fog light is considerably brighter
than the normal taillights and should be
used only when conditions such as fog, rain,
snow, smoke or dust reduce visibility for
other vehicles to less than 500 ft.
(150 meters).Instrument panel lightingThe instrument panel lighting illuminates when
the ignition is in position II and the light switch
(1) is in either position
or
.
NOTE
To make it easier to read the odometer, trip
odometer, clock, and ambient temperature,
these gauges illuminate when the vehicle is
unlocked and when the key has been
removed from the ignition switch. The light-
ing will go out when the vehicle is locked.Move the thumb wheel (2) up to increase
brightness or down to decrease brightness.

02 Instruments and controls
Lighting panel
0265 Unlocking the fuel filler door
With the ignition switched off, press button (4)
to unlock the fuel filler door. Please note that
the fuel filler door will remain unlocked until the
car begins to move forward.
An audible click will be heard when the fuel filler
door re-locks.

02 Instruments and controlsLeft-side steering wheel lever
0266
Lever positions
G026954
Turn signals, lane change positionTurn signals, position for normal turnsHigh beam flashToggle between high and low beams,
Home Safe lighting
Turn signalsWhen turning±
Move the lever as far up or down as pos-
sible (to position 2) to start the turn signals.
The turn signals will be cancelled automatically
by the movement of the steering wheel, or the
lever can be returned to its initial position by
hand.When changing lanesThe driver can automatically flash the turn sig-
nals 3 times by:•
Moving the turn signal lever up or down to
position 1 and releasing it.
•
Moving the lever up or down to position 2
and immediately back to its original posi-
tion.NOTE
•
This automatic flashing sequence can
be interrupted by immediately moving
the lever in the opposite direction.
•
If the turn signal indicator flashes faster
than normal, check for a burned-out
turn signal bulb.
High/low beam headlightsContinuous high beams1.
Turn the ignition key to position II.
2.
With the light switch (1) in position
,
see page 63, pull the turn signal lever
toward the steering wheel (position 4) to
toggle between high and low beams.
High beam flash1.
Turn the ignition key to position II.
2. Pull the turn signal lever to position 3. The
high beams will remain on until the lever is
released.Home safe lightingWhen you leave your car at night, you can
make use of the home safe lighting function to
illuminate the area in front of the car.
1. Remove the key from the ignition switch.
2. Pull the direction indicator lever as far as
possible towards the steering wheel (to
position 4) and release it.
3. Exit the car and lock the doors.
The headlights and parking lights will illuminate
and remain on for 30
1, 60 or 90 seconds. The
time interval can be changed according to your
1Factory setting

02 Instruments and controls
Left-side steering wheel lever
0267
preferences by using the Personal Settings
function, see page 83 for more information.

02 Instruments and controlsTrip computer
0268
G029052
READ (press to acknowledge/confirm/
erase a message)Thumb wheel (used to scroll among the trip
computer menus)RESET
The trip computer stores information gathered
from several systems in your car and has four
menus (five on Canadian models) that can be
shown in the information display.
•
MILES TO EMPTY TANK
•
AVERAGE
(average fuel consumption)
•
INSTANTANEOUS
(current fuel con-
sumption)
•
AVERAGE SPEED
•
ACTUAL SPEED
(current speed in mph,
Canadian models only)
•
STC/DSTC
, see page 155
NOTE
Warning messages from the car's monitor-
ing systems will override the trip computer
function.If a warning message is shown in the informa-
tion display while you are using the trip com-
puter:
1. Acknowledge the message by pressing the
READ (button 1).
2.
PressREAD again to return to the trip
computer function.ControlsThe trip computer functions can be accessed
by twisting the thumb wheel (2) one step at a
time in either direction. Twisting a final time
returns you to the original function.ResettingAVERAGE (average fuel consumption) and
AVERAGE SPEED can be reset.
1. Select one of these functions.
2.
PressRESET (3).
MILES TO EMPTY TANKThis function shows the approximate distance
that can be driven on the fuel remaining in the
tank. The calculation is based on average fuel
consumption during the last 20 miles (30 km)
of driving and the amount of fuel remaining in
the tank when the reading was taken.
When the message
---- miles to empty tank
appears in the display, refuel as soon as pos-
sible.AVERAGEThis value indicates fuel consumption since the
last time the trip computer was reset, by press-
ingRESET (button 3). When the engine is
switched off, information on fuel consumption
is stored and remains in system memory until
RESET(button 3) is pressed again.INSTANTANEOUSThis value indicates the current fuel consump-
tion, based on readings taken once per sec-
ond. When the car is not moving, "
----
" will be
displayed.
AVERAGE SPEEDThis value indicates average speed since the
last time the trip computer was reset, by press-
ingRESET (button 3). When the engine is
switched off, information on average speed is
stored and remains in system memory until the
RESET (button 3) is pressed again.

02 Instruments and controls
Trip computer
0269

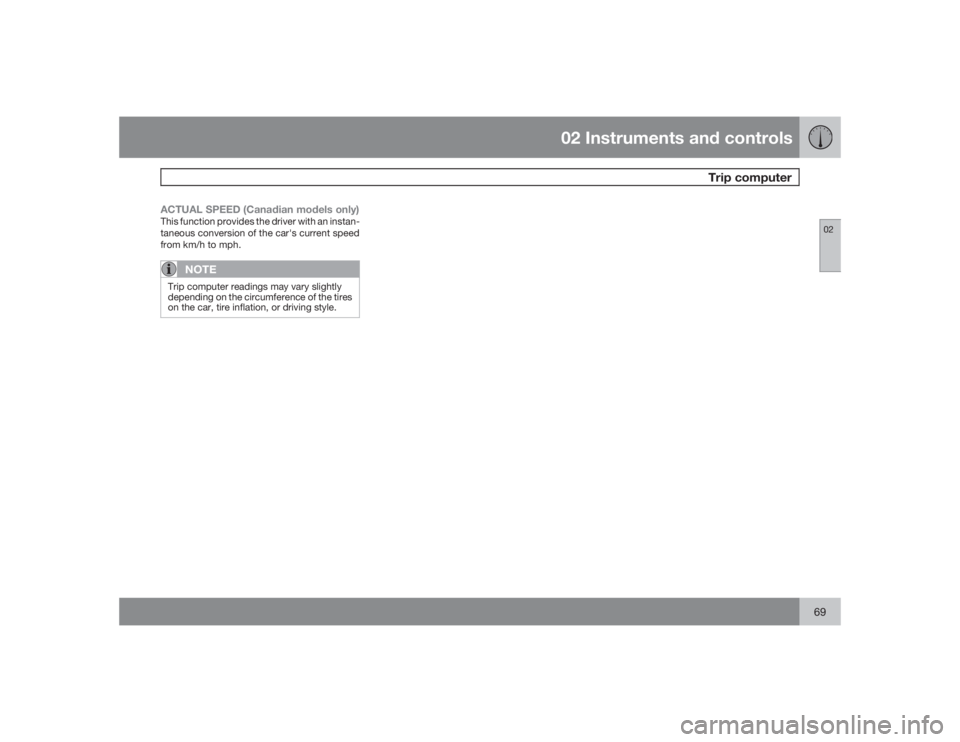

ACTUAL SPEED (Canadian models only)This function provides the driver with an instan-
taneous conversion of the car's current speed
from km/h to mph.
NOTE
Trip computer readings may vary slightly
depending on the circumference of the tires
on the car, tire inflation, or driving style.

02 Instruments and controlsCruise control (option)
0270
Engaging the cruise control function
G020141
The cruise control buttons are located on the
left side of the steering wheel hub.
NOTE
This does not set the vehicle's speed.1.
Press the CRUISE button.
CRUISE
will
appear in the function display in the center
of the instrument panel.
2.
Press+ or – to set the current speed.
CRUISE ON
will be displayed.
Increasing or decreasing speed
G031667
Use+ or – in the following ways to increase or
decrease the vehicle's speed:
1.
Press and hold down + or – until the vehicle
reaches the desired speed. This will
become the set speed when the button is
released.
2.
Press+ or – for approximately a half sec-
ond and release the button to increase or
decrease vehicle speed by approximately
1 mph (1.6 km/h).
NOTE
•
Cruise control will not function at
speeds below 20 mph (30 km/h).
•
Momentary acceleration, for less than
1 minute (e.g. when passing another
car), does not affect cruise control oper-
ation. The car will automatically return
to the previously set speed when the
accelerator pedal is released.
Temporarily disengaging the cruise
control•
Press0 to temporarily disengage cruise
control.
CRUISE
will appear in the function display.
The currently set speed is stored in the sys-
tem's memory.
Cruise control is also automatically
disengaged:•
If the speed drops below approximately
20 mph (30 km/h) when driving uphill.
•
When the brake or clutch pedal is
depressed.
•
If the gear selector is moved to posi-
tionN.
