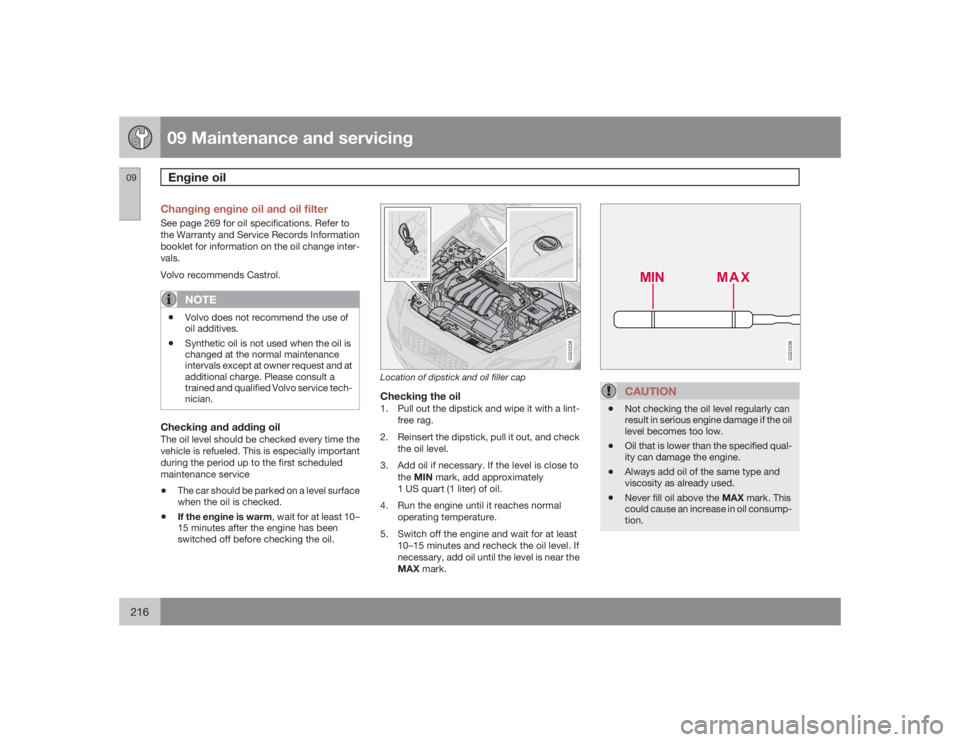

adding oil VOLVO S40 2009 Owner´s Manual

09 Maintenance and servicingEngine oil
09216
Changing engine oil and oil filterSee page 269 for oil specifications. Refer to
the Warranty and Service Records Information
booklet for information on the oil change inter-
vals.
Volvo recommends Castrol.
NOTE
•
Volvo does not recommend the use of
oil additives.
•
Synthetic oil is not used when the oil is
changed at the normal maintenance
intervals except at owner request and at
additional charge. Please consult a
trained and qualified Volvo service tech-
nician.
Checking and adding oilThe oil level should be checked every time the
vehicle is refueled. This is especially important
during the period up to the first scheduled
maintenance service•
The car should be parked on a level surface
when the oil is checked.
•
If the engine is warm, wait for at least 10–
15 minutes after the engine has been
switched off before checking the oil.
G020338
Location of dipstick and oil filler capChecking the oil1. Pull out the dipstick and wipe it with a lint-
free rag.
2. Reinsert the dipstick, pull it out, and check
the oil level.
3. Add oil if necessary. If the level is close to
theMIN mark, add approximately
1 US quart (1 liter) of oil.
4. Run the engine until it reaches normal
operating temperature.
5. Switch off the engine and wait for at least
10–15 minutes and recheck the oil level. If
necessary, add oil until the level is near the
MAX mark.
G020336
CAUTION
•
Not checking the oil level regularly can
result in serious engine damage if the oil
level becomes too low.
•
Oil that is lower than the specified qual-
ity can damage the engine.
•
Always add oil of the same type and
viscosity as already used.
•
Never fill oil above the MAX mark. This
could cause an increase in oil consump-
tion.
