parking brake VOLVO S40 2009 Owner´s Manual

Contents
4
00
00 IntroductionGeneral information.................................. 10
Volvo and the environment....................... 12
Important warnings................................... 13
01
01 SafetyOccupant safety........................................ 16
Seat belts.................................................. 18
Supplemental Restraint System............... 21
Occupant Weight Sensor (OWS).............. 26
Side impact protection airbags................. 29
Volvo Inflatable Curtain (VIC).................... 30
Whiplash Protection System..................... 32
Crash mode.............................................. 34
Child safety............................................... 35
Child restraint systems............................. 37
Infant seats............................................... 38
Convertible seats...................................... 40
Booster cushions...................................... 42
ISOFIX lower anchors............................... 43
Top tether anchors.................................... 45
Child restraint registration and recalls...... 46
02
02 Instruments and controlsInstrument overview.................................. 50
Instrument panel....................................... 53
Indicator and warning symbols................. 55
Symbols – instrument panel..................... 57
Information display................................... 60
12-volt sockets......................................... 62
Lighting panel........................................... 63
Left-side steering wheel lever................... 66
Trip computer........................................... 68
Cruise control (option)............................... 70
Right-side steering wheel lever................. 72
Steering wheel adjustment, Hazard warn-
ing flashers................................................ 74
Parking brake............................................ 75
Power windows......................................... 76
Mirrors....................................................... 78
Power moonroof (option).......................... 81
Personal settings...................................... 83
HomeLink® Wireless Control System
(option)...................................................... 86

G020901
48
Instrument overview................................................................................ 50
Instrument panel..................................................................................... 53
Indicator and warning symbols............................................................... 55
Symbols – instrument panel.................................................................... 57
Information display.................................................................................. 60
12-volt sockets........................................................................................ 62
Lighting panel.......................................................................................... 63
Left-side steering wheel lever................................................................. 66
Trip computer.......................................................................................... 68
Cruise control (option)............................................................................. 70
Right-side steering wheel lever............................................................... 72
Steering wheel adjustment, Hazard warning flashers............................. 74
Parking brake.......................................................................................... 75
Power windows....................................................................................... 76
Mirrors..................................................................................................... 78
Power moonroof (option)........................................................................ 81
Personal settings..................................................................................... 83
HomeLink® Wireless Control System (option)....................................... 86

02 Instruments and controls
Instrument overview
02``51
Steering wheel adjustmentHood openerControls in front doors (see
page 52)Left steering wheel leverLighting panel, fuel filler door
openerDoor open handle and locking but-
tonClimate system air ventSide window air ventCruise controlHorn, airbagMain instrument panelAudio controls (option)Right steering wheel leverIgnition switchMoonroof control (option)
Not in useNot is useCourtesy lighting switchDriver's side reading lightPassenger's side reading lightSeat belt reminder and Occupant
Weight Sensor indicatorRear-view mirrorDisplay for climate control, personal
settings, and audio systemAudio systemControls for personal settings and
audio systemControls for climate systemGear selectorHazard warning flashersDoor open handle, and locking but-
tonGlove compartment
Parking brake12-volt socketPosition for optional equipmentPosition for optional equipment

02 Instruments and controls
Indicator and warning symbols
02``55 Function check
The indicator and warning symbols
1 light up
when you turn the ignition key or the optional
keyless drive start control to the driving posi-
tion (position II) before starting. This shows that
the symbols are functioning.
When the engine starts, all sym-
bols go out. If the engine is not
started within 5 seconds, all of the
symbols except the malfunction
indicator light (CHECK ENGINE)
and the oil pressure warning light
will go out. Certain symbols may
not have their functions illustrated, depending
on the car's equipment.
CHECK
ENGINEThePARK BRAKE symbol will not go out until
the parking brake has been released.
Symbols in the center of the instrument
panel
G026365
Warning symbol
The red warning symbol lights up
to indicate a fault that could affect
the car's drivability.This symbol
illuminates when the vehicle is
traveling at speeds above 5 mph
(7 km/h). A text explaining the nature of the fault
will also be shown in the information display.
The symbol and accompanying text will remain
on until the fault has been corrected. This sym-
bol may also light up in combination with other
indicator or warning symbols.
If the red warning symbol lights up:
1. Stop the car as soon as possible in a suit-
able location.
2. Read the message in the information dis-
play.
3. Follow the instructions provided, or con-
tact a trained and qualified Volvo service
technician. Erase the message by pressing
READ, see page 60.Information symbol
The yellow information symbol
lights up to alert the driver to a
message in the information dis-
play. This symbol illuminates when
the vehicle is traveling at speeds
below 5 mph (7 km/h).
The message can be erased by pressing the
READ button, see page 60, or will disappear
automatically (the length of time required for
the message to disappear varies, depending
on the function indicated).
When the message "
TIME FOR REGULAR
SERVICE
" is displayed, the text can be erased
and the information symbol light can be turned
off by pressing the READ button. The text will
disappear and the symbol light will go out auto-
matically after two minutes.
1On certain engines, the symbol for low oilpressure is not used. Instead, a text warningis provided in the information display, see page 216.

02 Instruments and controlsSymbols – instrument panel
0258
Symbols – right side
G026438
1. Turn signal indicator for trailer (certain
markets only)
If you are towing a trailer, this light
will flash simultaneously with the
turn signals on the trailer. If the
light does not flash when signaling,
one of the turn signals on the trailer
or on the car are not functioning properly.
2. Parking brake applied
This light is on when the parking
brake (hand brake) is applied. The
parking brake lever is situated
between the front seats, see
page 75 for more information.
NOTE
Canadian models are equipped with the
second symbol.3. SRS system warning light
If this light comes on while the car
is being driven, or remains on for
longer than approximately 10 sec-
onds after the car has been
started, the SRS system's diag-
nostic functions have detected a fault in a seat
belt lock or pretensioner, a front airbag, side
impact airbag, and/or an inflatable curtain.
Have the system(s) inspected by a trained and
qualified Volvo service technician as soon as
possible.
4. Oil pressure warning light
1
If the light comes on while driving,
the car, stop the engine immedi-
ately, and check the engine oil
level. If the oil level is normal and
the light stays on after restart, have
the car towed to the nearest trained and quali-
fied Volvo service technician. After hard driv-
ing, the light may come on occasionally when
the engine is idling. This is normal, provided it
goes off when the engine speed is increased.
5. Seat belt reminder
This symbol (and the seat belt
reminder light above the rear view
mirror) will light up if either front
seat occupant has not buckled his/
her seat belt. If the car is not mov-
ing, the symbols will go out after approximately
6 seconds.
6. Generator warning light
If the light comes on while the
engine is running, have the charg-
ing system checked by an author-
ized Volvo workshop.
1On certain engines, this symbol is not used to indicate low oil pressure. Instead, a text warning is provided in the information display, see also page 216.

02 Instruments and controlsLighting panel
0264
G020789
Headlight pattern with ABL deactivated (left) and
activated (right)
NOTE
•
This function can only be activated in
twilight or dark conditions, and only
when the vehicle is in motion.
•
If the indicator light flashes, this indi-
cates a fault in the ABL system. A text
message will also be displayed.
Brake lightsThe brake lights come on automatically when
the brakes are applied.Fog lightsFront fog lights (option)The front fog lights can be used in combination
with either the headlights or the parking lights.
1.
Turn the ignition key to position II.
2. Press button (3) to turn on the front fog
lights.
An indicator light in the button illuminates when
the front fog lights are on.Rear fog lightThe single rear fog light is located in the driver's
side taillight cluster.
The rear fog light will only function in combi-
nation with the high/low beam headlights or the
optional front fog lights.
1.
Turn the ignition key to position II.
2. Press button (5) to turn on the rear fog light.
An indicator light in the button illuminates when
the rear fog light is on.
NOTE
The rear fog light is considerably brighter
than the normal taillights and should be
used only when conditions such as fog, rain,
snow, smoke or dust reduce visibility for
other vehicles to less than 500 ft.
(150 meters).Instrument panel lightingThe instrument panel lighting illuminates when
the ignition is in position II and the light switch
(1) is in either position
or
.
NOTE
To make it easier to read the odometer, trip
odometer, clock, and ambient temperature,
these gauges illuminate when the vehicle is
unlocked and when the key has been
removed from the ignition switch. The light-
ing will go out when the vehicle is locked.Move the thumb wheel (2) up to increase
brightness or down to decrease brightness.

02 Instruments and controls
Parking brake
0275 Parking brake (hand brake)
G026348
The parking brake lever is located between the
front seats.
NOTE
The indicator light will illuminate even if the
parking brake has only been partially
applied.When applying the parking brake1. Press firmly on the brake pedal.
2. Pull the parking brake lever up firmly to its
full extent.
3. Release the brake pedal and ensure that
the vehicle is at a standstill.4. If the vehicle rolls, the parking brake lever
must be pulled more firmly.
5. When parking a vehicle always put the gear
selector in first gear (for manual transmis-
sion) or P (for automatic transmission).
Parking on a hill•
If the vehicle is pointing uphill, turn the front
wheels so that they point away from the
curb.
•
If the vehicle is pointing downhill, turn the
front wheels so that they point toward the
curb.
Releasing the parking brake1. Press firmly on the brake pedal.
2. Pull the lever up slightly, press the button
at the end of the lever and lower the lever
completely.
WARNING
Pull up the parking brake lever up firmly to
its full extent.

06 Starting and drivingStarting the vehicle
06144
To start the engine
WARNING
Before starting, check that the seat, steering
wheel and mirrors are adjusted properly.
Make sure the brake pedal can be
depressed completely. Adjust the seat if
necessary.1. Fasten the seat belt.
2. Apply the parking brake if not already set.
The gear selector should be locked in the
Park (P) position (Shiftlock). See also page
151.
Manual transmission: The clutch must be
fully depressed.
NOTE
After a cold start, idle speed may be notice-
ably higher than normal for a short period.
This is done to help bring components in the
emission control system to their normal
operating temperature as quickly as possi-
ble, which enables them to control emis-
sions and help reduce the vehicle's impact
on the environment.3. The vehicle is equipped with an autostart
feature. Without touching the throttlepedal, turn the key to position III and
release it. The starter motor will then oper-
ate automatically (for up to ten seconds)
until the engine starts. If the engine fails to
start, repeat this step.
4. To release the gear selector from the Park
(P) position, the engine must be running (or
the ignition key must be in position II) and
the brake pedal must be depressed.
5. Select the desired gear. On models with an
automatic transmission, the gear engages
after a very slight delay which is especially
noticeable when selecting R.
NOTE
•
Immobilizer: If two of the keys to your
vehicle are close together, e.g., on the
same key ring when you try to start the
vehicle, this could cause interference in
the immobilizer system and result in the
vehicle not starting. If this should occur,
remove one of the keys from the key
ring before trying to start the vehicle
again.
•
Keylock: Models equipped an auto-
matic transmission have a keylock sys-
tem. When the engine is switched off,
the gear selector must be in the Park
(P) position before the key can be
removed from the ignition switch
1.
•
When starting in cold weather, the
transmission may shift up at slightly
higher engine speeds than normal until
the automatic transmission fluid rea-
ches normal operating temperature.
•
Do not race a cold engine immediately
after starting. Oil flow may not reach
some lubrication points fast enough to
prevent engine damage.
1The optional keyless drive start control does not need to be removed from the ignition switch.

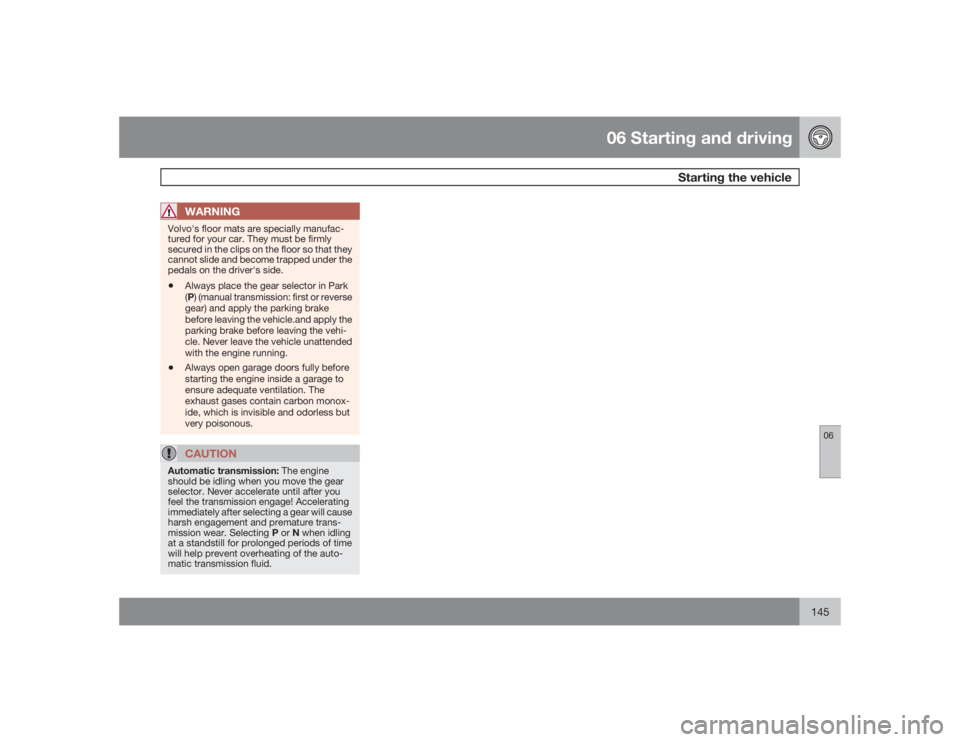

06 Starting and driving
Starting the vehicle
06
145
WARNING
Volvo's floor mats are specially manufac-
tured for your car. They must be firmly
secured in the clips on the floor so that they
cannot slide and become trapped under the
pedals on the driver's side.•
Always place the gear selector in Park
(P) (manual transmission: first or reverse
gear) and apply the parking brake
before leaving the vehicle.and apply the
parking brake before leaving the vehi-
cle. Never leave the vehicle unattended
with the engine running.
•
Always open garage doors fully before
starting the engine inside a garage to
ensure adequate ventilation. The
exhaust gases contain carbon monox-
ide, which is invisible and odorless but
very poisonous.CAUTION
Automatic transmission: The engine
should be idling when you move the gear
selector. Never accelerate until after you
feel the transmission engage! Accelerating
immediately after selecting a gear will cause
harsh engagement and premature trans-
mission wear. Selecting P or N when idling
at a standstill for prolonged periods of time
will help prevent overheating of the auto-
matic transmission fluid.

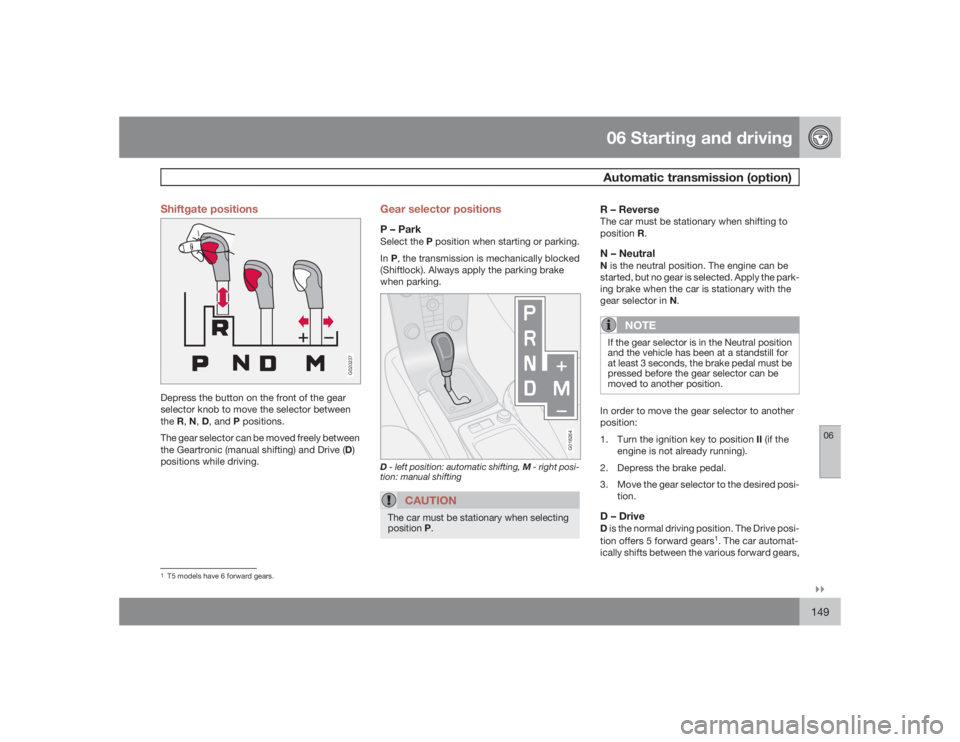

06 Starting and drivingAutomatic transmission (option)
06``149 Shiftgate positions
G020237
Depress the button on the front of the gear
selector knob to move the selector between
theR,N,D, and P positions.
The gear selector can be moved freely between
the Geartronic (manual shifting) and Drive (D)
positions while driving.
Gear selector positionsP – ParkSelect the P position when starting or parking.
InP, the transmission is mechanically blocked
(Shiftlock). Always apply the parking brake
when parking.
G018264
D- left position: automatic shifting, M- right posi-
tion: manual shifting
CAUTION
The car must be stationary when selecting
positionP.
R – ReverseThe car must be stationary when shifting to
positionR.N – NeutralN is the neutral position. The engine can be
started, but no gear is selected. Apply the park-
ing brake when the car is stationary with the
gear selector in N.
NOTE
If the gear selector is in the Neutral position
and the vehicle has been at a standstill for
at least 3 seconds, the brake pedal must be
pressed before the gear selector can be
moved to another position.In order to move the gear selector to another
position:
1.
Turn the ignition key to position II (if the
engine is not already running).
2. Depress the brake pedal.
3. Move the gear selector to the desired posi-
tion.D – DriveD is the normal driving position. The Drive posi-
tion offers 5 forward gears
1. The car automat-
ically shifts between the various forward gears,
1T5 models have 6 forward gears.
