washer fluid VOLVO S40 2009 Owner´s Manual

02 Instruments and controlsRight-side steering wheel lever
0272
Windshield wipers
00
A
C
B
G025419
Windshield/headlight washersRain sensor (option) – on/of, see page 72Thumb wheel
Windshield wipers off
The windshield wipers are off when
the lever is in position 0.
Manual wiper function
From position 0, move the lever
upward. The windshield wipers will
sweep one stroke at a time for as
long as the lever is held up.
Intermittent wiper function
With the lever in this position, you
can set the wiper interval by mov-
ing the thumb wheel (C) upward to
increase wiper speed or down-
ward to decrease the speed.
Continuous wiper function
The wipers operate at "normal"
speed.
High speed wiper function.
A–Windshield washersPull the lever toward the steering wheel and
release it. The wipers will make 2–3 sweeps
across the windshield after the lever has been
released.
CAUTION
•
Use ample washer fluid when washing
the windshield. The windshield should
be thoroughly wet when the wipers are
in operation.
•
Before using the wipers, ice and snow
should be removed from the wind-
shield/rear window. Be sure the wiper
blades are not frozen in place.
Headlight washers (certain models)When the lever has been pulled, high pressure
jets mounted in the bumper will spray the head-
lights.
The following applies to conserve washer fluid,
see page 63 for information on the light switch
positions:Low/high beam headlights onThe headlights will be washed the first time the
windshield is washed. Thereafter, the head-
lights will only be washed once for every five
times the windshield is washed within a 10-
minute period.Parking lights onOptional Bi-Xenon
Ÿ headlights will be washed
once for every five times the windshield is
washed.
Normal halogen headlights will not be washed.

06 Starting and drivingGeneral information
06138
more frequently and spray an anti-rust oil
on the battery posts.
•
Volvo recommends the use of snow tires
on all four wheels for winter driving – see
the chapter "Wheels and tires."
•
To prevent the washer fluid reservoir from
freezing, add washer solvents containing
antifreeze (see page 215 for the location of
the washer fluid reservoir). This is impor-
tant since dirt is often splashed on the
windshield during winter driving, requiring
the frequent use of the washers and wip-
ers. Volvo Washer Solvent should be dilu-
ted as follows: Down to 14 °F (–10 °C): 1
part washer solvent and 4 parts water
Down to 5° F (–15° C): 1 part washer sol-
vent and 3 parts water Down to 0° F
(–18° C): 1 part washer solvent and 2 parts
water Down to –18° F (–28° C): 1 part
washer solvent and 1 part water.
•
Use Volvo Teflon Lock Spray in the locks.NOTE
Avoid using de-icing sprays as they can
cause damage to the locks.
Conserving electrical currentKeep the following in mind to help minimize
battery drain:•
When the engine is not running, avoid turn-
ing the ignition key to position II. Many
electrical systems (the audio system, the
optional navigation system, power win-
dows, etc) will function with the ignition key
in position I. This position reduces drain on
the battery.
•
Please keep in mind that using systems,
accessories, etc that consume a great deal
of current when the engine is not running
could result in the battery being completely
drained.
•
The optional 12 volt socket in the trunk
(certain models only) provides electrical
current even with the ignition switched off,
which drains the battery.
NOTE
•
If the ignition is switched on, a warning
message will be displayed in the text
window in the instrument panel when
the battery charge is low.
•
An energy conserving function
designed into the vehicle's electrical
system will switch off certain functions
or reduce the load on the battery by,
e.g., reducing the audio system's vol-
ume.
Before a long distance tripIt is always worthwhile to have your vehicle
checked at a trained and qualified Volvo serv-
ice technician before driving long distances.
Your trained and qualified Volvo service tech-
nician will also be able to supply you with
bulbs, fuses, spark plugs and wiper blades for
your use in the event that problems occur.
As a minimum, the following items should be
checked before any long trip:•
Check that engine runs smoothly and that
fuel consumption is normal.
•
Check for fuel, oil, and fluid leakage
•
Have the transmission oil level checked
2.
•
Check condition of drive belts.
2To prevent injury from contact with hot surfaces, do not inspect your vehicle's transmission fluid yourself. Have your vehicle's transmission fluid level inspected by a qualified Volvo service technician.

09 Maintenance and servicing
Engine compartment
09
215
G026456
Cooling system expansion tankPower steering fluid reservoir (concealed
behind the headlight)Dipstick – engine oilRadiatorCooling fanWasher fluid reservoirEngine oil filler capBrake/clutch fluid reservoirBattery
Relay/fuse boxAir cleanerWARNING
The cooling fan may start or continue to
operate (for up to 6 minutes) after the engine
has been switched off.

09 Maintenance and servicingFluids
09218
Washer fluid
G026425
Washer fluid reservoirThe washer fluid reservoir is located in the
engine compartment and holds approximately
6.8 US qts (6.5 liters). During cold weather, the
reservoir should be filled with windshield
washer solvent containing antifreeze.
Coolant
G020334
Coolant reservoirNormally, the coolant does not need to be
changed. If the system must be drained, con-
sult a trained and qualified Volvo service tech-
nician.
CAUTION
•
If necessary, top up the cooling system
with Volvo Genuine Coolant/Antifreeze
only (a 50/50 mix of water and anti-
freeze).
•
Different types of antifreeze/coolant
may not be mixed.
•
If the cooling system is drained, it
should be flushed with clean water or
premixed anti-freeze before it is refilled
with the correct mixture of water/anti-
freeze.
•
The cooling system must always be
kept filled to the correct level, and the
level must be between the MIN and
MAX marks. If it is not kept filled, there
can be high local temperatures in the
engine which could result in damage.
Check coolant regularly!
•
Do not top up with water only. This
reduces the rust-protective and anti-
freeze qualities of the coolant and has a
lower boiling point. It can also cause
damage to the cooling system if it
should freeze.
•
Do not use chlorinated tap water in the
vehicles cooling system.

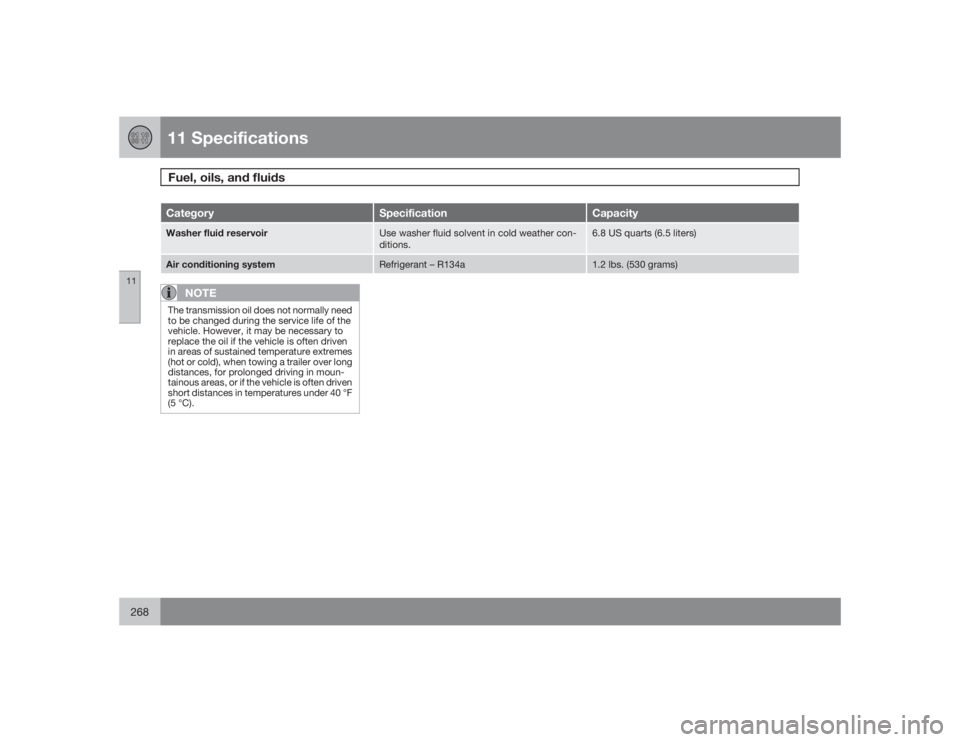

11 SpecificationsFuel, oils, and fluids
11268
Category
Specification
Capacity
Washer fluid reservoir
Use washer fluid solvent in cold weather con-
ditions.
6.8 US quarts (6.5 liters)
Air conditioning system
Refrigerant – R134a
1.2 lbs. (530 grams)
NOTE
The transmission oil does not normally need
to be changed during the service life of the
vehicle. However, it may be necessary to
replace the oil if the vehicle is often driven
in areas of sustained temperature extremes
(hot or cold), when towing a trailer over long
distances, for prolonged driving in moun-
tainous areas, or if the vehicle is often driven
short distances in temperatures under 40 °F
(5 °C).

12 Index
12282
inflation pressure table, Canadian mod-
els.......................................................179
inflation pressure table, US models.... 178
load ratings......................................... 177
rotation............................................... 189
snow...................................................186
spare................................................... 187
speed ratings...................................... 177
storing................................................. 174
studded............................................... 186
tire pressure monitoring system......... 197
tire sealing system.............................. 192
tread wear indicator............................ 175
uniform tire quality grading................. 185
winter driving...................................... 186
Tire sealing system.................................. 192
Top tether anchors (child restraint sys-
tems).......................................................... 45
Towing a trailer........................................ 160
trailer hitch.......................................... 162
Towing the vehicle................................... 157
Trailer hitch - detachable......................... 162
Trailer towing........................................... 160Transmission
Geartronic........................................... 150
manual........................................ 147, 148
shiftlock override................................ 151
Tread wear indicator................................ 175
Treble....................................................... 242
Trip computer............................................ 68
Trips, long distance................................. 138
Trunk
opening from the inside...................... 127
Turn signals............................................... 66
indicator lights...................................... 53
UUniform Tire Quality Grading...................185VValet locking............................................ 122
Vehicle dimensions.................................. 264
Vehicle Event Data................................... 210
Vehicle loading......................................... 183
roof loads............................................ 163Vehicle maintenance
performed by the owner.....................212
Vehicle towing.......................................... 157
Vehicle weights........................................ 265
VIN (Vehicle Identification Number)......... 263
Volvo Inflatable Curtain.............................. 30
Volvo On Call Roadside Assistance........ 275
WWarning flashers, hazard........................... 74
Warning symbol......................................... 55
Warranties................................................ 210
Washer fluid..................................... 218, 267
Washer fluid reservoir......................215, 218
Water, driving through............................. 137
Weights.................................................... 265
Wheel nuts............................................... 188
Wheels.....................................................174
changing............................................. 190
storing................................................. 174
Whiplash Protection System (WHIPS)....... 32

12 Index
12
283
Windows
power.................................................... 76
Windshield washer fluid reservoir............215
Windshield wiper blades.......................... 220
Windshield wipers...................................... 72
rains sensor.......................................... 73
Winter tires............................................... 186
Wiper blades
replacing windshield wipers............... 220
