VOLVO S40 2010 Owner´s Manual

04 Interior

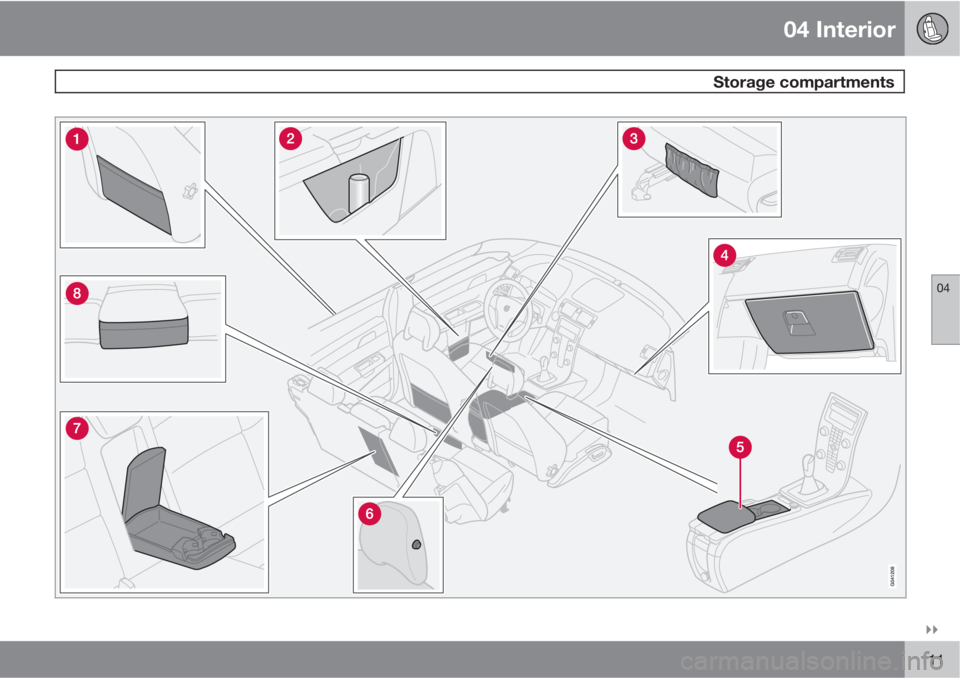

Storage compartments
04

111

04 Interior
Storage compartments
04
112

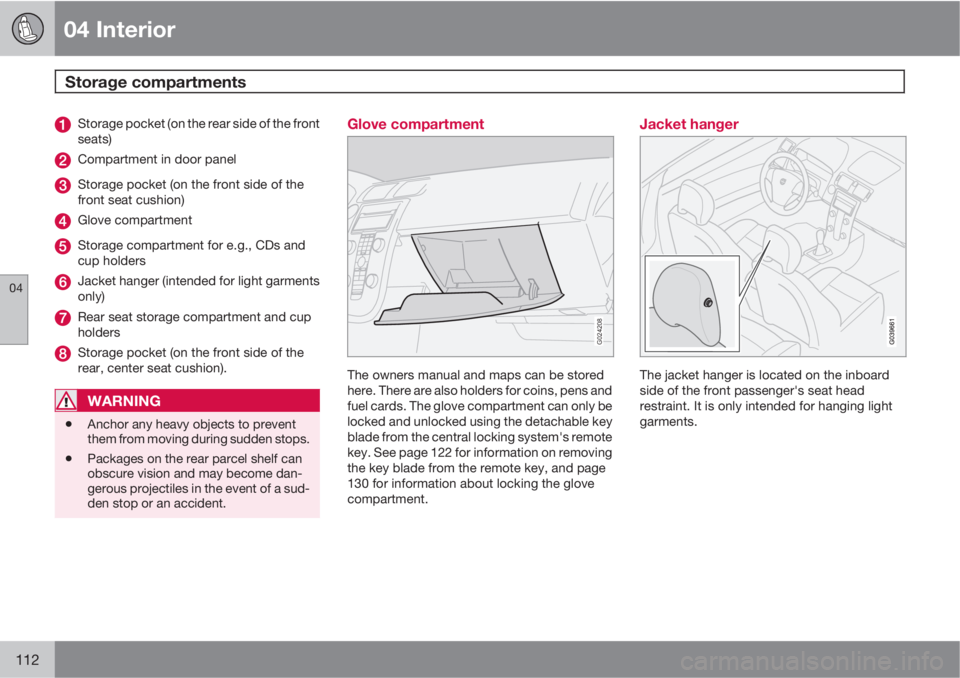

Storage pocket (on the rear side of the front
seats)
Compartment in door panel
Storage pocket (on the front side of the
front seat cushion)
Glove compartment
Storage compartment for e.g., CDs and
cup holders
Jacket hanger (intended for light garments
only)
Rear seat storage compartment and cup
holders
Storage pocket (on the front side of the
rear, center seat cushion).
WARNING
•Anchor any heavy objects to prevent
them from moving during sudden stops.
•Packages on the rear parcel shelf can
obscure vision and may become dan-
gerous projectiles in the event of a sud-
den stop or an accident.
Glove compartment
G024208
The owners manual and maps can be stored
here. There are also holders for coins, pens and
fuel cards. The glove compartment can only be
locked and unlocked using the detachable key
blade from the central locking system's remote
key. See page 122 for information on removing
the key blade from the remote key, and page
130 for information about locking the glove
compartment.
Jacket hanger
The jacket hanger is located on the inboard
side of the front passenger's seat head
restraint. It is only intended for hanging light
garments.

04 Interior
Storage compartments
04

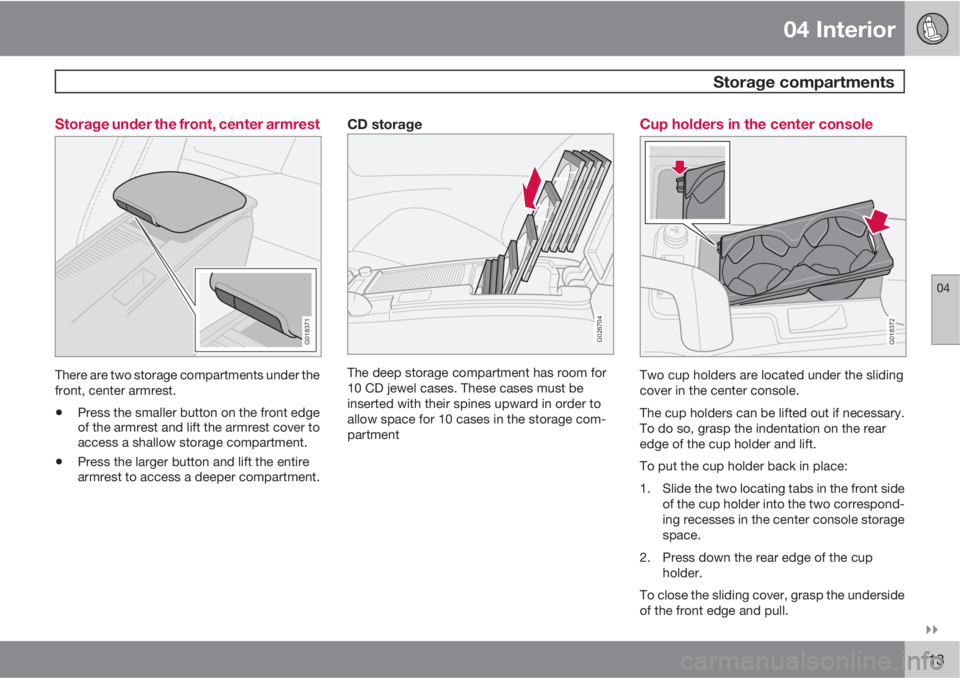

113 Storage under the front, center armrest
G018371
There are two storage compartments under the
front, center armrest.
•Press the smaller button on the front edge
of the armrest and lift the armrest cover to
access a shallow storage compartment.
•Press the larger button and lift the entire
armrest to access a deeper compartment.
CD storage
G026704
The deep storage compartment has room for
10 CD jewel cases. These cases must be
inserted with their spines upward in order to
allow space for 10 cases in the storage com-
partment
Cup holders in the center console
G018372
Two cup holders are located under the sliding
cover in the center console.
The cup holders can be lifted out if necessary.
To do so, grasp the indentation on the rear
edge of the cup holder and lift.
To put the cup holder back in place:
1. Slide the two locating tabs in the front side
of the cup holder into the two correspond-
ing recesses in the center console storage
space.
2. Press down the rear edge of the cup
holder.
To close the sliding cover, grasp the underside
of the front edge and pull.

04 Interior
Storage compartments
04
114

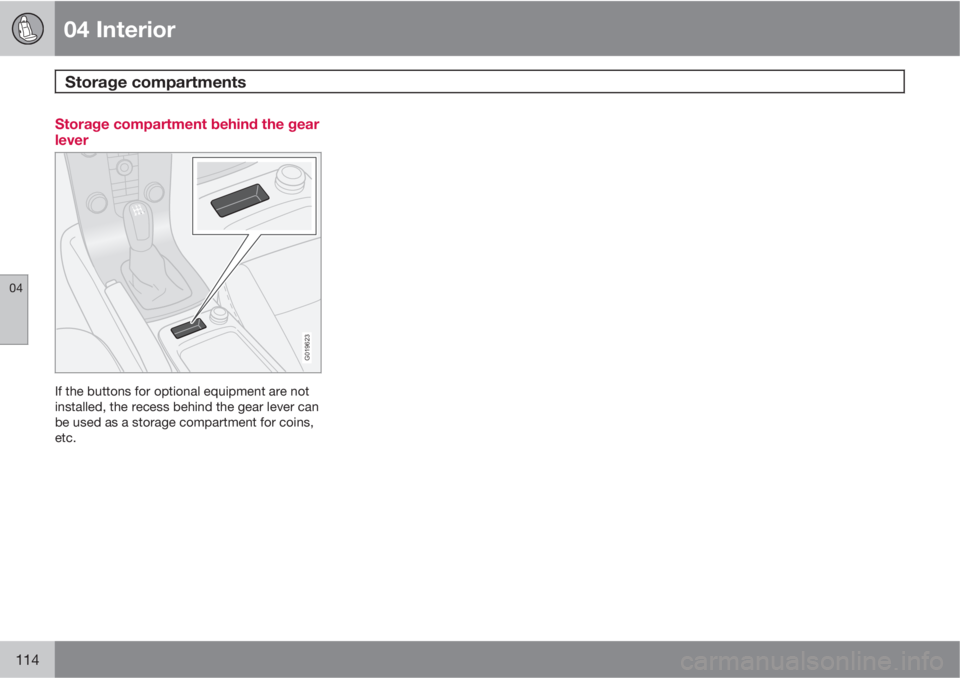

Storage compartment behind the gear
lever
G019623
If the buttons for optional equipment are not
installed, the recess behind the gear lever can
be used as a storage compartment for coins,
etc.

04 Interior
Rear seat
04

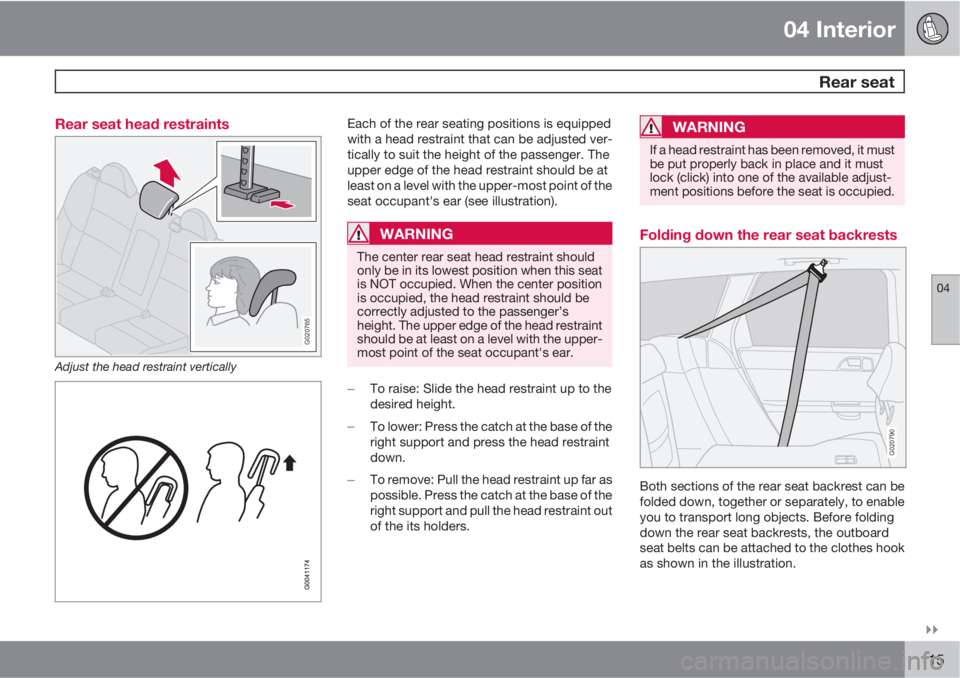

115 Rear seat head restraints
G020765
Adjust the head restraint vertically
Each of the rear seating positions is equipped
with a head restraint that can be adjusted ver-
tically to suit the height of the passenger. The
upper edge of the head restraint should be at
least on a level with the upper-most point of the
seat occupant's ear (see illustration).
WARNING
The center rear seat head restraint should
only be in its lowest position when this seat
is NOT occupied. When the center position
is occupied, the head restraint should be
correctly adjusted to the passenger’s
height. The upper edge of the head restraint
should be at least on a level with the upper-
most point of the seat occupant's ear.

To raise: Slide the head restraint up to the
desired height.

To lower: Press the catch at the base of the
right support and press the head restraint
down.

To remove: Pull the head restraint up far as
possible. Press the catch at the base of the
right support and pull the head restraint out
of the its holders.
WARNING
If a head restraint has been removed, it must
be put properly back in place and it must
lock (click) into one of the available adjust-
ment positions before the seat is occupied.
Folding down the rear seat backrests
G020790
Both sections of the rear seat backrest can be
folded down, together or separately, to enable
you to transport long objects. Before folding
down the rear seat backrests, the outboard
seat belts can be attached to the clothes hook
as shown in the illustration.

04 Interior
Rear seat
04
116

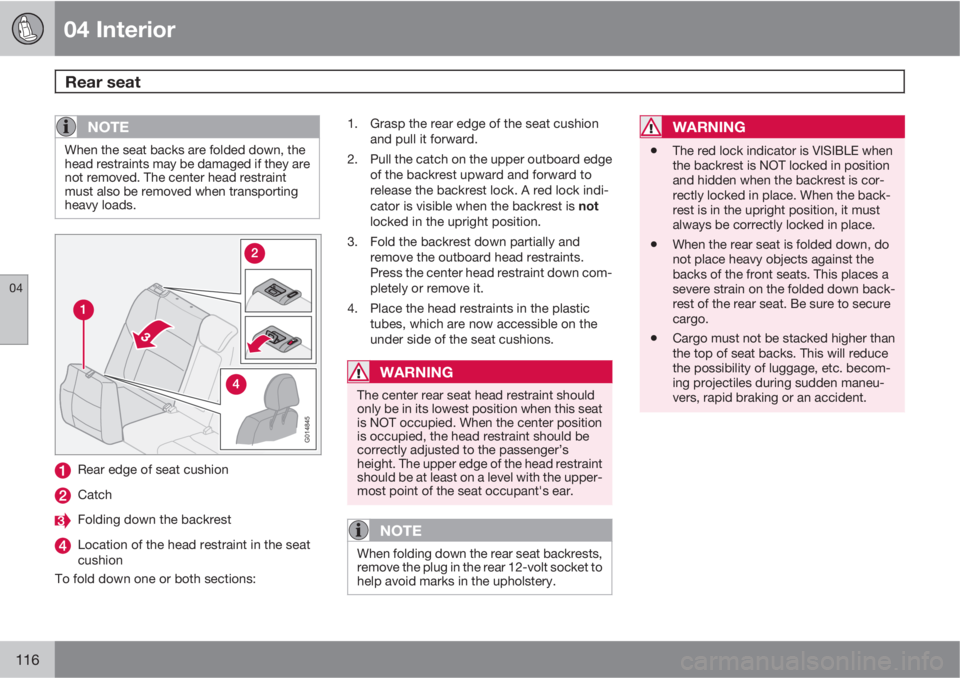

NOTE
When the seat backs are folded down, the
head restraints may be damaged if they are
not removed. The center head restraint
must also be removed when transporting
heavy loads.
G014845
Rear edge of seat cushion
Catch
Folding down the backrest
Location of the head restraint in the seat
cushion
To fold down one or both sections:1. Grasp the rear edge of the seat cushion
and pull it forward.
2. Pull the catch on the upper outboard edge
of the backrest upward and forward to
release the backrest lock. A red lock indi-
cator is visible when the backrest is not
locked in the upright position.
3. Fold the backrest down partially and
remove the outboard head restraints.
Press the center head restraint down com-
pletely or remove it.
4. Place the head restraints in the plastic
tubes, which are now accessible on the
under side of the seat cushions.
WARNING
The center rear seat head restraint should
only be in its lowest position when this seat
is NOT occupied. When the center position
is occupied, the head restraint should be
correctly adjusted to the passenger’s
height. The upper edge of the head restraint
should be at least on a level with the upper-
most point of the seat occupant's ear.
NOTE
When folding down the rear seat backrests,
remove the plug in the rear 12-volt socket to
help avoid marks in the upholstery.
WARNING
•The red lock indicator is VISIBLE when
the backrest is NOT locked in position
and hidden when the backrest is cor-
rectly locked in place. When the back-
rest is in the upright position, it must
always be correctly locked in place.
•When the rear seat is folded down, do
not place heavy objects against the
backs of the front seats. This places a
severe strain on the folded down back-
rest of the rear seat. Be sure to secure
cargo.
•Cargo must not be stacked higher than
the top of seat backs. This will reduce
the possibility of luggage, etc. becom-
ing projectiles during sudden maneu-
vers, rapid braking or an accident.

04 Interior
Trunk
04

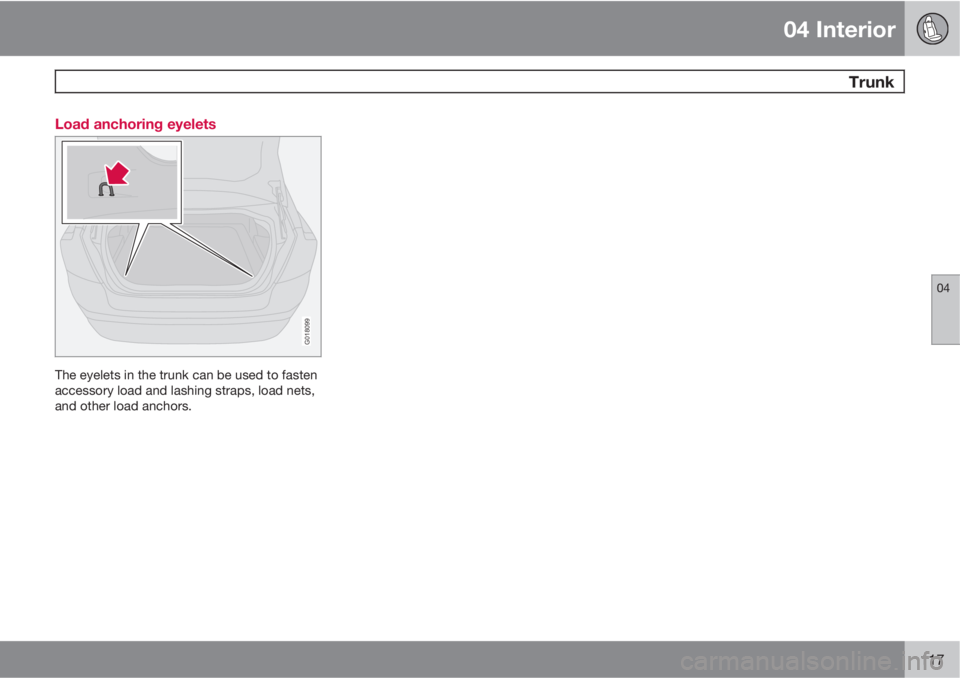

117 Load anchoring eyelets
G018099
The eyelets in the trunk can be used to fasten
accessory load and lashing straps, load nets,
and other load anchors.

118* Option/accessory, for more information, see Introduction.
Remote key and key blade................................................................... 120
Valet locking ......................................................................................... 124
Keyless drive*........................................................................................ 125
Locking and unlocking.......................................................................... 129
Child safety locks.................................................................................. 131
Alarm*.................................................................................................... 132

05
LOCKS AND ALARM

05 Locks and alarm
Remote key and key blade
05
120

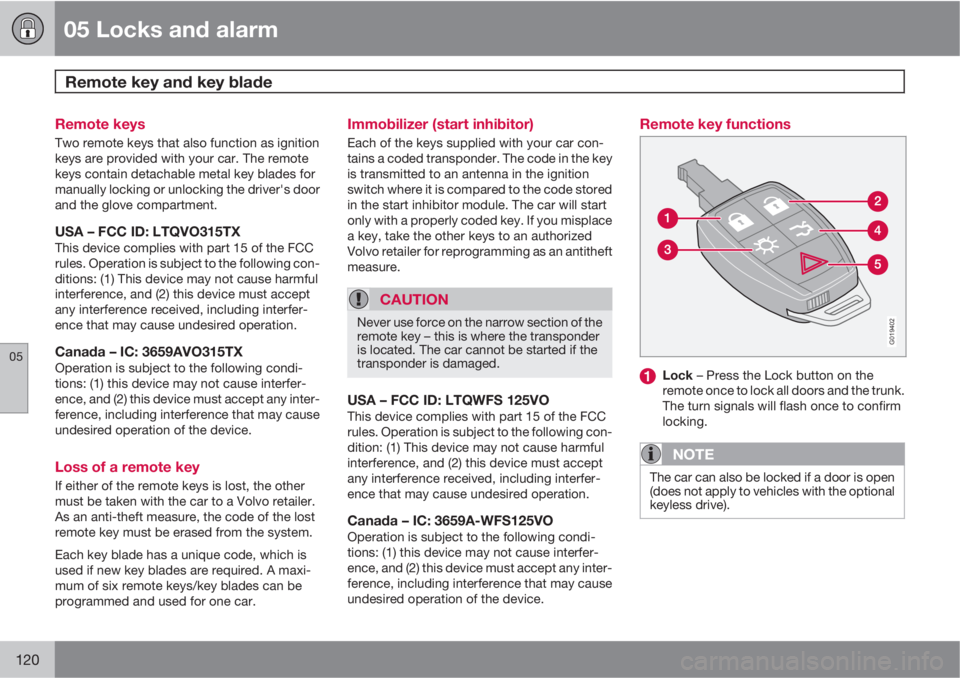

Remote keys
Two remote keys that also function as ignition
keys are provided with your car. The remote
keys contain detachable metal key blades for
manually locking or unlocking the driver's door
and the glove compartment.
USA – FCC ID: LTQVO315TXThis device complies with part 15 of the FCC
rules. Operation is subject to the following con-
ditions: (1) This device may not cause harmful
interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.
Canada – IC: 3659AVO315TXOperation is subject to the following condi-
tions: (1) this device may not cause interfer-
ence, and (2) this device must accept any inter-
ference, including interference that may cause
undesired operation of the device.
Loss of a remote key
If either of the remote keys is lost, the other
must be taken with the car to a Volvo retailer.
As an anti-theft measure, the code of the lost
remote key must be erased from the system.
Each key blade has a unique code, which is
used if new key blades are required. A maxi-
mum of six remote keys/key blades can be
programmed and used for one car.
Immobilizer (start inhibitor)
Each of the keys supplied with your car con-
tains a coded transponder. The code in the key
is transmitted to an antenna in the ignition
switch where it is compared to the code stored
in the start inhibitor module. The car will start
only with a properly coded key. If you misplace
a key, take the other keys to an authorized
Volvo retailer for reprogramming as an antitheft
measure.
CAUTION
Never use force on the narrow section of the
remote key – this is where the transponder
is located. The car cannot be started if the
transponder is damaged.
USA – FCC ID: LTQWFS 125VOThis device complies with part 15 of the FCC
rules. Operation is subject to the following con-
dition: (1) This device may not cause harmful
interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.
Canada – IC: 3659A-WFS125VOOperation is subject to the following condi-
tions: (1) this device may not cause interfer-
ence, and (2) this device must accept any inter-
ference, including interference that may cause
undesired operation of the device.
Remote key functions
G019402
Lock – Press the Lock button on the
remote once to lock all doors and the trunk.
The turn signals will flash once to confirm
locking.
NOTE
The car can also be locked if a door is open
(does not apply to vehicles with the optional
keyless drive).
