VOLVO S60 2003 Owners Manual

During cold weather, the reservoir should be filled with windshield washer solvent containing antifreeze.
Coolant reservoir
Changing coolant
Normally, the coolant does not need to be changed. If the system must be drained, consult your Volvo retailer.
NOTE: Do not top off with water only. This reduces the rust-protective and antifreeze qualities of the coolant and has
a lower boiling point. It can also cause damage to the cooling system if it should freeze. Top off with Volvo Genuine
Coolant/Antifreeze only (a 50/50 mix of water and antifreeze).
CAUTION:
The cooling system must always be kept filled to the correct level. If it is not kept filled, there can be high local
temperatures in the engine which could result in damage. Different types of antifreeze/coolant may not be mixed.
Check coolant regularly!
WARNING!
Never remove the radiator cap while the engine is warm. Wait until the car cools.
If it is necessary to top up the coolant when the engine is warm, unscrew the expansion tank cap slowly so that the
overpressure dissipates.
pg. 126 Maintenance and service
Oils and fluids (Contd)
Clutch and brake fluid reservoir
ProCarManuals.com

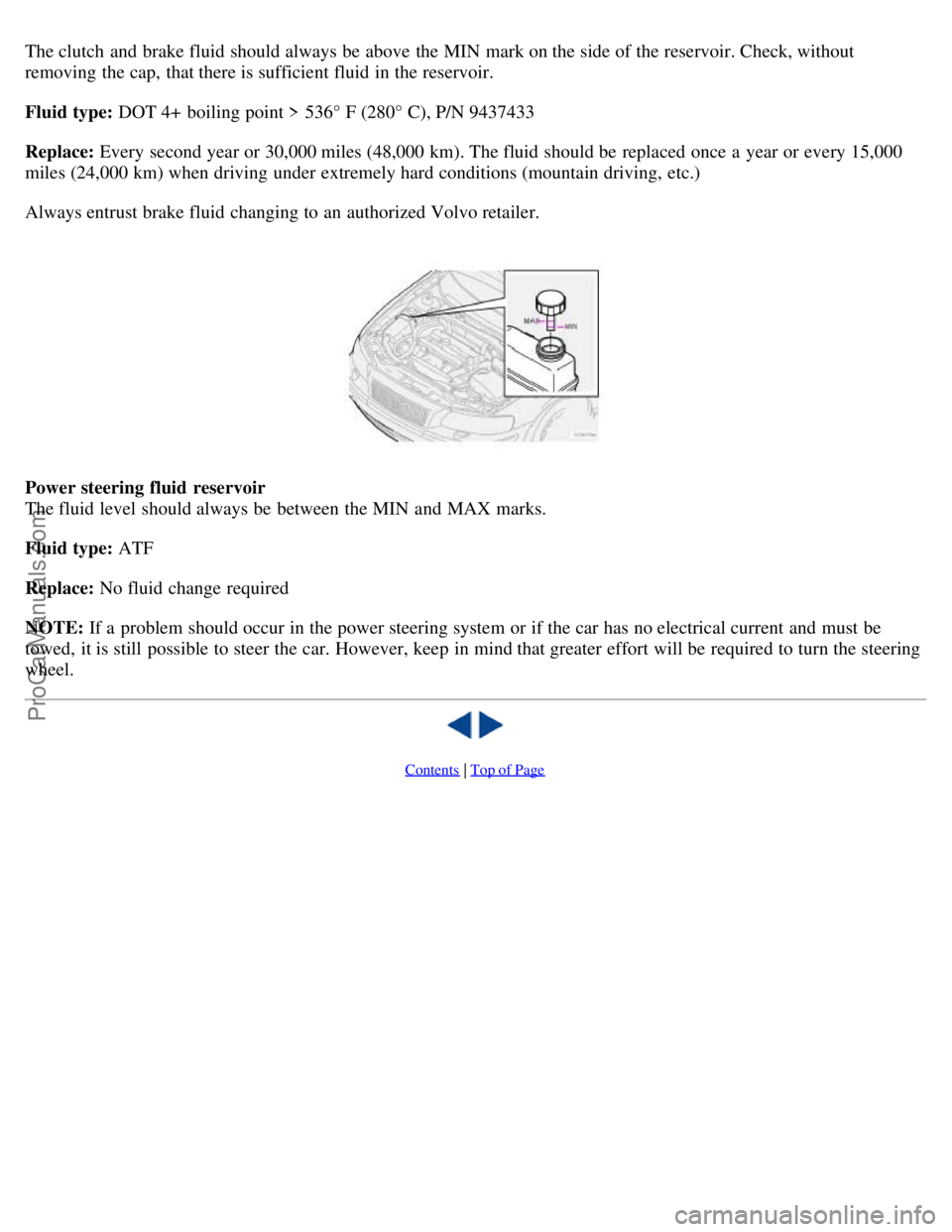

The clutch and brake fluid should always be above the MIN mark on the side of the reservoir. Check, without
removing the cap, that there is sufficient fluid in the reservoir.
Fluid type: DOT 4+ boiling point > 536° F (280° C), P/N 9437433
Replace: Every second year or 30,000 miles (48,000 km). The fluid should be replaced once a year or every 15,000
miles (24,000 km) when driving under extremely hard conditions (mountain driving, etc.)
Always entrust brake fluid changing to an authorized Volvo retailer.
Power steering fluid reservoir
The fluid level should always be between the MIN and MAX marks.
Fluid type: ATF
Replace: No fluid change required
NOTE: If a problem should occur in the power steering system or if the car has no electrical current and must be
towed, it is still possible to steer the car. However, keep in mind that greater effort will be required to turn the steering
wheel.
Contents | Top of Page
ProCarManuals.com

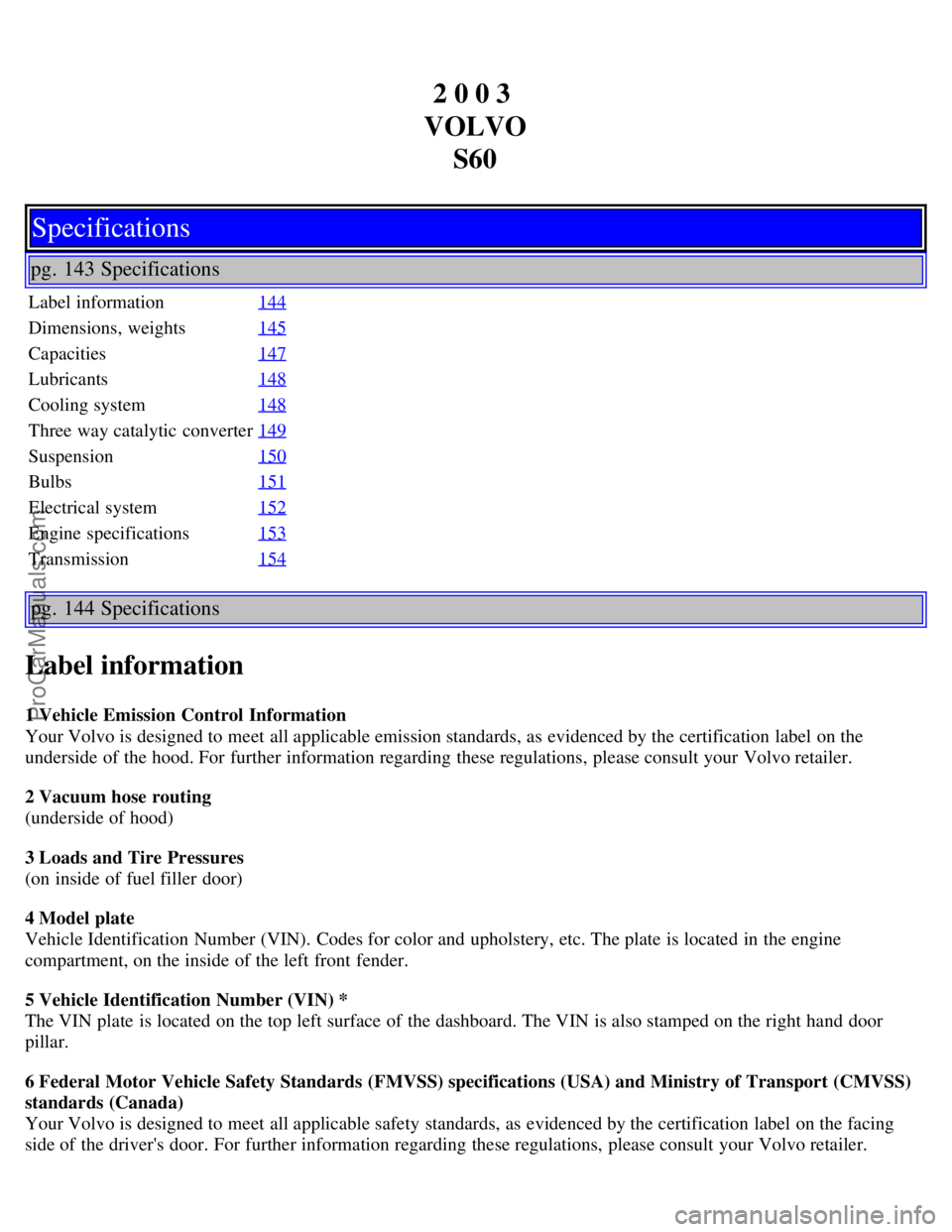

2 0 0 3
VOLVO S60
Specifications
pg. 143 Specifications
Label information 144
Dimensions, weights145
Capacities147
Lubricants148
Cooling system148
Three way catalytic converter149
Suspension150
Bulbs151
Electrical system152
Engine specifications153
Transmission154
pg. 144 Specifications
Label information
1 Vehicle Emission Control Information
Your Volvo is designed to meet all applicable emission standards, as evidenced by the certification label on the
underside of the hood. For further information regarding these regulations, please consult your Volvo retailer.
2 Vacuum hose routing
(underside of hood)
3 Loads and Tire Pressures
(on inside of fuel filler door)
4 Model plate
Vehicle Identification Number (VIN). Codes for color and upholstery, etc. The plate is located in the engine
compartment, on the inside of the left front fender.
5 Vehicle Identification Number (VIN) *
The VIN plate is located on the top left surface of the dashboard. The VIN is also stamped on the right hand door
pillar.
6 Federal Motor Vehicle Safety Standards (FMVSS) specifications (USA) and Ministry of Transport (CMVSS)
standards (Canada)
Your Volvo is designed to meet all applicable safety standards, as evidenced by the certification label on the facing
side of the driver's door. For further information regarding these regulations, please consult your Volvo retailer.
ProCarManuals.com

7 Child safety latch label
*The Vehicle Identification Number (VIN) should always be quoted in all correspondence concerning your vehicle
with the retailer and when ordering parts.
pg. 145 Specifications
Dimensions, weights
Dimensions
Length 180 in. (458 cm)
Width 71 in. (180 cm)
Height 56.2 in. (143 cm)
Wheelbase 107 in. (272 cm)
Front track 61.5 in. (156 cm)
Rear track 61.4 (156 cm)
Turning circle, between curbs 35.4- 38.7 ft. (10.8- 11.8 m)
Cargo capacity, trunk SAE V1 - 13.9 (394)
Weights
Gross vehicle weight *
5 cyl. (manual transmission)
USA 4360 lbs
Canada 1980 kg
5 cyl. (automatic transmission)
USA 4400 lbs
Canada 1996 kg
ProCarManuals.com

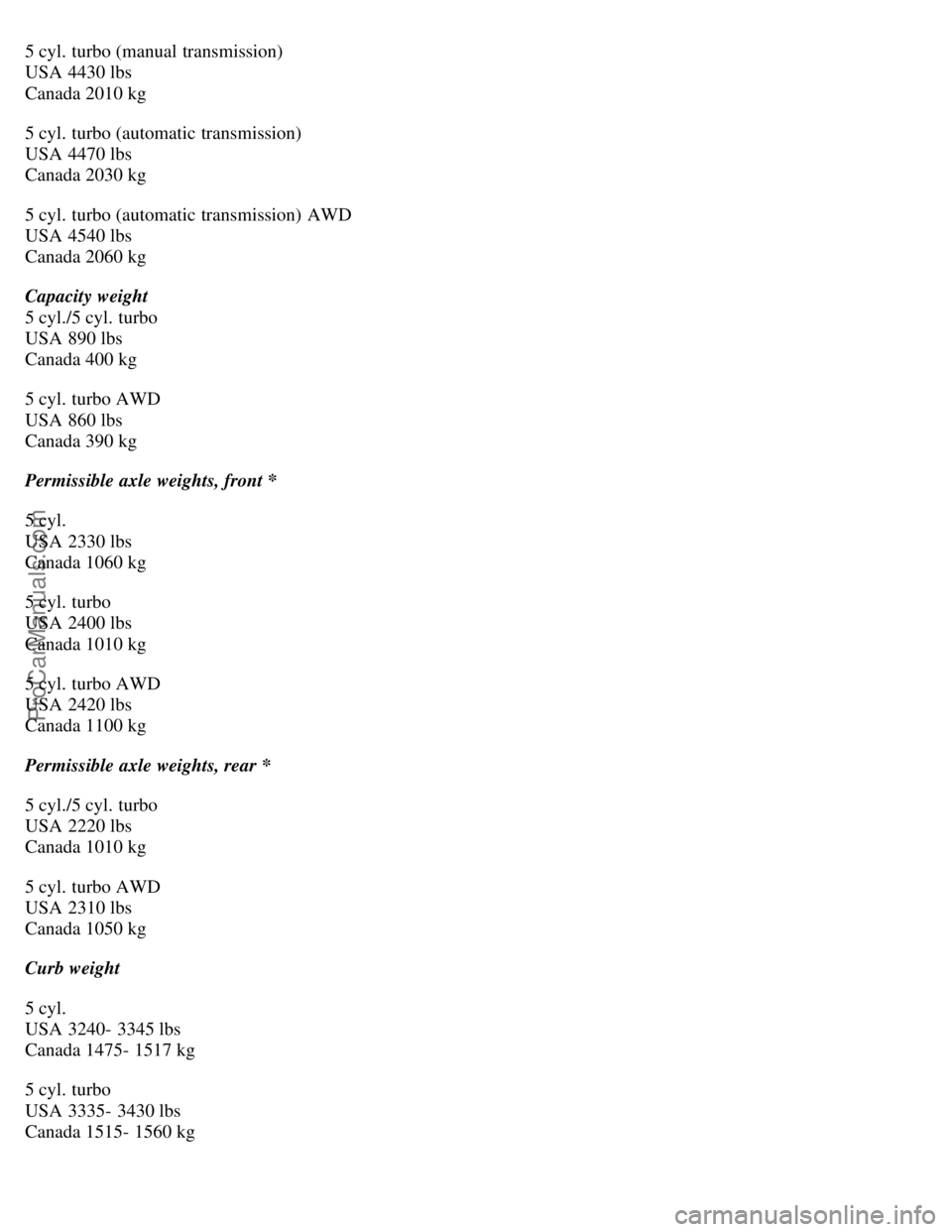

5 cyl. turbo (manual transmission)
USA 4430 lbs
Canada 2010 kg
5 cyl. turbo (automatic transmission)
USA 4470 lbs
Canada 2030 kg
5 cyl. turbo (automatic transmission) AWD
USA 4540 lbs
Canada 2060 kg
Capacity weight
5 cyl./5 cyl. turbo
USA 890 lbs
Canada 400 kg
5 cyl. turbo AWD
USA 860 lbs
Canada 390 kg
Permissible axle weights, front *
5 cyl.
USA 2330 lbs
Canada 1060 kg
5 cyl. turbo
USA 2400 lbs
Canada 1010 kg
5 cyl. turbo AWD
USA 2420 lbs
Canada 1100 kg
Permissible axle weights, rear *
5 cyl./5 cyl. turbo
USA 2220 lbs
Canada 1010 kg
5 cyl. turbo AWD
USA 2310 lbs
Canada 1050 kg
Curb weight
5 cyl.
USA 3240- 3345 lbs
Canada 1475- 1517 kg
5 cyl. turbo
USA 3335- 3430 lbs
Canada 1515- 1560 kg
ProCarManuals.com

5 cyl. turbo AWD
USA 3535- 3570 lbs
Canada 1605- 1625 kg
* Permissible axle weight or gross vehicle weight must never be exceeded.

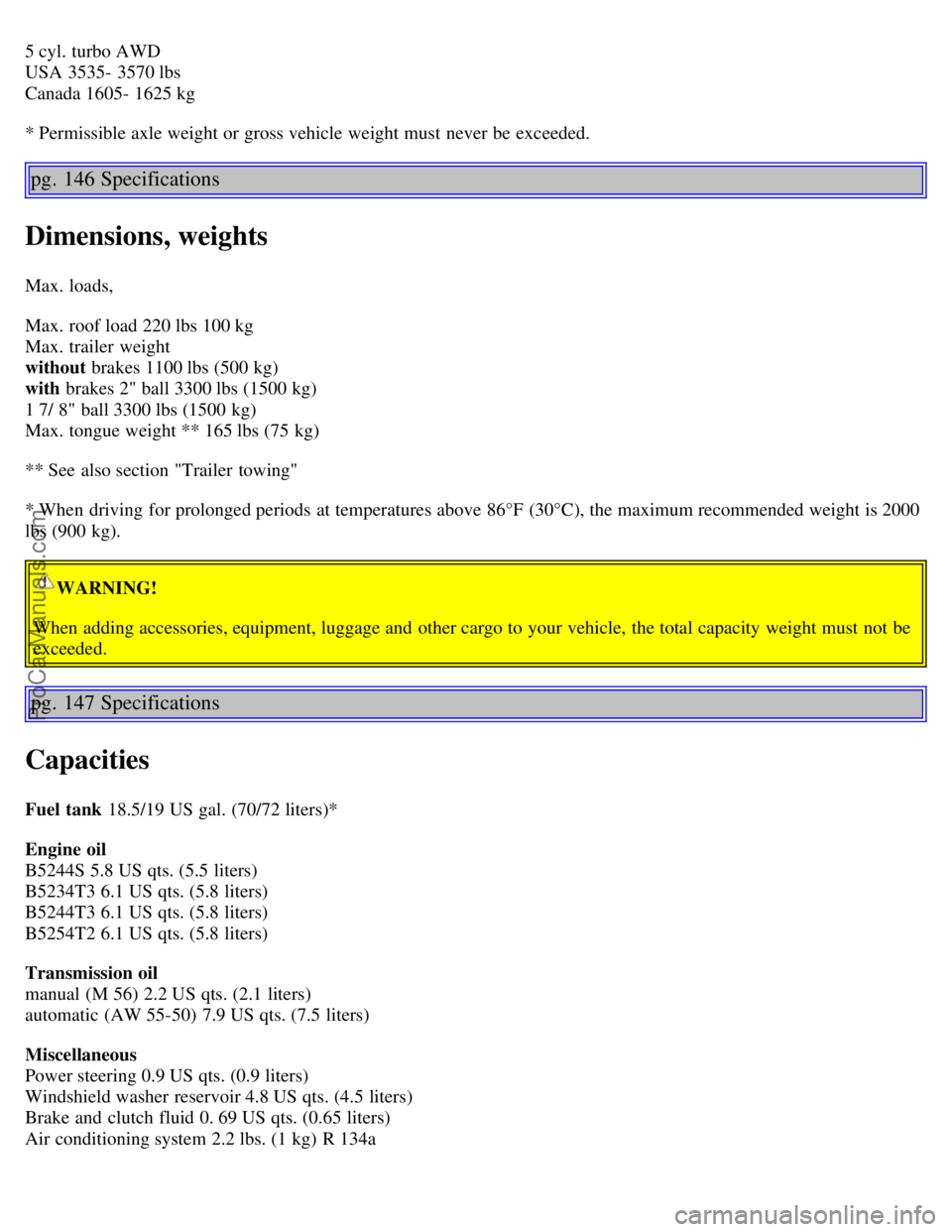

pg. 146 Specifications
Dimensions, weights
Max. loads,
Max. roof load 220 lbs 100 kg
Max. trailer weight
without brakes 1100 lbs (500 kg)
with brakes 2" ball 3300 lbs (1500 kg)
1 7/ 8" ball 3300 lbs (1500 kg)
Max. tongue weight ** 165 lbs (75 kg)
** See also section "Trailer towing"
* When driving for prolonged periods at temperatures above 86°F (30°C), the maximum recommended weight is 2000
lbs (900 kg).
WARNING!
When adding accessories, equipment, luggage and other cargo to your vehicle, the total capacity weight must not be
exceeded.
pg. 147 Specifications
Capacities
Fuel tank 18.5/19 US gal. (70/72 liters)*
Engine oil
B5244S 5.8 US qts. (5.5 liters)
B5234T3 6.1 US qts. (5.8 liters)
B5244T3 6.1 US qts. (5.8 liters)
B5254T2 6.1 US qts. (5.8 liters)
Transmission oil
manual (M 56) 2.2 US qts. (2.1 liters)
automatic (AW 55-50) 7.9 US qts. (7.5 liters)
Miscellaneous
Power steering 0.9 US qts. (0.9 liters)
Windshield washer reservoir 4.8 US qts. (4.5 liters)
Brake and clutch fluid 0. 69 US qts. (0.65 liters)
Air conditioning system 2.2 lbs. (1 kg) R 134a
ProCarManuals.com

* 19 US gals (72 liters) on models equipped with All Wheel Drive.
Minimum octane requirement - AKI 87 (RON 91) unleaded fuel (See also page 78)
pg. 148 Specifications
Lubricants
Engine oil
Meeting minimum ILSAC specification GF- 2, including ACEA A1, API SJ, SJ/ CF and SJ/Energy Conserving.
Volvo does not recommend the use of oil additives.
Transmission
Oil grade:
Manual: Volvo synthetic transmission oil 97308
Automatic: Volvo transmission oil 1161540-8
Different types of oil should never be mixed.
Power steering
Grade: ATF
Brake fluid
Fluid type: Brake fluid DOT 4+ boiling point > 536°F (280° C), P/N 94374433
Cooling system
Type Positive pressure, closed system.
Coolant Volvo original coolant/antifreeze
Volume 5 cyl. non-turbo
8.5 US qts. (8.0 liters)
5 cyl. turbo
9.3 US qts (8.8 liters)
The thermostat begins to open at 194°F (90° C).
pg. 149 Specifications
Three way catalytic converter
Three-way catalytic converter cautions
Keep your engine properly tuned. Certain engine malfunctions, particularly involving the electrical, fuel or
distributor ignition systems, may cause unusually high three-way catalytic converter temperatures. Do not continue to
operate your vehicle if you detect engine misfire, noticeable loss of power or other unusual operating conditions, such
as engine overheating or backfiring. A properly tuned engine will help avoid malfunctions that could damage the three-
way catalytic converter.
Do not park your car over combustible materials, such as grass or leaves, which can come into contact with the hot
exhaust system and cause such materials to ignite under certain wind and weather conditions.
Excessive starter cranking (in excess of one minute), or an intermittently firing or flooded engine can cause three-
ProCarManuals.com

way catalytic converter or exhaust system overheating.
Remember that tampering or unauthorized modifications to the engine, the Electronic Control Module, or the vehicle
may be illegal and can cause three-way catalytic converter or exhaust system overheating. This includes:
- Altering fuel injection setting or components.
- Altering emission system components or location or removing components.
- Repeated use of leaded fuel.
NOTE: Unleaded fuel is required for cars with three-way catalytic converters.)

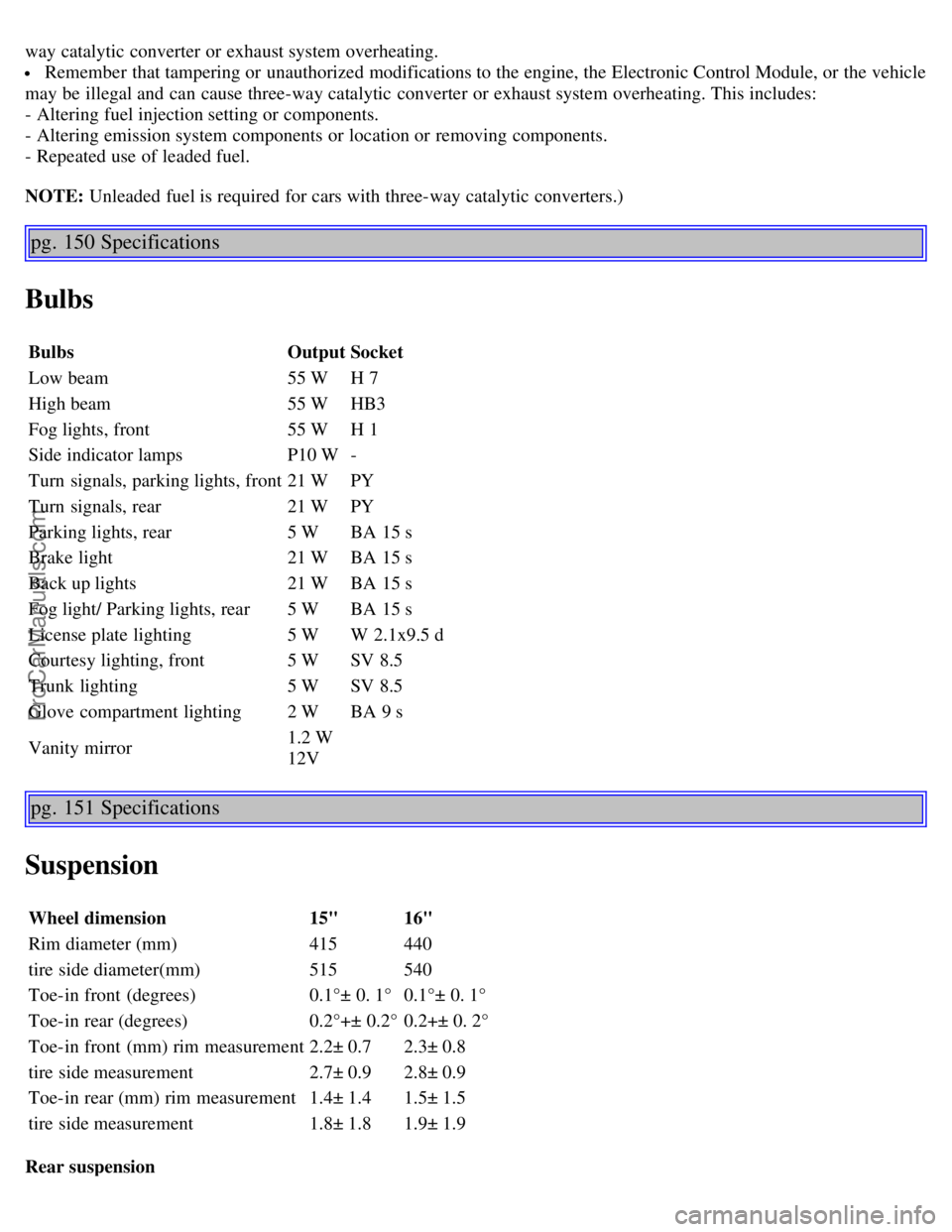

pg. 150 Specifications
Bulbs
Bulbs OutputSocket
Low beam 55 WH 7
High beam 55 WHB3
Fog lights, front 55 WH 1
Side indicator lamps P10 W-
Turn signals, parking lights, front 21 WPY
Turn signals, rear 21 WPY
Parking lights, rear 5 WBA 15 s
Brake light 21 WBA 15 s
Back up lights 21 WBA 15 s
Fog light/ Parking lights, rear 5 WBA 15 s
License plate lighting 5 WW 2.1x9.5 d
Courtesy lighting, front 5 WSV 8.5
Trunk lighting 5 WSV 8.5
Glove compartment lighting 2 WBA 9 s
Vanity mirror 1.2 W
12V
pg. 151 Specifications
Suspension
Wheel dimension
15"16"
Rim diameter (mm) 415440
tire side diameter(mm) 515540
Toe-in front (degrees) 0.1°± 0. 1°0.1°± 0. 1°
Toe-in rear (degrees) 0.2°+± 0.2°0.2+± 0. 2°
Toe-in front (mm) rim measurement 2.2± 0.72.3± 0.8
tire side measurement 2.7± 0.92.8± 0.9
Toe-in rear (mm) rim measurement 1.4± 1.41.5± 1.5
tire side measurement 1.8± 1.81.9± 1.9
Rear suspension
ProCarManuals.com

Individual rear wheel suspension with longitudinal support arms, double link arms and track rods.
Front suspension
Spring strut suspension with integrated shock absorbers and control arms linked to the support frame. Power-assisted
rack and pinion steering. Safety type steering column.
pg. 152 Specifications
Electrical system
12-volt system with voltage controlled generator. Single wire system in which the chassis and engine block are used as
conductors, grounded on the chassis.
Battery
Voltage 12 V
Cold start capacity (CCA) 600 A
Reserve capacity (RC) 115 min
If you must replace your battery, be sure to replace it with a battery of the same cold start capacity and reserve
capacity as the original (See the decal on the battery).
Generator max. current 140 A
Starter motor, power 1.4 kW
Spark plugs P/N272313-8 or equivalent
Gap 0.028- 0.032 in. 0.7-0.8 mm
Tightening torque 22 ft. lbs. (30 Nm)
Firing order 1-2-4-5-3
WARNING!
The distributor ignition system operates at very high voltages. Special safety precautions must be followed to
prevent injury. Always turn the ignition off when:
-Replacing distributor ignition components e.g. plugs, coil, etc.
-Do not touch any part of the distributor ignition system while the engine is running. This may result in unintended
movements and body injury.
pg. 153 Specifications
Engine specifications
B5244S B5234T3B5244T3 B5254T2
Output (kW/rps) 123/100184/87147/100 154/83
(hp/rpm) 165/6000247/5200197/6000 208/5000
Torque (Nm/rps) 225/75330/42-87285/30-83 320/25-75
(ft. lbs./rpm) 166/4500243/2400-5200210/1800-5000 236/1500-4500
No. of cylinders 555 5
Bore (mm) 838183 81
ProCarManuals.com

Stroke (mm)909090 93.2
Cylinder displacement,1 2.44 (148.6 cu. in.)2.3 (141.5 cu. in.)2.44 (148.6 cu. in.) 2.52 (153.8 cu. in.)
Compression ratio 10.3:18.5:19.0:1 9.0:1
Charge air cooler (Intercooler)
Turbocharged engines employ a turbo-compressor to force air into the engine inlet manifold and a charge air cooler to
cool the compressed inlet air. The resulting increase in air flow raises pressure in the intake manifold and increases
engine power over that developed by the normally-aspirated engine. The charge air cooler (which resembles a radiator)
is located between the turbo- compressor and inlet manifold.
Fuel system
The engine is equipped with a multiport fuel injection system.
pg. 154 Specifications
Transmission
Gear ratios Gear M56HM56LAW55-50
1st 3.07: 13.39: 14.77: 1
2nd 1.77: 11.90: 13.00: 1
3rd 1.19: 11.19: 11.96: 1
4th 0.87: 10.87: 11.32: 1
5th 0.70: 10.70: 11.02: 1
Reverse 2.99: 13.30: 13.23: 1
Final drive 4.25: 14.00: 12.44: 1
pg. 155 Specifications
Volvo On Call Roadside Assistance
Your new Volvo comes with a four year ON CALL roadside assistance. Additional information, features, and benefits
are described in a separate information package in your glove compartment.
If you have misplaced your package, dial:
In the U.S.A.
1-800-638-6586 (1-800-63-VOLVO)
In Canada:
1-800-263-0475
Technician certification
In addition to Volvo factory training, Volvo supports certification by the National Institute for Automotive Excellence
(A.S.E.). Certified technicians have demonstrated a high degree of competence in specific areas. Besides passing
exams, each technician must also have worked in the field for two or more years before a certificate is issued. These
professional technicians are best able to analyze vehicle problems and perform the necessary service procedures to
keep your Volvo at peak operating condition.
