2 0 0 4
VOLVO S60
Safety
pg. 1 Safety
Seat belts 2
Airbags (Supplemental Restraint System)4
Side airbags (SIPS airbags)10
Inflatable Curtain (IC)12
Inspection of airbags, inflatable curtains and seat belt tensioners13
WHIPS14
Child safety16
Occupant safety, Reporting safety defects20
pg. 2 Safety
Seat belts
Not wearing a seat belt is like believing "It'll never happen to me!" Volvo, the inventor of the three-point seat belt,
urges you and all occupants of your car to wear seat belts and ensure that children are properly restrained, using an
infant, car or booster seat determined by age, weight and height. Volvo also believes no child should sit in the front
seat of a car.
NOTE: Legislation in your state or province may mandate seat belt usage.
Additionally, most states and provinces have already made it mandatory for occupants of a car to use seat belts.
So, urging you to "buckle up" is not just our recommendation - legislation in your state or province may mandate seat
belt usage. The few seconds it takes to buckle up may one day allow you to say, "It's a good thing I was wearing my
seat belt."
NOTE: A chime will sound several times if the driver has not fastened his/her seat belt.
The seat belts are equipped with tensioners that reduce slack in the seat belts. These tensioners are triggered in
situations where the airbags deploy.
The front seat belts also include a tension reducing device which, in the event of a collision, limits the peak forces
exerted by the seat belt on the occupant.
ProCarManuals.com

WARNING!
Seat belts:
Never use a seat belt for more than one occupant. Never wear the shoulder portion of the belt under the arm,
behind the back or otherwise out of position. Such use could cause injury in the event of an accident. As seat belts
lose much of their strength when exposed to violent stretching, they should be replaced after any collision, even if
they appear to be undamaged.
Never repair the belt on your own; have this work done by an authorized Volvo retailer only.
Any device used to induce slack into the shoulder belt portion of the three-point belt system will have a
detrimental effect on the amount of protection available to you in the event of a collision.
The seat back should not be tilted too far back. The shoulder belt must be taut in order to function properly.
Do not use child safety seats or child booster cushions/backrests in the front passenger's seat. We also recommend
that children who have outgrown these devices sit in the rear seat with the seat belt properly fastened.
Sample label found on all seat belts with tensioners
pg. 4 Safety
Airbags (Supplemental Restraint System)
Driver's side airbag
As an enhancement to the three-point seat belt system, your Volvo is equipped with a Supplemental Restraint System
(SRS) to complement the three-point seat belt system. The inflatable airbag is installed folded up in the center of the
steering wheel. The wheel is embossed with SRS.
ProCarManuals.com

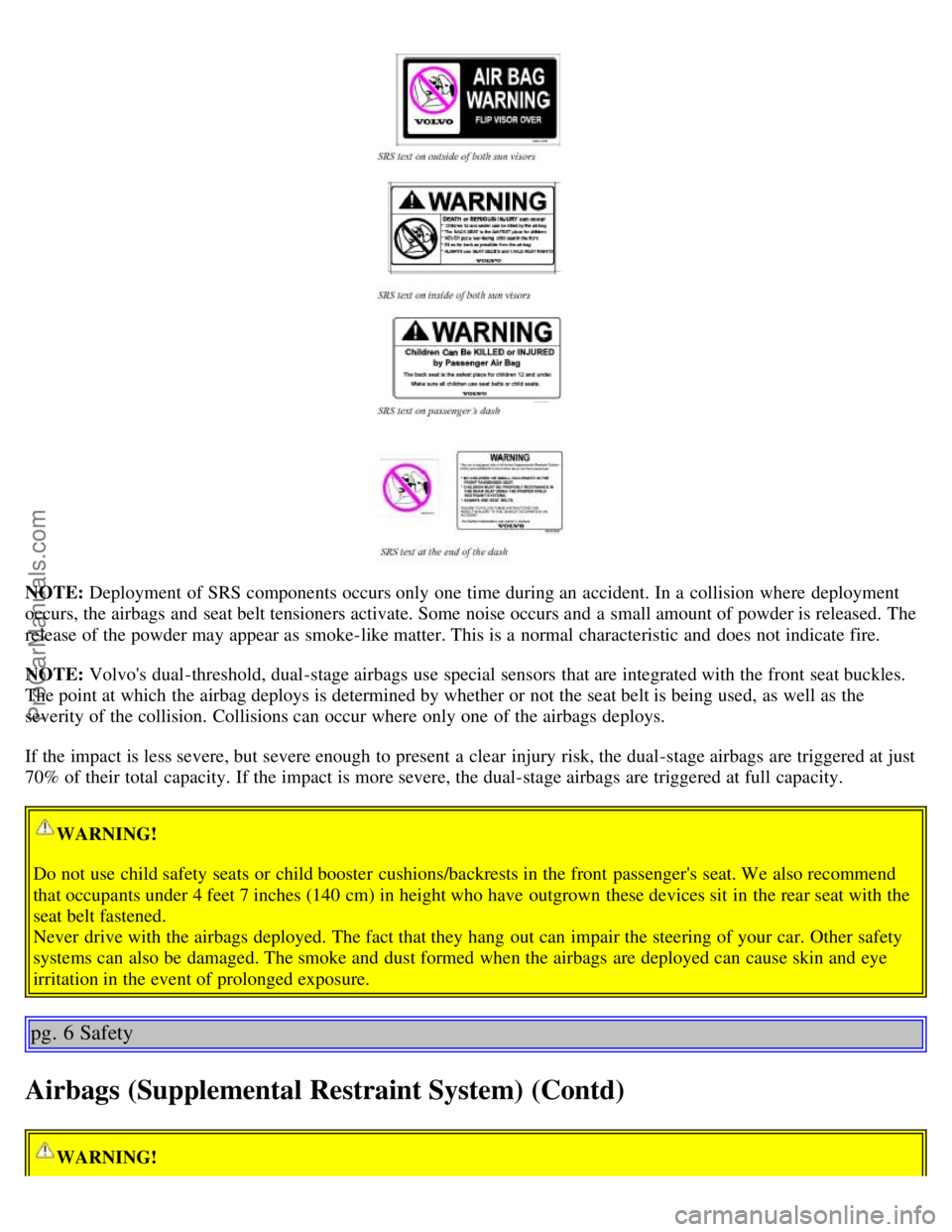

NOTE: Deployment of SRS components occurs only one time during an accident. In a collision where deployment
occurs, the airbags and seat belt tensioners activate. Some noise occurs and a small amount of powder is released. The
release of the powder may appear as smoke-like matter. This is a normal characteristic and does not indicate fire.
NOTE: Volvo's dual-threshold, dual-stage airbags use special sensors that are integrated with the front seat buckles.
The point at which the airbag deploys is determined by whether or not the seat belt is being used, as well as the
severity of the collision. Collisions can occur where only one of the airbags deploys.
If the impact is less severe, but severe enough to present a clear injury risk, the dual-stage airbags are triggered at just
70% of their total capacity. If the impact is more severe, the dual-stage airbags are triggered at full capacity.
WARNING!
Do not use child safety seats or child booster cushions/backrests in the front passenger's seat. We also recommend
that occupants under 4 feet 7 inches (140 cm) in height who have outgrown these devices sit in the rear seat with the
seat belt fastened.
Never drive with the airbags deployed. The fact that they hang out can impair the steering of your car. Other safety
systems can also be damaged. The smoke and dust formed when the airbags are deployed can cause skin and eye
irritation in the event of prolonged exposure.
pg. 6 Safety
Airbags (Supplemental Restraint System) (Contd)
WARNING!
ProCarManuals.com

AWD90
B
Back up light137
Backrest63
Bass160
Battery122 , 130 , 154
Battery - replacing131
Belt check123
Blower (fan)47, 51
Booster cushion16
Brake circuit92
Brake fluid128
Brake light137
Brake system23 , 92
Bulbs133 , 153
C
Capacities149
Carbon Monoxide - Important Warning79
Cargo compartment63
Cassette player167
Catalytic converter151
CD player169 , 171
Ceiling lighting139
Center console - storage compartments61
Central locking system - remote control69
Changing121
Changing coolant121
Changing oil and oil filter123
Changing wheels110
Check Engine warning light25
Child restraint anchorages18
Child safety16
Child safety locks74
Child seat (Isofix fasteners)17
Cigarette lighter37
Climate control systems -general information44
Clock22
Coat hanger62
Coin compartment61
Cold weather precautions104
Coolant127
Coolant - changing123, 127
Coolant - checking level of123
Cooling system150
