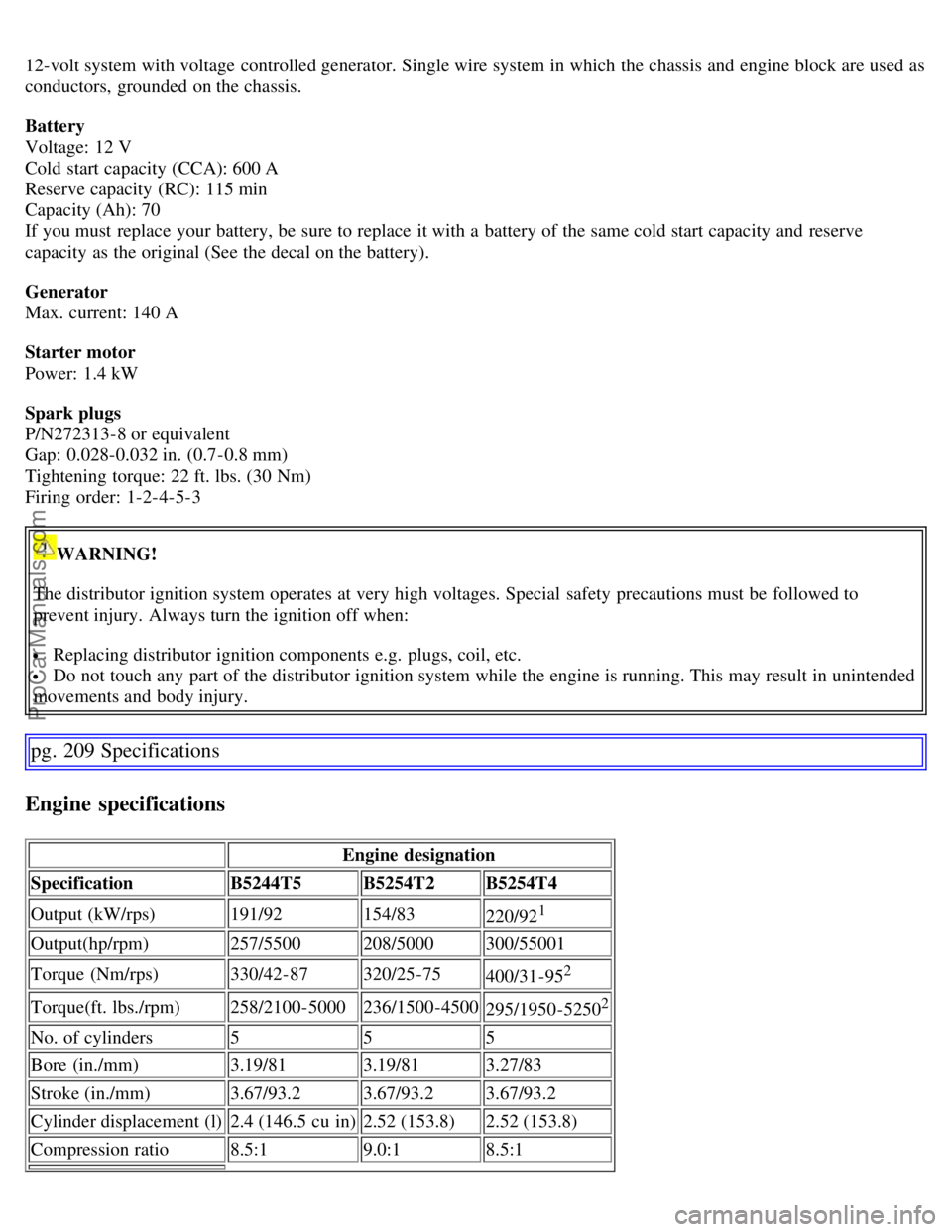

12-volt system with voltage controlled generator. Single wire system in which the chassis and engine block are used as
conductors, grounded on the chassis.
Battery
Voltage: 12 V
Cold start capacity (CCA): 600 A
Reserve capacity (RC): 115 min
Capacity (Ah): 70
If you must replace your battery, be sure to replace it with a battery of the same cold start capacity and reserve
capacity as the original (See the decal on the battery).
Generator
Max. current: 140 A
Starter motor
Power: 1.4 kW
Spark plugs
P/N272313-8 or equivalent
Gap: 0.028-0.032 in. (0.7-0.8 mm)
Tightening torque: 22 ft. lbs. (30 Nm)
Firing order: 1-2-4-5-3
WARNING!
The distributor ignition system operates at very high voltages. Special safety precautions must be followed to
prevent injury. Always turn the ignition off when:
Replacing distributor ignition components e.g. plugs, coil, etc.
Do not touch any part of the distributor ignition system while the engine is running. This may result in unintended
movements and body injury.
pg. 209 Specifications
Engine specifications
Engine designation
Specification B5244T5B5254T2B5254T4
Output (kW/rps) 191/92154/83
220/92
1
Output(hp/rpm) 257/5500208/5000300/55001
Torque (Nm/rps) 330/42-87320/25-75
400/31-95
2
Torque(ft. lbs./rpm) 258/2100-5000236/1500-4500
295/1950-52502
No. of cylinders 555
Bore (in./mm) 3.19/813.19/813.27/83
Stroke (in./mm) 3.67/93.23.67/93.23.67/93.2
Cylinder displacement (l) 2.4 (146.5 cu in)2.52 (153.8)2.52 (153.8)
Compression ratio 8.5:19.0:18.5:1
