VOLVO S60 2009 Owner´s Manual

01 Safety

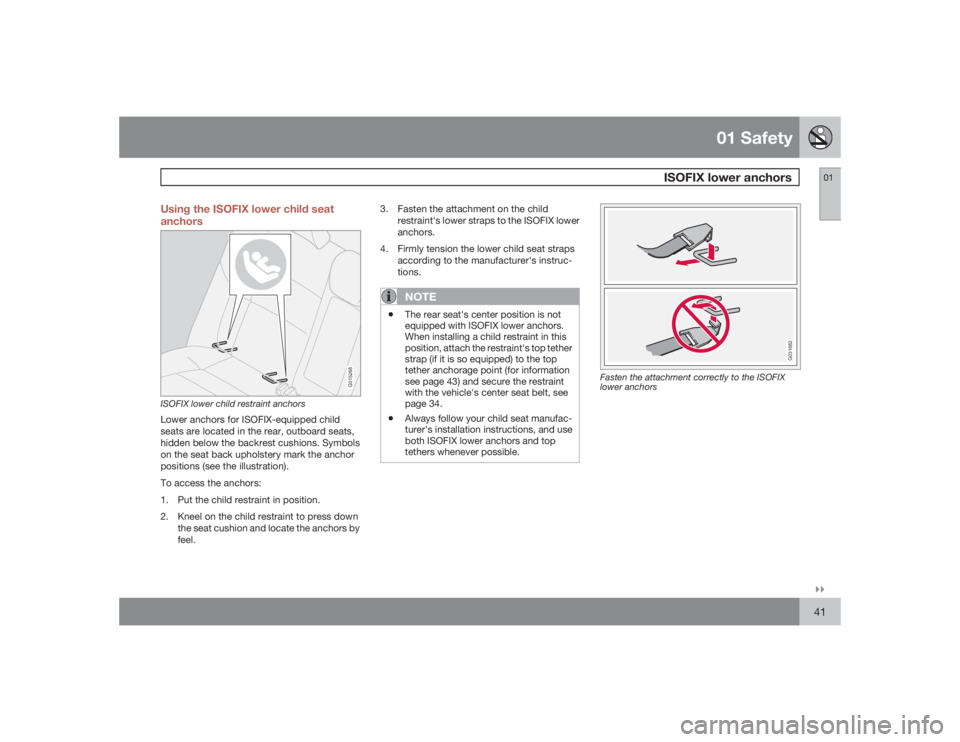

ISOFIX lower anchors
01``41 Using the ISOFIX lower child seat
anchors
G015268
ISOFIX lower child restraint anchorsLower anchors for ISOFIX-equipped child
seats are located in the rear, outboard seats,
hidden below the backrest cushions. Symbols
on the seat back upholstery mark the anchor
positions (see the illustration).
To access the anchors:
1. Put the child restraint in position.
2. Kneel on the child restraint to press down
the seat cushion and locate the anchors by
feel.3. Fasten the attachment on the child
restraint's lower straps to the ISOFIX lower
anchors.
4. Firmly tension the lower child seat straps
according to the manufacturer's instruc-
tions.
NOTE
•
The rear seat's center position is not
equipped with ISOFIX lower anchors.
When installing a child restraint in this
position, attach the restraint's top tether
strap (if it is so equipped) to the top
tether anchorage point (for information
see page 43) and secure the restraint
with the vehicle's center seat belt, see
page 34.
•
Always follow your child seat manufac-
turer's installation instructions, and use
both ISOFIX lower anchors and top
tethers whenever possible.
G031682
Fasten the attachment correctly to the ISOFIX
lower anchors

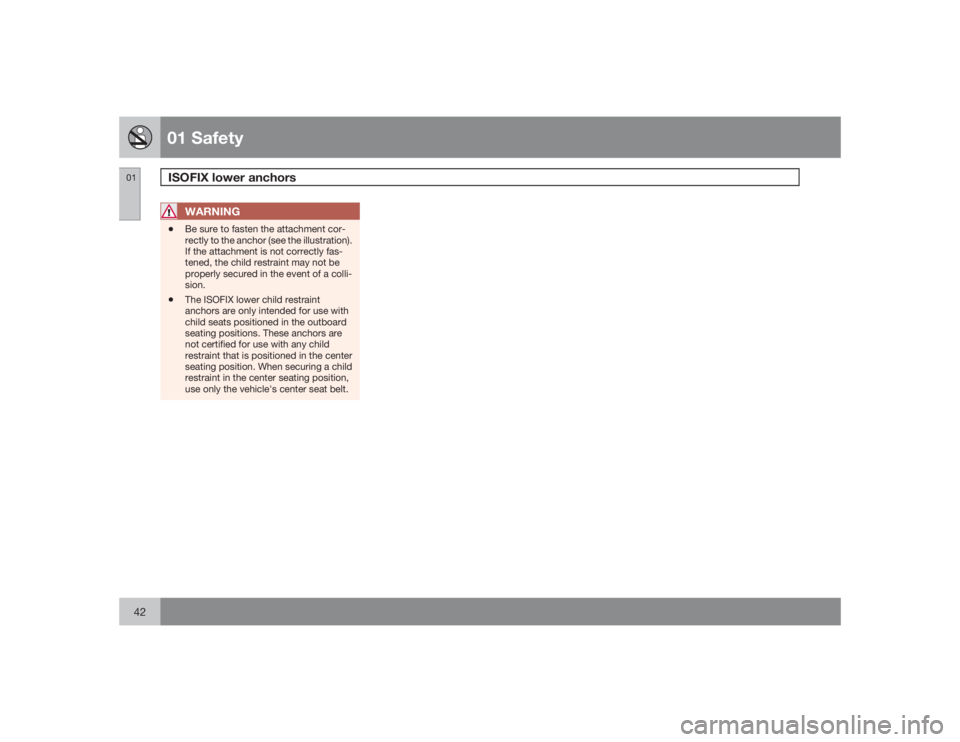

01 SafetyISOFIX lower anchors
0142
WARNING
•
Be sure to fasten the attachment cor-
rectly to the anchor (see the illustration).
If the attachment is not correctly fas-
tened, the child restraint may not be
properly secured in the event of a colli-
sion.
•
The ISOFIX lower child restraint
anchors are only intended for use with
child seats positioned in the outboard
seating positions. These anchors are
not certified for use with any child
restraint that is positioned in the center
seating position. When securing a child
restraint in the center seating position,
use only the vehicle's center seat belt.

01 Safety

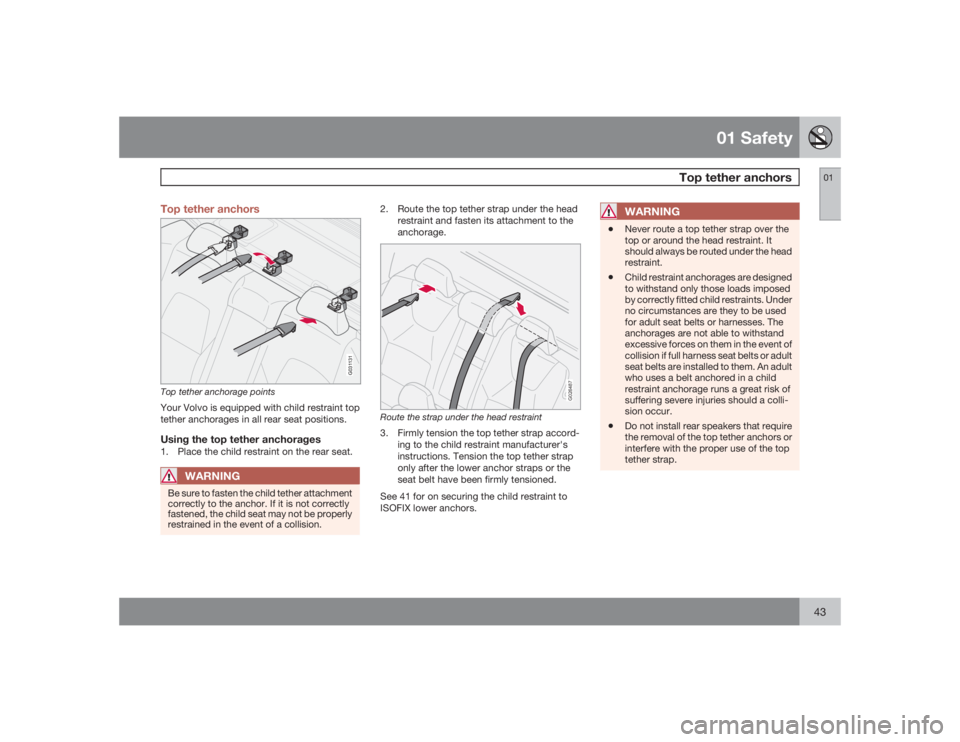

Top tether anchors
0143 Top tether anchors
G031131
Top tether anchorage pointsYour Volvo is equipped with child restraint top
tether anchorages in all rear seat positions.Using the top tether anchorages1. Place the child restraint on the rear seat.
WARNING
Be sure to fasten the child tether attachment
correctly to the anchor. If it is not correctly
fastened, the child seat may not be properly
restrained in the event of a collision.
2. Route the top tether strap under the head
restraint and fasten its attachment to the
anchorage.
G026487
Route the strap under the head restraint3. Firmly tension the top tether strap accord-
ing to the child restraint manufacturer's
instructions. Tension the top tether strap
only after the lower anchor straps or the
seat belt have been firmly tensioned.
See 41 for on securing the child restraint to
ISOFIX lower anchors.
WARNING
•
Never route a top tether strap over the
top or around the head restraint. It
should always be routed under the head
restraint.
•
Child restraint anchorages are designed
to withstand only those loads imposed
by correctly fitted child restraints. Under
no circumstances are they to be used
for adult seat belts or harnesses. The
anchorages are not able to withstand
excessive forces on them in the event of
collision if full harness seat belts or adult
seat belts are installed to them. An adult
who uses a belt anchored in a child
restraint anchorage runs a great risk of
suffering severe injuries should a colli-
sion occur.
•
Do not install rear speakers that require
the removal of the top tether anchors or
interfere with the proper use of the top
tether strap.

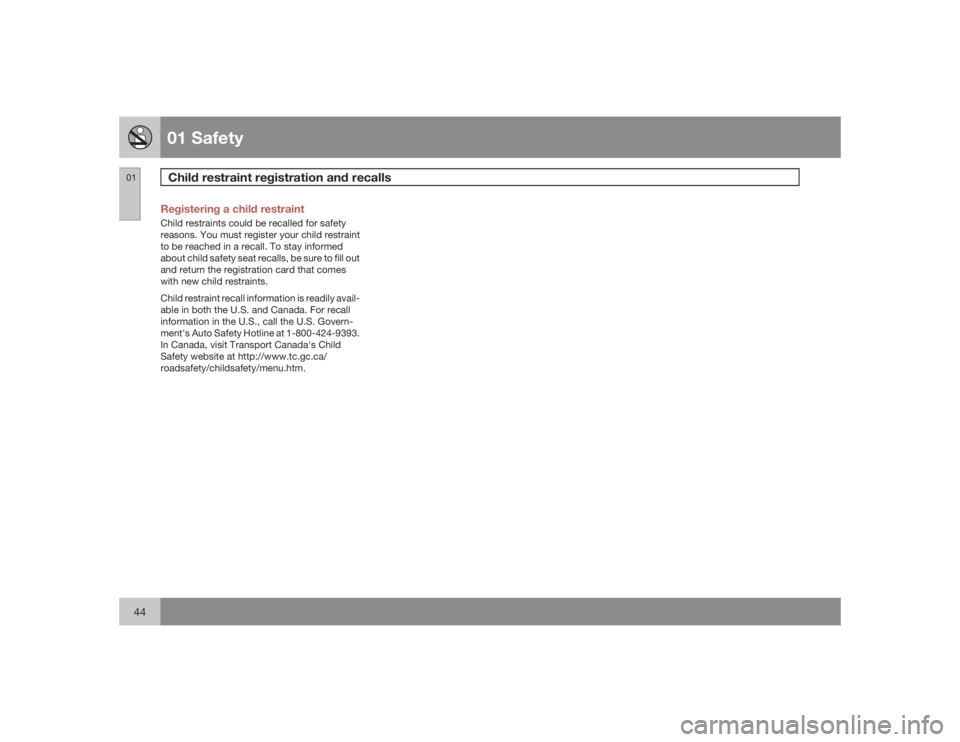

01 SafetyChild restraint registration and recalls
0144
Registering a child restraintChild restraints could be recalled for safety
reasons. You must register your child restraint
to be reached in a recall. To stay informed
about child safety seat recalls, be sure to fill out
and return the registration card that comes
with new child restraints.
Child restraint recall information is readily avail-
able in both the U.S. and Canada. For recall
information in the U.S., call the U.S. Govern-
ment's Auto Safety Hotline at 1-800-424-9393.
In Canada, visit Transport Canada's Child
Safety website at http://www.tc.gc.ca/
roadsafety/childsafety/menu.htm.

01 Safety
0145

G020901
46

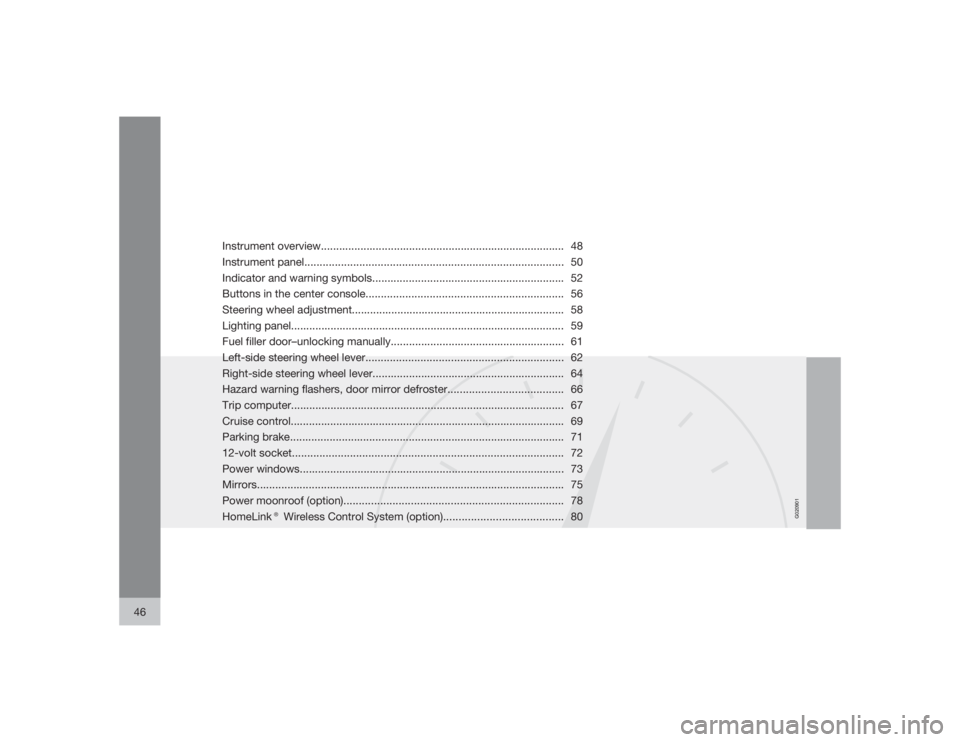

Instrument overview................................................................................ 48
Instrument panel..................................................................................... 50
Indicator and warning symbols............................................................... 52
Buttons in the center console................................................................. 56
Steering wheel adjustment...................................................................... 58
Lighting panel.......................................................................................... 59
Fuel filler door–unlocking manually......................................................... 61
Left-side steering wheel lever................................................................. 62
Right-side steering wheel lever............................................................... 64
Hazard warning flashers, door mirror defroster...................................... 66
Trip computer.......................................................................................... 67
Cruise control.......................................................................................... 69
Parking brake.......................................................................................... 71
12-volt socket......................................................................................... 72
Power windows....................................................................................... 73
Mirrors..................................................................................................... 75
Power moonroof (option)........................................................................ 78
HomeLink® Wireless Control System (option)....................................... 80

02

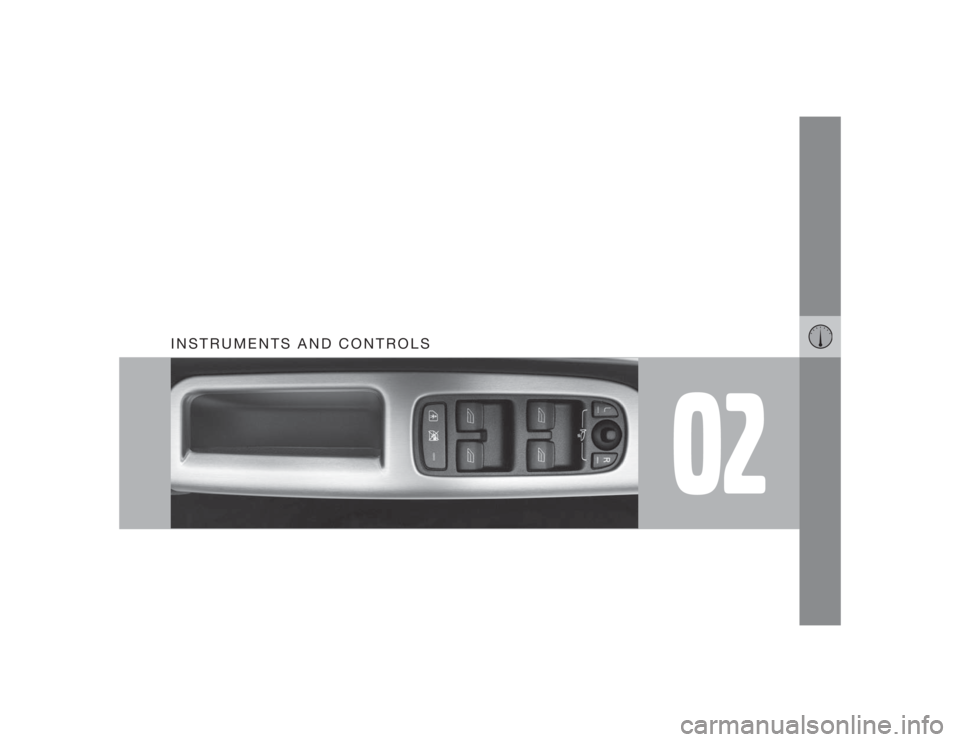

INSTRUMENTS AND CONTROLS

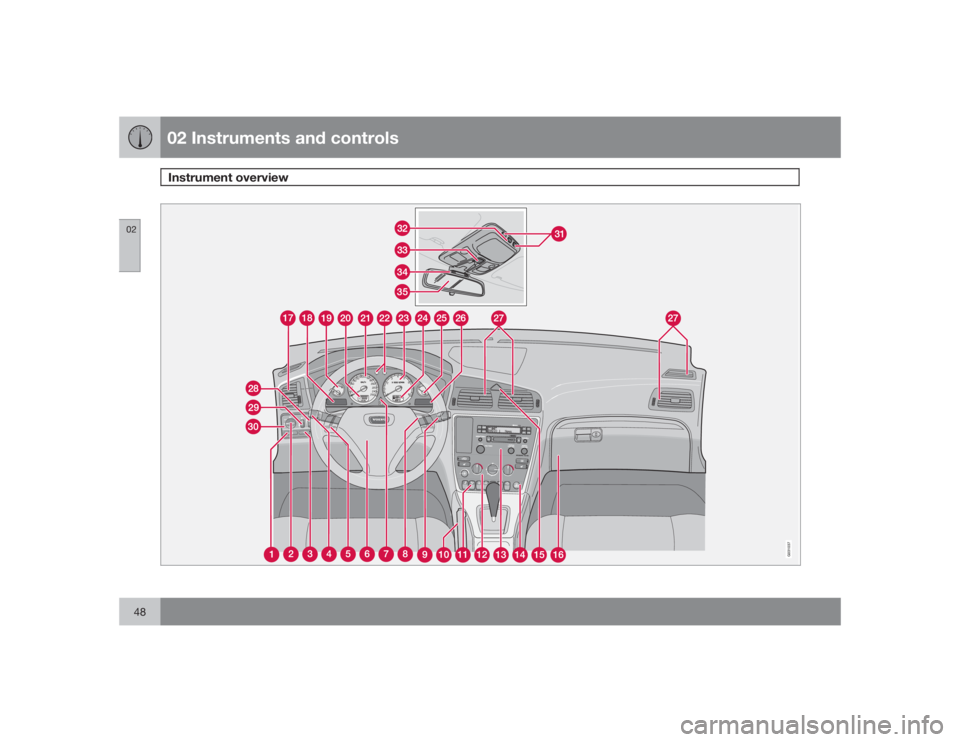

02 Instruments and controlsInstrument overview
0248
G031037

02 Instruments and controls
Instrument overview
0249
G029581
1
Front fog lights
60
2
Headlights/Parking lights/
switch for unlocking fuel filler
door
59
3
Rear fog light
4
Turn signals/High/low beams
62
5
Cruise control
67
6
Horn
-
7
Instrument panel
50
8
Audio controls in steering
wheel
221
9
Windshield wipers
64
10
Parking brake (hand brake)
69
11
Center console buttons
56
12
Climate control
86
13
Audio system
216
14
12-V socket
57,
71
15
Hazard warning flashers
66
16
Glove compartment
101
17
Panel vents
88
18
Text display
50
19
Temperature gauge
50
20
Odometer/Trip odometer/
Cruise control indicator
50
21
Speedometer
50
22
Turn signal indicators
50
23
Tachometer
50
24
Ambient temperature/Clock/
Selected gear indicator
50
25
Fuel gauge
50
26
Indicator and warning sym-
bols
52
27
Panel vents
88
28
Instrument lighting
60
29
Not in use
30
Lighting panel
59
31
Reading lights
97
32
Interior lighting
97
33
Moonroof control
76
34
Seat belt reminder
18
35
Rearview mirror
73
36
Lock button, for all doors
112
37
Cut-out button for rear seat
power windows
73
38
Controls, power windows
73
39
Controls, door mirrors
76

02 Instruments and controlsInstrument panel
0250
Instrument panel
G027133
Turn signal indicators – right/leftText window – The text window displays
information and warning messages.Temperature gauge – The pointer should
be approximately midway on the gauge
when driving. Do not drive the vehicle if
the warning light is on. The text window
will provide you with additional informa-
tion. If the engine temperature remains
high, check coolant level – see page 192.Trip odometer – The trip odometers are
used for measuring shorter distances. The
right-hand digit gives tenth of a mile/kilo-
meter. Press the button for more than
2 seconds to reset. Change between tripodometers 1 and 2 using one short press
on the button. – The display presents infor-
mation and warning messages, the ambi-
ent temperature, and the clock, etc. When
the ambient temperature is between 23°
and 36 °F (–5° and +2 °C), a snowflake
symbol is shown in the display. This sym-
bol serves as a warning for possible slip-
pery road surfaces. Please note that this
symbol does not indicate a fault with your
car. At low speeds, or when the car is not
moving, the temperature readings may be
slightly higher than the actual ambient tem-
perature.
Odometer
SpeedometerWarning symbolHigh beam indicatorTachometer – The tachometer shows
engine speed in thousands of revolutions
per minute (rpm). Do not drive continuously
with the needle in the red area of the dial,
which indicates maximum allowable
engine rpm range. Instead, shift to a higher
gear or slow the vehicle down. The engine
management system will automatically
prevent excessively high engines speeds.
This will be noticeable as a pronounced
unevenness in engine speed.
