06 Starting and driving
Economical driving
06
127 Economical driving conserves natural
resources
Better driving economy may be obtained by
thinking ahead, avoiding rapid starts and stops
and adjusting the speed of your vehicle to
immediate traffic conditions. Observe the fol-
lowing rules:•
Bring the engine to normal operating tem-
perature as soon as possible by driving
with a light foot on the accelerator pedal for
the first few minutes of operation. A cold
engine uses more fuel and is subject to
increased wear.
•
Whenever possible, avoid using the vehicle
for driving short distances. This does not
allow the engine to reach normal operating
temperature.
•
Drive carefully and avoid rapid acceleration
and hard braking.
•
Do not exceed posted speed limits.
•
Avoid carrying unnecessary items (extra
load) in the vehicle.
•
Maintain correct tire pressure. Check tire
pressure regularly (when tires are cold).
•
Remove snow tires when threat of snow or
ice has ended.
•
Note that roof racks, ski racks, etc,
increase air resistance and also fuel con-
sumption.
•
Avoid using automatic transmission kick-
down feature unless necessary.
•
However, at higher driving speeds, fuel
consumption will be lower with the air con-
ditioning on and the windows closed than
with the air conditioning off and the win-
dows open.
•
Using the onboard trip computer's fuel
consumption modes can help you learn
how to drive more economically.
Other factors that decrease gas mileage are:
•
Dirty air cleaner
•
Dirty engine oil and clogged oil filter
•
Dragging brakes
•
Incorrect front end alignment.
Some of the above mentioned items and others
are checked at the standard Maintenance
Service intervals.NOTE
Vehicles equipped with automatic transmis-
sions should use (D)rive as often as possible
and avoid using "kickdown" to help improve
fuel economy.
CAUTION
Drive slowly and carefully if going through
standing water (i.e. flooded roadways, etc.).
Damage to the engine could result if excess
water is drawn in through the air intake sys-
tem. Never drive the vehicle in water deeper
than 1 foot (300 mm).

09 Maintenance and servicing
Engine oil
09
191
NOTE
Volvo uses different systems to indicate a
low oil level or pressure. Some models have
an oil pressure sensor, in which case a
warning symbol (see page 52) is used to
indicate low oil pressure. Other models have
an oil level sensor, in which case the driver
is alerted by the warning symbol in the cen-
ter of the instrument panel and a text in the
information display. Some models use both
systems. Contact a trained and qualified
Volvo service technician for more informa-
tion.Changing engine oil and oil filterSee the information on oil specifications above
and page 240 for oil volumes. Refer to the
Warranty and Service Records Information
booklet for information on the oil change inter-
vals.
NOTE
•
Volvo does not recommend the use of
oil additives.
•
Synthetic oil is not used when the oil is
changed at the normal maintenance
intervals except at owner request and at
additional charge. Please consult a
trained and qualified Volvo service tech-
nician.
Checking and adding oilThe oil level should be checked every time the
vehicle is refueled. This is especially important
during the period up to the first scheduled
maintenance service.•
The vehicle should be parked on a level
surface when the oil is checked.
•
If the engine is warm, wait for at least
10-15 minutes after the engine has been
switched off before checking the oil.
Checking the oil
G020336
1. Pull out the dipstick and wipe it with a lint-
free rag.2. Reinsert the dipstick, pull it out, and check
the oil level.
3. Add oil if necessary. If the level is close to
theMINmark, add approximately
1 US quart (1 liter) of oil.
4. Run the engine until it reaches normal
operating temperature.
5. Switch off the engine and wait for at least
10-15 minutes and recheck the oil level. If
necessary, add oil until the level is near the
MAX mark.
CAUTION
•
Not checking the oil level regularly can
result in serious engine damage if the oil
level becomes too low.
•
Never fill oil above the MAX mark. This
could cause an increase in oil consump-
tion.
•
Not checking the oil level regularly can
result in serious engine damage if the oil
level becomes too low.
•
Always add oil of the same type and
viscosity as already used.WARNING
Do not allow oil to spill onto or come into
contact with hot exhaust pipe surfaces.

11 SpecificationsLabel information
11234
REGULATIONS APPLICABLE TO 2007 MODEL YEAR NEW LEVII ULEV PASSENGER CARS. THIS VEHICLE CONFORMS TO USE EPA TIER 2 BIN 5 REGULATIONS AND CALIFORNI A
IT ALSO CONFORMS TO APPLICABLE CANADIAN EMISSION ArialS . EVAPORATIVE/REFUELING FAMILY:7VVXR0130EVX
TUNE-UP SPECIFICATIONS: NO ADJUSTMENTS NEEDED ENGINE DISPLACEMENT:3.2 LITERSENGINE: B6324S
EXHAUST EMISSION CONTROL SYSTEM :
SFI, 2HO2S, SHA/FS, 2TWC(2)TEST GROUP: 7VVXB03.2U2N MANUFACTURER: VOLVO CAR CORP. SWEDEN
VA LV E PURGE
30760010
CANISTER
OIL PUMPFILTER FROM FUEL TANK
DATE: 0303
GVWR (PNBV ):2220 KG
GAWR FRONT (PBBE AVANT ): 1130 KG
VIN: YV1CZ91451192792 TYPE: PC/VT GAWR REAR (PNBE ARRIERE): 1190 KG
30760250
COMPLIES: ICES- 2
THIS VEHICLE CONFORMS TO ALL APPLICABLE FEDERAL MO TOR
VEHICLE SAFTY, BUMPER AND THEFT PREVENTION ArialA
VIN:_YV1TS90D3Y1144849_______________________________________ ______________TYPE:PASS CAR IN EFFECT ON THE DATE OF MANUFACTURE SHOWN ABOVE.GAWR FRONT: 2491 LB DATE: 04/00
30760248 GAWR REAR: 2293 LBGAWR:4630 LB GAWG
HOUSE VACUM
ROUTING
CCTSPROTNARMVSSDAASNVACNA98 4
G032547

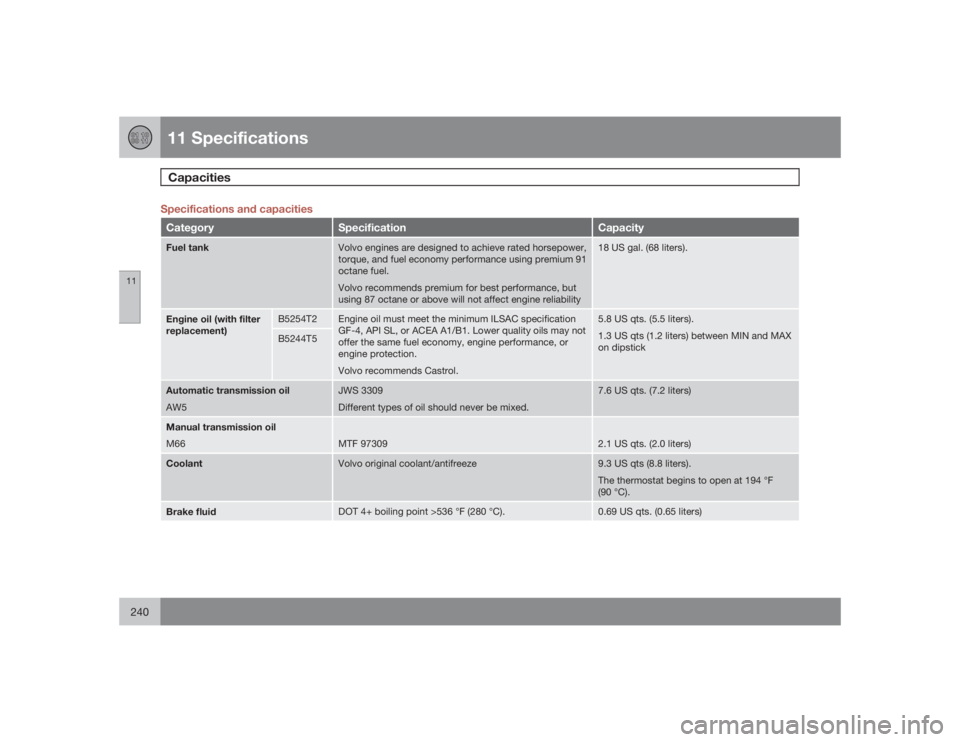

11 SpecificationsCapacities
11240
Specifications and capacitiesCategory
Specification
Capacity
Fuel tank
Volvo engines are designed to achieve rated horsepower,
torque, and fuel economy performance using premium 91
octane fuel.
Volvo recommends premium for best performance, but
using 87 octane or above will not affect engine reliability
18 US gal. (68 liters).
Engine oil (with filter
replacement)
B5254T2
Engine oil must meet the minimum ILSAC specification
GF-4, API SL, or ACEA A1/B1. Lower quality oils may not
offer the same fuel economy, engine performance, or
engine protection.
Volvo recommends Castrol.
5.8 US qts. (5.5 liters).
1.3 US qts (1.2 liters) between MIN and MAX
on dipstick
B5244T5
Automatic transmission oil
AW5
JWS 3309
Different types of oil should never be mixed.
7.6 US qts. (7.2 liters)
Manual transmission oil
M66
MTF 97309
2.1 US qts. (2.0 liters)
Coolant
Volvo original coolant/antifreeze
9.3 US qts (8.8 liters).
The thermostat begins to open at 194 °F
(90 °C).
Brake fluid
DOT 4+ boiling point >536 °F (280 °C).
0.69 US qts. (0.65 liters)

12 Index
12250
JJack
location of........................................... 105
using...................................................169
Jacket hanger.......................................... 101KKeys......................................................... 108
Kickdown.................................................131LLabel information..................................... 234
Leather care............................................. 177
Load carriers............................................ 146
Locking steering wheel............................ 125
Locking the car................................112, 113
Long distance trips.................................. 149
Long loads - carrying............................... 103
MMaintenance, periodic............................. 185
Maintenance services.............................. 184
Multifilter with air quality sensor................ 91OOccupant safety........................................ 16
Oil quality................................................. 190
Opening/locking the trunk.......................112
Opening the trunk from the inside........... 113
Owner maintenance................................. 185PPaint - color code....................................180
Park assist.......................................150, 151
Passenger’s side front airbag, disabling. . . 25
Permissible axle weight........................... 163
PI seek..................................................... 223
Polishing.................................................. 177
Power seat................................................. 94Power steering, speed sensitive.............. 128
Power steering fluid................................. 193
P Park...................................................... 130
PROPOSITION 65 WARNING.................. 244
RRadiator................................................... 189
Radio........................................................ 219
Radio Broadcast Data System (RBDS).... 223
Rear park assist....................................... 150
Rear seat, folding backrests.................... 102
Rear suspension...................................... 246
Recalls, child restraints.............................. 44
Recirculation.............................................. 90
Refrigerant (A/C system)............................ 86
Refueling.................................................. 122
Registering child restraints........................ 44
Remote control........................................ 109
Reporting safety defects
Canada................................................. 17
USA....................................................... 16
Roadholding............................................ 128
