Introduction
Important warnings
14
Driver distraction
A driver has a responsibility to do everything
possible to ensure his or her own safety and
the safety of passengers in the vehicle and oth-
ers sharing the roadway. Avoiding distractions
is part of that responsibility.
Driver distraction results from driver activities
that are not directly related to controlling the
vehicle in the driving environment. Your new
Volvo is, or can be, equipped with many fea-
ture-rich entertainment and communication
systems. These include hands-free cellular tel-
ephones, navigation systems, and multipur-
pose audio systems. You may also own other
portable electronic devices for your own con-
venience. When used properly and safely, they
enrich the driving experience. Improperly used,
any of these could cause a distraction.
For all of these systems, we want to provide the
following warning that reflects the strong Volvo
concern for your safety. Never use these devi-
ces or any feature of your vehicle in a way that
distracts you from the task of driving safely.
Distraction can lead to a serious accident. In
addition to this general warning, we offer the
following guidance regarding specific newer
features that may be found in your vehicle
•Never use a hand-held cellular telephone
while driving. Some jurisdictions prohibitcellular telephone use by a driver while the
vehicle is moving.
•If your vehicle is equipped with a naviga-
tion system, set and make changes to your
travel itinerary only with the vehicle parked.
•Never program your audio system while
the vehicle is moving. Program radio pre-
sets with the vehicle parked, and use your
programmed presets to make radio use
quicker and simpler.
•Never use portable computers or personal
digital assistants while the vehicle is mov-
ing.
Accessory installation
•We strongly recommend that Volvo owners
install only genuine, Volvo-approved
accessories, and that accessory installa-
tions be performed only by a trained and
qualified Volvo service technician.
•Genuine Volvo accessories are tested to
ensure compatibility with the performance,
safety, and emission systems in your vehi-
cle. Additionally, a trained and qualified
Volvo service technician knows where
accessories may and may not be safely
installed in your Volvo. In all cases, please
consult a trained and qualified Volvo serv-
ice technician before installing any acces-
sory in or on your vehicle.
•Accessories that have not been approved
by Volvo may or may not be specifically
tested for compatibility with your vehicle.
Additionally, an inexperienced installer
may not be familiar with some of your car's
systems.
•Any of your car's performance and safety
systems could be adversely affected if you
install accessories that Volvo has not tes-
ted, or if you allow accessories to be instal-
led by someone unfamiliar with your vehi-
cle.
•Damage caused by unapproved or
improperly installed accessories may not
be covered by your new vehicle warranty.
See your Warranty and Service Records
Information booklet for more warranty
information. Volvo assumes no responsi-
bility for death, injury, or expenses that
may result from the installation of non-gen-
uine accessories.

03 Your driving environment
Ignition modes
03

* Option/accessory, for more information, see Introduction.81 Inserting and removing the remote key
Ignition slot with remote key inserted and START/
STOP ENGINE button.
Inserting the remote keyHolding the end of the remote key with the
base of the key blade, insert the remote key
into the ignition slot as shown in the illustration
and press it in as far as possible (past the
detent).
CAUTION
Foreign objects in the ignition slot can
impair function or damage the lock.
Removing the remote keyThe remote key can be removed from the igni-
tion slot by pulling it out. The gear selector
must be in position P (Park).
Ignition modesThe various ignition modes are accessed with
the remote key in the ignition slot.
Posi-
tionFunction
0Odometer, clock and tempera-
ture gauge are illuminated. Steer-
ing lock is deactivated. The audio
system can be used.
IMoonroof*, power windows,12-
volt sockets, navigation system*,
climate system blower, ECC,
windshield wipers can be used.
IIThe headlights come on. Warn-
ing/indicator lights come on for
5 seconds. All equipment oper-
ates apart from heated seats and
rear window defroster, which
only work when the engine is run-
ning.
IIIThe starter motor will operate
until the engine has started.
NOTE
The brake pedal must not be depressed
when accessing ignition modes I or II.
Ignition mode 0
Insert the remote key in the ignition slot and
press it in as far as possible.
WARNING
The ignition key should always be fully
inserted in the ignition slot when the vehicle
is being towed to help prevent the steering
wheel from locking.
On vehicles with the optional keyless drive,
the remote key must be in the passenger
compartment and the driver's door must be
closed.
Ignition mode I
With the remote key fully pressed into the
ignition slot, press START/STOP
ENGINE briefly.
Ignition mode II
With the remote key fully pressed into the
ignition slot, press START/STOP
ENGINE for approximately 2 seconds.
Ignition mode III (engine start)Start the engine, see page 108.
Stopping the engine
Press START/STOP ENGINE. (If the
engine is running and the vehicle is mov-
ing, keep the button depressed until the
engine stops).

04 Comfort and driving pleasure
My Car
04
124
Introduction
The MY CAR feature provides access to
menus for controlling many of the vehicle's
functions.
Navigating among the menu selections is done
with several buttons in the center console or on
the steering wheel keypad.
Since it must be possible to control some of
these functions while driving, they have their
own direct buttons in the center console con-
trol panel. A maximum of 20 buttons are avail-
able.
Operation
Center console controls
Center console controls for menu navigation
Press MY CAR to access the My Car
menu.
Press OK/MENU to select a highlighted
selection or to store a certain function in
the system's memory.
Turn to navigate up/down among menu
selections.
Press EXIT briefly to go back one step in
the menu structure. A long press exits the
current menu system and returns you to
the main menu.
Steering wheel keypad
The keypad varies according to the vehicle's
equipment
Turn the thumb wheel to go up/down
among menu selections. Press the thumb
wheel to make a selection or store a func-
tion in the system's memory.
Press EXIT briefly to go back one step in
the menu structure. A long press exits the
current menu system and returns you to
the main menu.
PathsThe current menu level is displayed at the
upper right of the center console display. Menu
paths are displayed as follows:
Settings
Car settingsLock settings
Doors unlockDriver door, then all

04 Comfort and driving pleasure
My Car
04

* Option/accessory, for more information, see Introduction.125

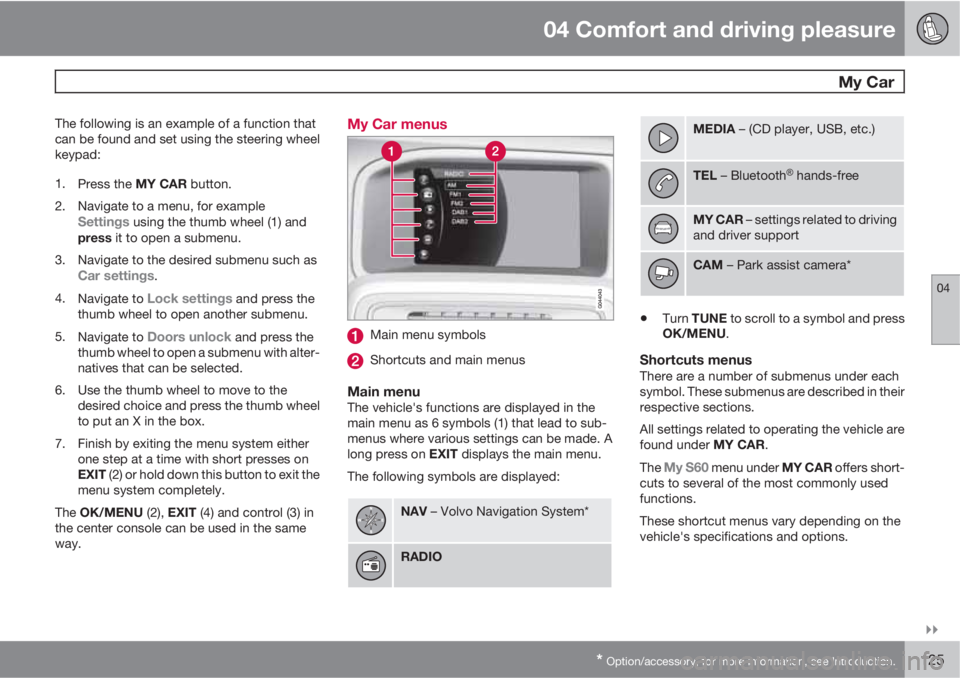

The following is an example of a function that
can be found and set using the steering wheel
keypad:
1.
Press the MY CAR button.
2. Navigate to a menu, for example
Settings using the thumb wheel (1) and
press it to open a submenu.
3. Navigate to the desired submenu such as
Car settings.
4.
Navigate to
Lock settings and press the
thumb wheel to open another submenu.
5.
Navigate to
Doors unlock and press the
thumb wheel to open a submenu with alter-
natives that can be selected.
6. Use the thumb wheel to move to the
desired choice and press the thumb wheel
to put an X in the box.
7. Finish by exiting the menu system either
one step at a time with short presses on
EXIT (2) or hold down this button to exit the
menu system completely.
The OK/MENU (2), EXIT (4) and control (3) in
the center console can be used in the same
way.
My Car menus
Main menu symbols
Shortcuts and main menus
Main menuThe vehicle's functions are displayed in the
main menu as 6 symbols (1) that lead to sub-
menus where various settings can be made. A
long press on EXIT displays the main menu.
The following symbols are displayed:
NAV – Volvo Navigation System*
RADIO
MEDIA – (CD player, USB, etc.)
TEL – BluetoothŸ hands-free
MY CAR – settings related to driving
and driver support
CAM – Park assist camera*
•Turn TUNE to scroll to a symbol and press
OK/MENU.
Shortcuts menusThere are a number of submenus under each
symbol. These submenus are described in their
respective sections.
All settings related to operating the vehicle are
found under MY CAR.
The
My S60 menu under MY CAR offers short-
cuts to several of the most commonly used
functions.
These shortcut menus vary depending on the
vehicle's specifications and options.

04 Comfort and driving pleasure
My Car
04
128
See page 233 for more information on the
available settings.
Climate settings
Automatic blower adjustment
High
Normal
Low
Recirculation timer
Automatic rear defroster
Interior air quality system
Reset climate settings
This feature returns the "Climate settings"
menu to the original factory settings.
For more information about the climate sys-
tem, see page 129.
Favorites (FAV)
See page 199 for more information about this
feature.
Information
Number of keysSee page 54 for more information.
VIN number
See page 321 for more information.
DivX® VOD code
See page 214 for more information.
Bluetooth software version in car
See page 220 for more information.
Map and software version
See the separate manual for the optional Volvo
Navigation System.

04 Comfort and driving pleasure
Rear Park Assist Camera (PAC)*
04
178* Option/accessory, for more information, see Introduction.
Introduction
The Park Assist Camera uses the display in the
center console to show the area behind the car
while you are backing up.
PAC also shows guiding lines in the on-screen
image to indicate the direction that the vehicle
will take as it moves rearward, which helps
simplify parallel parking, backing into a tight
space or when attaching a trailer to the vehicle.
NOTE
PAC can only be installed on vehicles equip-
ped with the Volvo’s own navigation system
VNS.
WARNING
•PAC is designed to be a supplementary
aid when parking the vehicle. It is not,
however, intended to replace the
driver’s attention and judgment.
•The camera has blind spots where it
cannot detect objects or people behind
the vehicle.
•Pay particular attention to people or ani-
mals that are close to the vehicle.
Function
The driver sees what is behind the vehicle and
if a person or animal should suddenly appear
from the side.
PAC is mounted on the rear of the trunk lid,
near the opening handle.
The camera has built-in electronics that help
reduce the “fish-eye” effect so that the image
shown on the screen is as natural as possible.
This may cause some objects on the screen to
“lean,” which is normal.
WARNING
Objects seen on the screen may be closer
than they appear to be.
Ambient lighting conditionsThe camera automatically monitors the ambi-
ent lighting conditions behind the vehicle and
constantly adjusts sensitivity to light. This may
cause the brightness and quality of the image
on the screen to vary slightly. Sensitivity to light
is increased in dark conditions or in bad
weather, which may affect image quality.
If the image on the screen seems too dark,
brightness can be increased with the thumb
wheel on the lighting panel.
NOTE
In order to function properly, the camera
lens should always be kept clean. This is
particularly important in bad weather. Keep
the lens free of dirt, ice or snow.

04 Comfort and driving pleasure
Rear Park Assist Camera (PAC)*
04

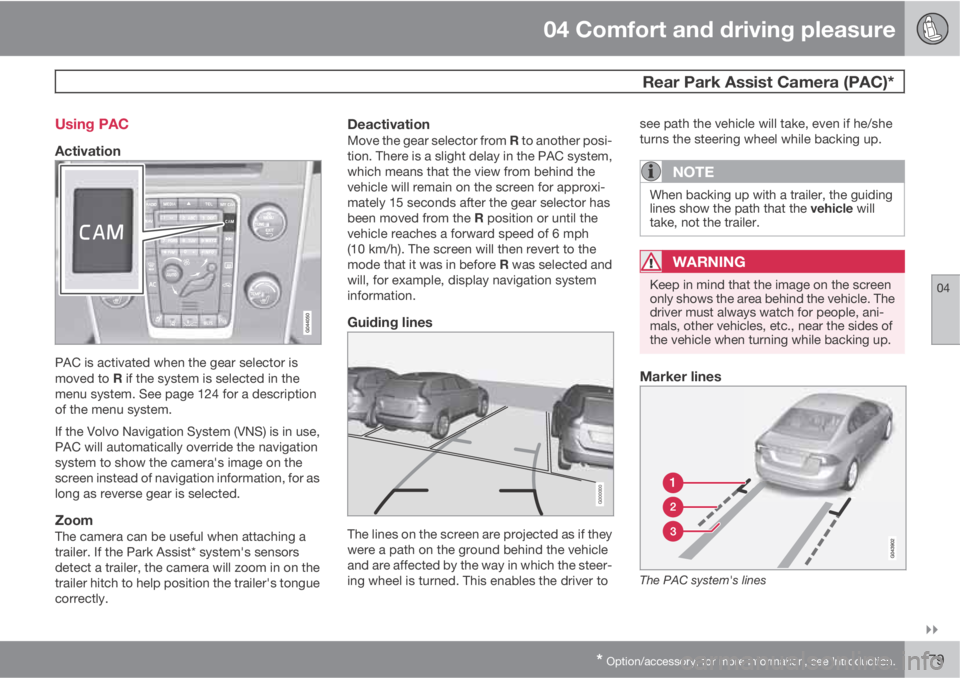

* Option/accessory, for more information, see Introduction.179 Using PAC
Activation
PAC is activated when the gear selector is
moved to R if the system is selected in the
menu system. See page 124 for a description
of the menu system.
If the Volvo Navigation System (VNS) is in use,
PAC will automatically override the navigation
system to show the camera's image on the
screen instead of navigation information, for as
long as reverse gear is selected.
ZoomThe camera can be useful when attaching a
trailer. If the Park Assist* system's sensors
detect a trailer, the camera will zoom in on the
trailer hitch to help position the trailer's tongue
correctly.
DeactivationMove the gear selector from R to another posi-
tion. There is a slight delay in the PAC system,
which means that the view from behind the
vehicle will remain on the screen for approxi-
mately 15 seconds after the gear selector has
been moved from the R position or until the
vehicle reaches a forward speed of 6 mph
(10 km/h). The screen will then revert to the
mode that it was in before R was selected and
will, for example, display navigation system
information.
Guiding lines
G000000
The lines on the screen are projected as if they
were a path on the ground behind the vehicle
and are affected by the way in which the steer-
ing wheel is turned. This enables the driver tosee path the vehicle will take, even if he/she
turns the steering wheel while backing up.
NOTE
When backing up with a trailer, the guiding
lines show the path that the vehicle will
take, not the trailer.
WARNING
Keep in mind that the image on the screen
only shows the area behind the vehicle. The
driver must always watch for people, ani-
mals, other vehicles, etc., near the sides of
the vehicle when turning while backing up.
Marker lines
The PAC system's lines

04 Comfort and driving pleasure
Rear Park Assist Camera (PAC)*
04

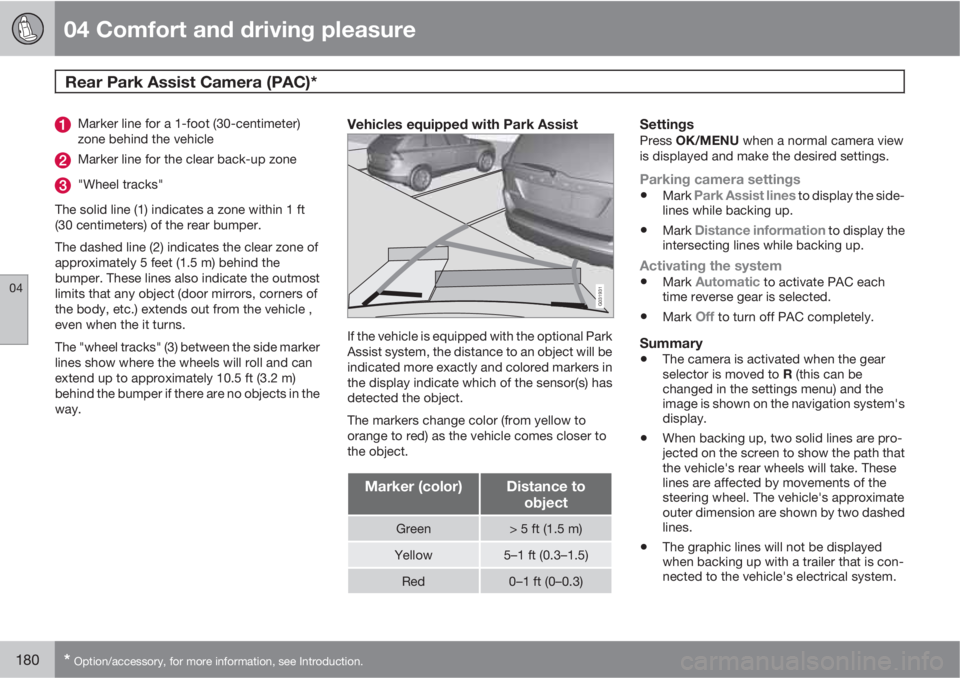

180* Option/accessory, for more information, see Introduction.
Marker line for a 1-foot (30-centimeter)
zone behind the vehicle
Marker line for the clear back-up zone
"Wheel tracks"
The solid line (1) indicates a zone within 1 ft
(30 centimeters) of the rear bumper.
The dashed line (2) indicates the clear zone of
approximately 5 feet (1.5 m) behind the
bumper. These lines also indicate the outmost
limits that any object (door mirrors, corners of
the body, etc.) extends out from the vehicle ,
even when the it turns.
The "wheel tracks" (3) between the side marker
lines show where the wheels will roll and can
extend up to approximately 10.5 ft (3.2 m)
behind the bumper if there are no objects in the
way.
Vehicles equipped with Park Assist
G031931
If the vehicle is equipped with the optional Park
Assist system, the distance to an object will be
indicated more exactly and colored markers in
the display indicate which of the sensor(s) has
detected the object.
The markers change color (from yellow to
orange to red) as the vehicle comes closer to
the object.
Marker (color)Distance to
object
Green> 5 ft (1.5 m)
Yellow5–1 ft (0.3–1.5)
Red0–1 ft (0–0.3)
SettingsPress OK/MENU when a normal camera view
is displayed and make the desired settings.
Parking camera settings
•Mark Park Assist lines to display the side-
lines while backing up.
•Mark Distance information to display the
intersecting lines while backing up.
Activating the system
•Mark Automatic to activate PAC each
time reverse gear is selected.
•Mark Off to turn off PAC completely.
Summary
•The camera is activated when the gear
selector is moved to R (this can be
changed in the settings menu) and the
image is shown on the navigation system's
display.
•When backing up, two solid lines are pro-
jected on the screen to show the path that
the vehicle's rear wheels will take. These
lines are affected by movements of the
steering wheel. The vehicle's approximate
outer dimension are shown by two dashed
lines.
•The graphic lines will not be displayed
when backing up with a trailer that is con-
nected to the vehicle's electrical system.

05 Infotainment
Introduction
05

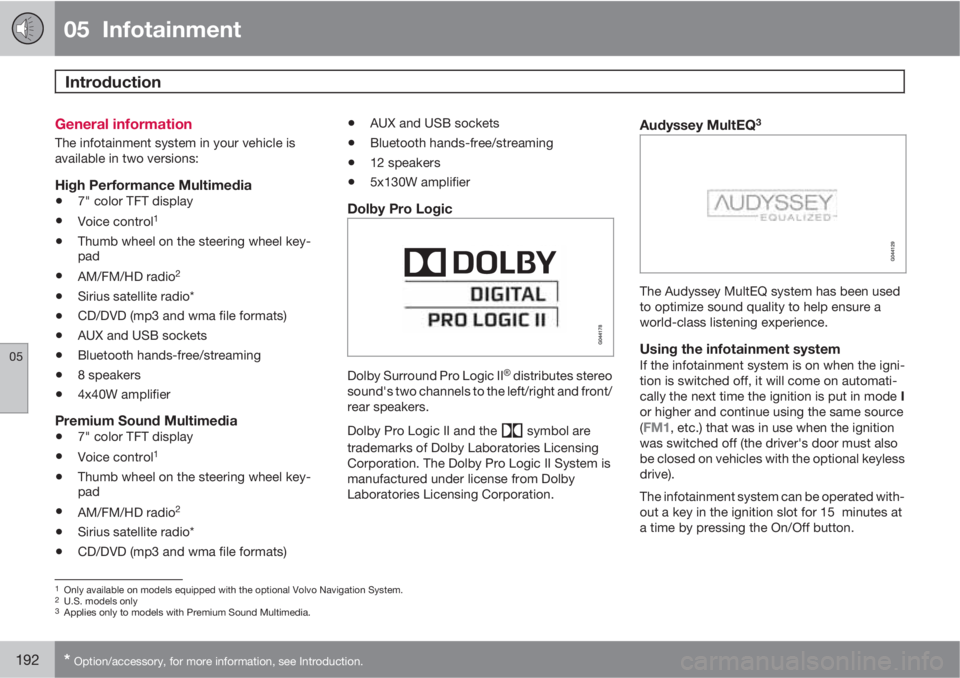

192* Option/accessory, for more information, see Introduction.
General information
The infotainment system in your vehicle is
available in two versions:
High Performance Multimedia
•7" color TFT display
•Voice control1
•Thumb wheel on the steering wheel key-
pad
•AM/FM/HD radio2
•Sirius satellite radio*
•CD/DVD (mp3 and wma file formats)
•AUX and USB sockets
•Bluetooth hands-free/streaming
•8 speakers
•4x40W amplifier
Premium Sound Multimedia
•7" color TFT display
•Voice control1
•Thumb wheel on the steering wheel key-
pad
•AM/FM/HD radio2
•Sirius satellite radio*
•CD/DVD (mp3 and wma file formats)
•AUX and USB sockets
•Bluetooth hands-free/streaming
•12 speakers
•5x130W amplifier
Dolby Pro Logic
Dolby Surround Pro Logic IIŸ distributes stereo
sound's two channels to the left/right and front/
rear speakers.
Dolby Pro Logic II and the
symbol are
trademarks of Dolby Laboratories Licensing
Corporation. The Dolby Pro Logic II System is
manufactured under license from Dolby
Laboratories Licensing Corporation.
Audyssey MultEQ3
The Audyssey MultEQ system has been used
to optimize sound quality to help ensure a
world-class listening experience.
Using the infotainment systemIf the infotainment system is on when the igni-
tion is switched off, it will come on automati-
cally the next time the ignition is put in mode I
or higher and continue using the same source
(
FM1, etc.) that was in use when the ignition
was switched off (the driver's door must also
be closed on vehicles with the optional keyless
drive).
The infotainment system can be operated with-
out a key in the ignition slot for 15 minutes at
a time by pressing the On/Off button.
1Only available on models equipped with the optional Volvo Navigation System.2U.S. models only3Applies only to models with Premium Sound Multimedia.

05 Infotainment
Getting started
05

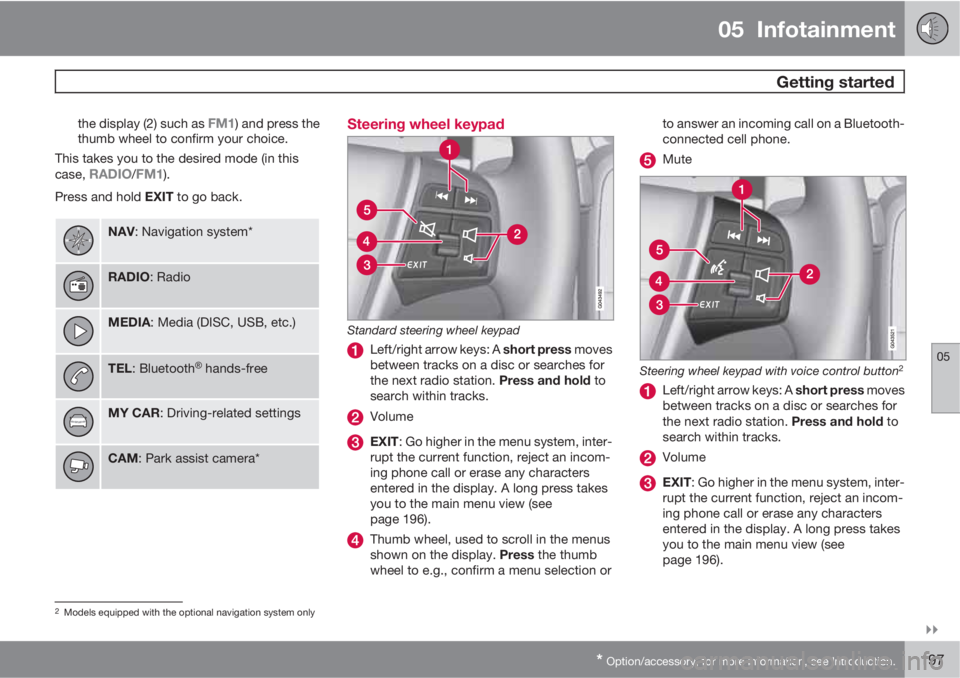

* Option/accessory, for more information, see Introduction.197
the display (2) such as FM1) and press the
thumb wheel to confirm your choice.
This takes you to the desired mode (in this
case,
RADIO/FM1).
Press and hold EXIT to go back.
NAV: Navigation system*
RADIO: Radio
MEDIA: Media (DISC, USB, etc.)
TEL: BluetoothŸ hands-free
MY CAR: Driving-related settings
CAM: Park assist camera*
Steering wheel keypad
Standard steering wheel keypad
Left/right arrow keys: A short press moves
between tracks on a disc or searches for
the next radio station. Press and hold to
search within tracks.
Volume
EXIT: Go higher in the menu system, inter-
rupt the current function, reject an incom-
ing phone call or erase any characters
entered in the display. A long press takes
you to the main menu view (see
page 196).
Thumb wheel, used to scroll in the menus
shown on the display. Press the thumb
wheel to e.g., confirm a menu selection orto answer an incoming call on a Bluetooth-
connected cell phone.
Mute
Steering wheel keypad with voice control button2
Left/right arrow keys: A short press moves
between tracks on a disc or searches for
the next radio station. Press and hold to
search within tracks.
Volume
EXIT: Go higher in the menu system, inter-
rupt the current function, reject an incom-
ing phone call or erase any characters
entered in the display. A long press takes
you to the main menu view (see
page 196).
2Models equipped with the optional navigation system only
