VOLVO S60 2013 Owner´s Manual

05 Comfort and driving pleasure
Passenger compartment convenience
05
209
Fold down the cover to access the electrical
socket.
NOTE
The 12-volt socket in the trunk provides
electrical current even when the ignition is
switched off. Using the socket while the
engine is not running will drain the battery.

210
Introduction........................................................................................... 212
Radio..................................................................................................... 222
Media player......................................................................................... 231
AUX/USB sockets................................................................................. 235
Bluetooth
Ÿ media ................................................................................. 238
Bluetooth
® hands-free connection ...................................................... 240
Cell phone voice control....................................................................... 248

INFOTAINMENT

06 Infotainment
Introduction
06
212* Option/accessory, for more information, see Introduction.
General information
The infotainment system consists of radio and
media player features and also makes it pos-
sible to communicate via a cell phone. The
information is displayed on a 7" screen in the
center console. Infotainment functions can be
controlled from the center console or via the
buttons on the steering wheel keypad. On
models equipped with the optional navigation
system, voice commands can also be used to
e.g., set destinations, make calls from a
Bluetooth
Ÿ-connected cell phone, etc.
If the infotainment system was on when the
ignition was switched off, the most recently
used source (
FM1, etc.) will restart the next
time the ignition is put in mode I or higher. The
driver's door must also be closed on vehicles
with keyless drive*.
The infotainment system can be operated for
15 minutes at a time while the engine is
switched off by pressing the On/Off button.
While the engine is being started, the infotain-
ment system will be temporarily interrupted
and will resume when the engine has started.
NOTE
To help avoid excessive battery drain,
remove the remote key from the ignition slot
if the infotainment system is used while the
engine is switched off.
Dolby Pro Logic
The system is manufactured under license
from Dolby Laboratories Licensing
Corporation.
Dolby Pro Logic II and the
symbol are
trademarks of Dolby Laboratories Licensing
Corporation.
Audyssey MultEQ1
The Audyssey MultEQ system has been used
to optimize sound quality to help ensure a
world-class listening experience.
1Applies only to models with Premium Sound Multimedia.

06 Infotainment
Introduction
06

213 Infotainment system overview
Sockets for external audio sources (AUX
and USB)
Steering wheel keypad
7" display
Center console control panel
Basic infotainment functions
Infotainment controls in the center console
Corresponding controls - keypad and center con-
sole
SOUND: press to access the menu for
adjusting bass, treble, etc., see page 217
for additional information.
VOL: turn to raise or lower the volume level.
ON/OFF/MUTE: short press - switch
the system ON. Press and hold (until the
screen turns black) - switch the system
OFF. A short press when the infotainment
system is on will mute/unmute the sound.
The entire infotainment system, including
the navigation* and telephone functions, is
switched on/off at the same time by using
this button.
Mode buttons: select a mode (e.g.,
RADIO, MEDIA, TEL, etc.) by pressing its
button on the center console. The most

06 Infotainment
Introduction
06
214* Option/accessory, for more information, see Introduction.
recent source in the selected mode (e.g.,
FM1) will be displayed. The location of
these buttons on the center console may
vary slightly from model to model.
OK/MENU: confirm a menu selection. This
leads to the selected mode’s (RADIO,
MEDIA) menu view. Arrows at the right of
the screen indicate submenus.
TUNE: turn to scroll among tracks/folders,
radio stations, phone contacts or to navi-
gate among the alternatives shown on the
screen.
EXIT: short press - go upward in the menu
system, cancel a current function, reject an
incoming phone call or erase characters
that have been entered on the screen.
Press and hold - from a mode’s main view
to come to the infotainment system's main
view, see page 216.
# INFO: if more information is available
than is currently displayed on the screen,
press # INFO to display the remaining
information.
Keypad (for preset stations, entering let-
ters or numbers, etc).
* FAV: this button can be used to store a
shortcut to a commonly used function in
AM/FM/SIRIUS/DISC, etc. See the section"* FAV—storing a shortcut" on page 217
for information on using this button.
Steering wheel keypad
The buttons on the right-hand steering wheel
keypad can be used in the same way as some
of the controls on the center console. There are
two versions of the keypad, depending on your
vehicle's specifications.
Left/right arrow keys: a short press moves
between preset radio stations or tracks on
a disc. Press and hold to search within
tracks or to tune to the next/previous
strong radio station.
Volume
EXIT: a short press takes you upward in
the menu system, cancels a current func-
tion, rejects an incoming phone call or era-
ses characters that have been entered on
the screen. Press and hold from a mode’s
main view to come to the infotainment sys-
tem's main view.
Thumb wheel: pressing functions in the
same way OK/MENU on the center con-
sole. Turning the thumb wheel functions in
the same way as TUNE on the center con-
sole.
Voice button: 2 press to voice-activate cer-
tain functions on a BluetoothŸ-connected
cell phone and the navigation system.
Main view
From a mode’s normal view, pressing and
holding EXIT will display the infotainment sys-
tem's main view, which enables you to select
a mode.
NAV: Navigation system*
RADIO
2Models with the optional navigation system only. On models without navigation, this button mutes/unmutes the infotainment system.

06 Infotainment
Introduction
06

* Option/accessory, for more information, see Introduction.215
MEDIA: (DISC, USB, etc.)
TEL: BluetoothŸ hands-free
MY CAR: Driving-related settings
CAM: Park assist camera*

06 Infotainment
Introduction
06
216

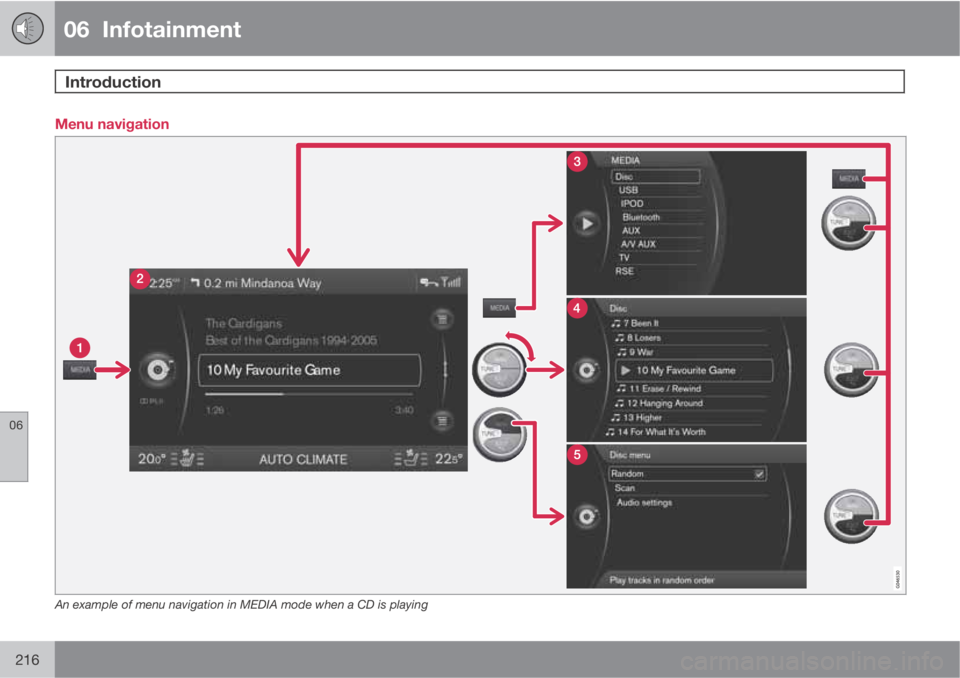

Menu navigation
An example of menu navigation in MEDIA mode when a CD is playing

06 Infotainment
Introduction
06

* Option/accessory, for more information, see Introduction.217
Mode button (in this example, the MEDIA
button). The number of buttons varies,
depending on your vehicle’s specifica-
tions). Each mode has four basic views:
Normal view
Shortcut view
Quick scroll view
Menu view
Select a mode by pressing its button (1)
(RADIO, MEDIA, TEL, etc.). Navigate using
TUNE, OK/MENU or EXIT.
* FAV—storing a shortcut
The * FAV button can be used to store fre-
quently used functions, making it possible to
start the stored function by simply press-
ing * FAV. One favorite (for example,
Equalizer) can be programmed for each of the
following infotainment system functions:
In RADIO mode
•AM
•FM1/FM2
•SIRIUS1/SIRIUS2*
In MEDIA mode
•DISC
•USB
•iPod
•Bluetooth
•AUX
Favorites can also be stored for MY CAR,
CAM* and NAV*. See page 189 for a descrip-
tion of the menu system.
To program a function on the * FAV button:
1.
Select a mode (e.g., RADIO, MEDIA, etc.).
2.
Press and hold * FAV until the "favorite"
menu is displayed.3.
Turn TUNE to scroll through the list of
alternatives displayed and press OK/
MENU to confirm (store) your choice.
> The next time the infotainment system
mode (RADIO, MEDIA, etc.) is selected,
a short press on * FAV will start the
stored function.
Basic sound settings
Press SOUND to display the basic sound set-
ting menu (Bass, Treble, etc). Continue press-
ing SOUND or OK/MENU to display the other
setting alternatives.
Adjust the setting by turning TUNE and save
the new setting by pressing OK/MENU.
Continue pressing SOUND or OK/MENU to
display:
•Surround:3 Can be set to On or Off. When
switched on, the system will automatically
select settings for the best sound quality,
which is normally DPLII and
will
appear in the display. If the recording was
made using Dolby Digital technology, play-
back will be provided with this setting and
will appear in the display. If Sur-
3Premium Sound Multimedia only

06 Infotainment
Introduction
06
218
round is switched off, audio will be provi-
ded using 3 channel stereo.
•Bass: Bass level.
•Treble: Treble level.
•Fader: Balance between the front and rear
speakers.
•Balance: Balance between the right and
left speakers.
•DPL II centre level/3 channel centre
level3: Volume for the center speaker.
•DPL II surround level3/4: Surround level.
Advanced sound settings
EqualizerSound levels for different frequencies can be
adjusted separately using this feature.
To do so:
1.
Press OK/MENU to access
Audio
settings and select Equalizer
2.
Turn TUNE to select one of the frequencies
and press OK/MENU.
3.
Turn TUNE to adjust the sound setting and
confirm the change by pressing OK/MENU. Do the same for the other frequen-
cies.
4. When you have finished making your set-
tings, press EXIT to save and return to nor-
mal view.
For general information regarding menu navi-
gation, see page 216 and menu overview see
page 219.
Sound stage5
The sound experience can be optimized for the
driver's seat, both front seats or the rear seat.
If the front and rear seats are occupied, the
sound stage setting
Front seats is recom-
mended. Select one of the options under
Audio settings
Sound stage.
Audio volume and automatic volume
control
The infotainment system compensates for dis-
rupting noises in the passenger compartment
by increasing the volume according to the
speed of the vehicle. The level of sound com-
pensation can be set at low, medium, high or
off. Select the level under Audio settings
Volume compensation.
External audio source volumeIf an external device such as an MP3 player or
an iPod Ÿ is connected to the AUX socket, the
device's volume may be different than the vol-
ume of the internal sound sources such as the
disc player or the radio. If the external sound
source's volume is too high, the quality of the
sound may be impaired. To help prevent this,
adjust the input volume of the external audio
source:
NOTE
Sound quality may be affected if the MP3
player is being charged while the system is
in AUX mode. To help prevent this, avoid
charging the MP3 player in a 12-volt socket
while it is being played.
1.
Press MEDIA and turn TUNE to AUX.
Press OK/MENU or the thumb wheel on
the steering wheel keypad.
2.
Press OK/MENU and turn TUNE to
AUX
input volume. Confirm by pressing OK/
MENU.
3.
Turn TUNE to adjust the volume.
3Premium Sound Multimedia only4Only when Surround is on.5Premium Sound Multimedia only
