odometer VOLVO S60 2018 Owner´s Manual

MAINTENANCE AND SERVICING
327
retailer can access or search for this information using your vehicle's VIN number. This numbercan be found in your warranty booklet or on thedashboard at the lower left corner of the wind-shield.
–Select Scheduled maintenance & repair
Send vehicle data.
Booking information and vehicle dataWhen you opt to book service from your vehicle, booking information and vehicle data will betransmitted. Vehicle data consists of a number ofparameters in the following areas:
• Service requirements
• Function status
• Fluid levels
• Odometer reading (mileage)
• Vehicle Identification Number (VIN)
• The vehicle's software version
Related information
•
Volvo ID (p. 20)

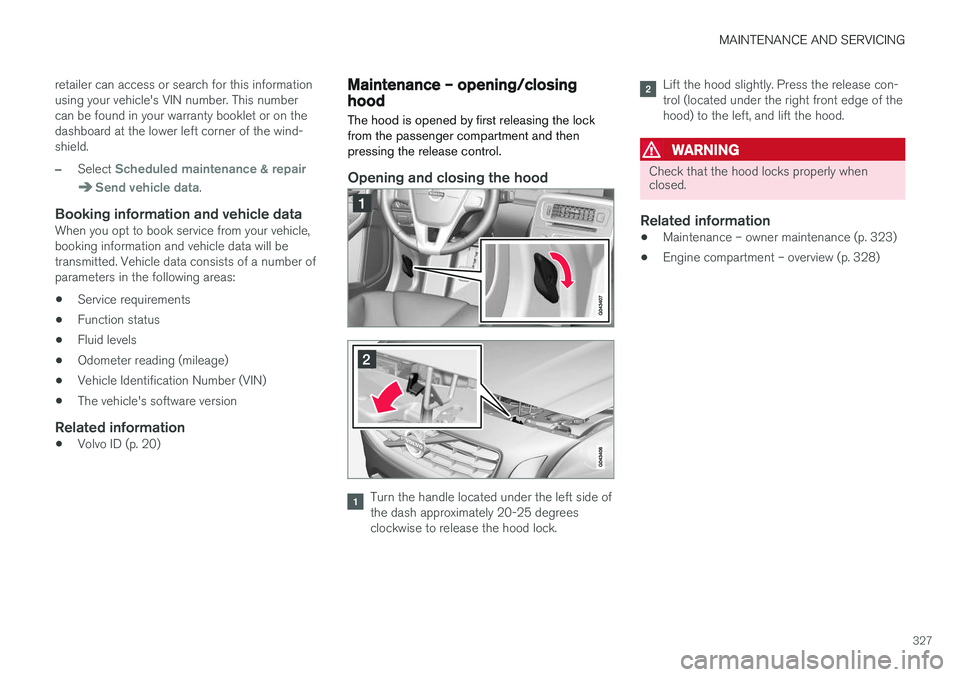

Maintenance – opening/closing hood The hood is opened by first releasing the lock from the passenger compartment and thenpressing the release control.
Opening and closing the hood
Turn the handle located under the left side of the dash approximately 20-25 degreesclockwise to release the hood lock.
Lift the hood slightly. Press the release con- trol (located under the right front edge of thehood) to the left, and lift the hood.
WARNING
Check that the hood locks properly when closed.
Related information
•Maintenance – owner maintenance (p. 323)
• Engine compartment – overview (p. 328)

INDEX
389
Motor oil
checking 329
volumes 375
O
Occupant safety 26
Occupant weight sensor 36
Octane recommendations 278
Odometer, trip 73Oil checking 329
volumes 375
Oil level sensor 330
Oil quality 374
OK button 108, 109
Option/accessory 13
Outside temperature sensor 72
Overhead courtesy lighting 91
Overheating, engine 70
Ownership, changing 17
Oxygen sensors, heated 281
P
Paint, touching up 363
Park assist 230, 238
Park Assist Camera 239
Park Assist Pilot 234Parking brake electric, applying/releasing 271, 272, 274
warning light 69
Parking lights 88
Pedestrian detection 206, 209
Polishing 361Power front seat memory function 76
Power meter 66
Power mirrors 97, 98 defroster 99
Power moonroof 101, 102Power steering adjustable 170
fluid 333
Power steering fluid 377
Power windows 96
Pregnancy, using seat belts during 31
Private locking 150
PROPOSITION 65 WARNING 254, 348, 379
R
Rain sensor 94
Rear fog lights 89
Rear park assist 230, 238Rear seats center head restraint 79
folding 79, 81
heated 126
Rearview mirror auto-dim function 99
compass 100
Rear window defroster 99
Recalls 26
Recalls, child restraints 47
Refrigerant 379
Refueling 277, 278 fuel filler cap 281
fuel filler door 280, 281
fuel tank volume 377
Registering child restraints 47 Remote control private locking 150
Remote key 144, 145, 146, 148, 151 approach lighting 147
immobilizer 146

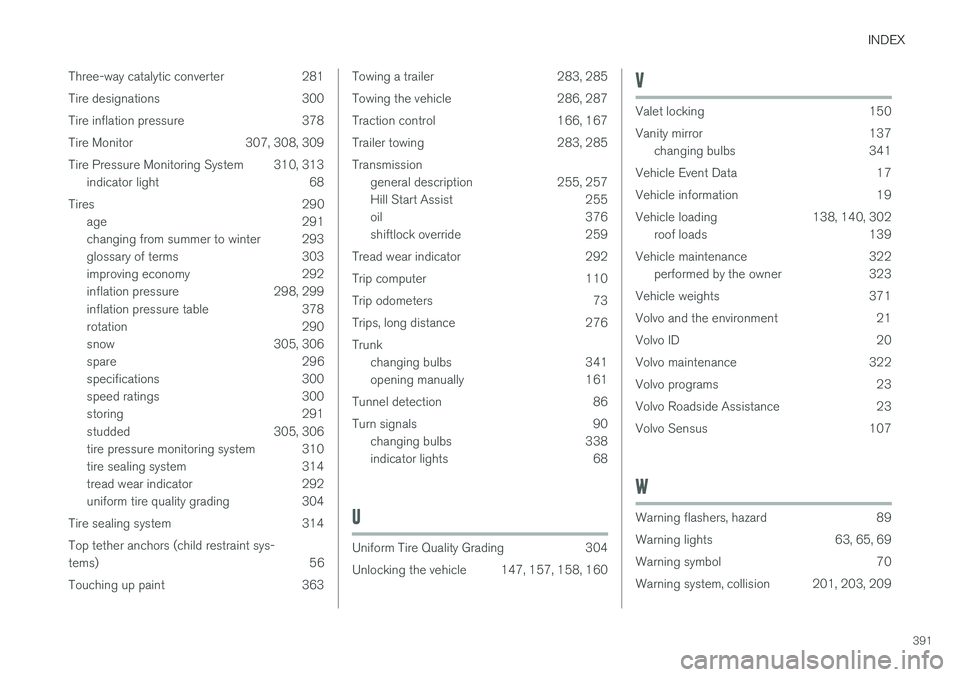

INDEX
391
Three-way catalytic converter 281
Tire designations 300
Tire inflation pressure 378
Tire Monitor 307, 308, 309
Tire Pressure Monitoring System 310, 313
indicator light 68
Tires 290 age 291
changing from summer to winter 293
glossary of terms 303
improving economy 292
inflation pressure 298, 299
inflation pressure table 378
rotation 290
snow 305, 306
spare 296
specifications 300
speed ratings 300
storing 291
studded 305, 306
tire pressure monitoring system 310
tire sealing system 314
tread wear indicator 292
uniform tire quality grading 304
Tire sealing system 314 Top tether anchors (child restraint sys- tems) 56
Touching up paint 363
Towing a trailer 283, 285
Towing the vehicle 286, 287
Traction control 166, 167
Trailer towing 283, 285Transmission general description 255, 257
Hill Start Assist 255
oil 376
shiftlock override 259
Tread wear indicator 292
Trip computer 110
Trip odometers 73
Trips, long distance 276Trunk changing bulbs 341
opening manually 161
Tunnel detection 86
Turn signals 90 changing bulbs 338
indicator lights 68
U
Uniform Tire Quality Grading 304
Unlocking the vehicle 147, 157, 158, 160
V
Valet locking 150
Vanity mirror 137changing bulbs 341
Vehicle Event Data 17
Vehicle information 19
Vehicle loading 138, 140, 302 roof loads 139
Vehicle maintenance 322 performed by the owner 323
Vehicle weights 371
Volvo and the environment 21
Volvo ID 20
Volvo maintenance 322
Volvo programs 23
Volvo Roadside Assistance 23
Volvo Sensus 107
W
Warning flashers, hazard 89
Warning lights 63, 65, 69
Warning symbol 70
Warning system, collision 201, 203, 209
