VOLVO S60 2018 Owner´s Manual

SPECIFICATIONS
}}
369

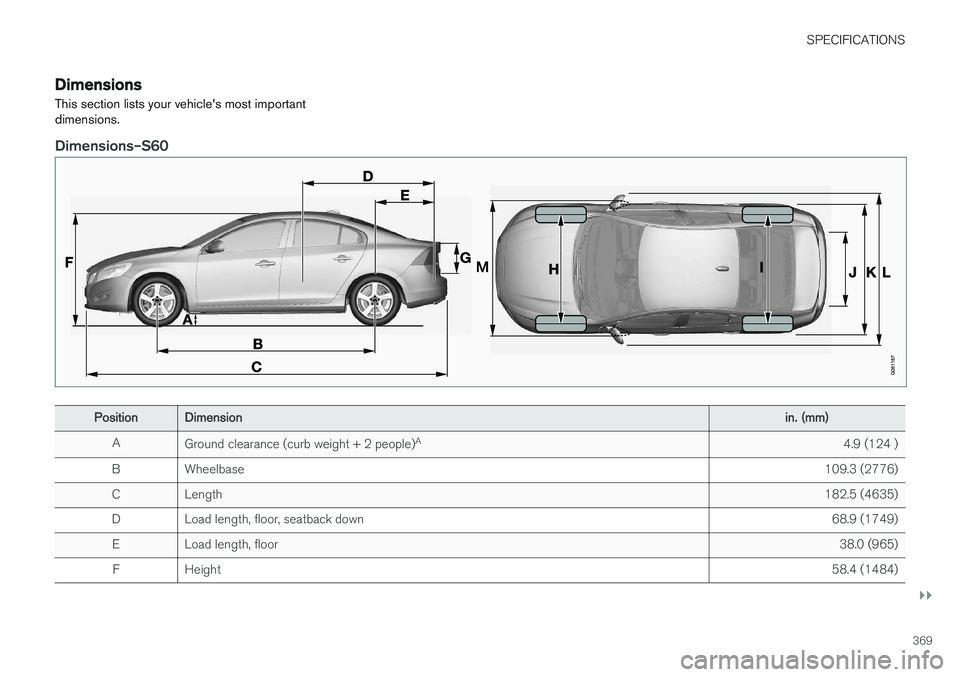

DimensionsThis section lists your vehicle's most important dimensions.
Dimensions–S60
Position Dimension in. (mm)
A Ground clearance (curb weight + 2 people) A
4.9 (124 )
B Wheelbase 109.3 (2776)
C Length 182.5 (4635)
D Load length, floor, seatback down 68.9 (1749)
E Load length, floor 38.0 (965)
F Height 58.4 (1484)

||
SPECIFICATIONS
370

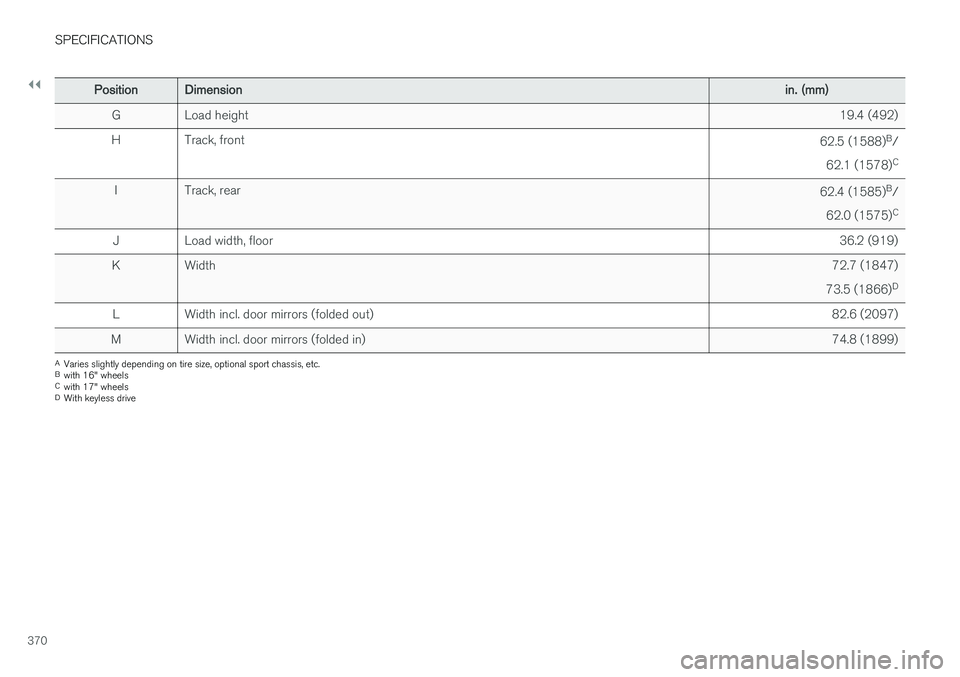

PositionDimension in. (mm)
G Load height 19.4 (492)
H Track, front 62.5 (1588)B
/
62.1 (1578) C
I Track, rear 62.4 (1585)B
/
62.0 (1575) C
J Load width, floor 36.2 (919)
K Width 72.7 (1847)
73.5 (1866) D
L Width incl. door mirrors (folded out) 82.6 (2097)
M Width incl. door mirrors (folded in) 74.8 (1899)
A
Varies slightly depending on tire size, optional sport chassis, etc.
B with 16" wheels
C with 17" wheels
D With keyless drive

SPECIFICATIONS
}}
371

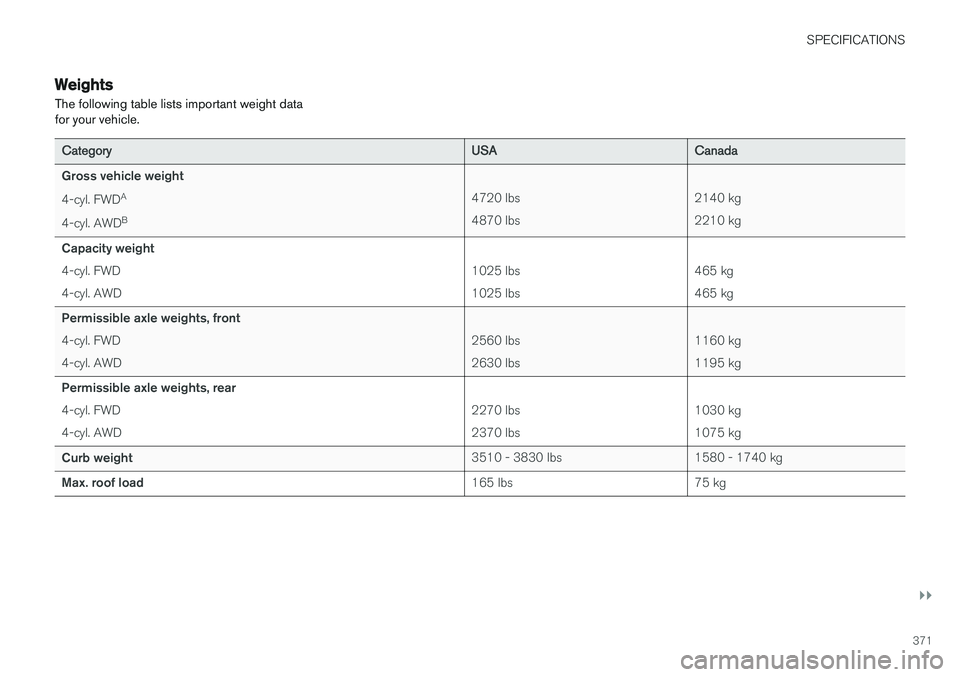

Weights The following table lists important weight data for your vehicle.
CategoryUSACanada
Gross vehicle weight 4-cyl. FWD A
4-cyl. AWD B 4720 lbs 4870 lbs2140 kg2210 kg
Capacity weight 4-cyl. FWD 4-cyl. AWD 1025 lbs1025 lbs465 kg465 kg
Permissible axle weights, front 4-cyl. FWD 4-cyl. AWD 2560 lbs2630 lbs1160 kg1195 kg
Permissible axle weights, rear 4-cyl. FWD 4-cyl. AWD 2270 lbs2370 lbs1030 kg1075 kg
Curb weight 3510 - 3830 lbs 1580 - 1740 kg
Max. roof load 165 lbs 75 kg

||
SPECIFICATIONS
372

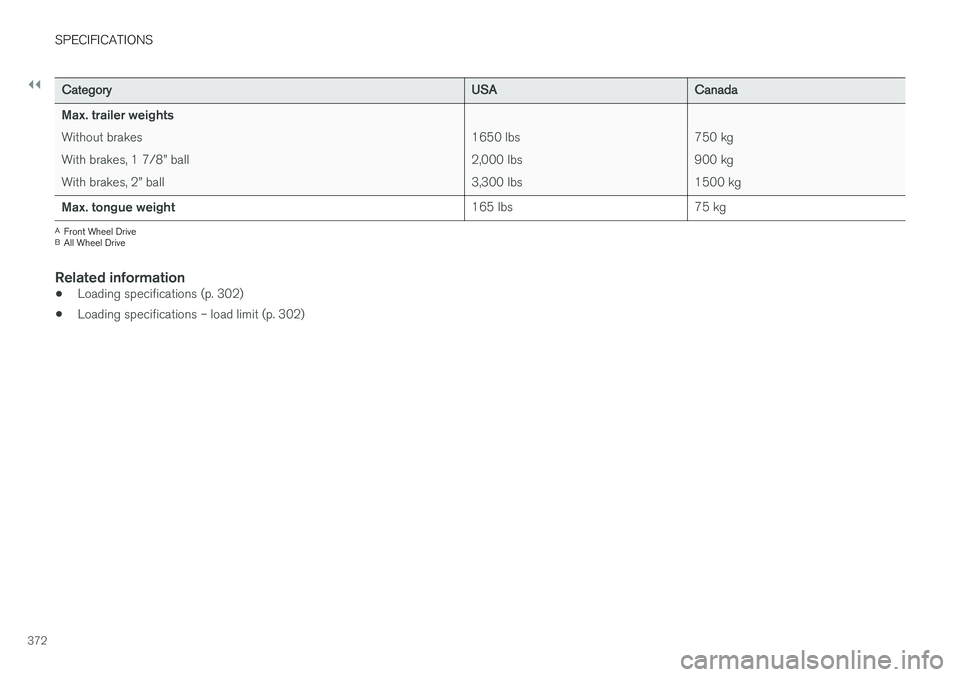

CategoryUSACanada
Max. trailer weights Without brakes With brakes, 1 7/8” ballWith brakes, 2” ball 1650 lbs2,000 lbs3,300 lbs750 kg900 kg1500 kg
Max. tongue weight 165 lbs 75 kg
A
Front Wheel Drive
B All Wheel Drive
Related information
• Loading specifications (p. 302)
• Loading specifications – load limit (p. 302)

SPECIFICATIONS
373
Engine specificationsThe following table provides technical data for the respective engines. Engine specifications forSpecial Edition vehicles may vary. Some of the engines listed here may not beavailable in all markets.
Engine specifications
Engine
T6 / T6 AWD T5T5 / T5 AWDPolestar
Engine designation B4204T9 B4204T12 B4204T11 B4204T43
Output (kW/rps) 225/95 179/93 179/93 270/95
Output (hp/rpm) 302/5700 240/5600 240/5600 362/5700
Torque (Nm/rps) 400/35–75 350/25-75 350/25-75 470/35-75
Torque (ft. lbs./rpm) 295/1500–4500 258/1500–4500 258/1500–4500 347/1500-4500
No. of cylinders 4 4 4 4
Bore (in/mm) 3.23/82 3.23/82 3.23/82 3.23/82
Stroke (in/mm) 3.67/93.2 3.67/93.2 3.67/93.2 3.67/93.2
Displacement 1.97 liters (120.2 cu. in.) 1.97 liters (120.2 cu. in.) 1.97 liters (120.2 cu. in.) 1.97 liters (120.2 cu. in.)
Compression ratio 10.3:1 10.8:1 10.8:1 9.1:1
Related information
• Coolant – specification and volume (p. 376)
• Oil specifications (p. 374)
• Oil volume (p. 375)

SPECIFICATIONS
374
Oil specifications
Full synthetic engine oil meeting the minimum
ACEA A5/B5 must be used. Lower quality oils may not offer the same fuel economy, engineperformance, or engine protection.
Volvo recommends:
Refer to the warranty and Service Records infor- mation booklet for information on oil changeintervals and oil type requirements.
NOTE
This vehicle comes from the factory with syn- thetic oil.
Oil additives must not be used.
Oil viscosityIncorrect viscosity oil can shorten engine life under normal use. SAE 5W-30 will provide goodfuel economy and engine protection. See the vis-cosity chart.
Viscosity chart
Extreme engine operation
SAE 0W-30 oil meeting ACEA A5/B5 require- ments is recommended for extreme driving con-ditions.
CAUTION
4-cylinder engines only: Volvo oil VCC
RBS0-2AE/SAE 0W20 is recommended for extreme driving conditions. This oil must never be used in 5- or 6-cylin-
der engines.
Related information
• Oil volume (p. 375)
• Engine compartment – engine oil (p. 329)

SPECIFICATIONS
375

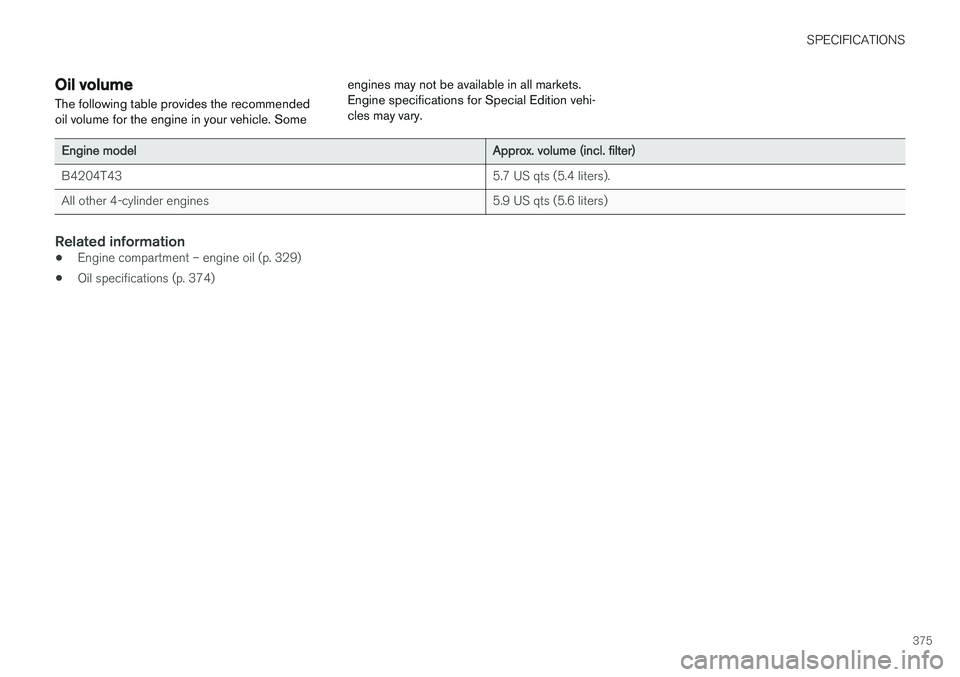

Oil volume
The following table provides the recommended oil volume for the engine in your vehicle. Some engines may not be available in all markets.Engine specifications for Special Edition vehi-cles may vary.
Engine model
Approx. volume (incl. filter)
B4204T43 5.7 US qts (5.4 liters).
All other 4-cylinder engines 5.9 US qts (5.6 liters)
Related information
•Engine compartment – engine oil (p. 329)
• Oil specifications (p. 374)

SPECIFICATIONS
376

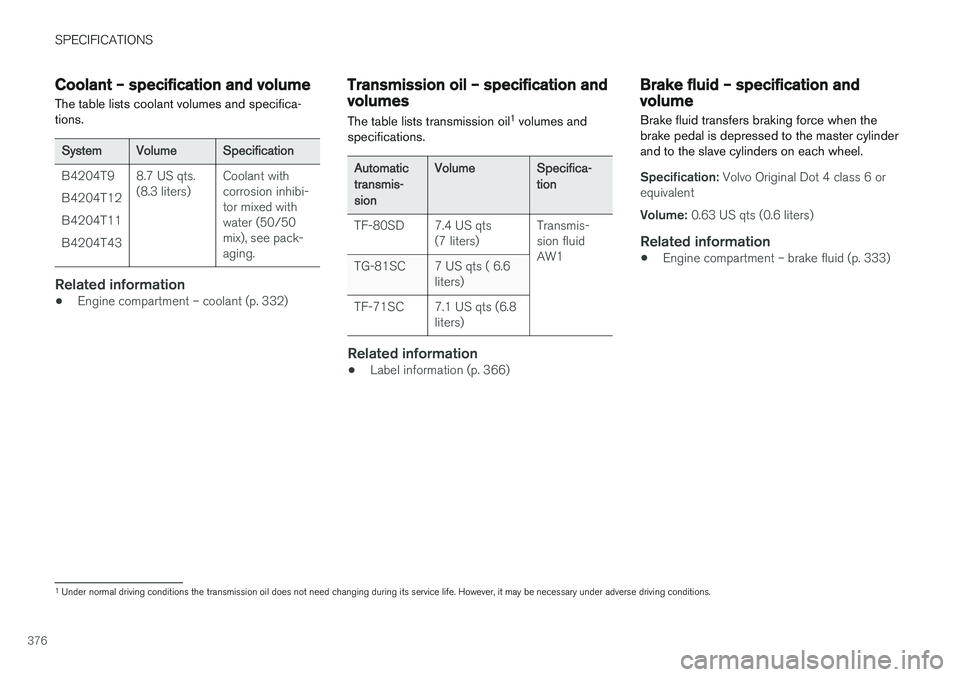

Coolant – specification and volume The table lists coolant volumes and specifica- tions.
SystemVolume Specification
B4204T9 B4204T12B4204T11B4204T43 8.7 US qts. (8.3 liters)
Coolant withcorrosion inhibi-tor mixed withwater (50/50mix), see pack-aging.
Related information
•
Engine compartment – coolant (p. 332)
Transmission oil – specification and volumes The table lists transmission oil 1
volumes and
specifications.
Automatic transmis-sion Volume
Specifica-tion
TF-80SD 7.4 US qts (7 liters) Transmis- sion fluidAW1
TG-81SC 7 US qts ( 6.6
liters)
TF-71SC 7.1 US qts (6.8 liters)
Related information
•Label information (p. 366)
Brake fluid – specification and volume
Brake fluid transfers braking force when the brake pedal is depressed to the master cylinderand to the slave cylinders on each wheel.
Specification: Volvo Original Dot 4 class 6 or
equivalent Volume: 0.63 US qts (0.6 liters)
Related information
•Engine compartment – brake fluid (p. 333)
1
Under normal driving conditions the transmission oil does not need changing during its service life. However, it may be necessary under adverse driving conditions.

SPECIFICATIONS
377

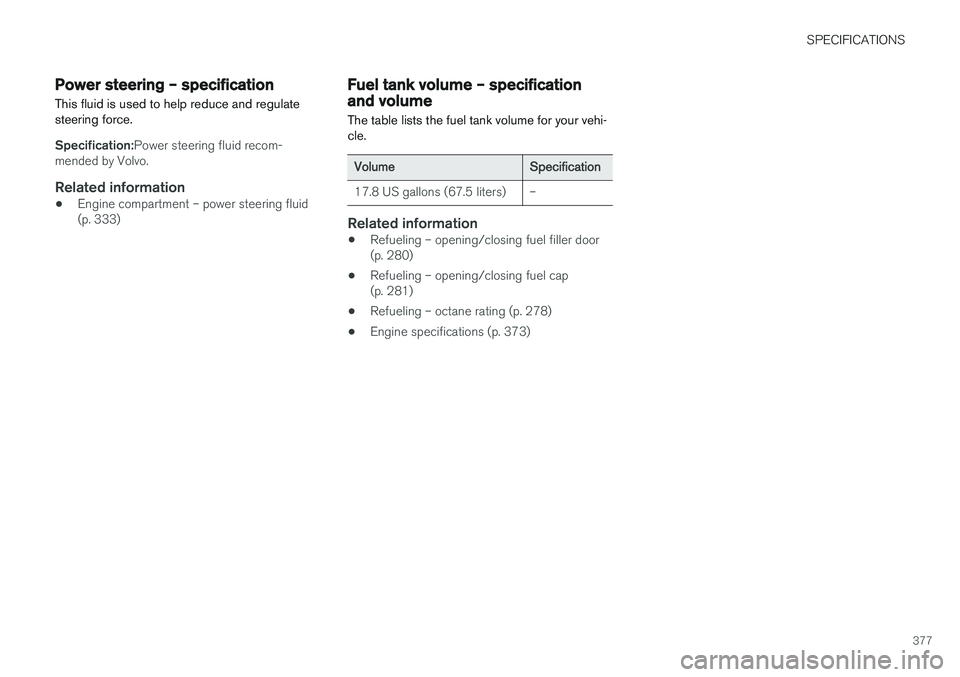

Power steering – specification
This fluid is used to help reduce and regulate steering force.
Specification: Power steering fluid recom-
mended by Volvo.
Related information
• Engine compartment – power steering fluid (p. 333)
Fuel tank volume – specification and volume The table lists the fuel tank volume for your vehi- cle.
Volume
Specification
17.8 US gallons (67.5 liters) –
Related information
• Refueling – opening/closing fuel filler door (p. 280)
• Refueling – opening/closing fuel cap(p. 281)
• Refueling – octane rating (p. 278)
• Engine specifications (p. 373)

SPECIFICATIONS
378

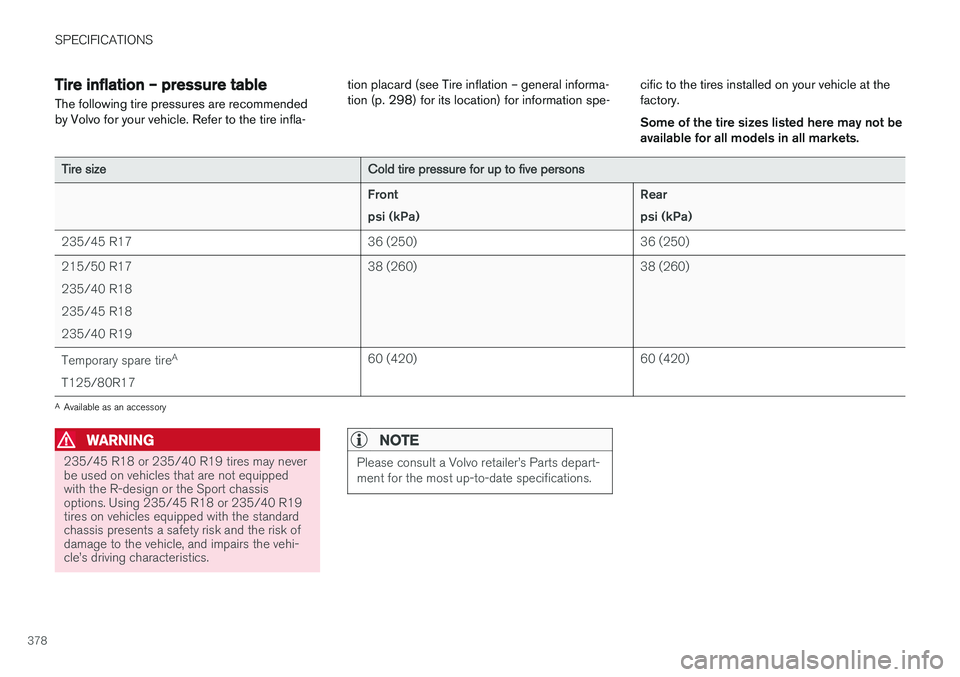

Tire inflation – pressure table
The following tire pressures are recommended by Volvo for your vehicle. Refer to the tire infla- tion placard (see Tire inflation – general informa-tion (p. 298) for its location) for information spe-
cific to the tires installed on your vehicle at thefactory. Some of the tire sizes listed here may not be available for all models in all markets.
Tire size
Cold tire pressure for up to five persons Front psi (kPa)Rearpsi (kPa)
235/45 R17 36 (250)36 (250)
215/50 R17235/40 R18235/45 R18235/40 R19 38 (260)
38 (260)
Temporary spare tire A
T125/80R17 60 (420)
60 (420)
A
Available as an accessory
WARNING
235/45 R18 or 235/40 R19 tires may never be used on vehicles that are not equippedwith the R-design or the Sport chassisoptions. Using 235/45 R18 or 235/40 R19tires on vehicles equipped with the standardchassis presents a safety risk and the risk ofdamage to the vehicle, and impairs the vehi-cle
