VOLVO S60 CROSS COUNTRY 2018 Owner´s Manual

SPECIFICATIONS
}}
369

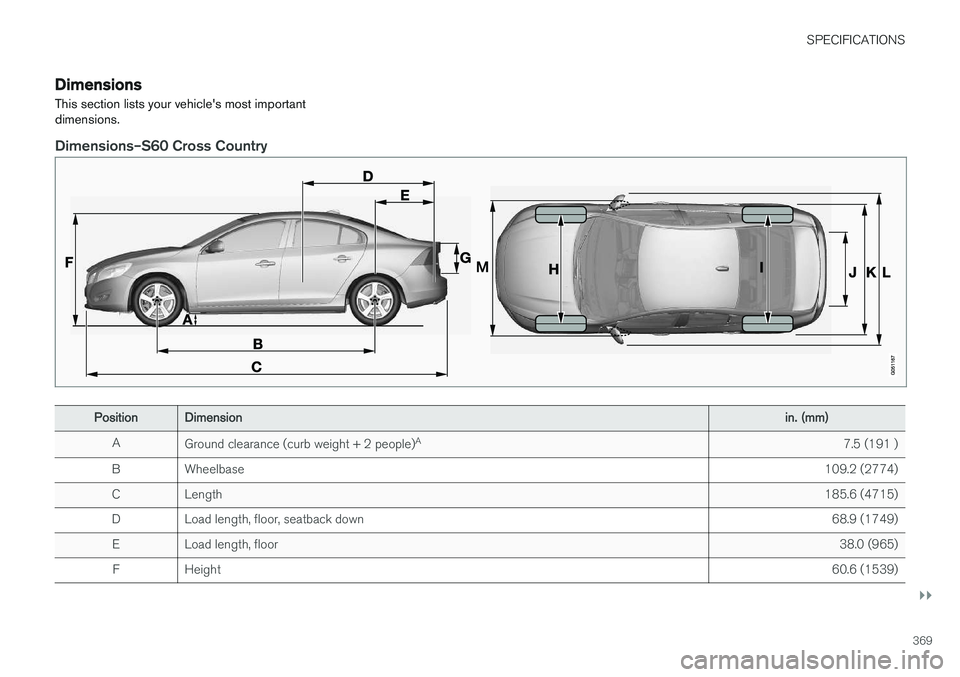

DimensionsThis section lists your vehicle's most important dimensions.
Dimensions–S60 Cross Country
Position Dimension in. (mm)
A Ground clearance (curb weight + 2 people) A
7.5 (191 )
B Wheelbase 109.2 (2774)
C Length 185.6 (4715)
D Load length, floor, seatback down 68.9 (1749)
E Load length, floor 38.0 (965)
F Height 60.6 (1539)

||
SPECIFICATIONS
370

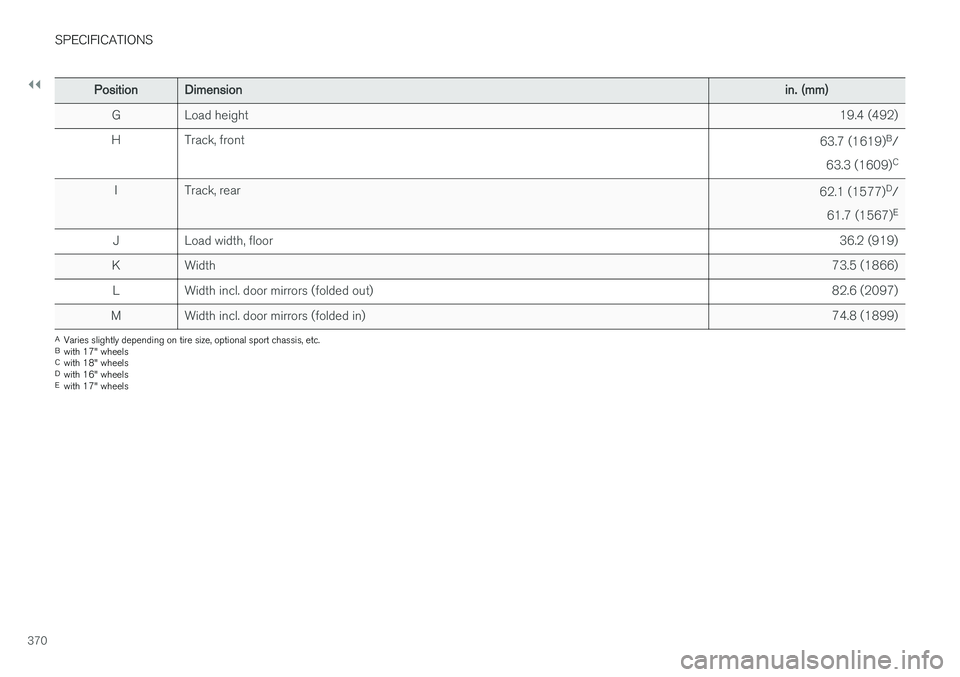

PositionDimension in. (mm)
G Load height 19.4 (492)
H Track, front 63.7 (1619)B
/
63.3 (1609) C
I Track, rear 62.1 (1577)D
/
61.7 (1567) E
J Load width, floor 36.2 (919)
K Width 73.5 (1866)
L Width incl. door mirrors (folded out) 82.6 (2097)
M Width incl. door mirrors (folded in) 74.8 (1899)
A
Varies slightly depending on tire size, optional sport chassis, etc.
B with 17" wheels
C with 18" wheels
D with 16" wheels
E with 17" wheels

SPECIFICATIONS
371

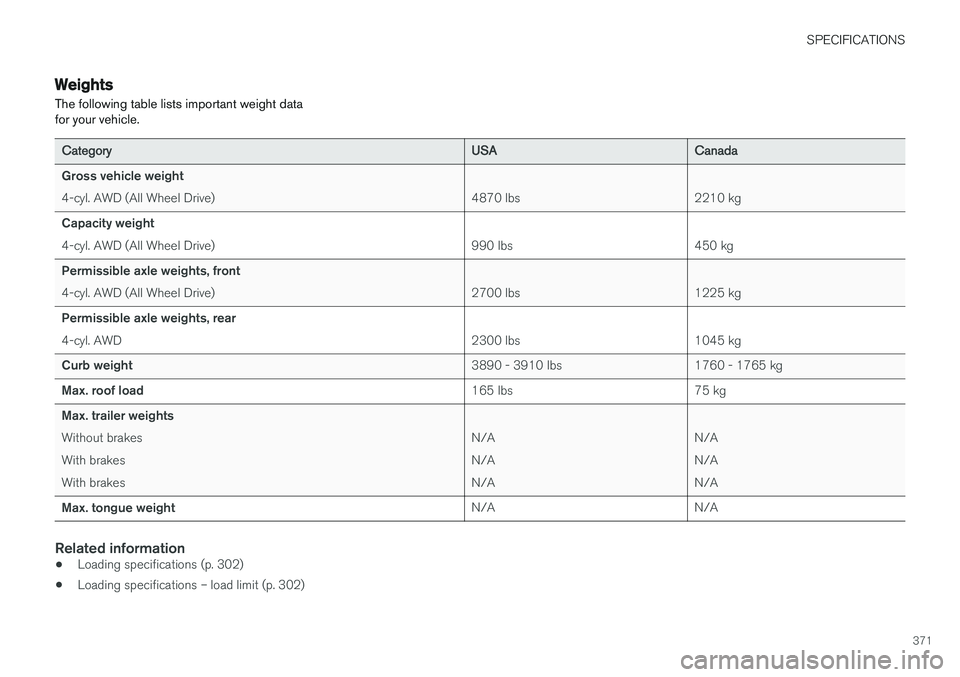

Weights The following table lists important weight data for your vehicle.
CategoryUSACanada
Gross vehicle weight 4-cyl. AWD (All Wheel Drive) 4870 lbs 2210 kg
Capacity weight4-cyl. AWD (All Wheel Drive) 990 lbs 450 kg
Permissible axle weights, front4-cyl. AWD (All Wheel Drive) 2700 lbs 1225 kg
Permissible axle weights, rear4-cyl. AWD 2300 lbs 1045 kg
Curb weight 3890 - 3910 lbs 1760 - 1765 kg
Max. roof load 165 lbs 75 kg
Max. trailer weightsWithout brakes With brakesWith brakes N/AN/AN/AN/AN/AN/A
Max. tongue weight N/A N/A
Related information
•Loading specifications (p. 302)
• Loading specifications – load limit (p. 302)

SPECIFICATIONS
372
Engine specificationsThe following table provides technical data for the respective engines. Engine specifications forSpecial Edition vehicles may vary. Some of the engines listed here may not beavailable in all markets.
Engine specifications
Engine
T5 AWD
Engine designation B4204T11
Output (kW/rps) 179/93
Output (hp/rpm) 240/5600 rpm
Torque (Nm/rps) 350/25-75
Torque (ft. lbs./rpm) 258/1500-4500
No. of cylinders 4
Bore (in/mm) 3.23/82
Stroke (in/mm) 3.67/93.2
Displacement 1.97 liters / (120.2 cu. in.)
Compression ratio 10.8:1
Related information
•Coolant – specification and volume (p. 375)
• Oil specifications (p. 373)
• Oil volume (p. 374)

SPECIFICATIONS
373

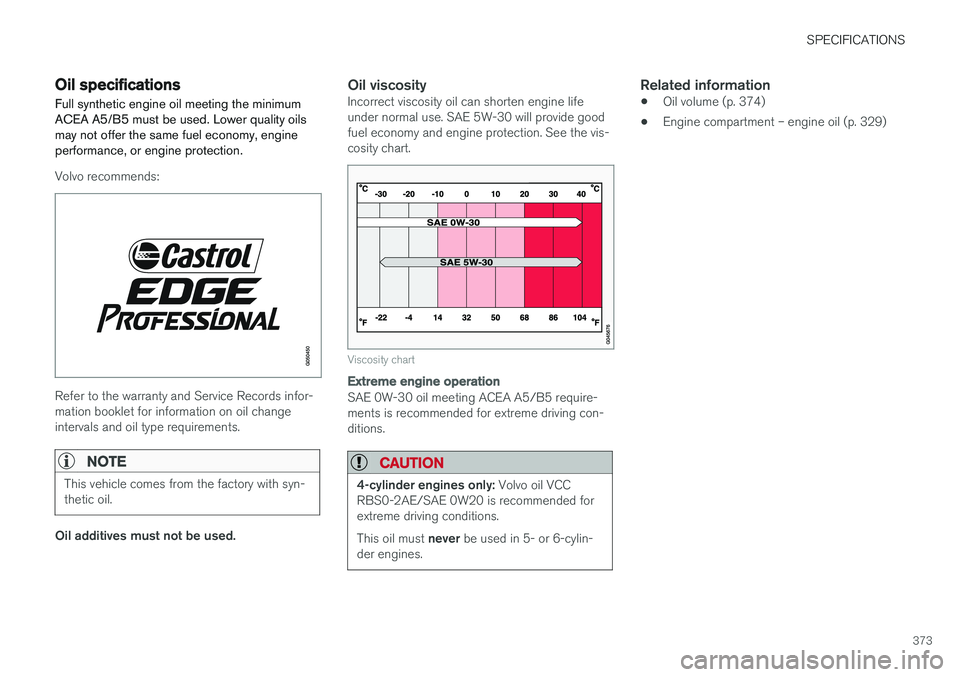

Oil specifications
Full synthetic engine oil meeting the minimum
ACEA A5/B5 must be used. Lower quality oils may not offer the same fuel economy, engineperformance, or engine protection.
Volvo recommends:
Refer to the warranty and Service Records infor- mation booklet for information on oil changeintervals and oil type requirements.
NOTE
This vehicle comes from the factory with syn- thetic oil.
Oil additives must not be used.
Oil viscosityIncorrect viscosity oil can shorten engine life under normal use. SAE 5W-30 will provide goodfuel economy and engine protection. See the vis-cosity chart.
Viscosity chart
Extreme engine operation
SAE 0W-30 oil meeting ACEA A5/B5 require- ments is recommended for extreme driving con-ditions.
CAUTION
4-cylinder engines only: Volvo oil VCC
RBS0-2AE/SAE 0W20 is recommended for extreme driving conditions. This oil must never be used in 5- or 6-cylin-
der engines.
Related information
• Oil volume (p. 374)
• Engine compartment – engine oil (p. 329)

SPECIFICATIONS
374

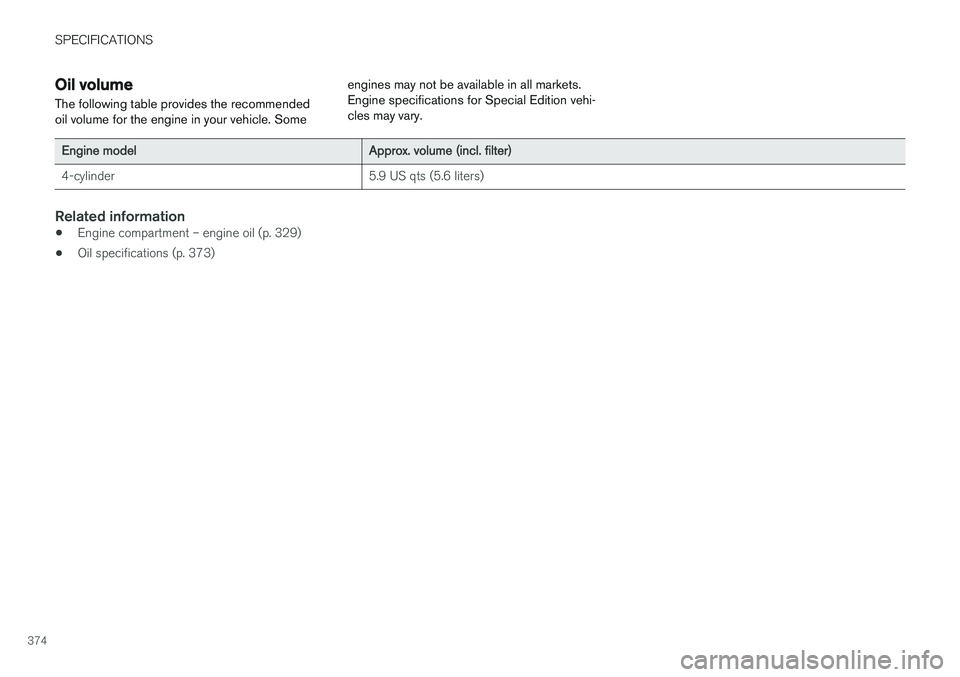

Oil volume
The following table provides the recommended oil volume for the engine in your vehicle. Some engines may not be available in all markets.Engine specifications for Special Edition vehi-cles may vary.
Engine model
Approx. volume (incl. filter)
4-cylinder 5.9 US qts (5.6 liters)
Related information
•Engine compartment – engine oil (p. 329)
• Oil specifications (p. 373)

SPECIFICATIONS
375

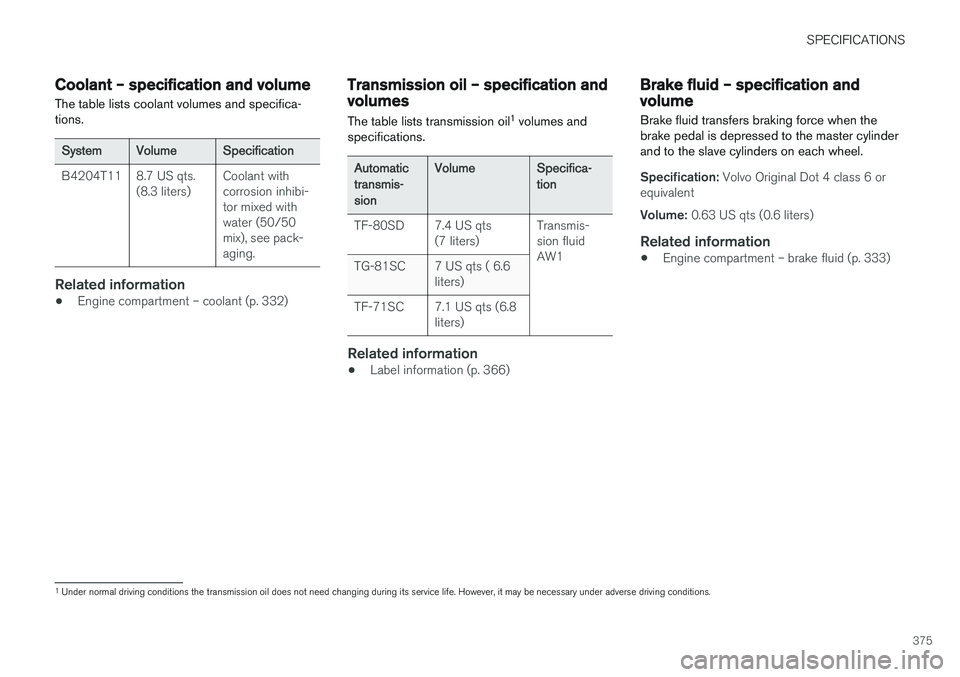

Coolant – specification and volume The table lists coolant volumes and specifica- tions.
SystemVolume Specification
B4204T11 8.7 US qts. (8.3 liters) Coolant with corrosion inhibi-tor mixed withwater (50/50mix), see pack-aging.
Related information
•
Engine compartment – coolant (p. 332)
Transmission oil – specification and volumes The table lists transmission oil 1
volumes and
specifications.
Automatic transmis-sion Volume
Specifica-tion
TF-80SD 7.4 US qts (7 liters) Transmis- sion fluidAW1
TG-81SC 7 US qts ( 6.6
liters)
TF-71SC 7.1 US qts (6.8 liters)
Related information
•Label information (p. 366)
Brake fluid – specification and volume
Brake fluid transfers braking force when the brake pedal is depressed to the master cylinderand to the slave cylinders on each wheel.
Specification: Volvo Original Dot 4 class 6 or
equivalent Volume: 0.63 US qts (0.6 liters)
Related information
•Engine compartment – brake fluid (p. 333)
1
Under normal driving conditions the transmission oil does not need changing during its service life. However, it may be necessary under adverse driving conditions.

SPECIFICATIONS
376

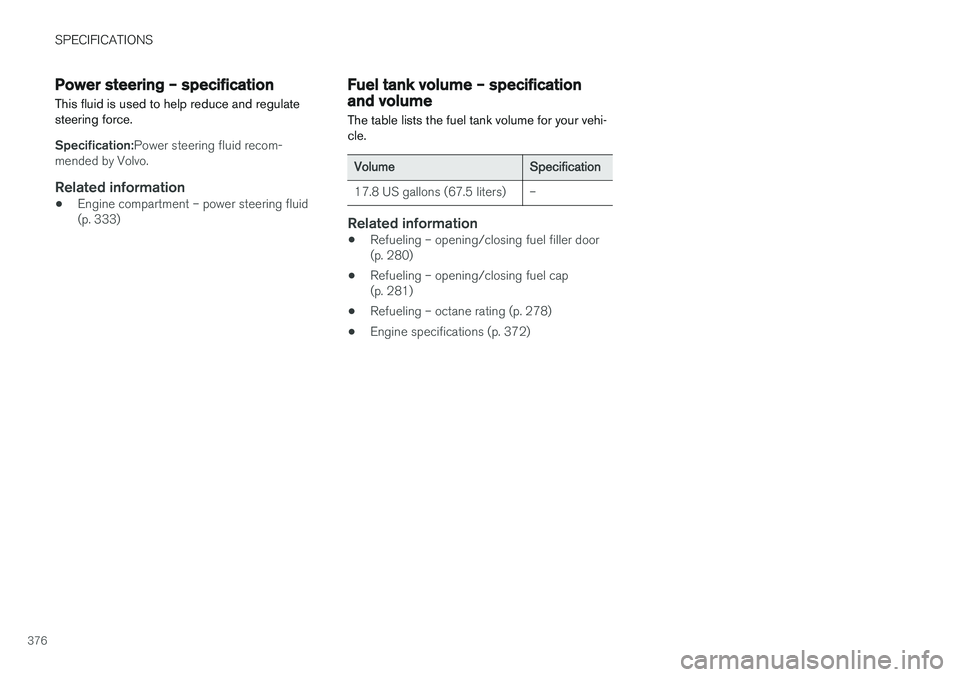

Power steering – specification
This fluid is used to help reduce and regulate steering force.
Specification: Power steering fluid recom-
mended by Volvo.
Related information
• Engine compartment – power steering fluid (p. 333)
Fuel tank volume – specification and volume The table lists the fuel tank volume for your vehi- cle.
Volume
Specification
17.8 US gallons (67.5 liters) –
Related information
• Refueling – opening/closing fuel filler door (p. 280)
• Refueling – opening/closing fuel cap(p. 281)
• Refueling – octane rating (p. 278)
• Engine specifications (p. 372)

SPECIFICATIONS
377

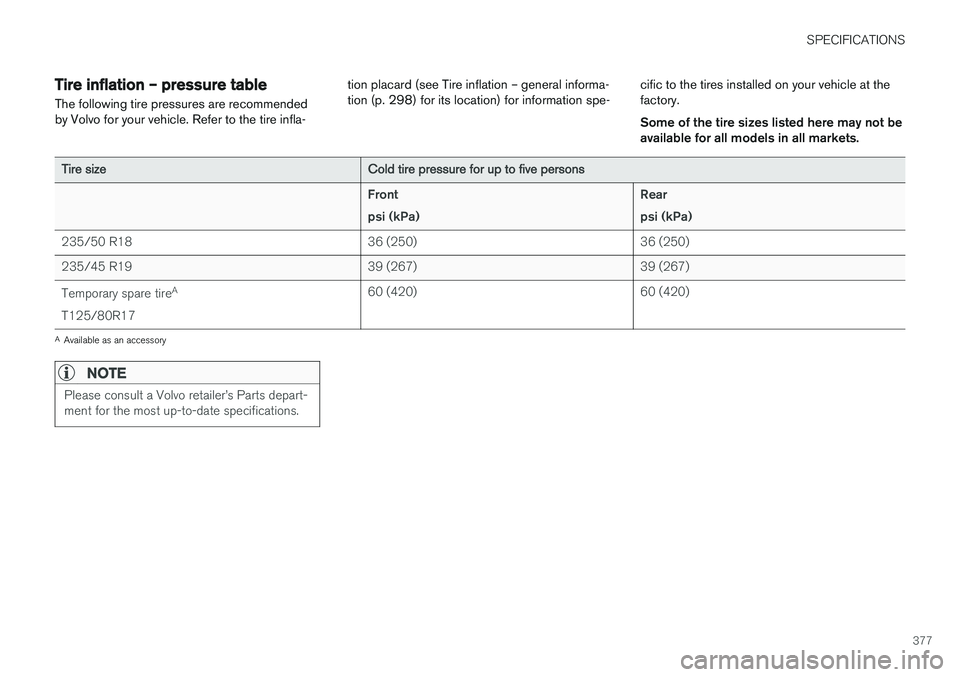

Tire inflation – pressure table
The following tire pressures are recommended by Volvo for your vehicle. Refer to the tire infla- tion placard (see Tire inflation – general informa-tion (p. 298) for its location) for information spe-
cific to the tires installed on your vehicle at thefactory. Some of the tire sizes listed here may not be available for all models in all markets.
Tire size
Cold tire pressure for up to five persons Front psi (kPa)Rearpsi (kPa)
235/50 R18 36 (250)36 (250)
235/45 R19 39 (267)39 (267)
Temporary spare tire A
T125/80R17 60 (420)
60 (420)
A
Available as an accessory
NOTE
Please consult a Volvo retailer

SPECIFICATIONS
378

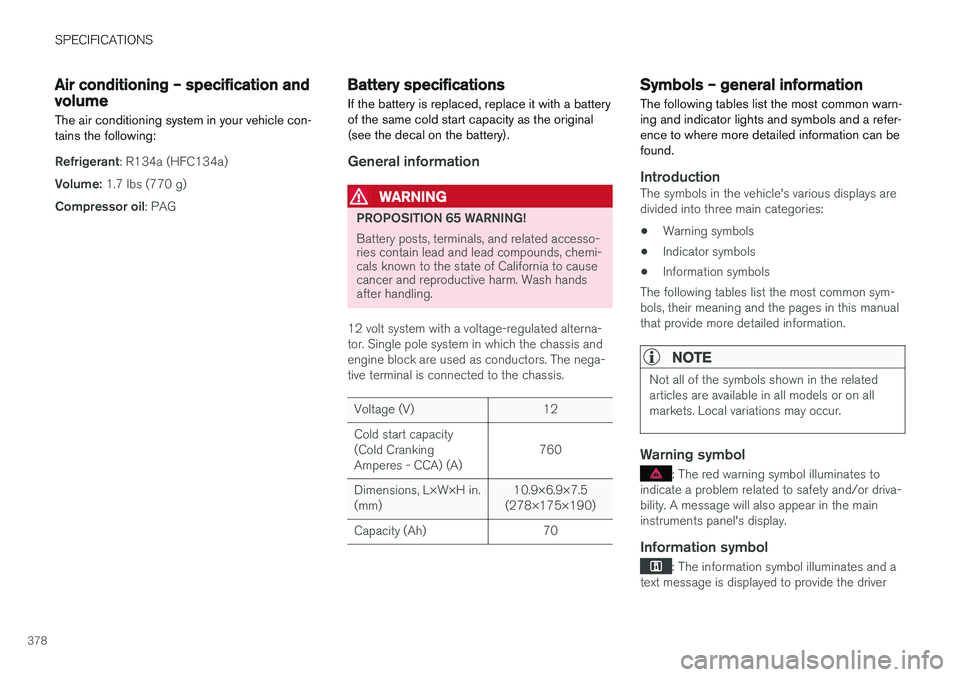

Air conditioning – specification and volume
The air conditioning system in your vehicle con- tains the following:
Refrigerant : R134a (HFC134a)
Volume: 1.7 lbs (770 g)
Compressor oil : PAG
Battery specifications If the battery is replaced, replace it with a battery of the same cold start capacity as the original(see the decal on the battery).
General information
WARNING
PROPOSITION 65 WARNING! Battery posts, terminals, and related accesso- ries contain lead and lead compounds, chemi-cals known to the state of California to causecancer and reproductive harm. Wash handsafter handling.
12 volt system with a voltage-regulated alterna- tor. Single pole system in which the chassis andengine block are used as conductors. The nega-tive terminal is connected to the chassis.
Voltage (V) 12 Cold start capacity (Cold CrankingAmperes - CCA) (A) 760
Dimensions, L×W×H in.(mm) 10.9×6.9×7.5
(278×175×190)
Capacity (Ah) 70
Symbols – general information The following tables list the most common warn- ing and indicator lights and symbols and a refer-ence to where more detailed information can befound.
IntroductionThe symbols in the vehicle's various displays are divided into three main categories: • Warning symbols
• Indicator symbols
• Information symbols
The following tables list the most common sym- bols, their meaning and the pages in this manualthat provide more detailed information.
NOTE
Not all of the symbols shown in the related articles are available in all models or on allmarkets. Local variations may occur.
Warning symbol
: The red warning symbol illuminates to
indicate a problem related to safety and/or driva- bility. A message will also appear in the maininstruments panel's display.
Information symbol
: The information symbol illuminates and a
text message is displayed to provide the driver
