Page 291 of 398

VOLVO S60 INSCRIPTION 2017  Owner´s Manual STARTING AND DRIVING
}}
289

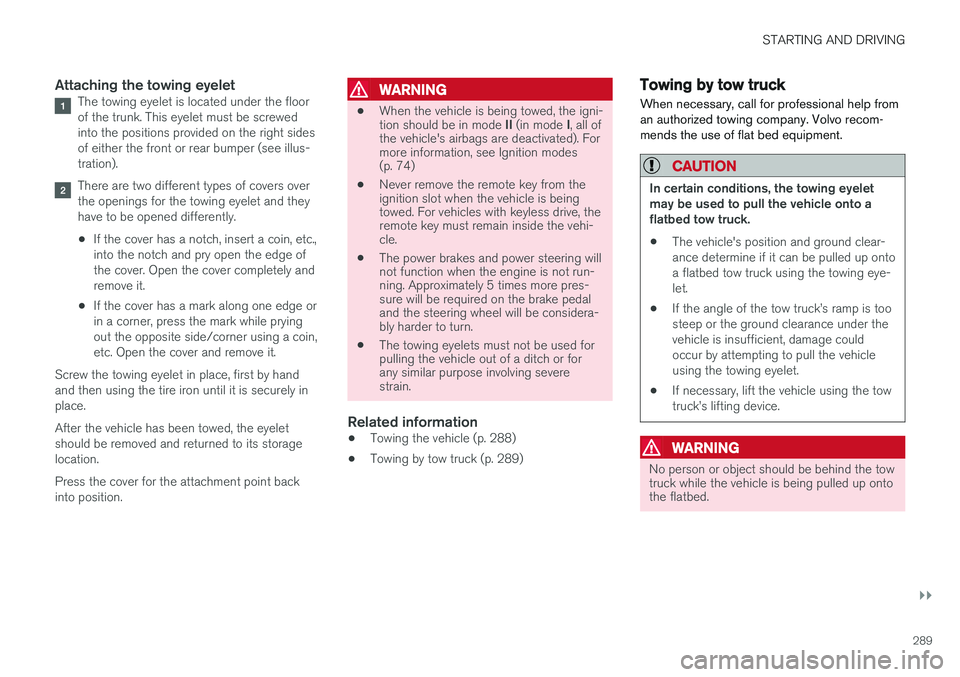

Attaching the towing eyeletThe towing eyelet is located under the floor of the trunk. This eyelet must be screwedinto the positions provided on the right sidesof either the

Page 292 of 398

VOLVO S60 INSCRIPTION 2017  Owner´s Manual ||
STARTING AND DRIVING
* Option/accessory, for more information, see Introduction.
290

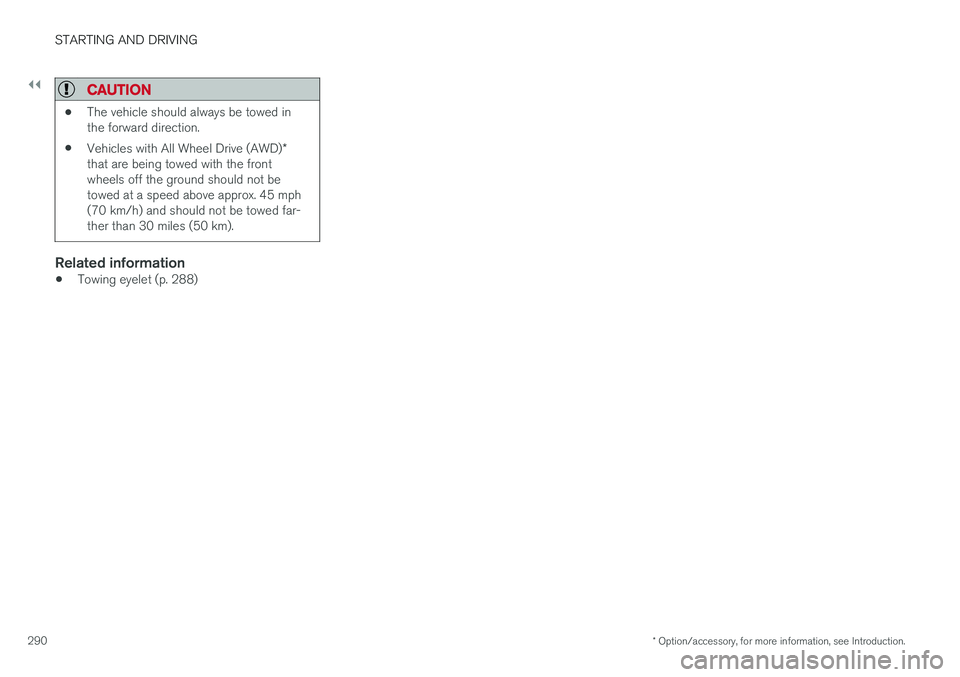

CAUTION
• The vehicle should always be towed in the forward direction.
• Vehicles with All Wheel Drive (AWD)

Page 293 of 398

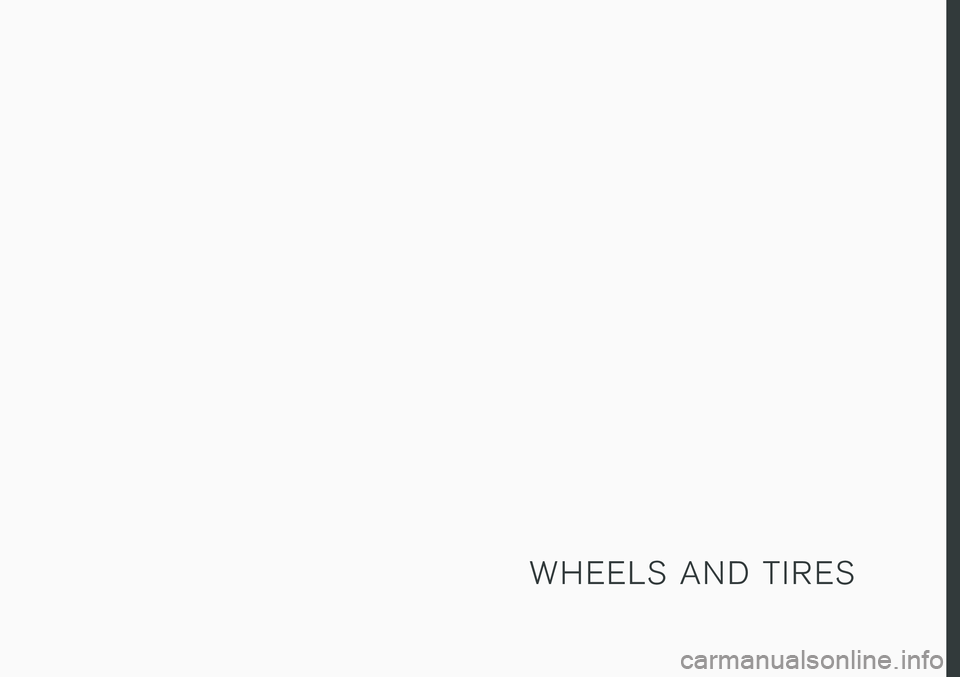

VOLVO S60 INSCRIPTION 2017  Owner´s Manual W H E E L S   A N D   T I R E S

Page 294 of 398

VOLVO S60 INSCRIPTION 2017  Owner´s Manual WHEELS AND TIRES
292

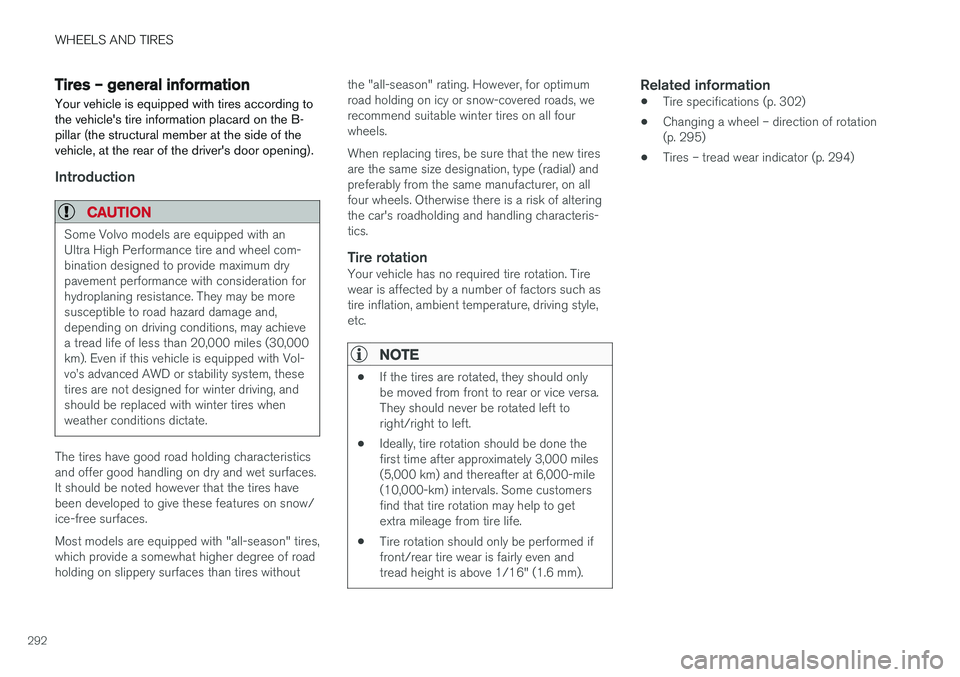

Tires – general information
Your vehicle is equipped with tires according to the vehicle's tire information placard on the B-pillar (the structural member at the side of the

Page 295 of 398

VOLVO S60 INSCRIPTION 2017  Owner´s Manual WHEELS AND TIRES
293

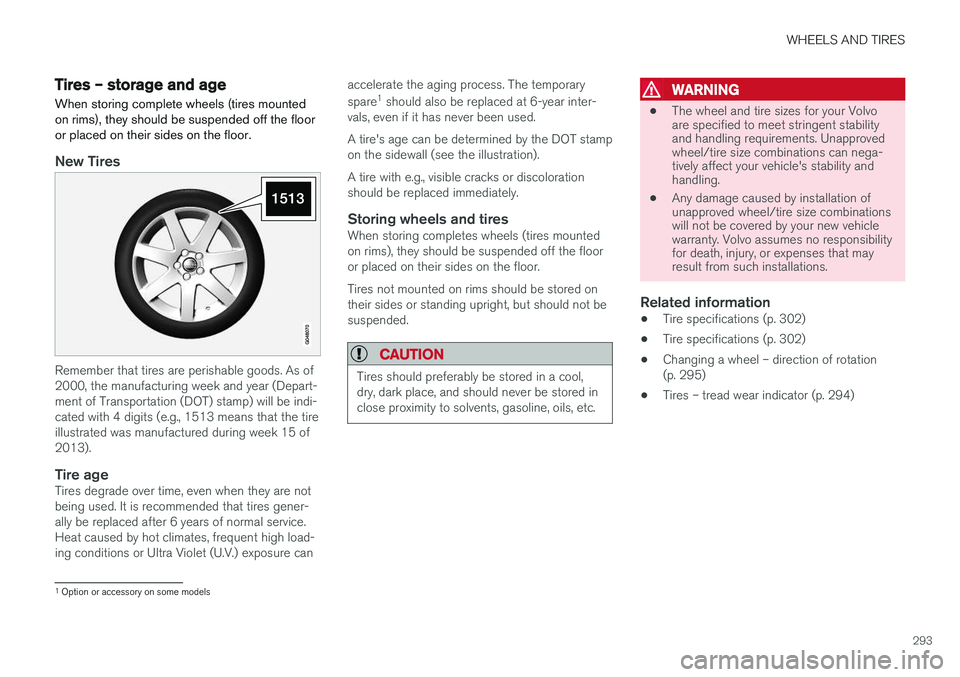

Tires – storage and ageWhen storing complete wheels (tires mounted on rims), they should be suspended off the flooror placed on their sides on the floor.
New Tires
Remember that

Page 296 of 398

VOLVO S60 INSCRIPTION 2017  Owner´s Manual WHEELS AND TIRES
294

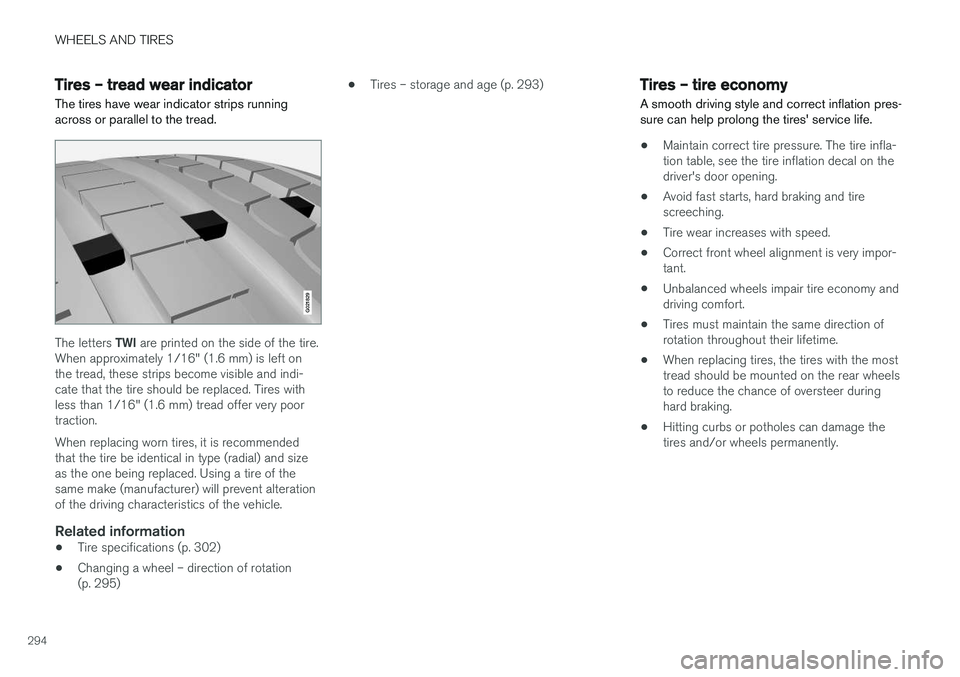

Tires – tread wear indicator The tires have wear indicator strips running across or parallel to the tread.
G021829
The letters TWI are printed on the side of the tire.
When appr

Page 297 of 398

VOLVO S60 INSCRIPTION 2017  Owner´s Manual WHEELS AND TIRES
}}
* Option/accessory, for more information, see Introduction.295

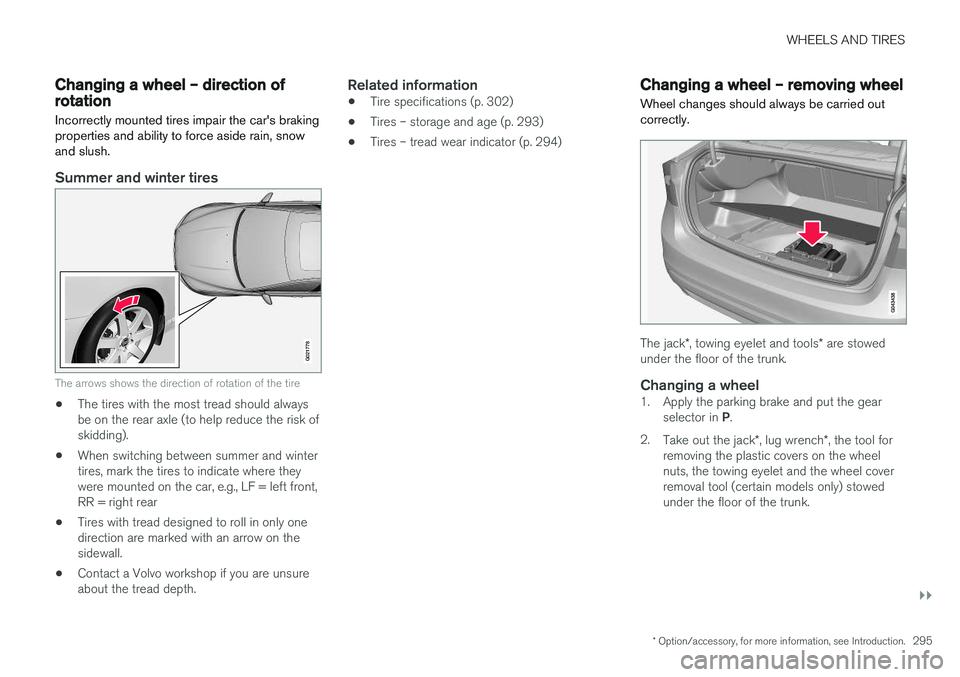

Changing a wheel – direction of rotation Incorrectly mounted tires impair the car's braking properties and abil

Page 298 of 398

VOLVO S60 INSCRIPTION 2017  Owner´s Manual ||
WHEELS AND TIRES
2963.

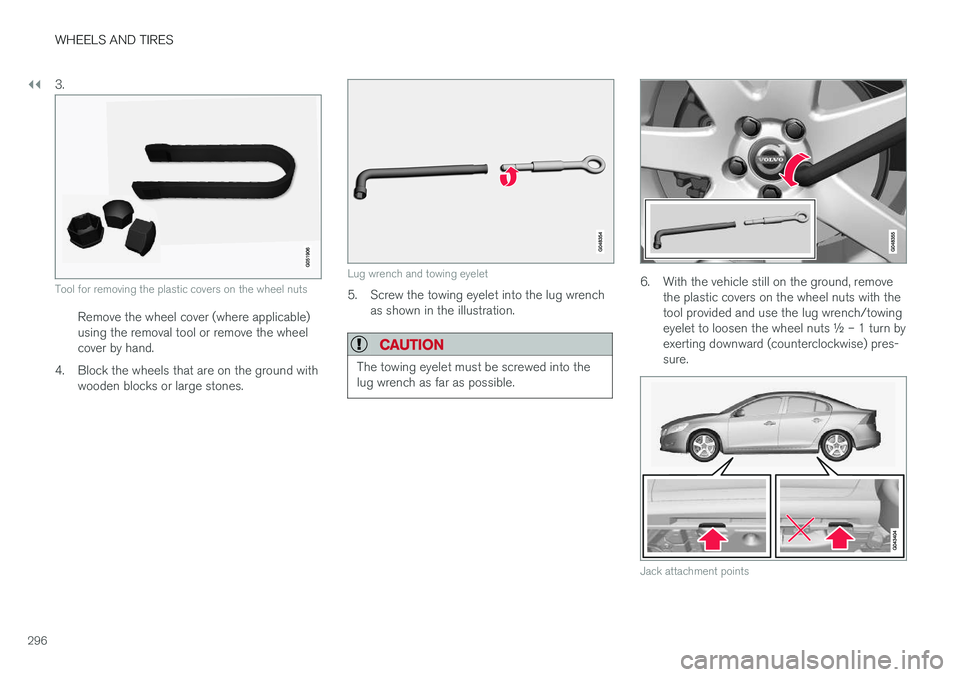

Tool for removing the plastic covers on the wheel nuts
Remove the wheel cover (where applicable) using the removal tool or remove the wheelcover by hand.
4. Block the wheels

Page 299 of 398

VOLVO S60 INSCRIPTION 2017  Owner´s Manual WHEELS AND TIRES
297

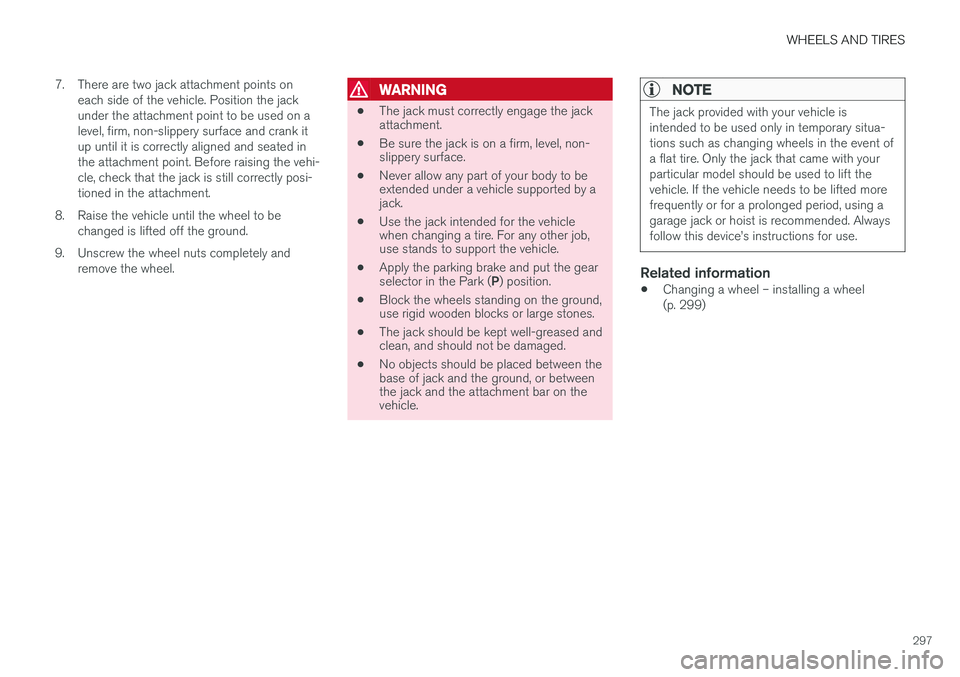

7. There are two jack attachment points on
each side of the vehicle. Position the jack under the attachment point to be used on alevel, firm, non-slippery surface and crank itup u

Page 300 of 398

VOLVO S60 INSCRIPTION 2017  Owner´s Manual WHEELS AND TIRES
* Option/accessory, for more information, see Introduction.
298

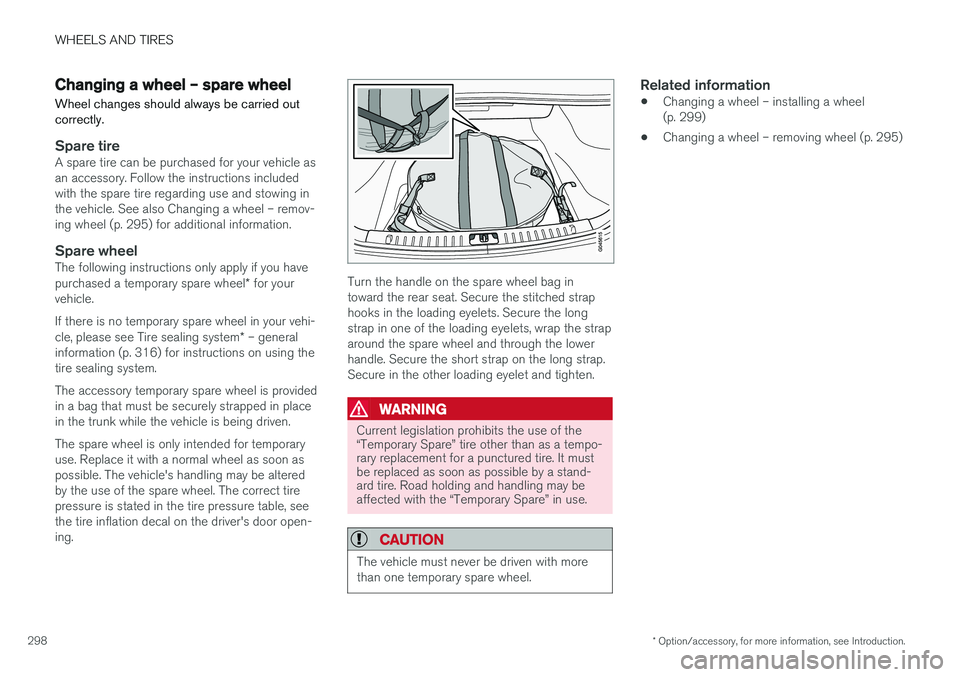

Changing a wheel – spare wheel Wheel changes should always be carried out correctly.
Spare tireA spare tire can be pu
