CD player VOLVO S60 TWIN ENGINE 2020 Owner's Manual

||
AUDIO, MEDIA AND INTERNET
* Option/accessory.
514

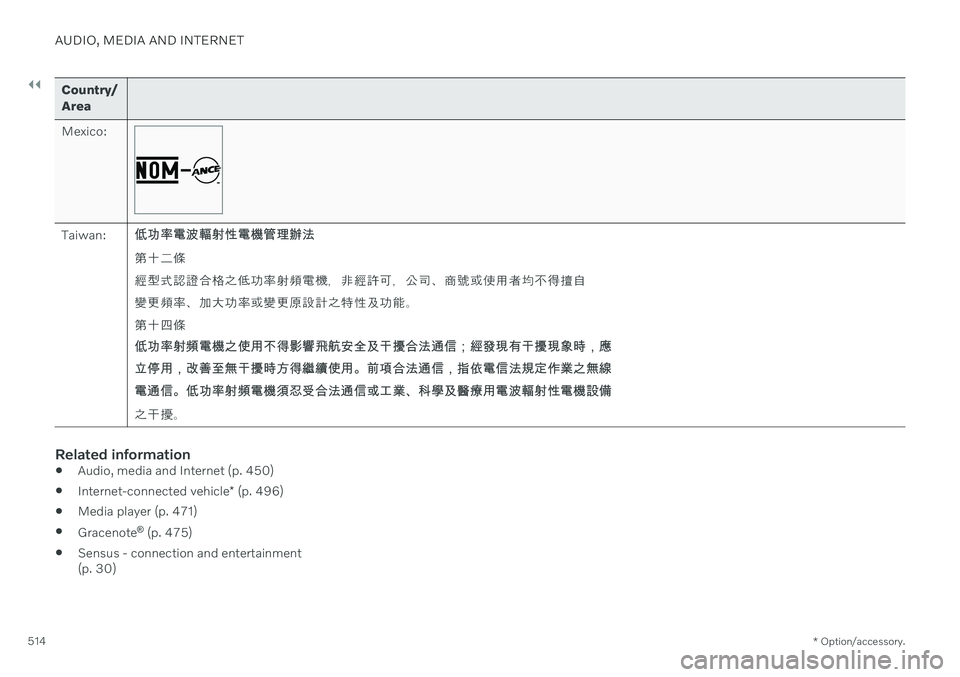

Country/ Area Mexico:
Taiwan: 低功率電波輻射性電機管理辦法 第十二條 經型式認證合格之低功率射頻電機，非經許可，公司商號或使用者均不得擅自變更頻率加大功率或變更原設計之特性及功能第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應 立停用，改善至無干擾時方得繼續使用>前項合法通信，指依電信法規定作業之無線電通信>低功率射頻電機須忍受合法通信或工業=科學及醫療用電波輻射性電機設備 之干擾
Related information
Audio, media and Internet (p. 450)
Internet-connected vehicle
* (p. 496)
Media player (p. 471)
Gracenote ®
(p. 475)
Sensus - connection and entertainment (p. 30)

LOADING, STORAGE AND PASSENGER COMPARTMENT
* Option/accessory.
552
Electrical outlets
There are two 12 V electrical outlets and one 120 V electrical outlet * in the tunnel console,
and one 12 V electrical outlet * in the trunk/
cargo compartment. If a problem occurs with an electrical socket, contact a workshop - an authorized Volvoworkshop is recommended.
12 V outlets
12 V outlet in the tunnel console, front seat.
The 12 V outlets can be used for devices intended for this such as MP3 players, coolersand cellular phones.
12 V outlet in the tunnel console, rear seat.
12 V outlet in trunk/cargo compartment *.
Electrical outlets in the tunnel console - rear seat *
Electrical outlets in the tunnel console, rear seat.
The high-voltage outlet * can be used for devi-
ces intended for this, such as chargers, lap- tops, etc.
High-voltage outlet status indicator
light
An LED 1
light on the outlet indicates its status:
1 LED (Light Emitting Diode)

LOADING, STORAGE AND PASSENGER COMPARTMENT
* Option/accessory.
554
Using the electrical outlets
The 12 V outlet can be used for devices intended for this such as MP3 players, cool-ers and cellular phones. The high-voltage outlet * can be used for devi-
ces intended for this, such as chargers, lap- tops, etc.
The ignition must be in at least mode I for the
outlets to supply current. The outlets will then be active as long as there is sufficient chargein the start battery. If the engine is turned off and the vehicle is locked, the outlets will be deactivated. If theengine is turned off and the vehicle remainsunlocked, the sockets will remain active for upto 7 minutes.
NOTE
Bear in mind that using the electrical out- lets when the engine is off could cause thestarter battery to have too low of a chargelevel, which could limit other functionality. Accessories connected to the electrical outlets can be activated even when thevehicle electrical system is off or if precon-ditioning is used. For this reason, discon-nect plugs when they are not in use to pre-vent the starter battery from becoming dis-charged.
WARNING
Do not use accessories with large or heavy plugs – they could damage theoutlet or come loose while you are driv-ing.
Do not use accessories that couldcause disruptions to e.g. the vehicle'sradio receiver or electrical system.
Position the accessory so that there isno risk of it injuring the driver or pas-sengers in the event of heavy brakingor a collision.
Pay attention to connected accessoriesas they can generate heat that couldburn passengers or the interior.
Using 12 V outlets1. Remove the stopper (tunnel console) or
fold down the cover (trunk/cargo com-partment) over the socket and plug in thedevice.
2. Unplug the device and put the stopper back in (tunnel console) or fold up thecover (trunk/cargo compartment) whenthe socket is not in use or left unattended.
CAUTION
The maximum power is 120 W (10 A) per outlet.
Using high-voltage outletsThe ignition must be in at least mode I for the
outlets to supply current. The outlets will then be active as long as there is sufficient chargein the start battery. 1. Slide down the cover over the outlet and plug in the device. >
The LED 2
light on the outlet will indi-
cate its status.
2. The outlet is supplying electrical current when the light is glowing steadily green.
2LED (Light Emitting Diode)

||
MAINTENANCE AND SERVICE
* Option/accessory.
596
Function Ampere Type
Medium voltage module 10 Micro
– –
MCaseA
–
– Micro
Movement sensor* 5 Micro
Media player
5 Micro
Instrument panel5 Micro
Center console buttons5 Micro
Sun sensor5 Micro
–– Micro
–– Micro
Steering wheel module 5 Micro
Module for start knob and parking brake controls5 Micro
Heated steering wheel* module 15 Micro
–
– Micro
–– Micro
–– Micro
–– Micro

INDEX
638Automatic locking 254
Automatic relocking 234, 247
Automatic transmission 406, 407
kickdown 411
oil 633
Trailer 436
Auxiliary heater 227
B
Backrest front seat, adjusting 182, 183, 186, 187 , 188, 189
rear seat, folding 192
Battery Hybrid 583
jump-start 434
Maintenance 579
recycling 584
start 579
symbols on the battery 584
BLIS 321 activating/deactivating 322
limitations 323
Symbols and messages 324
Blower
adjusting 216
air distribution 204
air vents 204
Bluetooth connect 477
connecting vehicle to Internet 497
phone 487
settings 495
Book service and repair 567
Booster cushions 72 Brake assist after collision 406
Brake energy 397, 412Brake fluid grade 633
Brake functions 397
Brake position 407
Brakes 397 anti-lock brakes, ABS 397
automatic when stationary 404
Brake Assist System, BAS 399
brake lights 159
brake system 397
emergency brake lights 159
Maintenance 400
on salted roads 400on wet roads 399
parking brake 400
brake system fluid 633
C
Camera sensor
see Camera 300
Camera unit 300 limitations 301
maintenance and cleaning 305
Capacity weight 546, 629
Cargo compartment 557 attachment points 560
Car wash 610, 611, 613, 614, 615, 616
Catalytic converter 432 recovery 440
CD player 475
Cell phone, see Phone 488
Center console 551 Center display change appearance 128
cleaning 605
climate controls 209
Function view 119
keyboard 123

INDEX
645
Max. axle weight 629
Max. roof load 629
Media player 471, 472, 473
compatible file formats 479
voice control 146
Messages and symbols Adaptive Cruise Control 277
Assistance at risk of collision 348
BLIS 324
City Safety 319
Cross Traffic Alert 328
Lane Keeping Aid 340
Park Assist Camera 362
Park Assist Pilot 371
Parking Assist 353
Pilot Assist 287
stability and traction control system 264
Messages in display 103, 137 handling 104, 138
saved 105, 138
Mileage 85 electric motor 423
Misting condensation in headlights 610, 613
Mood lighting 162 adjusting 162
O
Occupant safety 43
Occupant weight sensor 56
Octane rating 430
Oil, see also Engine oil 632
On-board diagnostics 562
On-board Diagnostic socket 37
Option/accessory 21
Outside temperature gauge 90
Overheating 433, 436
Owner's information 16
OWNER'S MANUAL 21environmental labeling 23
in cellular phone 20
in the center display 17, 18
P
Paddle at steering wheel 194 Paint
color code 618
paint damage and touch-up 617, 618
Panoramic roof 172 opening and closing 174
pinch protection 166
sun shade 176
ventilation position 175
Parallel parking 363
Park Assist Camera 354 activating 360
limitations 301
sensor field 359
Symbols and messages 362
trajectory lines 357
views 355
Park Assist Pilot 363 limitations 368
parallel parking 364
perpendicular parking 364
pulling out of a parking space 368
Symbols and messages 371
use 365
parking on hills 403
Parking Assist 349 activating/deactivating 351
front, rear and sides 350
limitations 351
Symbols and messages 353
Parking brake 400 activating/deactivating 401
automatic activation 402
Low battery charge level 403
