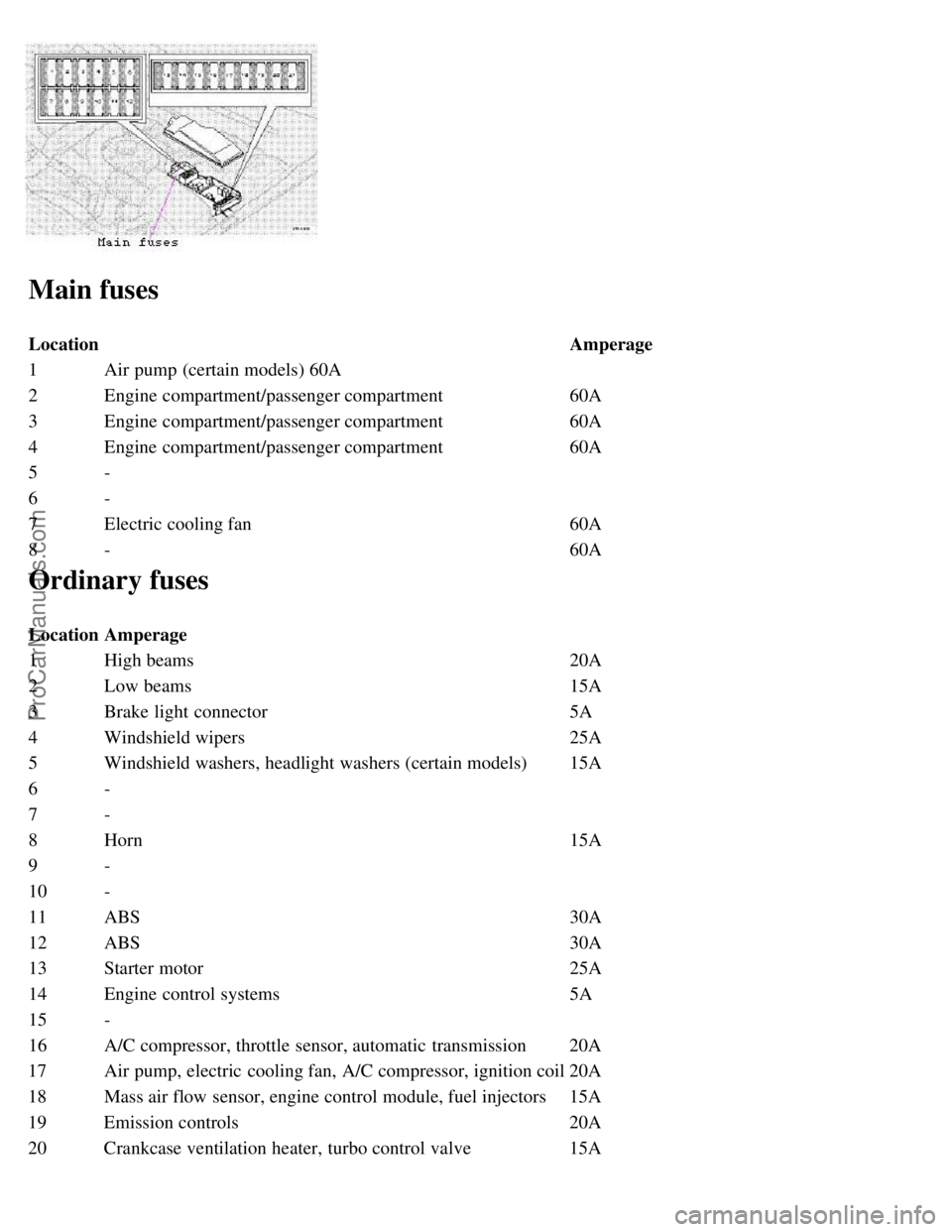

Main fuses
LocationAmperage
1 Air pump (certain models) 60A
2 Engine compartment/passenger compartment 60A
3 Engine compartment/passenger compartment 60A
4 Engine compartment/passenger compartment 60A
5 -
6 -
7 Electric cooling fan 60A
8 - 60A
Ordinary fuses
LocationAmperage
1 High beams 20A
2 Low beams 15A
3 Brake light connector 5A
4 Windshield wipers 25A
5 Windshield washers, headlight washers (certain models) 15A
6 -
7 -
8 Horn 15A
9 -
10 -
11 ABS 30A
12 ABS 30A
13 Starter motor 25A
14 Engine control systems 5A
15 -
16 A/C compressor, throttle sensor, automatic transmission 20A
17 Air pump, electric cooling fan, A/C compressor, ignition coil 20A
18 Mass air flow sensor, engine control module, fuel injectors 15A
19 Emission controls 20A
20 Crankcase ventilation heater, turbo control valve 15A
