seat adjustment VOLVO S80 1999 Owners Manual

1 9 9 9
VOLVO S80
Chapter 2 - Instruments, switches and controls
pg. 19 Instruments, switches and controls
Interior20
Exterior21
Instruments22
Instrument panel23
Indicator and warning lights24
Indicator and warning lights24
Text information window26
Switches in center console27
Trip computer28
Cruise control29
Headlights, parking lights, fog lights, instrument illumination30
Turn signals, windshield wipers/washers31
Steering wheel adjustment/lock, ignition switch32
Warning flashers, heated mirrors/rear window/front seats33
Parking brake, auxiliary socket34
Electrically operated windows35
Rearview/sideview/vanity mirrors36
Sun roof37
pg. 20 Interior
ProCarManuals.com

A
Locking and unlocking the car54
Alarm58
Power windows35
Sideview mirror controls36
B
Glove compartment54
C
Automatic transmission65
Geartronic67
Parking brake34
Center console switches27
D
Power seat adjustment46
Heated seats (option)33
Cleaning upholstery101
D
Folding rear seat52
Panel for long loads52
Folding down head restraint27
Adjusting head restraint3
Child safety locks57
Integrated booster cushion13
pg. 21 Exterior
ProCarManuals.com

A
Temperature gauge23
Speedometer23
Odometer23
Trip odometer23
Warning lights24
Text window26
Tachometer23
Clock23
Ambient temperature sensor23
Fuel gauge23
B
Hazard warning flashers33
C
Audio system125
D
Electronic climate control41
Heated seats (option)33
Heated rear window/rearview mirrors33
E
Steering wheel adjustment32
Airbag4
Cruise control29
Windshield wipers/washer31
Turn signal lever31
Trip computer28
Audio system controls125
F
High/low beam headlights30
Parking lights30
Fog lights30
Instrument panel lighting30
ProCarManuals.com

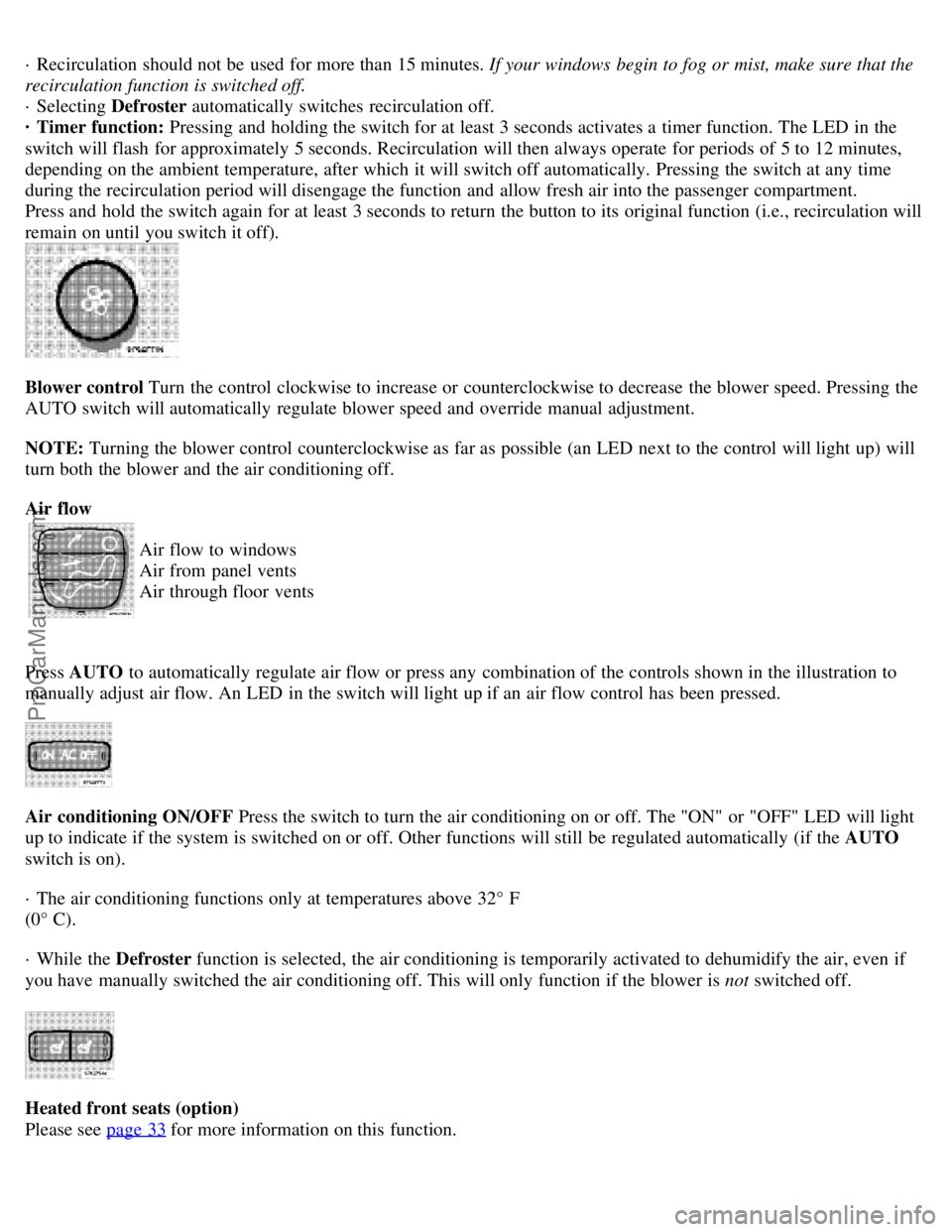

· Recirculation should not be used for more than 15 minutes. If your windows begin to fog or mist, make sure that the
recirculation function is switched off.
· Selecting Defroster automatically switches recirculation off.
· Timer function: Pressing and holding the switch for at least 3 seconds activates a timer function. The LED in the
switch will flash for approximately 5 seconds. Recirculation will then always operate for periods of 5 to 12 minutes,
depending on the ambient temperature, after which it will switch off automatically. Pressing the switch at any time
during the recirculation period will disengage the function and allow fresh air into the passenger compartment.
Press and hold the switch again for at least 3 seconds to return the button to its original function (i.e., recirculation will
remain on until you switch it off).
Blower control Turn the control clockwise to increase or counterclockwise to decrease the blower speed. Pressing the
AUTO switch will automatically regulate blower speed and override manual adjustment.
NOTE: Turning the blower control counterclockwise as far as possible (an LED next to the control will light up) will
turn both the blower and the air conditioning off.
Air flow
Air flow to windows
Air from panel vents
Air through floor vents
Press AUTO to automatically regulate air flow or press any combination of the controls shown in the illustration to
manually adjust air flow. An LED in the switch will light up if an air flow control has been pressed.
Air conditioning ON/OFF Press the switch to turn the air conditioning on or off. The "ON" or "OFF" LED will light
up to indicate if the system is switched on or off. Other functions will still be regulated automatically (if the AUTO
switch is on).
· The air conditioning functions only at temperatures above 32° F
(0° C).
· While the Defroster function is selected, the air conditioning is temporarily activated to dehumidify the air, even if
you have manually switched the air conditioning off. This will only function if the blower is not switched off.
Heated front seats (option)
Please see page 33
for more information on this function.
