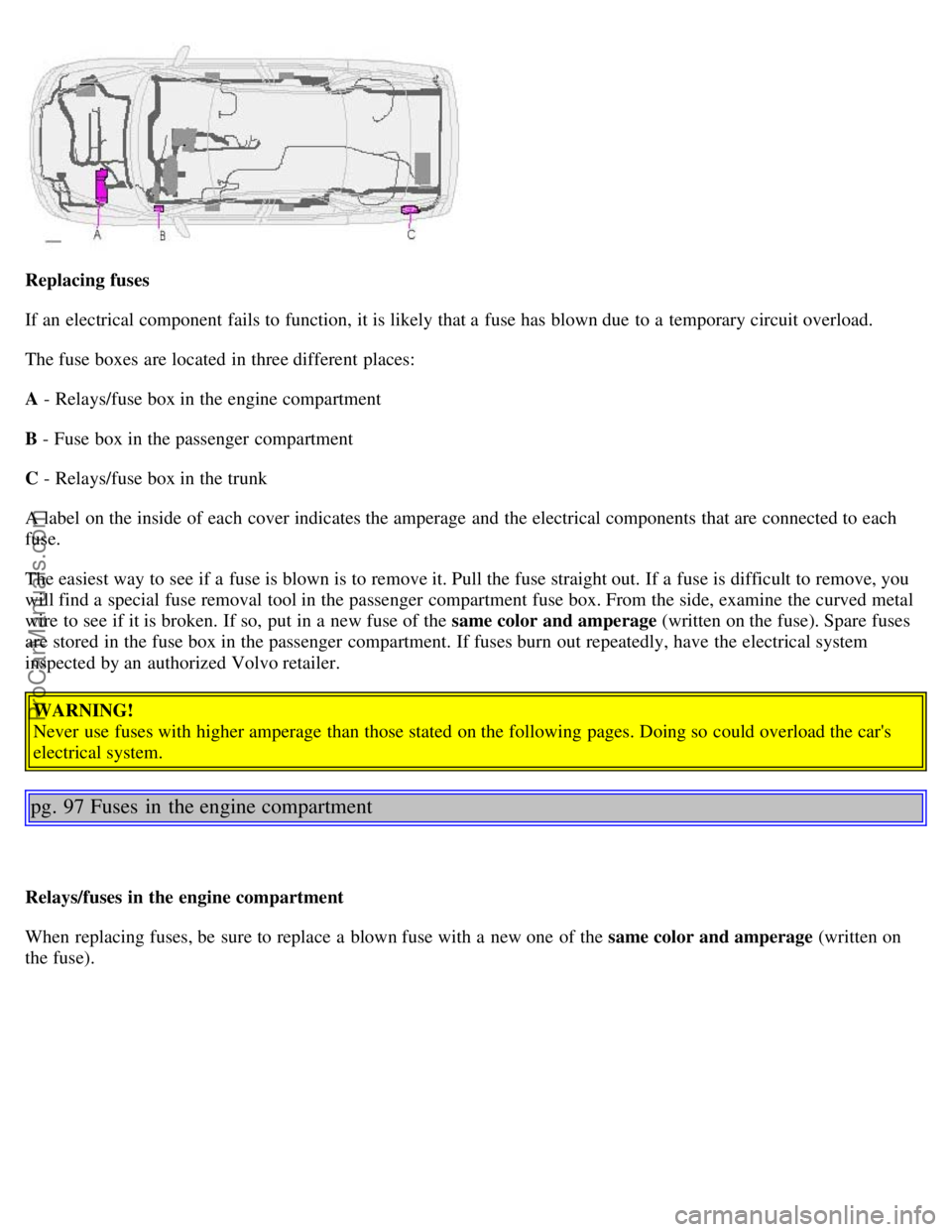

Replacing fuses
If an electrical component fails to function, it is likely that a fuse has blown due to a temporary circuit overload.
The fuse boxes are located in three different places:
A - Relays/fuse box in the engine compartment
B - Fuse box in the passenger compartment
C - Relays/fuse box in the trunk
A label on the inside of each cover indicates the amperage and the electrical components that are connected to each
fuse.
The easiest way to see if a fuse is blown is to remove it. Pull the fuse straight out. If a fuse is difficult to remove, you
will find a special fuse removal tool in the passenger compartment fuse box. From the side, examine the curved metal
wire to see if it is broken. If so, put in a new fuse of the same color and amperage (written on the fuse). Spare fuses
are stored in the fuse box in the passenger compartment. If fuses burn out repeatedly, have the electrical system
inspected by an authorized Volvo retailer.
WARNING!
Never use fuses with higher amperage than those stated on the following pages. Doing so could overload the car's
electrical system.
pg. 97 Fuses in the engine compartment
Relays/fuses in the engine compartment
When replacing fuses, be sure to replace a blown fuse with a new one of the same color and amperage (written on
the fuse).
ProCarManuals.com

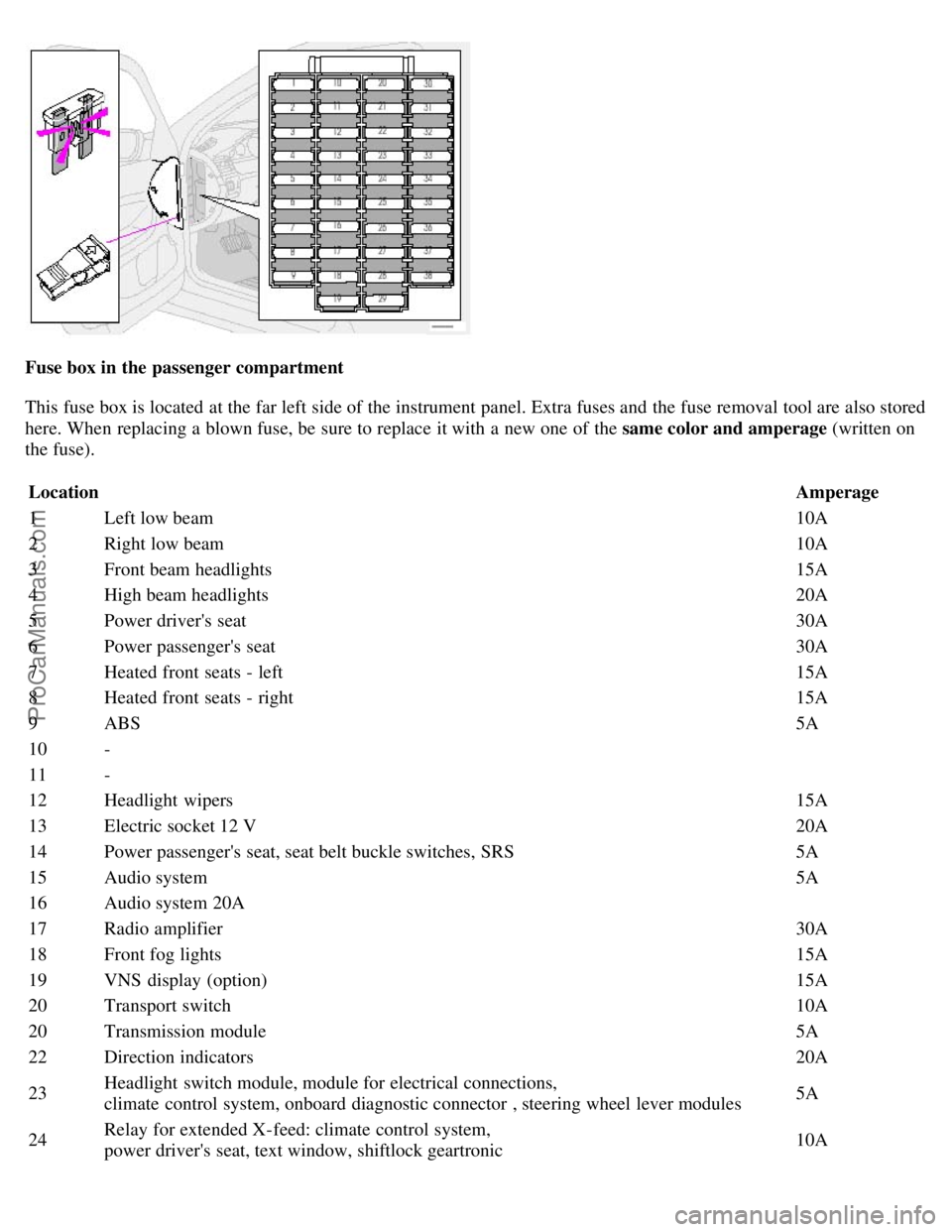

Fuse box in the passenger compartment
This fuse box is located at the far left side of the instrument panel. Extra fuses and the fuse removal tool are also stored
here. When replacing a blown fuse, be sure to replace it with a new one of the same color and amperage (written on
the fuse).
Location Amperage
1 Left low beam 10A
2 Right low beam 10A
3 Front beam headlights 15A
4 High beam headlights 20A
5 Power driver's seat 30A
6 Power passenger's seat 30A
7 Heated front seats - left 15A
8 Heated front seats - right 15A
9 ABS 5A
10 -
11 -
12 Headlight wipers 15A
13 Electric socket 12 V 20A
14 Power passenger's seat, seat belt buckle switches, SRS 5A
15 Audio system 5A
16 Audio system 20A
17 Radio amplifier 30A
18 Front fog lights 15A
19 VNS display (option) 15A
20 Transport switch 10A
20 Transmission module 5A
22 Direction indicators 20A
23 Headlight switch module, module for electrical connections,
climate control system, onboard diagnostic connector , steering wheel lever modules 5A
24 Relay for extended X-feed: climate control system,
power driver's seat, text window, shiftlock geartronic 10A
ProCarManuals.com

25Ignition switch, Relay starter motor 10A
26Control module - climate control blower 30A
27 Central locking system, power windows, defroster, lighting, sideview mirrors,
door warning lights, power sideview mirrors 15A
28 Power sun roof, courtesy lights, vanity mirror lights 10A
29 Telephone (option) 10A
30 Left front/rear parking lights 10A
31 Right front/rear parking lights, license plate lights 10A
32 Central electrical module, vanity mirror lighting, interior courtesy lights,
power steering 10A
33 Fuel pump 15A
34 Power sun roof 15A
35 Central locking system, power windows - left front 25A
36 Defroster, Lighting, Sideview mirrors, central locking system, power windows - right front 25A
37 Power windows - rear doors, child safety locks 30A
38 Siren alarm 5A
pg. 99 Fuses in the trunk

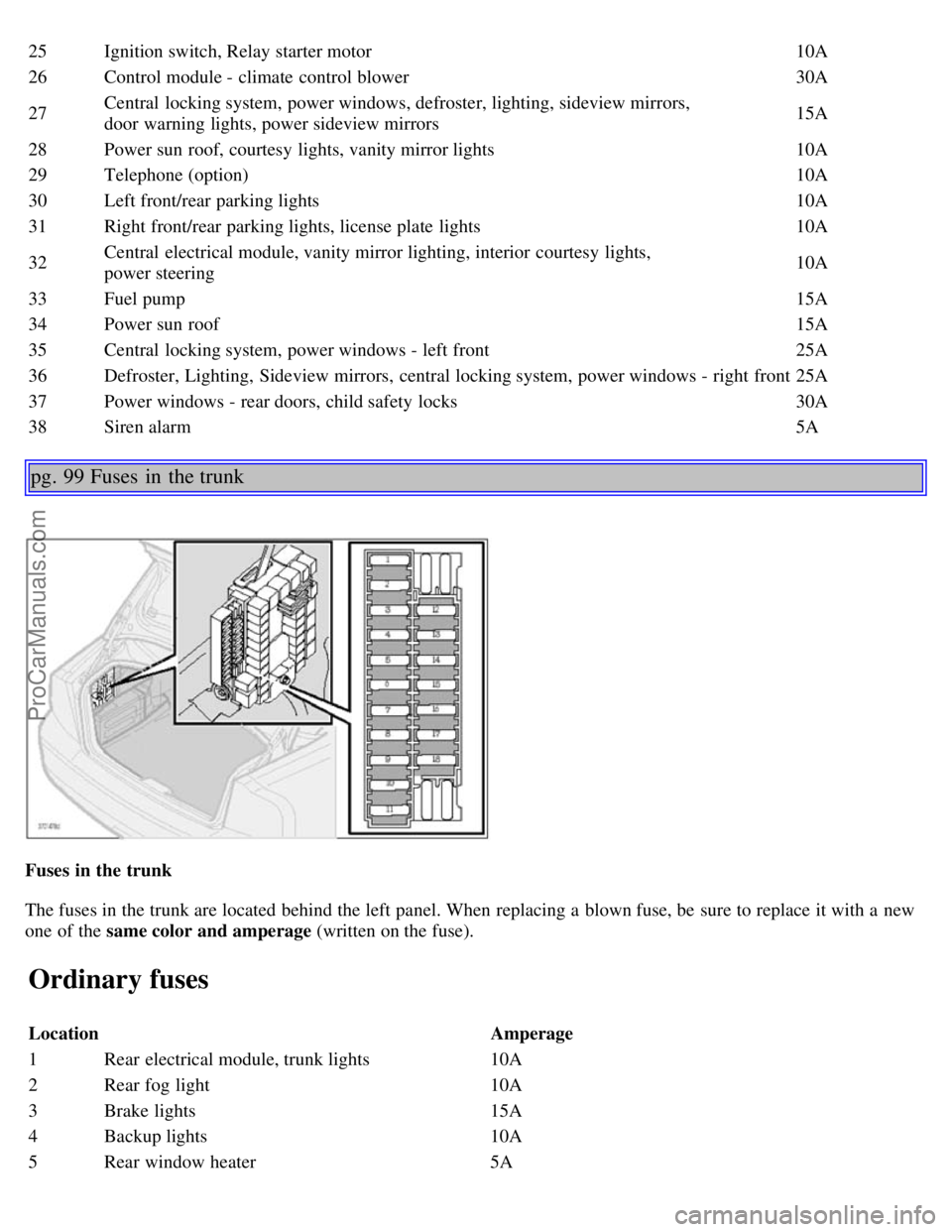

Fuses in the trunk
The fuses in the trunk are located behind the left panel. When replacing a blown fuse, be sure to replace it with a new
one of the same color and amperage (written on the fuse).
Ordinary fuses
Location Amperage
1 Rear electrical module, trunk lights 10A
2 Rear fog light 10A
3 Brake lights 15A
4 Backup lights 10A
5 Rear window heater 5A
