VOLVO S80 2010 Owner´s Manual

03 Your driving environment
Ignition modes
03
81
Functions with timerThe audio system can be operated without a
key for 15 minutes at a time by pressing the
POWER button. The power windows work for
several minutes after the key has been
removed, although not after the door has been
opened.
NOTE
Use the POWER button for the audio sys-
tem when the engine is not running to avoid
discharging the battery.

03 Your driving environment
Seats
03
82

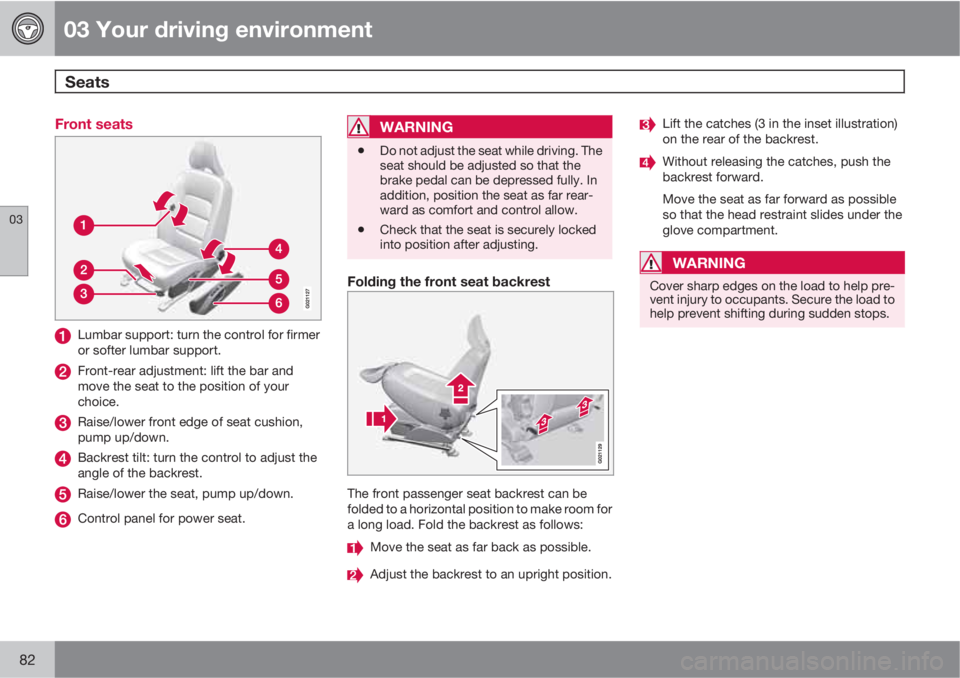

Front seats
Lumbar support: turn the control for firmer
or softer lumbar support.
Front-rear adjustment: lift the bar and
move the seat to the position of your
choice.
Raise/lower front edge of seat cushion,
pump up/down.
Backrest tilt: turn the control to adjust the
angle of the backrest.
Raise/lower the seat, pump up/down.
Control panel for power seat.
WARNING
•Do not adjust the seat while driving. The
seat should be adjusted so that the
brake pedal can be depressed fully. In
addition, position the seat as far rear-
ward as comfort and control allow.
•Check that the seat is securely locked
into position after adjusting.
Folding the front seat backrest
The front passenger seat backrest can be
folded to a horizontal position to make room for
a long load. Fold the backrest as follows:
Move the seat as far back as possible.
Adjust the backrest to an upright position.
Lift the catches (3 in the inset illustration)
on the rear of the backrest.
Without releasing the catches, push the
backrest forward.
Move the seat as far forward as possible
so that the head restraint slides under the
glove compartment.
WARNING
Cover sharp edges on the load to help pre-
vent injury to occupants. Secure the load to
help prevent shifting during sudden stops.

03 Your driving environment
Seats
03

* Option/accessory, for more information, see Introduction.83

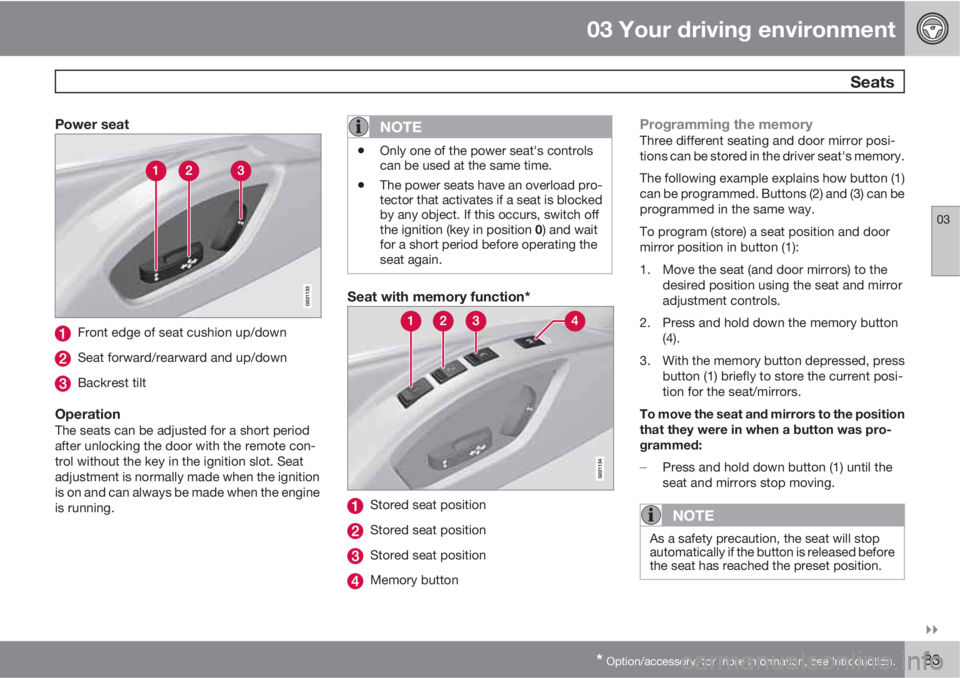

Power seat
Front edge of seat cushion up/down
Seat forward/rearward and up/down
Backrest tilt
OperationThe seats can be adjusted for a short period
after unlocking the door with the remote con-
trol without the key in the ignition slot. Seat
adjustment is normally made when the ignition
is on and can always be made when the engine
is running.
NOTE
•Only one of the power seat's controls
can be used at the same time.
•The power seats have an overload pro-
tector that activates if a seat is blocked
by any object. If this occurs, switch off
the ignition (key in position 0) and wait
for a short period before operating the
seat again.
Seat with memory function*
Stored seat position
Stored seat position
Stored seat position
Memory button
Programming the memoryThree different seating and door mirror posi-
tions can be stored in the driver seat's memory.
The following example explains how button (1)
can be programmed. Buttons (2) and (3) can be
programmed in the same way.
To program (store) a seat position and door
mirror position in button (1):
1. Move the seat (and door mirrors) to the
desired position using the seat and mirror
adjustment controls.
2. Press and hold down the memory button
(4).
3. With the memory button depressed, press
button (1) briefly to store the current posi-
tion for the seat/mirrors.
To move the seat and mirrors to the position
that they were in when a button was pro-
grammed:

Press and hold down button (1) until the
seat and mirrors stop moving.
NOTE
As a safety precaution, the seat will stop
automatically if the button is released before
the seat has reached the preset position.

03 Your driving environment
Seats
03
84* Option/accessory, for more information, see Introduction.

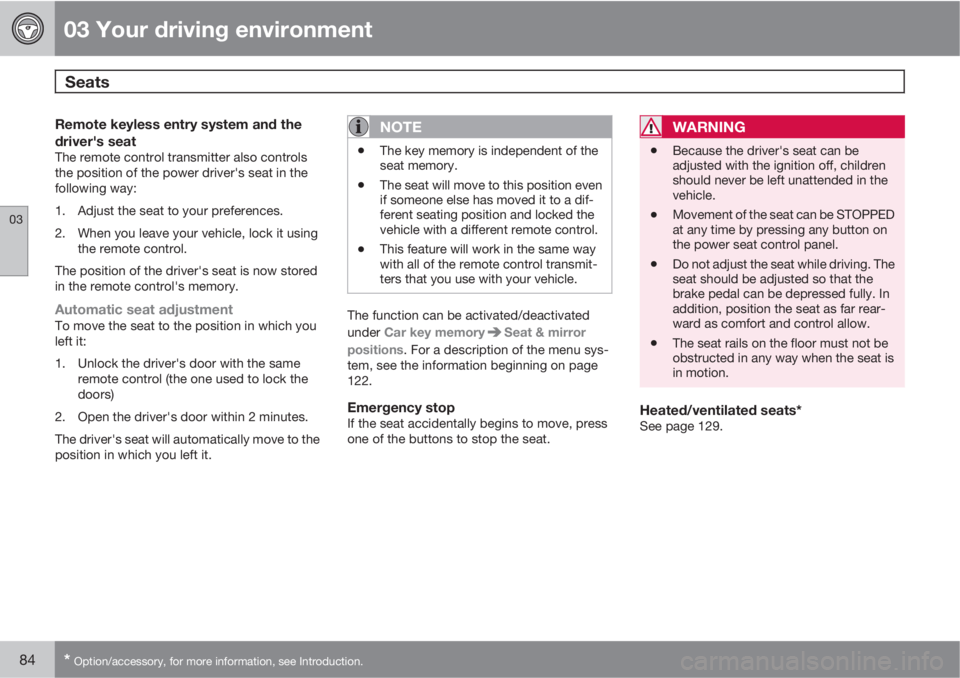

Remote keyless entry system and the
driver's seat
The remote control transmitter also controls
the position of the power driver's seat in the
following way:
1. Adjust the seat to your preferences.
2. When you leave your vehicle, lock it using
the remote control.
The position of the driver's seat is now stored
in the remote control's memory.
Automatic seat adjustmentTo move the seat to the position in which you
left it:
1. Unlock the driver's door with the same
remote control (the one used to lock the
doors)
2. Open the driver's door within 2 minutes.
The driver's seat will automatically move to the
position in which you left it.
NOTE
•The key memory is independent of the
seat memory.
•The seat will move to this position even
if someone else has moved it to a dif-
ferent seating position and locked the
vehicle with a different remote control.
•This feature will work in the same way
with all of the remote control transmit-
ters that you use with your vehicle.
The function can be activated/deactivated
under Car key memory
Seat & mirror
positions. For a description of the menu sys-
tem, see the information beginning on page
122.
Emergency stopIf the seat accidentally begins to move, press
one of the buttons to stop the seat.
WARNING
•Because the driver's seat can be
adjusted with the ignition off, children
should never be left unattended in the
vehicle.
•Movement of the seat can be STOPPED
at any time by pressing any button on
the power seat control panel.
•Do not adjust the seat while driving. The
seat should be adjusted so that the
brake pedal can be depressed fully. In
addition, position the seat as far rear-
ward as comfort and control allow.
•The seat rails on the floor must not be
obstructed in any way when the seat is
in motion.
Heated/ventilated seats*See page 129.

03 Your driving environment
Seats
03

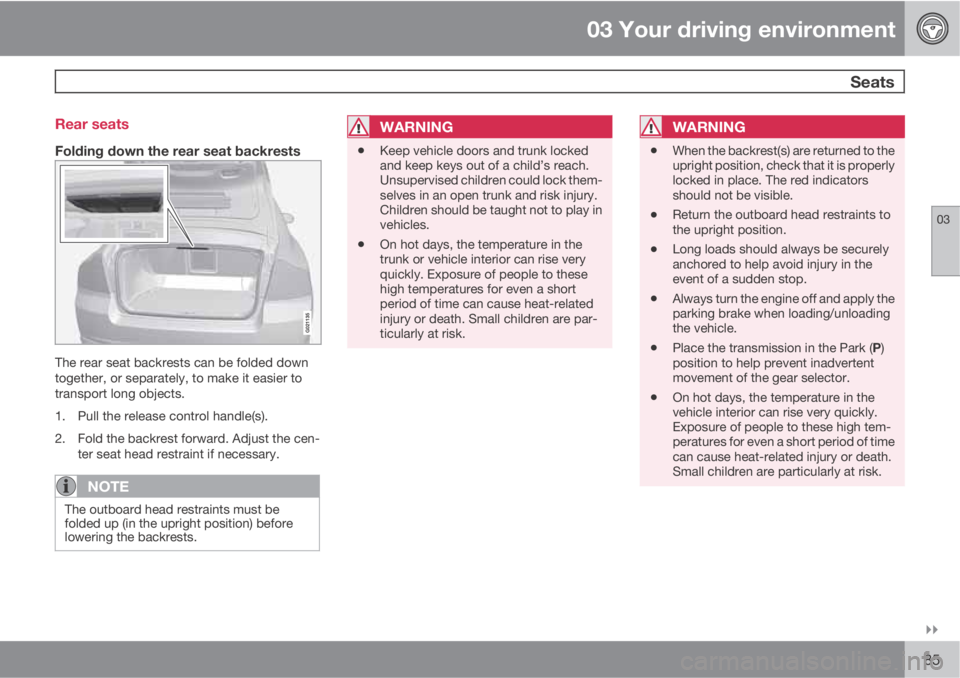

85 Rear seats
Folding down the rear seat backrests
The rear seat backrests can be folded down
together, or separately, to make it easier to
transport long objects.
1. Pull the release control handle(s).
2. Fold the backrest forward. Adjust the cen-
ter seat head restraint if necessary.
NOTE
The outboard head restraints must be
folded up (in the upright position) before
lowering the backrests.
WARNING
•Keep vehicle doors and trunk locked
and keep keys out of a child’s reach.
Unsupervised children could lock them-
selves in an open trunk and risk injury.
Children should be taught not to play in
vehicles.
•On hot days, the temperature in the
trunk or vehicle interior can rise very
quickly. Exposure of people to these
high temperatures for even a short
period of time can cause heat-related
injury or death. Small children are par-
ticularly at risk.
WARNING
•When the backrest(s) are returned to the
upright position, check that it is properly
locked in place. The red indicators
should not be visible.
•Return the outboard head restraints to
the upright position.
•Long loads should always be securely
anchored to help avoid injury in the
event of a sudden stop.
•Always turn the engine off and apply the
parking brake when loading/unloading
the vehicle.
•Place the transmission in the Park (P)
position to help prevent inadvertent
movement of the gear selector.
•On hot days, the temperature in the
vehicle interior can rise very quickly.
Exposure of people to these high tem-
peratures for even a short period of time
can cause heat-related injury or death.
Small children are particularly at risk.

03 Your driving environment
Seats
03
86

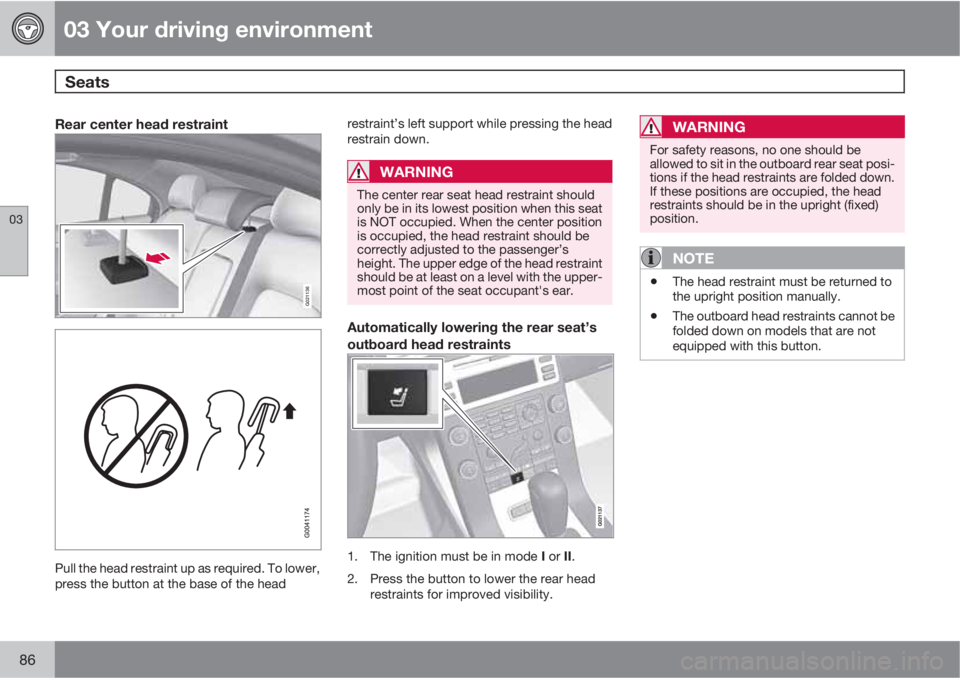

Rear center head restraint
G021136
Pull the head restraint up as required. To lower,
press the button at the base of the headrestraint’s left support while pressing the head
restrain down.
WARNING
The center rear seat head restraint should
only be in its lowest position when this seat
is NOT occupied. When the center position
is occupied, the head restraint should be
correctly adjusted to the passenger’s
height. The upper edge of the head restraint
should be at least on a level with the upper-
most point of the seat occupant's ear.
Automatically lowering the rear seat’s
outboard head restraints
1.
The ignition must be in mode I or II.
2. Press the button to lower the rear head
restraints for improved visibility.
WARNING
For safety reasons, no one should be
allowed to sit in the outboard rear seat posi-
tions if the head restraints are folded down.
If these positions are occupied, the head
restraints should be in the upright (fixed)
position.
NOTE
•The head restraint must be returned to
the upright position manually.
•The outboard head restraints cannot be
folded down on models that are not
equipped with this button.

03 Your driving environment
Seats¥¥S80 Executive
03

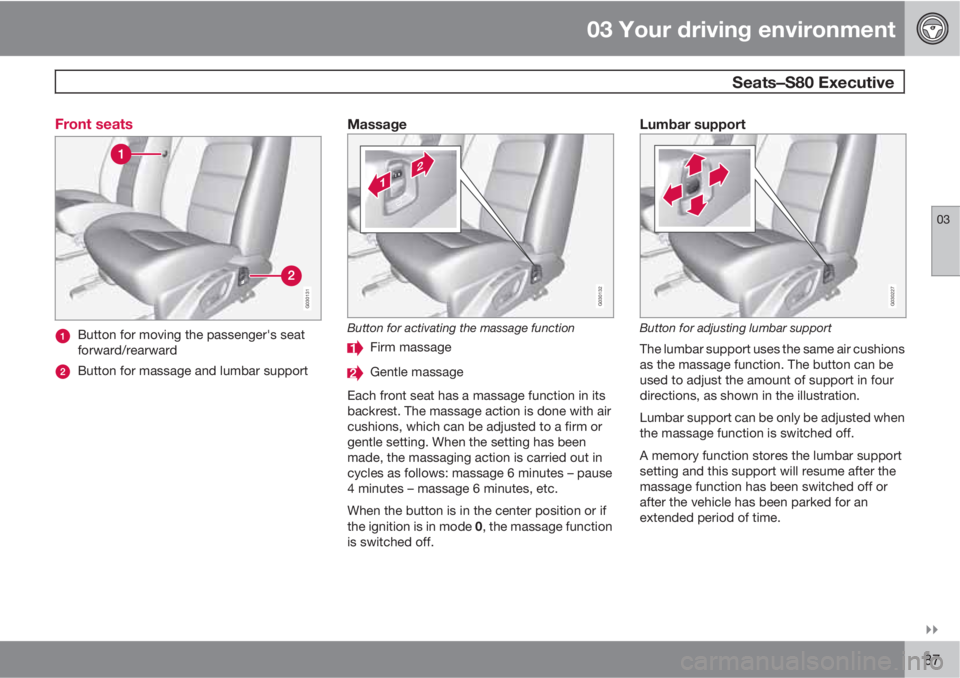

87 Front seats
G030131
Button for moving the passenger's seat
forward/rearward
Button for massage and lumbar support
Massage
G030132
Button for activating the massage function
Firm massage
Gentle massage
Each front seat has a massage function in its
backrest. The massage action is done with air
cushions, which can be adjusted to a firm or
gentle setting. When the setting has been
made, the massaging action is carried out in
cycles as follows: massage 6 minutes – pause
4 minutes – massage 6 minutes, etc.
When the button is in the center position or if
the ignition is in mode 0, the massage function
is switched off.
Lumbar support
G030227
Button for adjusting lumbar support
The lumbar support uses the same air cushions
as the massage function. The button can be
used to adjust the amount of support in four
directions, as shown in the illustration.
Lumbar support can be only be adjusted when
the massage function is switched off.
A memory function stores the lumbar support
setting and this support will resume after the
massage function has been switched off or
after the vehicle has been parked for an
extended period of time.

03 Your driving environment
Seats¥¥S80 Executive
03
88

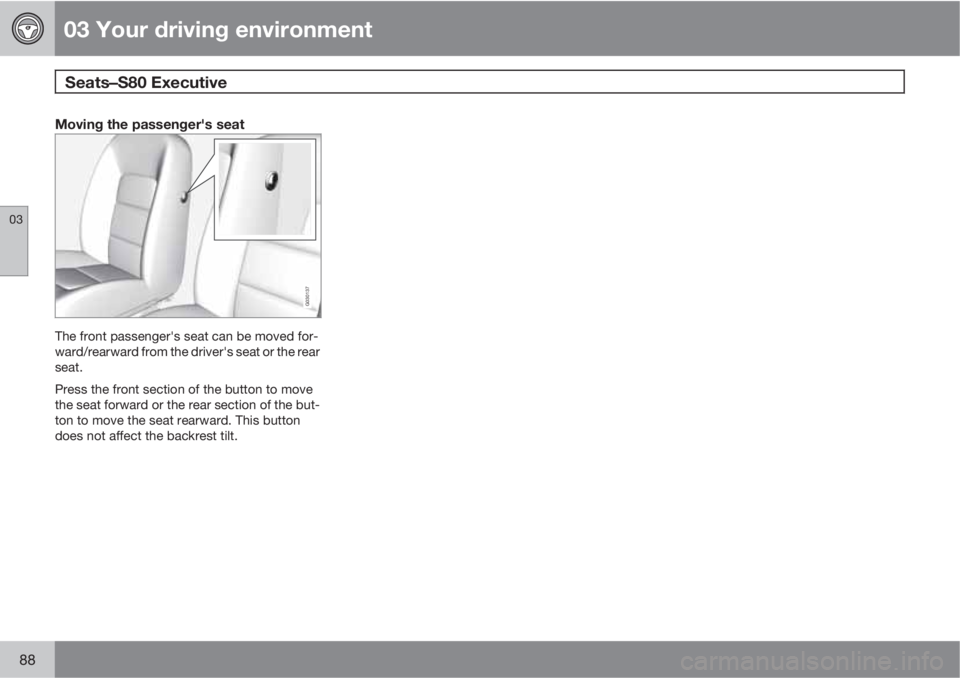

Moving the passenger's seat
G030137
The front passenger's seat can be moved for-
ward/rearward from the driver's seat or the rear
seat.
Press the front section of the button to move
the seat forward or the rear section of the but-
ton to move the seat rearward. This button
does not affect the backrest tilt.

03 Your driving environment
Steering wheel
03
* Option/accessory, for more information, see Introduction.89 Adjusting
G021138

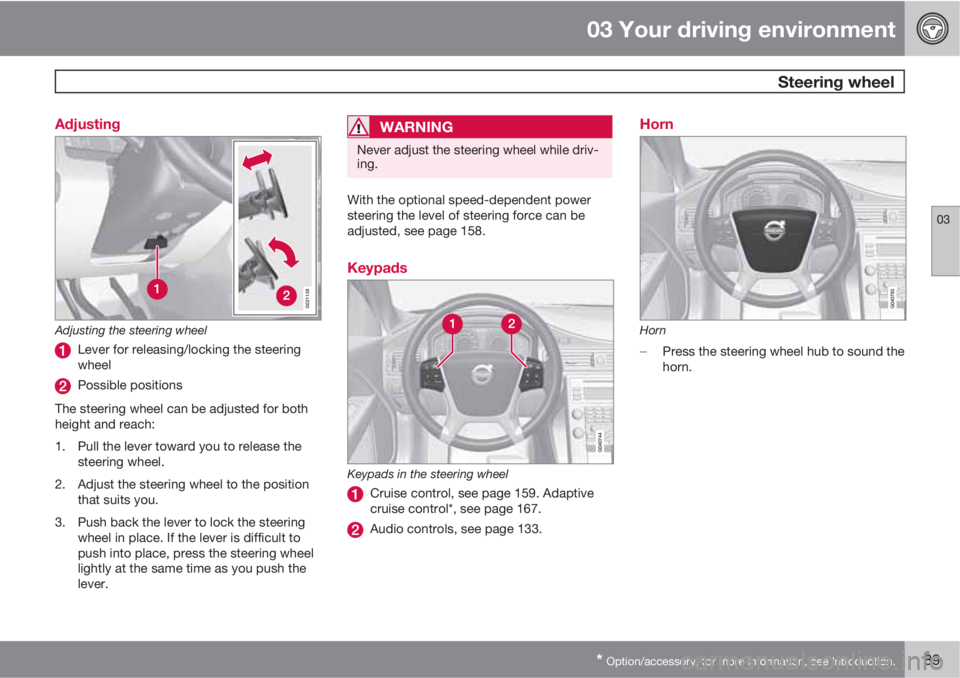

Adjusting the steering wheel
Lever for releasing/locking the steering
wheel
Possible positions
The steering wheel can be adjusted for both
height and reach:
1. Pull the lever toward you to release the
steering wheel.
2. Adjust the steering wheel to the position
that suits you.
3. Push back the lever to lock the steering
wheel in place. If the lever is difficult to
push into place, press the steering wheel
lightly at the same time as you push the
lever.
WARNING
Never adjust the steering wheel while driv-
ing.
With the optional speed-dependent power
steering the level of steering force can be
adjusted, see page 158.
Keypads
Keypads in the steering wheel
Cruise control, see page 159. Adaptive
cruise control*, see page 167.
Audio controls, see page 133.
Horn
Horn

Press the steering wheel hub to sound the
horn.

03 Your driving environment
Lighting
03
90

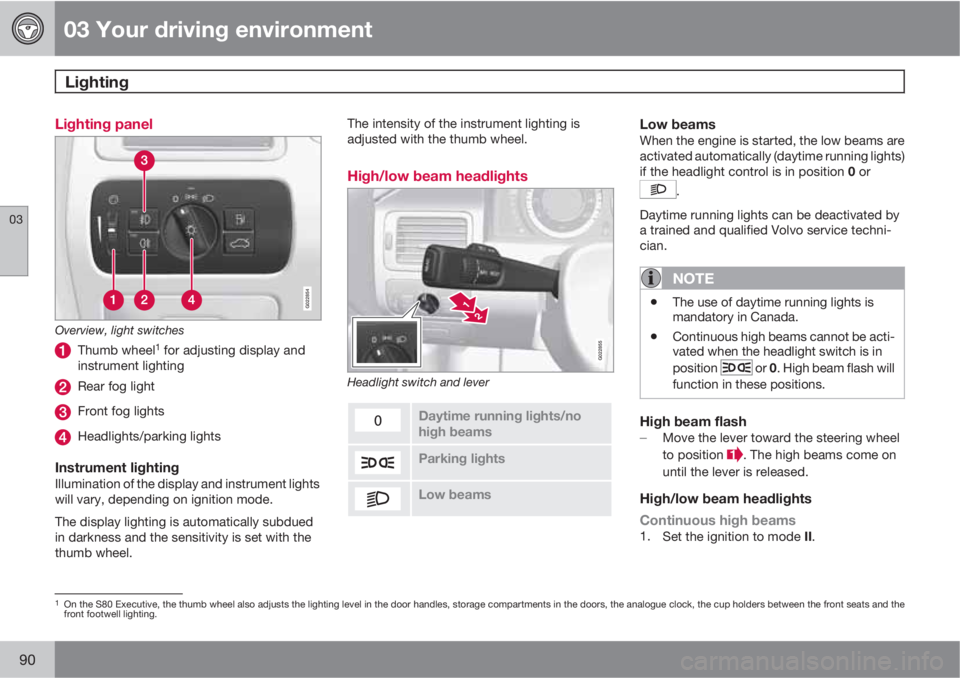

Lighting panel
G022854
Overview, light switches
Thumb wheel1 for adjusting display and
instrument lighting
Rear fog light
Front fog lights
Headlights/parking lights
Instrument lightingIllumination of the display and instrument lights
will vary, depending on ignition mode.
The display lighting is automatically subdued
in darkness and the sensitivity is set with the
thumb wheel.The intensity of the instrument lighting is
adjusted with the thumb wheel.
High/low beam headlights
21
G022855
Headlight switch and lever
Daytime running lights/no
high beams
Parking lights
Low beams
Low beamsWhen the engine is started, the low beams are
activated automatically (daytime running lights)
if the headlight control is in position 0 or
.
Daytime running lights can be deactivated by
a trained and qualified Volvo service techni-
cian.
NOTE
•The use of daytime running lights is
mandatory in Canada.
•Continuous high beams cannot be acti-
vated when the headlight switch is in
position
or 0. High beam flash will
function in these positions.
High beam flash
Move the lever toward the steering wheel
to position
. The high beams come on
until the lever is released.
High/low beam headlights
Continuous high beams
1.
Set the ignition to mode II.
1On the S80 Executive, the thumb wheel also adjusts the lighting level in the door handles, storage compartments in the doors, the analogue clock, the cup holders between the front seats and the
front footwell lighting.
