VOLVO S80 2012 Owner´s Manual

04 Comfort and driving pleasure
The MY CAR menus
04

131
Volume levels
Voice output volume
Front park assist volume
Rear park assist volume
Phone ringing volume
Reset system options
This feature returns the "System options"
menu to the original factory settings.
MY CARSettingsVoice settingsA.
AOnly on vehicles with the optional Volvo Navigation System
and/or a BluetoothŸ-connected cell phone
Voice tutorial
Select this menu alternative and press OK for
spoken information about how the system
works.
Voice command list
Phone commands
Phone
Phone call contact
Phone dial number
Navigation commands
NavigationNavigation repeat instruction
Navigation go to address
General commands
Help
Cancel
Voice tutorial
The menu alternatives under
Phone
commands show examples of the voice com-
mands available when a cell phone is con-
nected to the Bluetooth
Ÿ hands-free system.
See page 237 for more detailed information.
The menu alternatives under
Navigation
commands show examples of the voice com-
mands available for the optional Volvo
Navigation System. Refer to the navigation
system's manual for detailed information.
Voice user setting
Default setting
User 1
User 2
Two user profiles can be set, which is useful if
more than one person uses voice commands
regularly.
Default setting resets the factory
settings.Voice training
User 1
User 2
Voice training enables the system to become
familiar with the driver's voice and pronuncia-
tion. A list of phrases is presented on the
screen for the driver to read aloud. When the
system has registered the driver's pronuncia-
tion, no additional phrases will be displayed.
After completed voice training, select
User 1or User 2 in Voice user setting to set the sys-
tem to the current user.
Voice output volume
•A volume control will be displayed. To set
the volume level:
1. Adjust the volume using the thumb wheel
2.
Test the setting by pressing OK
3. Store the setting and leave the menu by
pressing EXIT.
Voice POI list
Edit list
The navigation system has a large number of
points of interest (POIs). A maximum of 30 POIs
can be stored in this list.
The menu alternative
Voice POI list is only
displayed if the vehicle is equipped with the

04 Comfort and driving pleasure
The MY CAR menus
04
132
optional Volvo Navigation System. Refer to the
navigation system's manual for detailed infor-
mation.
MY CARSettingsAudio settings
See page 200 for more information about the
infotainment system.
MY CARSettingsClimate settings
Automatic blower adjustment
Normal
High
Low
Recirculation timer
Automatic rear defroster
Interior air quality system
Reset climate settings
This feature returns the "Climate settings"
menu to the original factory settings.
For more information about the climate sys-
tem, see page 133.
MY CARSettingsFavorites (FAV)
See page 207 for more information about this
feature.
MY CARSettingsInformation
Number of keys
See page 52 for more information.
VIN number
See page 343 for more information.
DivX® VOD code
See page 222 for more information.
Bluetooth software version in car
See page 228 for more information.
Map and software version
Refer to the optional Volvo Navigation System
manual for more information.

04 Comfort and driving pleasure
Climate system
04

* Option/accessory, for more information, see Introduction.133 Introduction
Air conditioningThe vehicle is equipped with Electronic Climate
Control (ECC). The climate control system
cools, heats or dehumidifies the air in the pas-
senger compartment.
NOTE
•The air conditioning can be switched
off, but to ensure the best possible cli-
mate comfort in the passenger com-
partment and to prevent the windows
from misting, it should always be on.
•In warm weather, a small amount of
water may accumulate under the car
when it has been parked. This water is
condensation from the A/C system and
is normal.
Sensor location
•The sunlight sensor is located on the top
side of the dashboard.
NOTE
The sunlight sensor monitors which side of
the car that is most exposed to sunlight.
This can mean that the temperature may
differ between the right and left-side air
vents, even if the temperatures set for both
sides of the passenger compartment are the
same.
•The temperature sensor for the passenger
compartment is located below the climate
control panel.
•The outside (ambient) temperature sensor
is located on the door mirror.
•The humidity sensor* is located in the inte-
rior rearview mirror.
NOTE
Do not cover or block the sensors with
clothing or other objects.
Side windows and moonroofTo ensure that the air conditioning works opti-
mally, the side windows, and the optional
moonroof should be closed.
Fog on the inside of the windowsThe defroster function should be used to
remove fog or mist from the inside of the win-
dows. Keeping the windows clean with a com-mercially available window washing spray will
also help prevent fogging or misting.
Vents in the parcel shelf
NOTE
The air vents at the rear of the parcel shelf
should never be obstructed.
Temporary shut-off of the air
conditioning
The air conditioning is momentarily disen-
gaged during full-throttle acceleration or when
driving uphill with a trailer. This may result in a
temporary increase in cabin temperature.
Ice and snowAlways keep the air intake grille at the base of
the windshield free of snow.
Climate system maintenanceSpecial tools and equipment are required to
maintain and carry out repairs on the climate
system. Work of this type should only be done
by a trained and qualified Volvo service tech-
nician.
RefrigerantVolvo cares about the environment. The air
conditioning system in your car contains a
CFC-free refrigerant – R134a. This substance
will not deplete the ozone layer. The air condi-

04 Comfort and driving pleasure
Climate system
04
134
tioning system contains 1.8 lbs (820 g) of
R134a. The systems uses PAG oil.
Passenger compartment filterReplace the cabin air filter with a new one at
the recommended intervals. Please refer to
your Warranty and Service Records Informa-
tion booklet, or consult a trained and qualified
Volvo service technician for these intervals.
The filter should be replaced more often when
driving under dirty and dusty conditions. The
filter cannot be cleaned and therefore should
always be replaced with a new one.
NOTE
There are different types of cabin air filters.
Ensure that the correct type is installed.
Interior Air Quality System (IAQS)A multifilter helps reduce gases and particles
in the incoming air, thereby reducing the levels
of odors and contaminants entering the vehi-
cle. The air quality sensor detects increased
levels of contaminants in the outside air. When
the air quality sensor detects contaminated
outside air, the air intake closes and the air
inside the passenger compartment is recircu-
lated, i.e. no outside air enters the vehicle. The
filter also cleans recirculated passenger com-
partment air.
NOTE
Contact your Volvo retailer for IAQS air filter
replacement intervals.
Materials used in the cabinThe materials used in the cabin have been
developed to help minimize the amount of dust
and make the cabin easier to keep clean. All
floor mats can be easily removed for cleaning.
Use car cleaning products recommended by
Volvo. See also the information beginning on
page 335.
Menu settingsThe default settings for four of the climate sys-
tem's functions can be changed in the menu
system.
•Blower speed in automatic mode.
•Recirculation timer for passenger com-
partment air.
•Automatic rear window defrosting.
•The optional Interior Air Quality System
(IAQS).
The functions can also be returned to factory
settings in the menu system.
See page 127 for a description of the menu
system.
Air distribution
G021366
The incoming air is distributed from a number
of different vents in the passenger compart-
ment.
Air distribution is fully automatic in AUTO
mode.
If desired, air distribution can be controlled
manually, see page 140.

04 Comfort and driving pleasure
Climate system
04

135
Air vents in the dashboard
Open
Closed
Horizontal airflow
Vertical airflow
Direct the outer air vents toward the side win-
dows to defrost.
Air vents in the door pillars
G021368
Open
Closed
Horizontal airflow
Vertical airflow
Direct the outer air vents toward the side win-
dows to defrost.
Direct the vents into the passenger compart-
ment to help maintain the desired temperature
in the rear seat.

04 Comfort and driving pleasure
Climate system
04
136* Option/accessory, for more information, see Introduction.
Electronic climate control, ECC
Temperature control, driver's side
Heated driver's seat1*
Defroster (maximum effect)
Blower
Manual air distribution—floor
Manual air distribution—dashboard air
vents
Manual air distribution—defroster
Heated rear window and door mirrors, see
page 102
Heated front passenger's seat*
Temperature control, passenger's side
Recirculation
AUTO
A/C on/off
Ventilated driver's seat *
Ventilated passenger's seat*
Climate system controls
Ventilated front seats*The ventilation system consists of fans in the
seats and backrests that draw air through the
seat upholstery. The cooling effect increases
as the air in the passenger compartment
becomes cooler.
The ventilation is controlled by the ECC sys-
tem, which takes into account the seat tem-
perature, sunlight in the passenger compart-
ment, and the ambient temperature.
1The location of the button varies, depending on whether the vehicle is equipped with the optional ventilated front seats

04 Comfort and driving pleasure
Climate system
04

* Option/accessory, for more information, see Introduction.137
The ventilation can be used at the same time
as seat heating.
The ventilation system can be activated when
the engine is running. There are three comfort
levels that produce different cooling and dehu-
midifying effects:
•Level three: press the button once for
maximum output – three indicator lights
come on.
•Level two: press the button twice for a
lower output – two indicator lights come
on.
•Level one: press the button three times for
the lowest output – one indicator light
comes on.
•Press the button a fourth time to switch off
the function – the indicator light will go out.
Heated front seats*
The current seat temperature is shown in the cen-
ter console display
Press the button once for the
highest heat level – three indi-
cator lights come on.
Press the button twice for a
lower heat level – two indica-
tor lights come on.
Press the button three times for the lowest heat
level – one indicator light comes on.
Press the button four times to switch off the
heat – no indicator lights come on.
Seat heating will automatically switch off when
the engine is switched off.
Heated rear seats*
Heat control for the outboard seating positions
is done in the same way as for the front seats.
Blower controlTurn the control clockwise to
increase or counterclockwise
to decrease the blower
speed. If AUTO is selected,
blower speed will be regula-
ted automatically and this will
override manual adjustment.
NOTE
If the blower is turned off completely, the air
conditioning is disengaged, which may
result in fogging on the windows.

04 Comfort and driving pleasure
Climate system
04
138
Air distribution
Manual air distribution—defroster
Manual air distribution—dashboard air
vents
Manual air distribution—floor
The figure consists of three buttons. When a
button is pressed, the corresponding figure will
appear in the display with an arrow indicating
which manual air flow has been selected (see
the following illustration). See also the air dis-
tribution chart on page 140.
Air distribution is shown in the center console dis-
play
AutoThe function automatically
regulates cooling, heating,
blower speed, recirculation,
and air distribution to main-
tain the chosen temperature.
If you select one or more man-
ual functions, the other func-
tions continue to be controlled automatically.
The air quality sensor is engaged and all man-
ual settings are switched off when AUTO is
pressed. The display shows
AUTO
CLIMATE.
Blower speed in automatic mode can be set
under Climate settings
Automatic blower
adjustment. Choose between
Low, Normalor High.
NOTE
Selecting the lowest blower speed may
increases the risk of fog forming on the win-
dows.
Temperature controlThe temperatures on the
driver and passenger sides
can be set separately. When
the vehicle is started, the
most recent setting is
resumed.
NOTE
Heating or cooling cannot be speeded up by
selecting a higher/lower temperature than
the actual temperature required.

04 Comfort and driving pleasure
Climate system
04

* Option/accessory, for more information, see Introduction.139
A/C – ON/OFFWhen the indicator light in the
button is on, the air condition-
ing is controlled automati-
cally. This cools/heats and
dehumidifies the incoming air.
When the indicator light in the
button is off, the air condition-
ing is disengaged. Other functions are still con-
trolled automatically. When maximum
defroster is selected, the air conditioning sys-
tem is set for maximum blower speed and
dehumidification.
DefrosterThis function defrosts/de-ices
the windshield and front side
windows. The indicator light
in the defroster button lights
when the function is active.
•Blower speed increases automatically and
the air conditioning will switch on (if not
already on and if the passenger compart-
ment blower is not turned off) to dehumid-
ify the air in the passenger compartment.
Air conditioning can be switched off by
pressing the AC button.
•Recirculation will not function while defrost
is engaged.The climate system will return to its previous
settings when the defroster function is
switched off.
Recirculation/air quality system
Recirculation
This function can be used to
shut out exhaust fumes,
smoke, etc., from the passen-
ger compartment. The air in
the passenger compartment
is then recirculated, i.e., no air
from outside the car is taken
into the car when this function is activated. The
indicator light in the button will illuminate when
recirculation is selected.
If the air in the car recirculates for too long,
there is a risk of condensation forming on the
insides of the windows, especially in winter.
TimerThe timer function minimizes the risk of fog-
ging, or stale air when the recirculation function
is selected by automatically switching off the
function after a certain length of time, depend-
ing on the ambient temperature. Activate/
deactivate the function under Climate
settings
Recirculation timer. See page
127 for a description of the menu system.
NOTE
When Defroster is selected, recirculation is
always deactivated.
Interior Air Quality System–IAQS*This system consists of a multifilter and an air
quality sensor. The filter helps remove gases
and particles from the incoming air, thereby
reducing the amounts of odors and contami-
nants entering the vehicle. The air quality sen-
sor detects increased levels of contaminants in
the outside air. When the air quality sensor
detects contaminated outside air, the air intake
closes and the air inside the passenger com-
partment is recirculated, i.e., no outside air
enters the vehicle. The filter also cleans recir-
culated passenger compartment air. When the
AUTO button is depressed the air quality sen-
sor is always engaged.
Activate or deactivate this function in Climate
settings
Interior air quality system.

04 Comfort and driving pleasure
Climate system
04
140

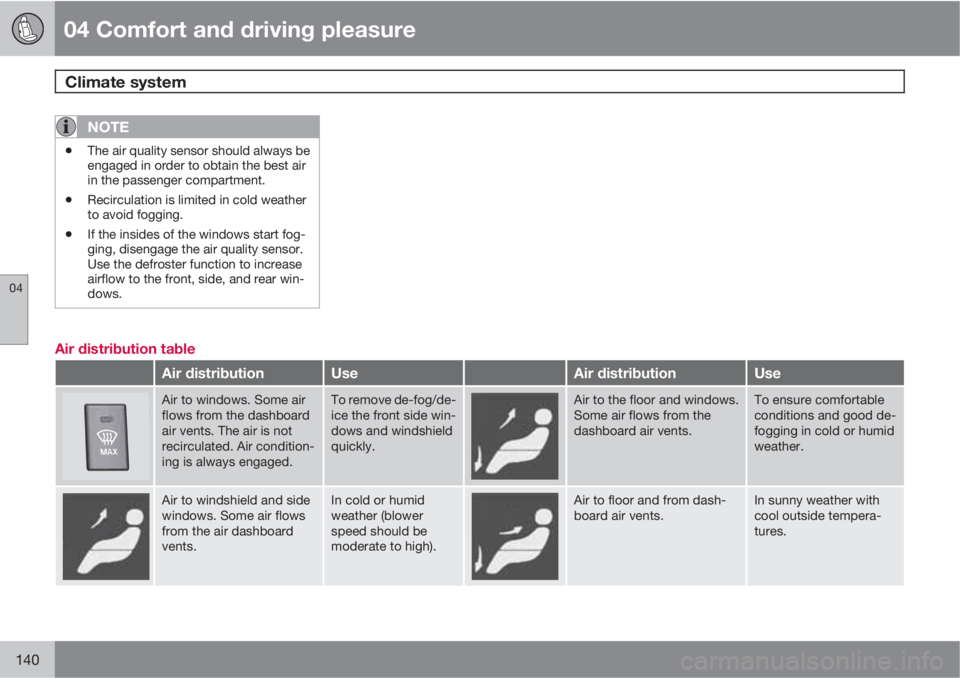

NOTE
•The air quality sensor should always be
engaged in order to obtain the best air
in the passenger compartment.
•Recirculation is limited in cold weather
to avoid fogging.
•If the insides of the windows start fog-
ging, disengage the air quality sensor.
Use the defroster function to increase
airflow to the front, side, and rear win-
dows.
Air distribution table
Air distributionUseAir distributionUse
Air to windows. Some air
flows from the dashboard
air vents. The air is not
recirculated. Air condition-
ing is always engaged.To remove de-fog/de-
ice the front side win-
dows and windshield
quickly.Air to the floor and windows.
Some air flows from the
dashboard air vents.To ensure comfortable
conditions and good de-
fogging in cold or humid
weather.
Air to windshield and side
windows. Some air flows
from the air dashboard
vents.In cold or humid
weather (blower
speed should be
moderate to high).Air to floor and from dash-
board air vents.In sunny weather with
cool outside tempera-
tures.
