VOLVO S80 2013 Owner´s Manual
Manufacturer: VOLVO, Model Year: 2013, Model line: S80, Model: VOLVO S80 2013Pages: 372, PDF Size: 6.45 MB
Page 251 of 372
06 Infotainment
Cell phone voice control
06
249
Voice output volume
Press MY CAR and go to SettingsVoice
settings
Voice output volume. Press OK/
MENU and turn TUNE to raise or lower the
volume. Press EXIT to save the change and
exit the menu.
Using voice commands
The driver initiates a voice command dialogue
by pressing the voice control button (see the
illustration on page 248).
When a dialogue has been initiated, commonly
used commands will be shown in the display.
Grayed-out texts or texts in parentheses are
not part of the spoken command.
Once you become familiar with the system, you
can speed up the command dialogue by briefly
pressing the voice control button to skip
prompts from the system.
Commands can be given in several ways.
For example, the command "Phone call con-
tact" can be spoken as:
•"Phone > Call contact"—say "Phone," wait
for a system response, and then continue
by saying "Call contact."
•"Phone call contact"—give the entire com-
mand at one timeThe following is a list of features that can be
voice-controlled with a Bluetooth
Ÿ-connected
cell phone.
ShortcutsShortcut commands for using the phone can
be found in the MY CAR menu system, under
Settings
Voice settingsVoice
command list
Phone commands and
General commands. See page 185 for more
information on the menu system.
Dialing a numberThe system understands the digits zero to nine.
These numbers can be spoken individually, in
groups of several digits at a time, or the entire
number can be given at once. Numbers above
nine will not be recognized.
The following is an example of a voice com-
mand dialogue. The system's response may
vary depending on the situation.
The user initiates the dialogue by saying:Phone > dial number
or
Phone dial number
System responseNumber please
User actionBegin saying the digits in the phone number. If
you say several digits and pause, the system
will repeat them and prompt you by saying
"Continue."
Continue saying the digits. When you have fin-
ished, complete the command by saying
"Dial."
•You can also change the number by using
the commands "Correction" (which dele-
tes the last group of digits spoken) or
"Delete" (which will erase the entire phone
number).
Dialing from a call listThe dialogue below enables you make a call
from one of your cell phone's call lists.
The user initiates the dialogue by saying:Phone > dial from call list
or
Phone dial from call list
Continue by responding to the system's
prompts.
Calling a contactThe dialogue below enables you to call the pre-
defined contacts in your cell phone. See the
phone's user's guide if necessary.
Page 252 of 372
06 Infotainment
Cell phone voice control
06
250
The user initiates the dialogue by saying:Phone > call contact
or
Phone call contact
Continue by responding to the system's
prompts.
When calling contacts, keep the following in
mind:
•If there are several contacts with similar
names, they will be presented in the dis-
play in numbered lines and the system will
prompt you to pick a line number
•If there are more lines in the list than can
be displayed at one time, saying "Down"
will enable you to scroll downward in the
list (and saying "up" will take you back up
through the list).
Dialing voice mailThe dialogue below enables you to call your
voice mail to check any messages that you
may have received. Your voice mail phone
number must be registered in the Bluetooth
Ÿ
function, see page 243.
The user initiates the dialogue by saying:Phone > dial voice mail
or
Phone dial voice mailContinue by responding to the system's
prompts.
Page 253 of 372
06 Infotainment
Rear Seat Entertainment (RSE)*
06
* Option/accessory, for more information, see Introduction.251 Overview
Screen: channel A (left), channel B (right)
Headphone socket
On/Off button
A/V-AUX socket
Remote control
Headphones
IR transceiver
Introduction
The RSE system1 provides entertainment for
the rear seat passengers by making it possible
to e.g., watch a film, play music, listen to the
radio or connect an external device such as a
game console.
RSE is fully integrated into the vehicle's info-
tainment system and can be used at the same
time as other infotainment features.
For example, if a rear seat passenger is using
A/V-AUX and headphones, the driver and front
seat passenger can still use the vehicle's radioor media player. However, only one disc can be
played in the media player at a time. You can
listen to music from e.g., an iPod Ÿ or from
streaming audio files using the Bluetooth Ÿ
function.
The RSE system can be controlled from the
front screen (parental control).
Different media can be played or viewed from
different sources on the various screens (front
center console and/or the respective screens
in the rear seat). It is also possible to play or
view media from the same source on one or
1This system may not be available as an option on all markets.
Page 254 of 372

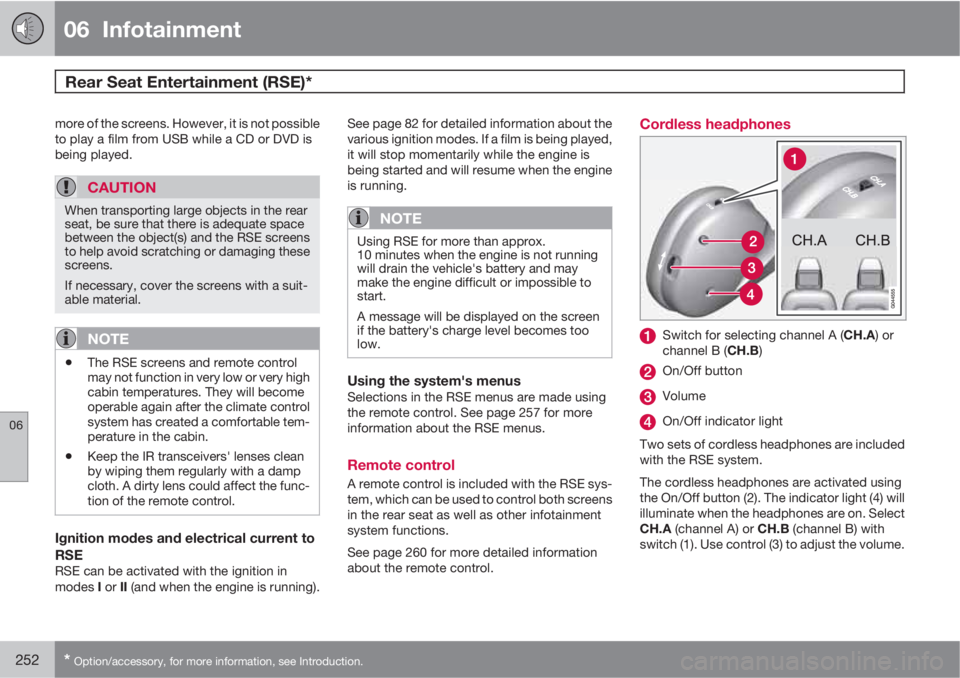

06 Infotainment
Rear Seat Entertainment (RSE)*
06
252* Option/accessory, for more information, see Introduction.
more of the screens. However, it is not possible
to play a film from USB while a CD or DVD is
being played.
CAUTION
When transporting large objects in the rear
seat, be sure that there is adequate space
between the object(s) and the RSE screens
to help avoid scratching or damaging these
screens.
If necessary, cover the screens with a suit-
able material.
NOTE
•The RSE screens and remote control
may not function in very low or very high
cabin temperatures. They will become
operable again after the climate control
system has created a comfortable tem-
perature in the cabin.
•Keep the IR transceivers' lenses clean
by wiping them regularly with a damp
cloth. A dirty lens could affect the func-
tion of the remote control.
Ignition modes and electrical current to
RSE
RSE can be activated with the ignition in
modes I or II (and when the engine is running).See page 82 for detailed information about the
various ignition modes. If a film is being played,
it will stop momentarily while the engine is
being started and will resume when the engine
is running.
NOTE
Using RSE for more than approx.
10 minutes when the engine is not running
will drain the vehicle's battery and may
make the engine difficult or impossible to
start.
A message will be displayed on the screen
if the battery's charge level becomes too
low.
Using the system's menusSelections in the RSE menus are made using
the remote control. See page 257 for more
information about the RSE menus.
Remote control
A remote control is included with the RSE sys-
tem, which can be used to control both screens
in the rear seat as well as other infotainment
system functions.
See page 260 for more detailed information
about the remote control.
Cordless headphones
Switch for selecting channel A (CH.A) or
channel B (CH.B)
On/Off button
Volume
On/Off indicator light
Two sets of cordless headphones are included
with the RSE system.
The cordless headphones are activated using
the On/Off button (2). The indicator light (4) will
illuminate when the headphones are on. Select
CH.A (channel A) or CH.B (channel B) with
switch (1). Use control (3) to adjust the volume.
Page 255 of 372

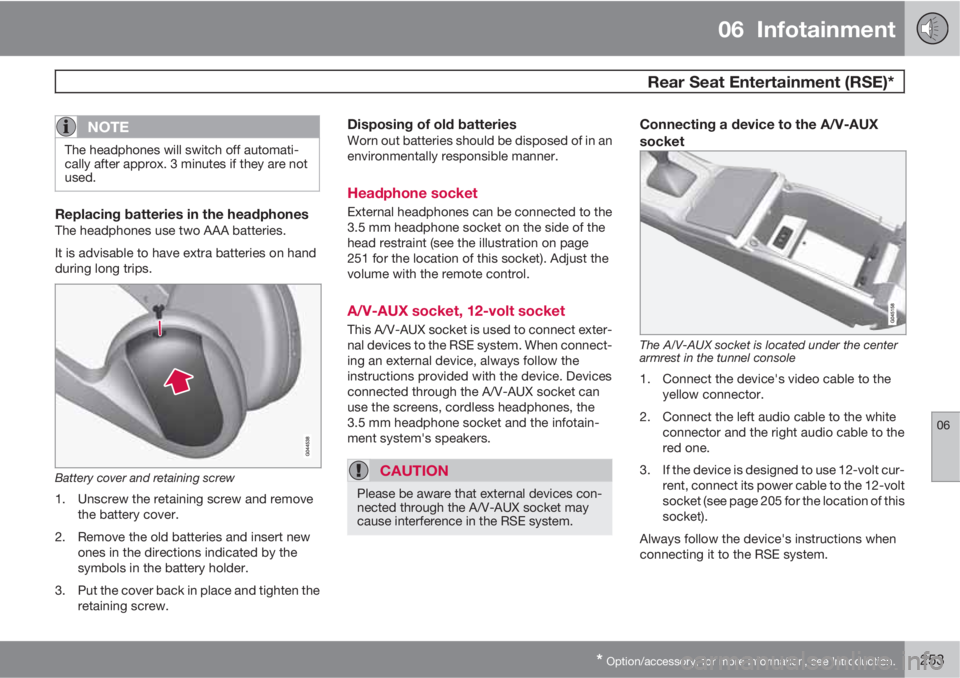

06 Infotainment
Rear Seat Entertainment (RSE)*
06
* Option/accessory, for more information, see Introduction.253
NOTE
The headphones will switch off automati-
cally after approx. 3 minutes if they are not
used.
Replacing batteries in the headphonesThe headphones use two AAA batteries.
It is advisable to have extra batteries on hand
during long trips.
Battery cover and retaining screw
1. Unscrew the retaining screw and remove
the battery cover.
2. Remove the old batteries and insert new
ones in the directions indicated by the
symbols in the battery holder.
3. Put the cover back in place and tighten the
retaining screw.
Disposing of old batteriesWorn out batteries should be disposed of in an
environmentally responsible manner.
Headphone socket
External headphones can be connected to the
3.5 mm headphone socket on the side of the
head restraint (see the illustration on page
251 for the location of this socket). Adjust the
volume with the remote control.
A/V-AUX socket, 12-volt socket
This A/V-AUX socket is used to connect exter-
nal devices to the RSE system. When connect-
ing an external device, always follow the
instructions provided with the device. Devices
connected through the A/V-AUX socket can
use the screens, cordless headphones, the
3.5 mm headphone socket and the infotain-
ment system's speakers.
CAUTION
Please be aware that external devices con-
nected through the A/V-AUX socket may
cause interference in the RSE system.
Connecting a device to the A/V-AUX
socket
The A/V-AUX socket is located under the center
armrest in the tunnel console
1. Connect the device's video cable to the
yellow connector.
2. Connect the left audio cable to the white
connector and the right audio cable to the
red one.
3. If the device is designed to use 12-volt cur-
rent, connect its power cable to the 12-volt
socket (see page 205 for the location of this
socket).
Always follow the device's instructions when
connecting it to the RSE system.
Page 256 of 372

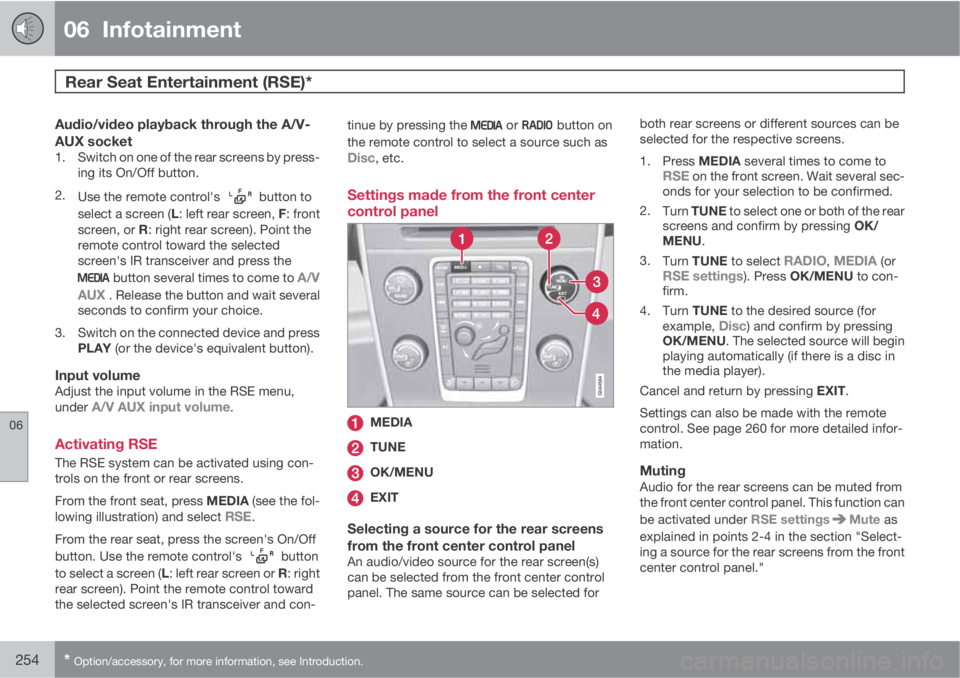

06 Infotainment
Rear Seat Entertainment (RSE)*
06
254* Option/accessory, for more information, see Introduction.
Audio/video playback through the A/V-
AUX socket
1. Switch on one of the rear screens by press-
ing its On/Off button.
2.
Use the remote control's
button to
select a screen (L: left rear screen, F: front
screen, or R: right rear screen). Point the
remote control toward the selected
screen's IR transceiver and press the
button several times to come to A/V
AUX
. Release the button and wait several
seconds to confirm your choice.
3. Switch on the connected device and press
PLAY (or the device's equivalent button).
Input volumeAdjust the input volume in the RSE menu,
under A/V AUX input volume.
Activating RSE
The RSE system can be activated using con-
trols on the front or rear screens.
From the front seat, press MEDIA (see the fol-
lowing illustration) and select
RSE.
From the rear seat, press the screen's On/Off
button. Use the remote control's
button
to select a screen (L: left rear screen or R: right
rear screen). Point the remote control toward
the selected screen's IR transceiver and con-tinue by pressing the
or button on
the remote control to select a source such as
Disc, etc.
Settings made from the front center
control panel
MEDIA
TUNE
OK/MENU
EXIT
Selecting a source for the rear screens
from the front center control panel
An audio/video source for the rear screen(s)
can be selected from the front center control
panel. The same source can be selected forboth rear screens or different sources can be
selected for the respective screens.
1.
Press MEDIA several times to come to
RSE on the front screen. Wait several sec-
onds for your selection to be confirmed.
2.
Turn TUNE to select one or both of the rear
screens and confirm by pressing OK/
MENU.
3.
Turn TUNE to select
RADIO, MEDIA (orRSE settings). Press OK/MENU to con-
firm.
4.
Turn TUNE to the desired source (for
example,
Disc) and confirm by pressing
OK/MENU. The selected source will begin
playing automatically (if there is a disc in
the media player).
Cancel and return by pressing EXIT.
Settings can also be made with the remote
control. See page 260 for more detailed infor-
mation.
MutingAudio for the rear screens can be muted from
the front center control panel. This function can
be activated under RSE settings
Mute as
explained in points 2-4 in the section "Select-
ing a source for the rear screens from the front
center control panel."
Page 257 of 372
06 Infotainment
Rear Seat Entertainment (RSE)*
06
* Option/accessory, for more information, see Introduction.255
Switching off the rear screensBoth of rear screens can be switched off from
the front center control panel. This function can
be activated under RSE settings
Display
off as explained in points 2-4 in the section
"Selecting a source for the rear screens from
the front center control panel" on page 254.
Press one of the remote control's number keys
(0 - 9) to switch the screens on again. The
screens will also be switched on when the igni-
tion is switched on.
Disabling the remote control (front)The IR transceiver for the front screen can be
switched off, which means that the remote
control cannot be used on the front screen.
This function can be activated under RSE
settings
Disable remote control (front) as
explained in points 2-4 in the section "Select-
ing a source for the rear screens from the front
center control panel" on page 254.
Rear screen settings2
When watching a video file, a pop-up menu can
be displayed by pressing
on the remote
control. The content of this menu will vary,
depending on the what is being played/viewed.
Day/Night modeThe screens can be set for three different light-
ing conditions: Auto, Day or Night.
Press
on the remote control and change
the setting under Day/Night mode on the
screen. See also page 257 for additional infor-
mation about the RSE menus.
Image settingsScreen settings can be made for brightness,
contrast, tint and color.
Press
on the remote control and change
the setting under Image settings on the
screen. See also page 257 for additional infor-
mation about the RSE menus.
Screen aspect ratio
Three screen aspect ratios can be set: Normal,Zoom 1 and Zoom 2.
Normal: The image on the screen is presented
at the normal aspect ratio (usually 4:3 or 16:9).
Zoom 1: Full-screen image, but parts of the
image will not be viewable.
Zoom 2: Full-screen image, but the aspect
ratio will be slightly distorted.
Unless otherwise indicated, the aspect ratio
will be
Normal.
Press
on the remote control and change
the setting under Aspect ratio on the screen.
See also page 257 for additional information
about the RSE menus.
Source menuThe content of each source's pop-up menu will
vary, depending on what is being played/
viewed, for example:
CD/DVD data menu orUSB menu. See also page 257 for additional
information about the RSE menus.
DVD menu3
If a DVD video is being viewed, this selection
will appear in the pop-up menu. See also page
257 for additional information about the RSE
menus.
2Applies only when watching video files.3Applies only to video DVDs.
Page 258 of 372
06 Infotainment
Rear Seat Entertainment (RSE)*
06
256* Option/accessory, for more information, see Introduction.
Rear screen menu settings
See also page 257 for additional information
about the RSE menus.
Random4
See page 231 for additional information.
Repeat folder5
See page 232 for additional information.
DivX Ÿ Ÿ Video On DemandThe media player can be registered to play
DivX VOD files from home-burned discs or
USB. The registration code can be found by
pressing the MY CAR button, and going to
Settings
InformationDivX® VOD
code. Go to www.divx.com/vod for additional
information.
USB hubA USB hub can be connected to the USB
socket (see page 235 for additional informa-
tion).
Music, video and radio
Listening to musicMusic from disc tracks/audio files can be
played through the media player's USB/AUX
sockets or from streaming audio files coming
from a Bluetooth
Ÿ-connected cell phone.
For more information about the media player,
see page 232, see page 234 for information
about the AUX/USB sockets and see page
237 for information about Bluetooth
Ÿ media.
1. Switch on the cordless headphones, select
CH.A for the left screen or CH.B for the
right screen.
2.
Use the remote control's
button to
select a screen (L: left rear screen, F: front
screen, or R: right rear screen). Point the
remote control toward a screen's IR trans-
ceiver and press
one or more times
to come to the desired source (
Disc, USB,AUX, etc.), release the button and wait
several seconds for your selection to be
accepted.
3. Insert a CD in the infotainment system's
media player, or connect an external
device to the vehicle's USB/AUX sockets
or via Bluetooth
Ÿ.
Playback and navigating in playlistsNavigate using the remote control's scroll
wheel (see the illustration on page 260) to
select the desired playlist or folder structure.
Use
to confirm the choice of a sub-folder
or to begin playing the selected track/audio file.
Tracks/audio files can also be played by press-
ing
on the remote control and change
tracks/audio files by pressing
/.
Stop playback by pressing
.
See page 232 for more information about the
media player.
Watching a videoVideo tracks/files can be viewed via the vehi-
cle's media player or the USB socket.
For more information about the media player,
see page 232 or page 234 for information about
the USB socket.
1. Switch on the cordless headphones, select
CH.A for the left screen or CH.B for the
right screen.
2.
Use the remote control's
button to
select a screen (L: left rear screen, F: front
screen, or R: right rear screen). Point the
remote control toward a screen's IR trans-
ceiver and press
one or more times
4Applies to CD audio, CDs/DVDs, USB and iPod Ÿ.5Applies to audio/video files on home-burned discs/USB only.
Page 259 of 372
06 Infotainment
Rear Seat Entertainment (RSE)*
06
* Option/accessory, for more information, see Introduction.257
to select the desired source (Disc or USB),
release the button and wait several sec-
onds for your selection to be accepted.
3. Insert a DVD in the infotainment system's
media player, or connect an external
device to the vehicle's USB socket.
Playback and navigation
Play a video track/video file by pressing
on the remote control and change tracks/video
files by pressing
/. Stop playback
by pressing
. See page231 for more infor-
mation about playback and navigation on
video DVDs and page 232 for information
about playing video files.
Fast forward/reverse
Press and hold the / buttons to fast
forward/reverse. Fast forward/reverse can be
done at several speeds for video files by briefly
pressing these buttons to increase the speed.
Fast forward/reverse is done at one speed for
audio files. Stop fast forward/reverse by press-
ing
, or the / buttons.
Listening to the radioYou can also listen to the infotainment sys-
tem's radio through the RSE system.1. Switch on the cordless headphones, select
CH.A for the left screen or CH.B for the
right screen.
2. Point the remote control toward a screen's
IR transceiver and press
one or more
times to come to the desired source (
AM,FM1, SAT1*, etc.), release the button and
wait several seconds for your selection to
be accepted.
3. Select a station using one of the preset
buttons (0 - 9) on the remote control or
press
/ to search for the next/
previous available station.
See page 221 for more information about the
radio.
RSE menus
IntroductionSettings in the RSE menus can be made from
the front center console control panel or by
using the remote control in the rear seat. A
source for one of the rear screens can be acti-
vated from the front center control panel and
certain settings for the rear screens can also be
made from this panel.
RSE front screen menus
To access this menu, begin by selecting RSEunder MEDIA by pressing this button on the
front center console (or by using the remote
control or the steering wheel keypad). Continue
by pressing OK/MENU to access the menu.
Turn TUNE to the desired selection and con-
firm by pressing OK/MENU.
Settings can be made for the left or right rear
screen separately or for both screens (
Left
RSE screen menu, Right RSE screen
menu and Both RSE screen menus):
Power off/Power on
RADIO
MEDIA
RSE settings
Mute
Display off
Disable remote control (front)
Reset all RSE settings
Page 260 of 372
06 Infotainment
Rear Seat Entertainment (RSE)*
06
258* Option/accessory, for more information, see Introduction.
RSE pop-up menu6
Press on the remote control while a video
file is playing to display the pop-up menu. Use
the scroll wheel and the buttons on the remote
to make menu selections. See page 260 for
detailed information about the remote control.
Screen aspect ration
Image settings
Day/Night mode
Source menu
7
DVD disc menu8
RSE rear screen menus
Press on the remote control when a
source (e.g.,
Disc) has been selected to access
the RSE-menus for the rear screens.
Use the scroll wheel and the buttons on the
remote to make menu selections. See page
260 for detailed information about the remote
control.
RADIO
The menus for AM, FM1, FM2, SAT1* andSAT2* are:
Day/Night mode
Display off
Reset all RSE settings
MEDIA
RSE CD Audio menuDisc menu
Random
Day/Night mode
Display off
Reset all CD settings
RSE CD/DVD Data menuDisc menu
Random
Repeat folder
DivX® VOD code
Day/Night mode
Display offReset all CD/DVD settings
RSE DVD Video menuDVD Video Menu
DVD disc menu
Subtitles
Audio tracks
Advanced settings
Day/Night mode
Display off
Reset all DVD settings
RSE USB menuUSB menu
Random
Repeat folder
DivX® VOD code
Select USB device
Day/Night mode
Display off
Reset all USB settings
6Applies only when a video file is playing.7The content of the menu will vary according to what is being played, for example CD/DVD data menu or USB menu.8Applies to DVD videos only
