VOLVO S80 2014 Owner´s Manual
Manufacturer: VOLVO, Model Year: 2014, Model line: S80, Model: VOLVO S80 2014Pages: 380, PDF Size: 10.83 MB

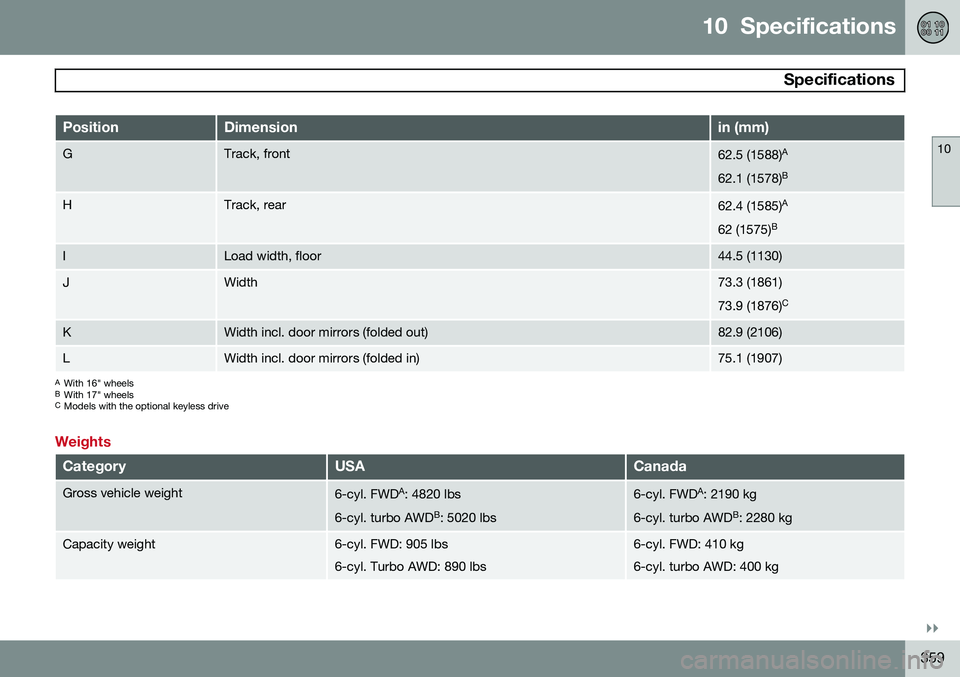

Page 361 of 380
10 Specifications
Specifications
10
}}
359
PositionDimensionin (mm)
GTrack, front62.5 (1588)A
62.1 (1578) B
HTrack, rear62.4 (1585)A
62 (1575) B
ILoad width, floor44.5 (1130)
JWidth73.3 (1861) 73.9 (1876) C
KWidth incl. door mirrors (folded out)82.9 (2106)
LWidth incl. door mirrors (folded in)75.1 (1907)
A
With 16" wheels
B With 17" wheels
C Models with the optional keyless drive
Weights
CategoryUSACanada
Gross vehicle weight6-cyl. FWD A
: 4820 lbs
6-cyl. turbo AWD B
: 5020 lbs6-cyl. FWD A
: 2190 kg
6-cyl. turbo AWD B
: 2280 kg
Capacity weight6-cyl. FWD: 905 lbs 6-cyl. Turbo AWD: 890 lbs6-cyl. FWD: 410 kg 6-cyl. turbo AWD: 400 kg

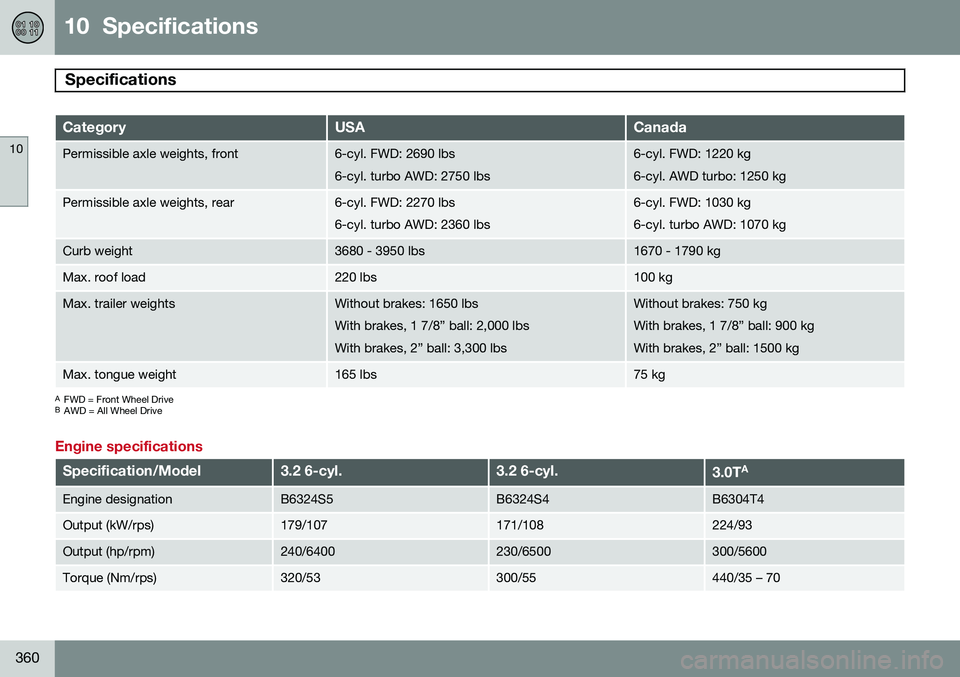

Page 362 of 380
10 Specifications
Specifications
10
360
CategoryUSACanada
Permissible axle weights, front6-cyl. FWD: 2690 lbs 6-cyl. turbo AWD: 2750 lbs6-cyl. FWD: 1220 kg 6-cyl. AWD turbo: 1250 kg
Permissible axle weights, rear6-cyl. FWD: 2270 lbs 6-cyl. turbo AWD: 2360 lbs6-cyl. FWD: 1030 kg 6-cyl. turbo AWD: 1070 kg
Curb weight3680 - 3950 lbs1670 - 1790 kg
Max. roof load220 lbs100 kg
Max. trailer weightsWithout brakes: 1650 lbs With brakes, 1 7/8” ball: 2,000 lbsWith brakes, 2” ball: 3,300 lbsWithout brakes: 750 kg With brakes, 1 7/8” ball: 900 kgWith brakes, 2” ball: 1500 kg
Max. tongue weight165 lbs75 kg
AFWD = Front Wheel Drive
B AWD = All Wheel Drive
Engine specifications
Specification/Model3.2 6-cyl.3.2 6-cyl.3.0T A
Engine designationB6324S5B6324S4B6304T4
Output (kW/rps)179/107171/108224/93
Output (hp/rpm)240/6400230/6500300/5600
Torque (Nm/rps)320/53300/55440/35 – 70

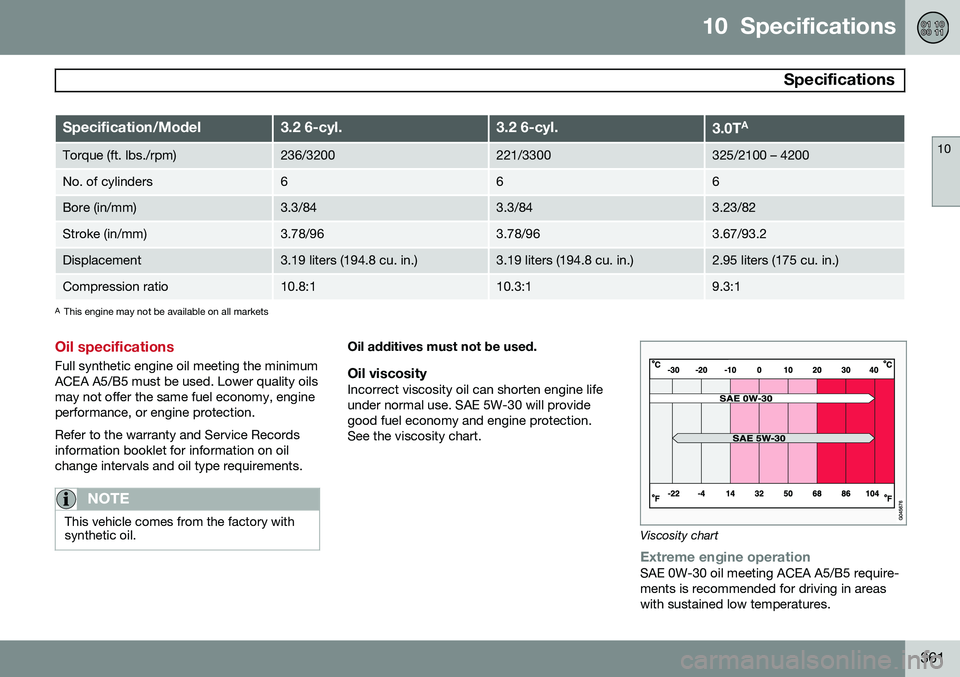

Page 363 of 380
10 Specifications
Specifications
10
361
Specification/Model3.2 6-cyl.3.2 6-cyl.3.0TA
Torque (ft. lbs./rpm)236/3200221/3300325/2100 – 4200
No. of cylinders666
Bore (in/mm)3.3/843.3/843.23/82
Stroke (in/mm)3.78/963.78/963.67/93.2
Displacement3.19 liters (194.8 cu. in.)3.19 liters (194.8 cu. in.)2.95 liters (175 cu. in.)
Compression ratio10.8:110.3:19.3:1
A
This engine may not be available on all markets
Oil specifications
Full synthetic engine oil meeting the minimum ACEA A5/B5 must be used. Lower quality oilsmay not offer the same fuel economy, engineperformance, or engine protection. Refer to the warranty and Service Records information booklet for information on oilchange intervals and oil type requirements.
NOTE
This vehicle comes from the factory with synthetic oil.
Oil additives must not be used.
Oil viscosityIncorrect viscosity oil can shorten engine life under normal use. SAE 5W-30 will providegood fuel economy and engine protection.See the viscosity chart.
Viscosity chart
Extreme engine operationSAE 0W-30 oil meeting ACEA A5/B5 require- ments is recommended for driving in areaswith sustained low temperatures.

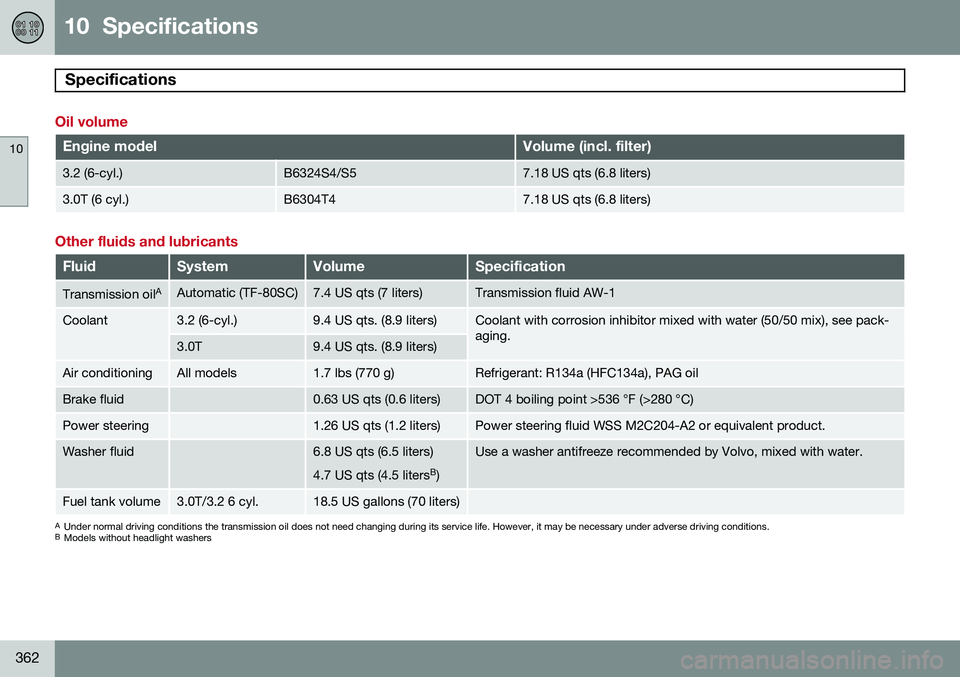

Page 364 of 380
10 Specifications
Specifications
10
362
Oil volume
Engine modelVolume (incl. filter)
3.2 (6-cyl.)B6324S4/S57.18 US qts (6.8 liters)
3.0T (6 cyl.)B6304T47.18 US qts (6.8 liters)
Other fluids and lubricants
FluidSystemVolumeSpecification
Transmission oilAAutomatic (TF-80SC)7.4 US qts (7 liters)Transmission fluid AW-1
Coolant3.2 (6-cyl.)9.4 US qts. (8.9 liters)Coolant with corrosion inhibitor mixed with water (50/50 mix), see pack- aging.
3.0T9.4 US qts. (8.9 liters)
Air conditioningAll models1.7 lbs (770 g)Refrigerant: R134a (HFC134a), PAG oil
Brake fluid0.63 US qts (0.6 liters)DOT 4 boiling point >536 °F (>280 °C)
Power steering1.26 US qts (1.2 liters)Power steering fluid WSS M2C204-A2 or equivalent product.
Washer fluid6.8 US qts (6.5 liters) 4.7 US qts (4.5 liters B
)Use a washer antifreeze recommended by Volvo, mixed with water.
Fuel tank volume3.0T/3.2 6 cyl.18.5 US gallons (70 liters)
A Under normal driving conditions the transmission oil does not need changing during its service life. However, it may be necessary under adverse driving conditions.
B Models without headlight washers
Page 365 of 380
10 Specifications
Specifications
10
363

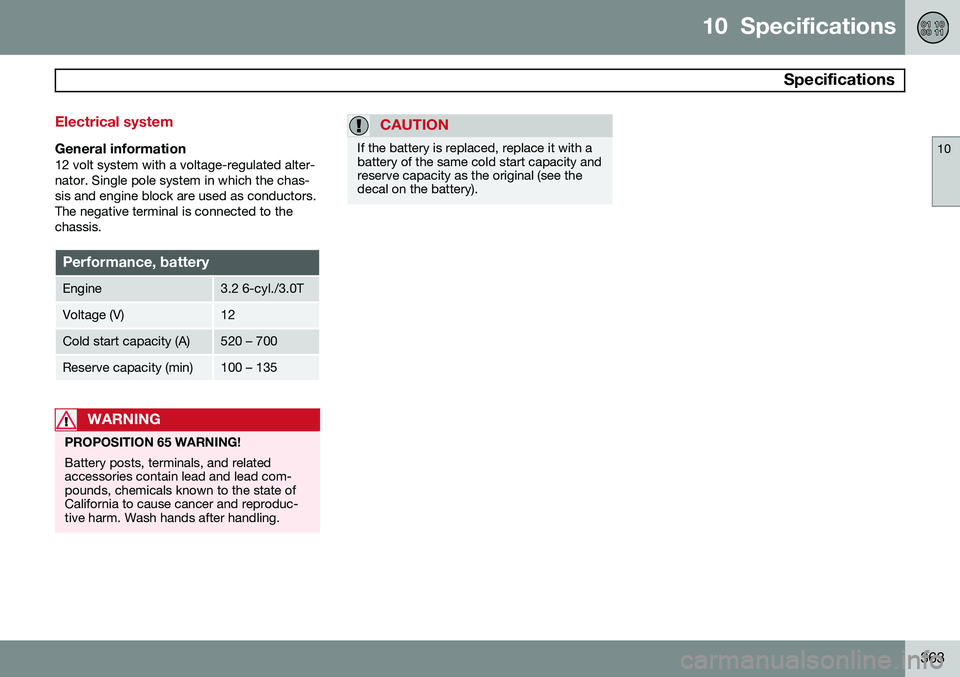

Electrical system
General information12 volt system with a voltage-regulated alter- nator. Single pole system in which the chas-sis and engine block are used as conductors.The negative terminal is connected to thechassis.
Performance, battery
Engine3.2 6-cyl./3.0T
Voltage (V)12
Cold start capacity (A)520 – 700
Reserve capacity (min)100 – 135
WARNING
PROPOSITION 65 WARNING! Battery posts, terminals, and related accessories contain lead and lead com-pounds, chemicals known to the state ofCalifornia to cause cancer and reproduc-tive harm. Wash hands after handling.
CAUTION
If the battery is replaced, replace it with a battery of the same cold start capacity andreserve capacity as the original (see thedecal on the battery).

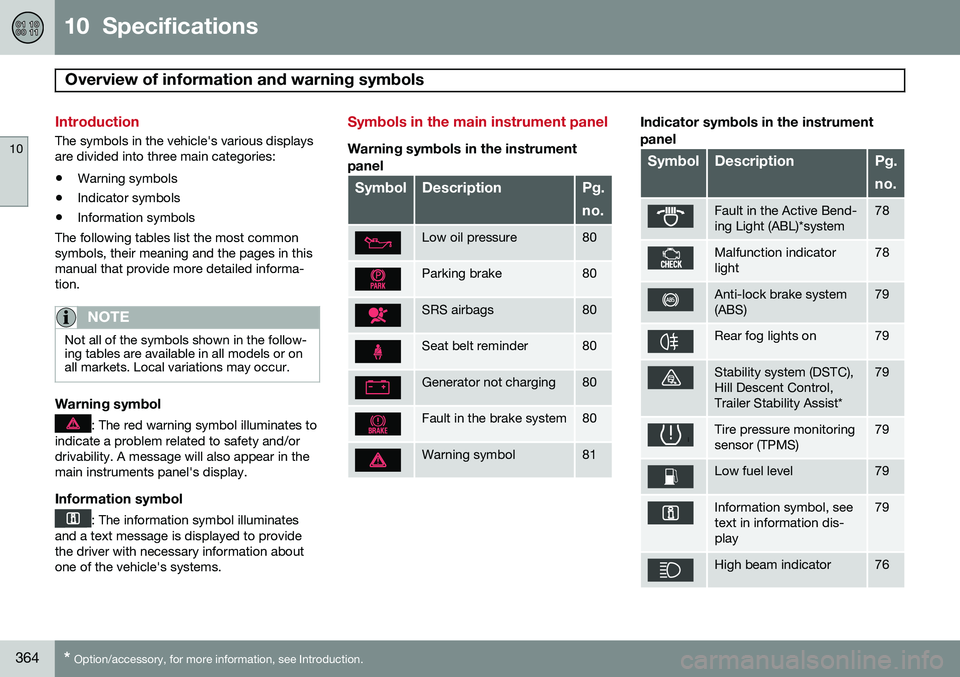

Page 366 of 380
10 Specifications
Overview of information and warning symbols
10
364* Option/accessory, for more information, see Introduction.
Introduction
The symbols in the vehicle's various displays are divided into three main categories:
• Warning symbols
• Indicator symbols
• Information symbols
The following tables list the most commonsymbols, their meaning and the pages in thismanual that provide more detailed informa-tion.
NOTE
Not all of the symbols shown in the follow- ing tables are available in all models or onall markets. Local variations may occur.
Warning symbol
: The red warning symbol illuminates to
indicate a problem related to safety and/or drivability. A message will also appear in themain instruments panel's display.
Information symbol
: The information symbol illuminates
and a text message is displayed to provide the driver with necessary information aboutone of the vehicle's systems.
Symbols in the main instrument panel
Warning symbols in the instrument
panel
SymbolDescriptionPg. no.
Low oil pressure80
Parking brake80
SRS airbags80
Seat belt reminder80
Generator not charging80
Fault in the brake system80
Warning symbol81
Indicator symbols in the instrument panel
SymbolDescriptionPg. no.
Fault in the Active Bend- ing Light (ABL)*system78
Malfunction indicator light78
Anti-lock brake system (ABS)79
Rear fog lights on79
Stability system (DSTC), Hill Descent Control,Trailer Stability Assist*79
Tire pressure monitoring sensor (TPMS)79
Low fuel level79
Information symbol, see text in information dis-play79
High beam indicator76

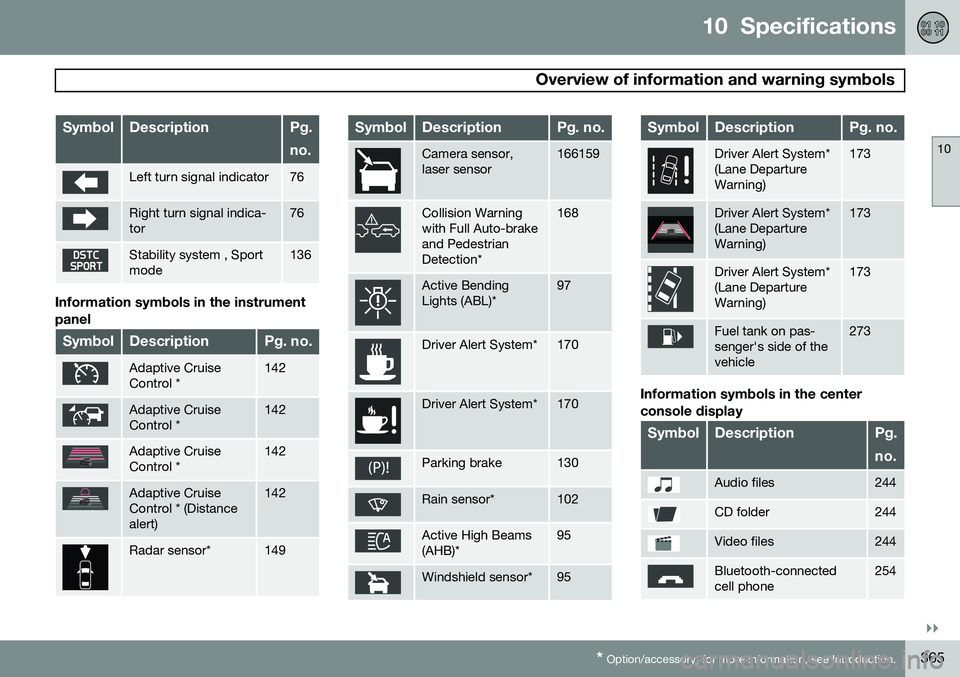

Page 367 of 380
10 Specifications
Overview of information and warning symbols
10
}}
* Option/accessory, for more information, see Introduction.365
SymbolDescriptionPg. no.
Left turn signal indicator76
Right turn signal indica- tor76
Stability system , Sport mode136
Information symbols in the instrument panel
SymbolDescriptionPg. no.
Adaptive Cruise Control *142
Adaptive Cruise Control *142
Adaptive Cruise Control *142
Adaptive Cruise Control * (Distancealert)142
Radar sensor*149
SymbolDescriptionPg. no.
Camera sensor, laser sensor166159
Collision Warning with Full Auto-brakeand PedestrianDetection*168
Active Bending Lights (ABL)*97
Driver Alert System*170
Driver Alert System*170
Parking brake130
Rain sensor*102
Active High Beams (AHB)*95
Windshield sensor*95
SymbolDescriptionPg. no.
Driver Alert System* (Lane DepartureWarning)173
Driver Alert System* (Lane DepartureWarning)173
Driver Alert System* (Lane DepartureWarning)173
Fuel tank on pas- senger's side of thevehicle273
Information symbols in the center console display
SymbolDescriptionPg. no.
Audio files244
CD folder244
Video files244
Bluetooth-connected cell phone254

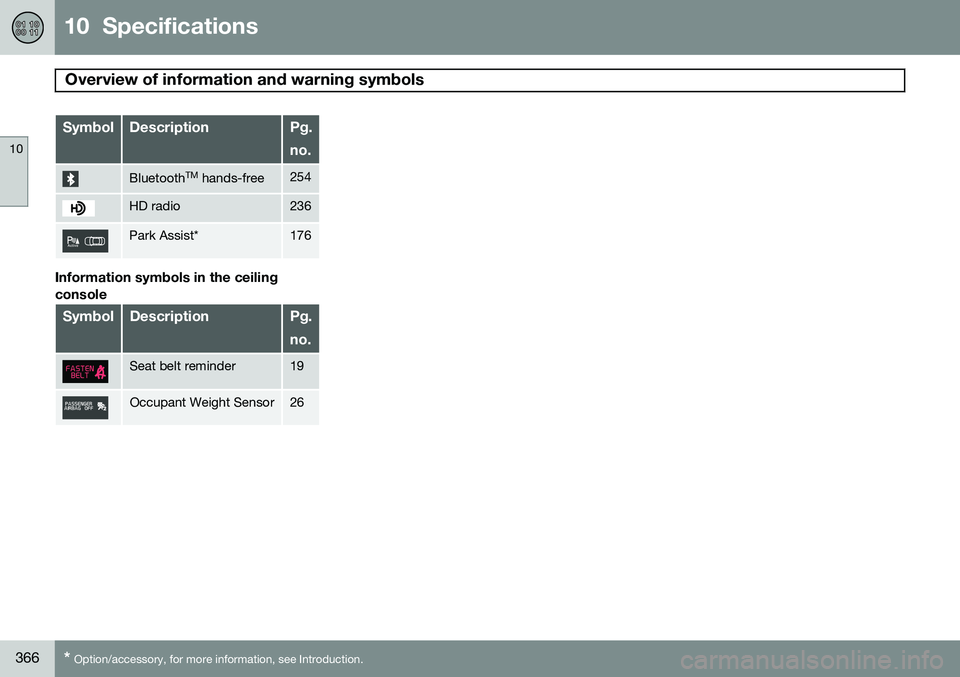

Page 368 of 380
10 Specifications
Overview of information and warning symbols
10
366* Option/accessory, for more information, see Introduction.
SymbolDescriptionPg. no.
Bluetooth TM
hands-free254
HD radio236
Park Assist*176
Information symbols in the ceiling console
SymbolDescriptionPg. no.
Seat belt reminder19
Occupant Weight Sensor26

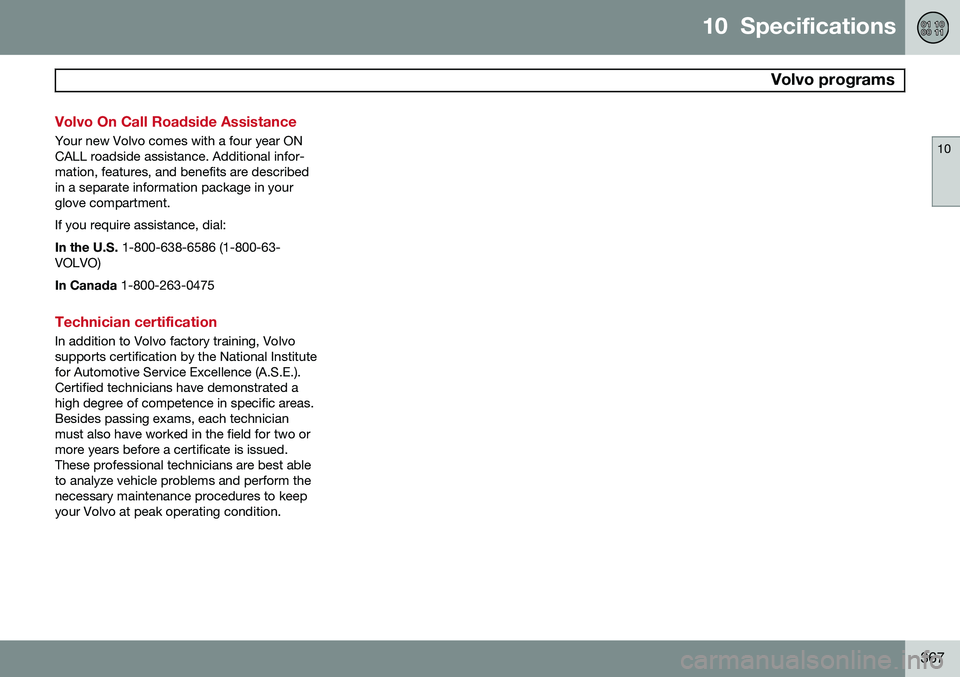

Page 369 of 380
10 Specifications
Volvo programs
10
367
Volvo On Call Roadside Assistance
Your new Volvo comes with a four year ON CALL roadside assistance. Additional infor-mation, features, and benefits are describedin a separate information package in yourglove compartment. If you require assistance, dial:In the U.S. 1-800-638-6586 (1-800-63-
VOLVO)In Canada 1-800-263-0475
Technician certification
In addition to Volvo factory training, Volvo supports certification by the National Institutefor Automotive Service Excellence (A.S.E.).Certified technicians have demonstrated ahigh degree of competence in specific areas.Besides passing exams, each technicianmust also have worked in the field for two ormore years before a certificate is issued.These professional technicians are best ableto analyze vehicle problems and perform thenecessary maintenance procedures to keepyour Volvo at peak operating condition.
Page 370 of 380

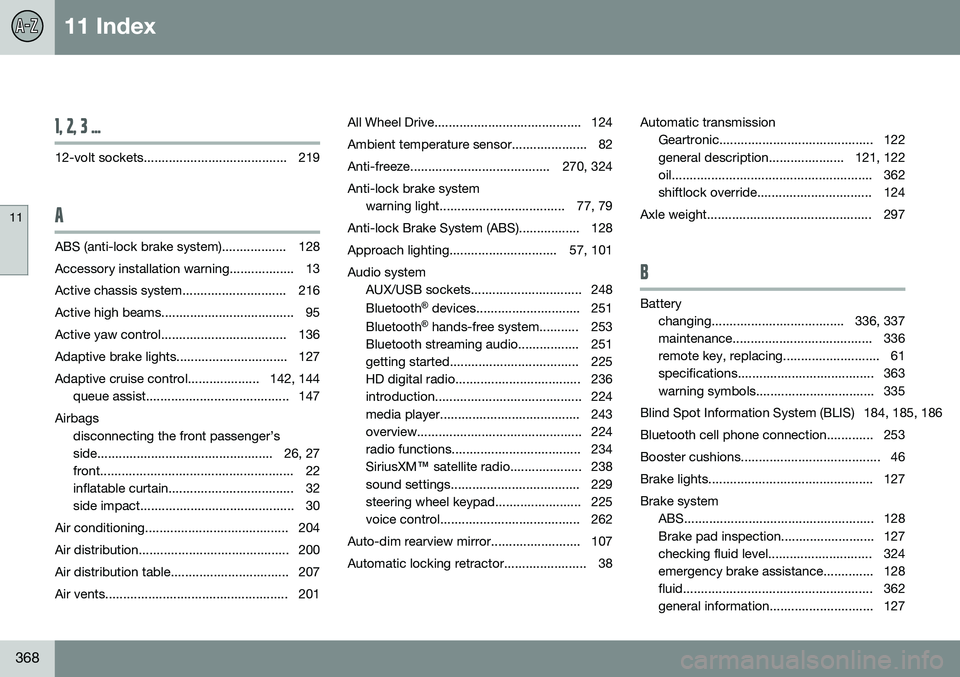

11 Index
11
368
1, 2, 3 ...
12-volt sockets........................................ 219
A
ABS (anti-lock brake system).................. 128
Accessory installation warning.................. 13
Active chassis system............................. 216
Active high beams..................................... 95Active yaw control................................... 136
Adaptive brake lights............................... 127
Adaptive cruise control.................... 142, 144 queue assist........................................ 147
Airbags disconnecting the front passenger’s
side................................................. 26, 27
front...................................................... 22
inflatable curtain................................... 32
side impact........................................... 30
Air conditioning........................................ 204
Air distribution.......................................... 200
Air distribution table................................. 207
Air vents................................................... 201 All Wheel Drive......................................... 124
Ambient temperature sensor..................... 82
Anti-freeze....................................... 270, 324Anti-lock brake system
warning light................................... 77, 79
Anti-lock Brake System (ABS)................. 128
Approach lighting.............................. 57, 101Audio system AUX/USB sockets............................... 248 Bluetooth ®
devices............................. 251
Bluetooth ®
hands-free system........... 253
Bluetooth streaming audio................. 251
getting started.................................... 225
HD digital radio................................... 236
introduction......................................... 224
media player....................................... 243
overview.............................................. 224
radio functions.................................... 234SiriusXM ™ satellite radio.................... 238
sound settings.................................... 229
steering wheel keypad........................ 225
voice control....................................... 262
Auto-dim rearview mirror......................... 107
Automatic locking retractor....................... 38 Automatic transmission
Geartronic........................................... 122
general description..................... 121, 122
oil........................................................ 362
shiftlock override................................ 124
Axle weight.............................................. 297
B
Battery changing..................................... 336, 337
maintenance....................................... 336
remote key, replacing........................... 61
specifications...................................... 363
warning symbols................................. 335
Blind Spot Information System (BLIS) 184, 185, 186
Bluetooth cell phone connection............. 253
Booster cushions....................................... 46
Brake lights.............................................. 127Brake system ABS..................................................... 128
Brake pad inspection.......................... 127
checking fluid level............................. 324
emergency brake assistance.............. 128
fluid..................................................... 362
general information............................. 127
