technical data VOLVO S80 2016 Owner´s Manual

11 Specifications
11
358
Engine specifications
The following table provides technical data for the respective engines. Engine specificationsfor Special Edition vehicles may vary.Some of the engines listed here may notbe available in all markets.
Engine specifications
Specification/Model2.0 4-cyl. T11
Engine designationB4204T11
Output (kW/rps)179/93
Output (hp/rpm)240/5600
Torque (Nm/rps)350/25-75
Torque (ft. lbs./rpm)258/1500–4500
No. of cylinders4
Bore (in/mm)3.27/82
Stroke (in/mm)3.63/93.2
Displacement1.97 liters (120.2 cu. in.)
Compression ratio10.8:1
Related information
•
Coolant – specification and volume (p. 361)
• Oil specifications (p. 359)
• Oil volume (p. 360)

11 Specifications
11
360

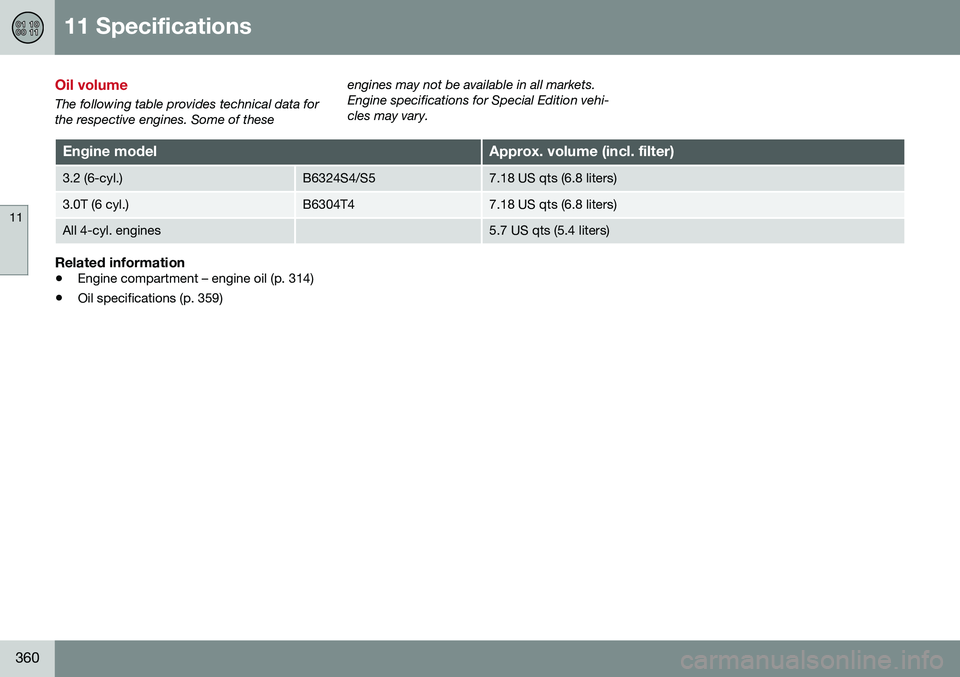

Oil volume
The following table provides technical data for the respective engines. Some of theseengines may not be available in all markets.Engine specifications for Special Edition vehi-cles may vary.
Engine modelApprox. volume (incl. filter)
3.2 (6-cyl.)B6324S4/S57.18 US qts (6.8 liters)
3.0T (6 cyl.)B6304T47.18 US qts (6.8 liters)
All 4-cyl. engines5.7 US qts (5.4 liters)
Related information
•
Engine compartment – engine oil (p. 314)
• Oil specifications (p. 359)
