MAINTENANCE AND SERVICE
* Option/accessory.

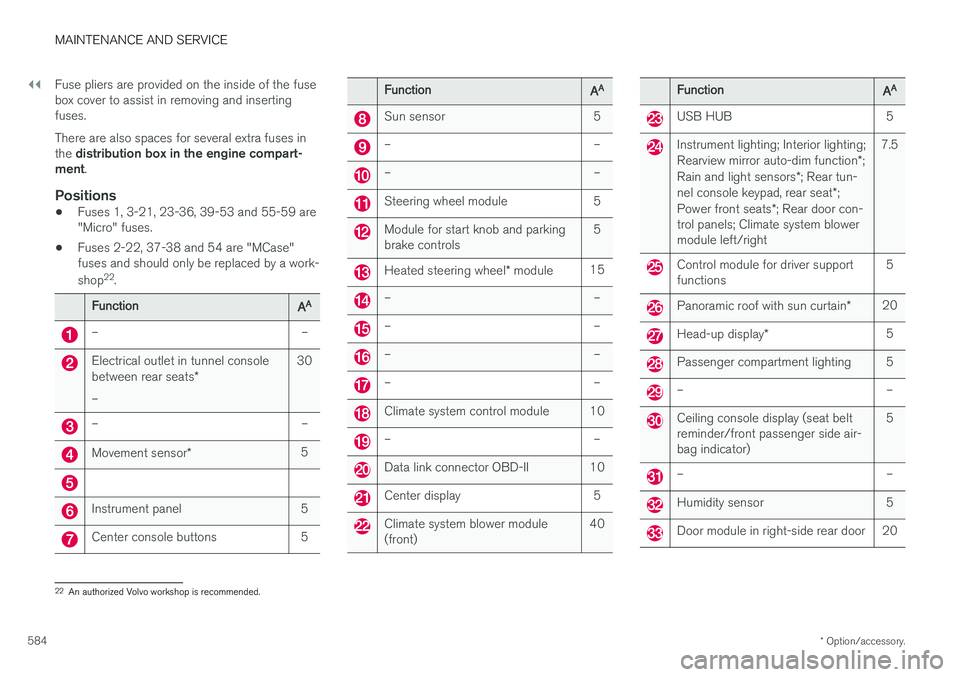

584 Fuse pliers are provided on the inside of the fuse box cover to assist in removing and insertingfuses. There are also spaces for several extra fuses in the
distribution box in the engine compart-
ment .
Positions
•Fuses 1, 3-21, 23-36, 39-53 and 55-59 are "Micro" fuses.
• Fuses 2-22, 37-38 and 54 are "MCase"fuses and should only be replaced by a work- shop 22
.
FunctionAA
– –
Electrical outlet in tunnel console between rear seats *
– 30
– –
Movement sensor
* 5
Instrument panel 5
Center console buttons 5
FunctionAA
Sun sensor 5
– –
– –
Steering wheel module 5
Module for start knob and parking brake controls 5
Heated steering wheel
* module 15
– –
– –
– –
– –
Climate system control module 10
– –
Data link connector OBD-II 10
Center display 5
Climate system blower module (front) 40
FunctionAA
USB HUB 5
Instrument lighting; Interior lighting; Rearview mirror auto-dim function
*;
Rain and light sensors *; Rear tun-
nel console keypad, rear seat *;
Power front seats *; Rear door con-
trol panels; Climate system blower module left/right 7.5
Control module for driver support functions
5
Panoramic roof with sun curtain
*20
Head-up display
* 5
Passenger compartment lighting 5
– –
Ceiling console display (seat belt reminder/front passenger side air-bag indicator) 5
– –
Humidity sensor 5
Door module in right-side rear door 20
22
An authorized Volvo workshop is recommended.

MAINTENANCE AND SERVICE
598

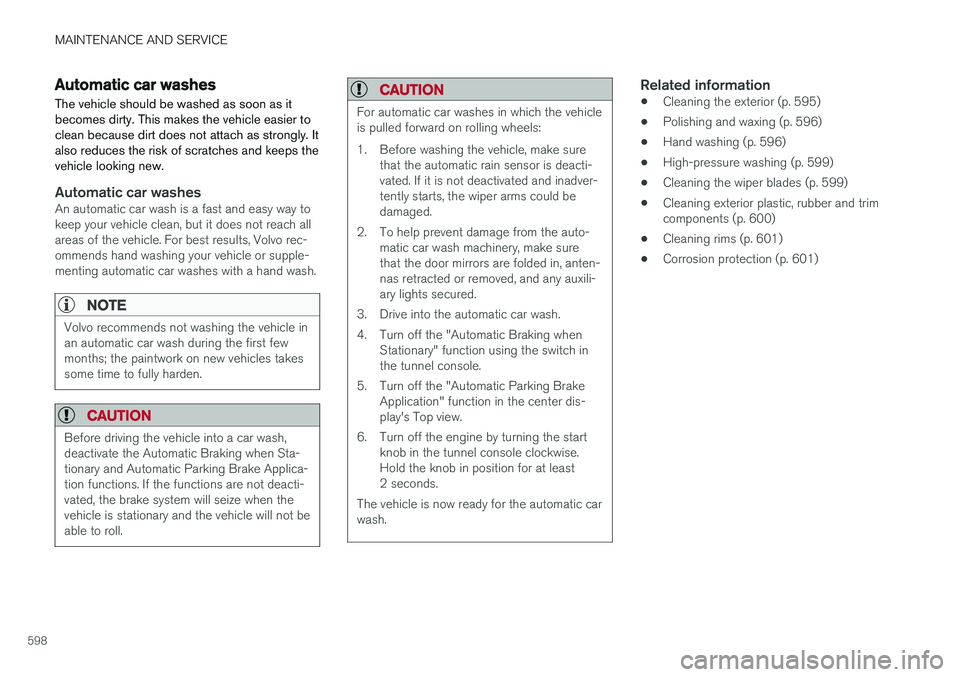

Automatic car washes The vehicle should be washed as soon as it becomes dirty. This makes the vehicle easier toclean because dirt does not attach as strongly. Italso reduces the risk of scratches and keeps thevehicle looking new.
Automatic car washesAn automatic car wash is a fast and easy way to keep your vehicle clean, but it does not reach allareas of the vehicle. For best results, Volvo rec-ommends hand washing your vehicle or supple-menting automatic car washes with a hand wash.
NOTE
Volvo recommends not washing the vehicle in an automatic car wash during the first fewmonths; the paintwork on new vehicles takessome time to fully harden.
CAUTION
Before driving the vehicle into a car wash, deactivate the Automatic Braking when Sta-tionary and Automatic Parking Brake Applica-tion functions. If the functions are not deacti-vated, the brake system will seize when thevehicle is stationary and the vehicle will not beable to roll.
CAUTION
For automatic car washes in which the vehicle is pulled forward on rolling wheels:
1. Before washing the vehicle, make surethat the automatic rain sensor is deacti- vated. If it is not deactivated and inadver-tently starts, the wiper arms could bedamaged.
2. To help prevent damage from the auto- matic car wash machinery, make surethat the door mirrors are folded in, anten-nas retracted or removed, and any auxili-ary lights secured.
3. Drive into the automatic car wash.
4. Turn off the "Automatic Braking when Stationary" function using the switch in the tunnel console.
5. Turn off the "Automatic Parking Brake Application" function in the center dis-play's Top view.
6. Turn off the engine by turning the start knob in the tunnel console clockwise.Hold the knob in position for at least2 seconds.
The vehicle is now ready for the automatic carwash.
Related information
• Cleaning the exterior (p. 595)
• Polishing and waxing (p. 596)
• Hand washing (p. 596)
• High-pressure washing (p. 599)
• Cleaning the wiper blades (p. 599)
• Cleaning exterior plastic, rubber and trim components (p. 600)
• Cleaning rims (p. 601)
• Corrosion protection (p. 601)

MAINTENANCE AND SERVICE
}}
* Option/accessory.605
NOTE

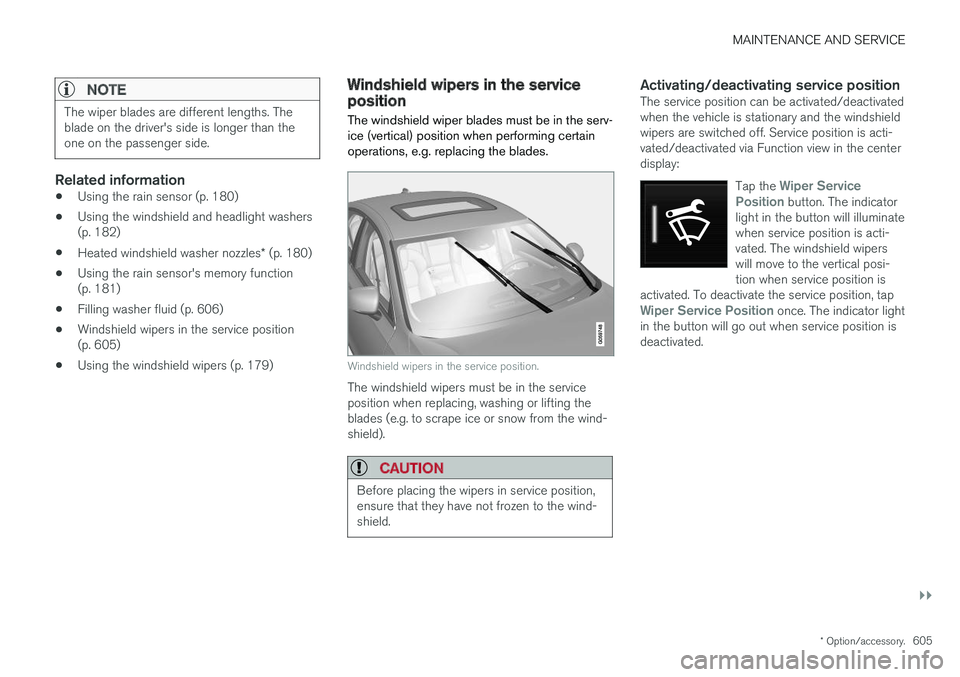

The wiper blades are different lengths. The blade on the driver's side is longer than theone on the passenger side.
Related information
•Using the rain sensor (p. 180)
• Using the windshield and headlight washers (p. 182)
• Heated windshield washer nozzles
* (p. 180)
• Using the rain sensor's memory function(p. 181)
• Filling washer fluid (p. 606)
• Windshield wipers in the service position(p. 605)
• Using the windshield wipers (p. 179)
Windshield wipers in the serviceposition
The windshield wiper blades must be in the serv- ice (vertical) position when performing certainoperations, e.g. replacing the blades.
Windshield wipers in the service position.
The windshield wipers must be in the service position when replacing, washing or lifting theblades (e.g. to scrape ice or snow from the wind-shield).
CAUTION
Before placing the wipers in service position, ensure that they have not frozen to the wind-shield.
Activating/deactivating service positionThe service position can be activated/deactivated when the vehicle is stationary and the windshieldwipers are switched off. Service position is acti-vated/deactivated via Function view in the centerdisplay:
Tap the
Wiper Service
Position button. The indicator
light in the button will illuminate when service position is acti-vated. The windshield wiperswill move to the vertical posi-tion when service position is
activated. To deactivate the service position, tap
Wiper Service Position once. The indicator light
in the button will go out when service position is deactivated.

||
MAINTENANCE AND SERVICE
* Option/accessory.

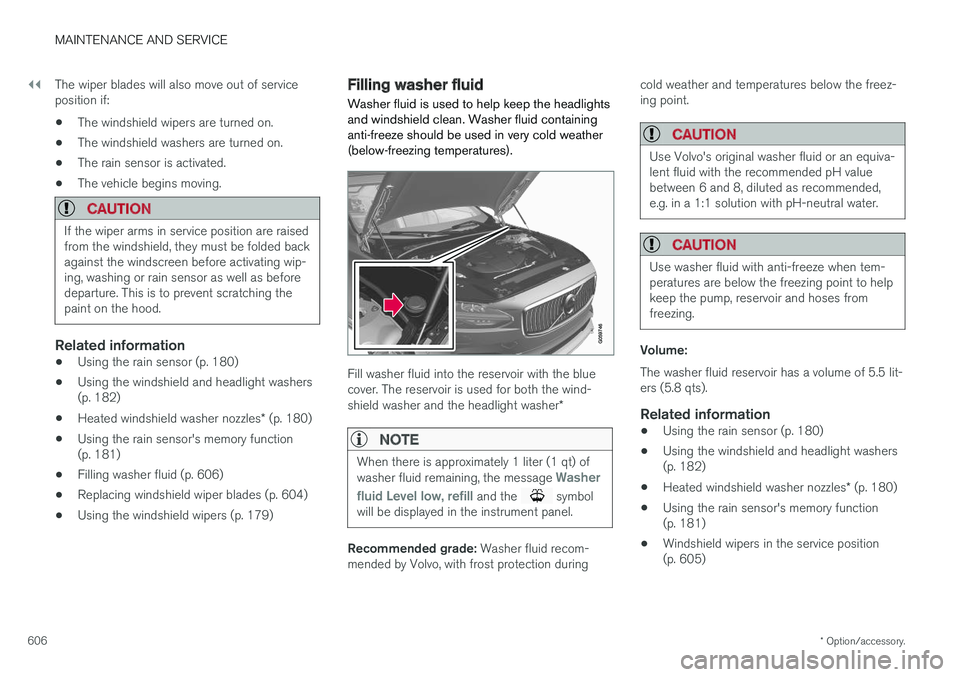

606 The wiper blades will also move out of service position if:
• The windshield wipers are turned on.
• The windshield washers are turned on.
• The rain sensor is activated.
• The vehicle begins moving.
CAUTION
If the wiper arms in service position are raised from the windshield, they must be folded backagainst the windscreen before activating wip-ing, washing or rain sensor as well as beforedeparture. This is to prevent scratching thepaint on the hood.
Related information
• Using the rain sensor (p. 180)
• Using the windshield and headlight washers (p. 182)
• Heated windshield washer nozzles
* (p. 180)
• Using the rain sensor's memory function(p. 181)
• Filling washer fluid (p. 606)
• Replacing windshield wiper blades (p. 604)
• Using the windshield wipers (p. 179)
Filling washer fluid
Washer fluid is used to help keep the headlights and windshield clean. Washer fluid containinganti-freeze should be used in very cold weather(below-freezing temperatures).
Fill washer fluid into the reservoir with the blue cover. The reservoir is used for both the wind- shield washer and the headlight washer *
NOTE
When there is approximately 1 liter (1 qt) of washer fluid remaining, the message Washer
fluid
Level low, refill and the symbol
will be displayed in the instrument panel.
Recommended grade: Washer fluid recom-
mended by Volvo, with frost protection during cold weather and temperatures below the freez- ing point.
CAUTION
Use Volvo's original washer fluid or an equiva- lent fluid with the recommended pH valuebetween 6 and 8, diluted as recommended,e.g. in a 1:1 solution with pH-neutral water.
CAUTION
Use washer fluid with anti-freeze when tem- peratures are below the freezing point to helpkeep the pump, reservoir and hoses fromfreezing.
Volume: The washer fluid reservoir has a volume of 5.5 lit- ers (5.8 qts).
Related information
•
Using the rain sensor (p. 180)
• Using the windshield and headlight washers(p. 182)
• Heated windshield washer nozzles
* (p. 180)
• Using the rain sensor's memory function(p. 181)
• Windshield wipers in the service position(p. 605)

INDEX
623
1, 2, 3 ...
4WD 413
A
ABSanti-lock brakes 399
AC (Air conditioning) 224
ACC - Adaptive Cruise Control 284, 287, 288, 289, 290, 291, 293, 294, 295, 296, 298
Accessories and extra equipment 35 installation 36
Accessory installation warning 36
Active Bending Lights 157
Adapting driving characteristics 262, 413
Adaptive Cruise Control 284, 287, 288, 289, 290, 291, 293, 294, 295, 296, 298
change cruise control functionality 296
function 284
manage speed 288, 289
pass 293
radar sensor 315
set time interval 290, 291
troubleshooting 295
Adjusting the steering wheel 193
Airbag 52 activation/deactivation 56
driver's side 53
passenger side 53, 56
Air bag, see Airbag 52
Air conditioning 224Air conditioning, fluid volume and grade 620
Air distribution 201 air vents 201, 203
changing 202
defrosting 217
recirculation 216
table showing options 205
Air quality 199, 200 allergy and asthma 200
passenger compartment filter 201
Air recirculation 216
Alarm 257 deactivating 258
Allergy and asthma-inducing substances 200
All Wheel Drive, AWD 413
All Wheel Drive (AWD) 413
All Wheel Drive (four-wheel drive) 413
Android Auto 476, 478 Antenna location 247Apple CarPlay 473, 475
Approach lighting 160
Apps 445
Assistance at risk of collision 361, 362, 363, 364, 365, 366, 367, 369
Audio and media 444Audio system HD digital radio 455 SiriusXM ® Satellite radio 456, 457, 458
Auto-climate 215
Auto hold 405
Auto-hold brakes 405 activate and deactivate 406
after collision 407
Automatic car wash 598 Automatic engine stop auto-stop 418
Automatic high beam 155
Automatic locking 251
Automatic relocking 231, 244
Automatic Speed Limiter 271, 273, 274
Automatic transmission 408 kickdown 412
oil 619
INDEX

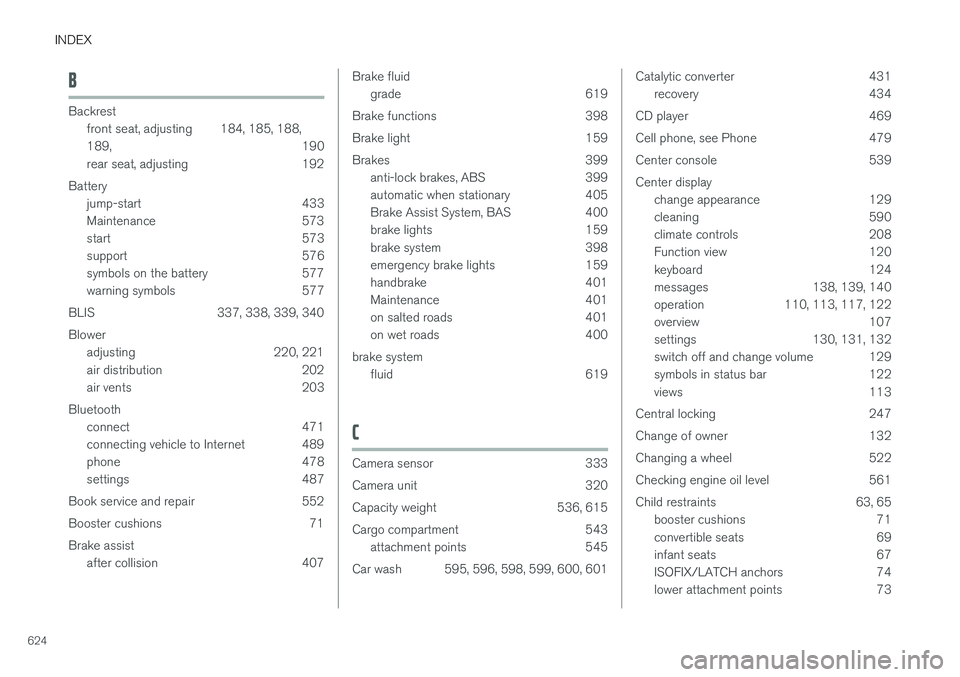

INDEX
624
B
Backrestfront seat, adjusting 184, 185, 188, 189 , 190
rear seat, adjusting 192
Battery jump-start 433
Maintenance 573
start 573
support 576
symbols on the battery 577
warning symbols 577
BLIS 337, 338, 339, 340 Blower adjusting 220, 221
air distribution 202
air vents 203
Bluetooth connect 471
connecting vehicle to Internet 489
phone 478
settings 487
Book service and repair 552
Booster cushions 71Brake assist after collision 407
Brake fluidgrade 619
Brake functions 398
Brake light 159
Brakes 399 anti-lock brakes, ABS 399
automatic when stationary 405
Brake Assist System, BAS 400
brake lights 159
brake system 398
emergency brake lights 159
handbrake 401
Maintenance 401
on salted roads 401
on wet roads 400
brake system fluid 619
C
Camera sensor 333
Camera unit 320
Capacity weight 536, 615
Cargo compartment 543
attachment points 545
Car wash 595, 596, 598, 599, 600, 601
Catalytic converter 431 recovery 434
CD player 469
Cell phone, see Phone 479
Center console 539Center display change appearance 129
cleaning 590
climate controls 208
Function view 120
keyboard 124
messages 138, 139, 140
operation 110, 113, 117, 122
overview 107
settings 130, 131, 132
switch off and change volume 129
symbols in status bar 122
views 113
Central locking 247
Change of owner 132
Changing a wheel 522
Checking engine oil level 561
Child restraints 63, 65 booster cushions 71
convertible seats 69
infant seats 67
ISOFIX/LATCH anchors 74
lower attachment points 73

INDEX
625
recalls and registration 65
top tether anchors 72
Child safety 63
Child safety locks 250
City Safety 324, 325, 327, 328, 333, 335
City Safety in crossing traffic 330, 331City Safety when evasive maneuver preven- ted 332
Cleaning 592, 594, 595 automatic car wash 598
car wash 595, 596, 598, 599, 600, 601
center display 590
Seat belts 592
textile upholstery 590, 592, 593
upholstery 590, 592, 593, 594, 595
wheels 601
Cleaning wheels 601
Cleaning wiper blades 599
Clean Zone 199
Clean Zone Interior Package 200
Climate 196 auto-regulation 215
blower control 220, 221
perceived temperature 197
Sensors 197
temperature control 222, 223, 224
voice control 198
zones 196
Climate controls 208 center display 208
rear seat 208
Climate system 196, 208 Refrigerant 620
repairs 558
Clock, setting 90
Collision 42, 47, 52, 61 Collision warner detection of pedestrians 328
radar sensor 315
Collision warning 324, 336
Color code, paintwork 603
Color codes 603
Compass 441 calibration 441
Condensation in headlights 596, 598, 599, 600
Connecting vehicle to Internet No connection or poor connection 492
via a mobile device (WiFi) 489
via mobile device (Bluetooth) 489
via vehicle's modem 490
Connect phone 479
Contact information 26Convertible seats 69
coolant 619
Coolant, filling 562Cooling system overheating 431
Cornering illumination 158
Corner Traction Control 264
Corrosion protection 601
Crash, see Collision 42
Crash event data 33
Cross Traffic Alert – CTA 342, 343, 344, 345
Cruise control 275, 276 manage speed 276, 277
temporary deactivation 278, 279
turn off 279
CTA – Cross Traffic Alert 342, 343, 344, 345
Curb weight 615
CZIP (Clean Zone Interior Package) 200
D
Data recording 33 transferring between vehicle and work-
shop 550
Data sharing 494

INDEX
630
M
Maintenance 548corrosion protection 601
Max. axle weight 615
Max. roof load 615
Media player 465, 466, 467 compatible file formats 494, 495
voice control 146
Messages and symbols Adaptive Cruise Control 298
Collision warner with auto-brake 335
Messages in BLIS 341
Messages in display 102, 138 handling 103, 139
saved 105, 140
Mileage 85 Misting condensation in headlights 595, 598
Mood lighting 162
O
Occupant safety 43
Occupant weight sensor 56
Octane rating 429
Oil, see also Engine oil 618
On-board diagnostics 548
On-board Diagnostic socket 36
Option/accessory 21
Outside temperature gauge 90
Overheating 431
Owner's information 16
OWNER'S MANUAL 21 in cellular phone 20
in the center display 17, 18
P
Paddle at steering wheel 192 Paint
color code 603
paint damage and touch-up 602, 603
Panoramic roof opening and closing 175
pinch protection 166
sun shade 174, 179
ventilation position 176
PAP – Park Assist Pilot 384, 385, 388, 389, 391, 392
Park Assist Camera 375, 376, 377, 379,
380, 382, 383
settings 380
Park Assist Camera limitations 380
Park Assist Pilot 384, 385, 388, 389, 391, 392
function 384, 385, 389, 391, 392
limitations 389
operation 385, 388
Symbols and messages 392
Park Assist Pilot – PAP 384, 385, 388, 389, 391, 392
parking on hills 404
Parking Assist 370, 371, 372, 373, 374 function 370, 371, 372
Parking brake 401 activate and deactivate 402
automatic activation 403
Low battery charge level 404
Passenger compartment filter 201
Passenger compartment interior 538 center console 539
electrical outlet 539
glove compartment 541
sun visor 542
Passenger compartment lighting 161, 162 auto switch 161

INDEX
631
Passing assistance 293, 310
personal information (Privacy Policy) 34
Phone 478
changing to another 482
connect 479
connect automatically 481
connect manually 481
delete 483
disconnect 482
phone call 483, 485
text message 484
voice control 145
Pilot Assist 300, 303, 304, 305, 306, 308, 310, 311, 312, 313
pass 310
pinch protection 166 resetting 167
PIN code 491
Polishing 596
Position lights 152
Power 617
Power folding door mirrors 173
Power panoramic roof 174
Power save mode 432
Power seats 185
Power trunk lid 251
Power windows 168, 169 pinch protection 166
Pressure wash 599
Privacy Policy 34
Private locking 255 activation/deactivation 255
PROPOSITION 65 WARNING 433
R
Radar sensor 287, 315 limitations 316
Radar unit 315
Radio 448 changing radio waveband and radio sta-
tion 449
HD radio 452
RBDS 452
search radio station 450
settings 451 SiriusXM ® Satellite radio 456, 457, 458
start 449
voice control 146
Radio favorites 451
Rain sensor 180, 181
Rain sensor's memory function 181
Rear camera 375, 376, 377, 379, 380, 382, 383
Rear door sun shade 170
Rear seat adjusting backrest tilt 192 Adjusting passenger seat from rear
seat 192
blower 221
climate 208
heating 211
temperature 223
ventilation 213
Rear sensors 370, 371, 372, 373, 374 Rearview/door mirrors dimming 172
heating 219
interior 171
Rearview mirror 171 dimming 172
Rear window heating 219
sun shade 170
Recalls 45
Recommendations when driving 425
Recommendations when loading 543
Recovery 437

INDEX
632Red Key 238
settings 239
Refrigerant 558 climate system 620
Refueling filling 427
fuel filler door, fuel flap 427
Remote immobilizer 242
Remote key 229 battery replacement 234
connecting to driver profile 137
detachable key blade 240
loss 238
Range 233
Remote updates 551
Reporting safety defects 44
Resetting door mirrors 173
Resetting settings 133 change of owner 132
Driver profile 137
Resetting trip odometer 88
Road Sign Information 346, 347, 348 limitations 350
operation 347, 348, 349, 350
Road trip 425
Roll Stability Control 263
Roof load, max. weight 615
RSC (Roll Stability Control) 263
Run-off Mitigation 362, 363
S
Safety 42 pregnancy 43
Safety belt, see Seat belt 47
Safety defects, reporting 44
Safety mode 61 starting/moving 62
Sealing compound 530
Seat, see Seats 184
Seat belt reminder 51
Seat belts 47 Automatic locking retractor/Emergency
locking retractor 65
buckling/unbuckling 48
pregnancy 43
seat belt reminder 51
seat belt tensioner 50
securing child restraint systems 67, 69, 71
Seat belt tensioner 50 resetting 51
Seats heating 210, 211
manual front seat 184
memory function front seat 186, 187
power front seats 185
ventilation 212, 213
whiplash protection 46
Sensors air quality 201
climate 197
Sensus connection and entertainment 30
Sensus Navigation 348
Service position 605
Service program 548
Set time interval 282
settings 133 Categories 134
contextual 131
resetting 133
settings menu 133
Shiftlock 411 deactivate 411
Side airbag 59
Side Impact Protection System 59, 60
SIM card 491
SIPS (Side Impact Protection System) 59, 60Sirius Satellite radio Travel link 460
