heater VOLVO S90 TWIN ENGINE 2019 Owners Manual

6

Activating and deactivating air condi-tioning223
Parking climate224
Preconditioning224
Starting and stopping preconditioning225
Preconditioning timer226
Adding and editing timer settings forpreconditioning227
Activating and deactivating precondi-tioning timer228
Deleting preconditioning timer settings228
Climate comfort retaining function229
Starting and switching off the cli-mate retaining function when parking229
Parking climate symbols and messages231
Heater232
Parking heater232
Additional heater232
Activating and deactivating the auxili-ary heater233
KEY, LOCKS AND ALARM
Lock indication236
Lock confirmation settings237
Remote key237
Locking and unlocking using theremote key240
Settings for remote and inside doorunlock241
Unlocking the trunk lid using theremote key241
Remote key range242
Replacing the remote key's battery243
Ordering additional remote keys246
Red Key - restricted remote key*246
Red Key* settings247
Detachable key blade248
Locking and unlocking with detacha-ble key blade249
Electronic immobilizer250
Start and lock system type designations251
Keyless and touch-sensitive surfaces*252
Keyless locking and unlocking*253
Keyless unlock settings*254
Keyless trunk lid unlock*255
Antenna locations for the start andlock system255

Locking and unlocking from insidethe vehicle256
Unlocking the trunk lid from insidethe vehicle257
Opening the trunk lid from inside thetrunk258
Activating and deactivating childsafety locks259
Automatic locking when driving260
Opening and closing the power trunk lid*260
Opening and closing the trunk lidwith foot movement*263
Private Locking264
Activating and deactivating privatelocking264
Alarm266
Arming and disarming the alarm267

||
DISPLAYS AND VOICE CONTROL
92
Symbol Meaning
Active high beams off
This symbol lights up in white whenthe active high beams are off.Parking lights are on.
High beams on
This symbol illuminates when thehigh beams and parking lights areon.
Rear fog light on
This symbol illuminates when therear fog light is on.
Rain sensor on
This symbol illuminates when therain sensor is on.
Preconditioning on
This symbol illuminates when theengine block/passenger compart-ment heater or air conditioning arepreconditioning the vehicle.
Stability system
This symbol flashes when the sta-bility system is actively working tostabilize the vehicle. If the symbolglows steadily, there is a fault inthe system.
Symbol Meaning
Stability system, Sport mode
This symbol illuminates when Sportmode is activated. Sport modeoffers a more active driving experi-ence.
Lane Keeping Aid
White symbol: Lane Keeping Aid ison and lane marker lines aredetected.
Gray symbol: Lane Keeping Aid ison but no lane marker lines aredetected.
Amber symbol: Lane Keeping Aidis alerting/intervening.
Lane Keeping Aid and rain sen-sor
White symbol: Lane Keeping Aid ison and lane marker lines aredetected. The rain sensor is on.
Gray symbol: Lane Keeping Aid ison but no lane marker lines aredetected. The rain sensor is on.
ACanadian models.BUS models.

Related information
Instrument panel (p. 80)
Warning symbols in the instrument panel(p. 93)

CLIMATE CONTROL
* Option/accessory.224
Parking climate
Parking climate is an umbrella term for variousfunctions that improve the passenger compart-ment climate when the vehicle is parked, e.g.preconditioning.
Parking climate functions are controlled from theParking climate tab in the center display's Climate view.

Related information
Climate (p. 196)
Preconditioning (p. 224)
Climate comfort retaining function (p. 229)
Parking climate symbols and messages(p. 231)
Preconditioning
Preconditioning the vehicle before driving canhelp reduce wear and reduce energy consump-tion during a trip.
Preconditioning can be started immediately orstarted at a preset time using a timer.
The function utilizes several of the vehicle's sys-tems:
In cold weather, the parking heater heats thepassenger compartment to a comfortabletemperature.
In warm weather, air conditioning cools thepassenger compartment to a comfortabletemperature.
The electrically heated steering wheel* andseats* can be activated.
Heating for the windshield, rear window anddoor mirrors are automatically activated asneeded.
During preconditioning in a hot climate, conden-sation from the air conditions may drip under thevehicle. This is normal.

CLIMATE CONTROL
* Option/accessory.231
Parking climate symbols andmessages
A number of symbols and messages related toparking climate may be displayed in the instru-ment panel.
Messages related to parking climate can also bedisplayed in a device that has the Volvo On Call*app.
Symbol MessageMeaning
Parking climate
Service required
Parking climate is not functioning properly. Contact a workshopA to have the system checked assoon as possible.
Parking climate
Temporarily unavailable
Parking climate is temporarily not functioning properly. If the problem persists, contact a work-
shopA to have the system checked.
Parking climate
Unavailable Charge level too low
The parking climate cannot be activated because the hybrid battery's charge level is too low tostart the parking heater. Start the vehicle.
Parking climate
Unavailable, not connected to powersupply
The parking climate cannot be activated if the charging cable is not connected. Connect thecharging cable.
Parking climate
Limited Charge level too low
Parking climate will only run for a limited time when the hybrid battery's charge level is too low.Start the vehicle.
AAn authorized Volvo workshop is recommended.

Related information
Parking climate (p. 224)

CLIMATE CONTROL
232
Heater
The heater helps the engine and passengercompartment reach the correct temperaturebefore and while driving.
The heater has two sub-functions:
Parking heater - heats the passenger com-partment as needed when the parking cli-mate's preconditioning is activated.
Auxiliary heater - heats the passenger com-partment and engine while driving.
The heater is a high-voltage coolant heater and ismounted in the front right-side wheel housing.

Battery and charging
The heater is powered by the vehicle's hybrid bat-tery. If the charge level in the hybrid battery is toolow, the heater will switch off automatically and amessage will be displayed in the instrumentpanel.

NOTE
Make sure that the battery has sufficientcharge if the heater must be used.

Related information
Climate (p. 196)
Parking heater
The parking heater heats the passenger com-partment as needed before driving if precondi-tioning is activated.
The parking heater is one of two sub-functions ofthe vehicle's heater. The heater is mounted in thefront right-side wheel housing.
The parking heater starts automatically if theparking climate's preconditioning is activated andthe passenger compartment needs to be heated.
It switches off automatically when a set timertime or the heater's maximum run time expires, orif the car is restarted.
The heater's maximum running time is 40minutes.
Additional heater
The auxiliary heater helps heat the passengercompartment and engine while driving.
The auxiliary heater is one of two sub-functionsof the vehicle's heater. The heater is mounted inthe front right-side wheel housing.
The auxiliary heater is started and controlledautomatically when extra heat is required whilethe vehicle is being driven.
It switches off automatically when the ignition isswitched off.

CLIMATE CONTROL
233
Activating and deactivating theauxiliary heater
The auxiliary heater helps heat the passengercompartment and engine while driving.
It is possible to set whether automatic start forthe auxiliary heater should be activated or deacti-vated.
1.Tap Settings in the Top view in the centerdisplay.
2.Tap Climate.
3.Select Additional Heater to activate/deac-tivate automatic start for the auxiliary heater.

NOTE
If automatic start of the auxiliary heater isdeactivated, this may impair comfort in thepassenger compartment since the climatesystem then does not have a heat source dur-ing electrical operation.

AUDIO, MEDIA AND INTERNET
508

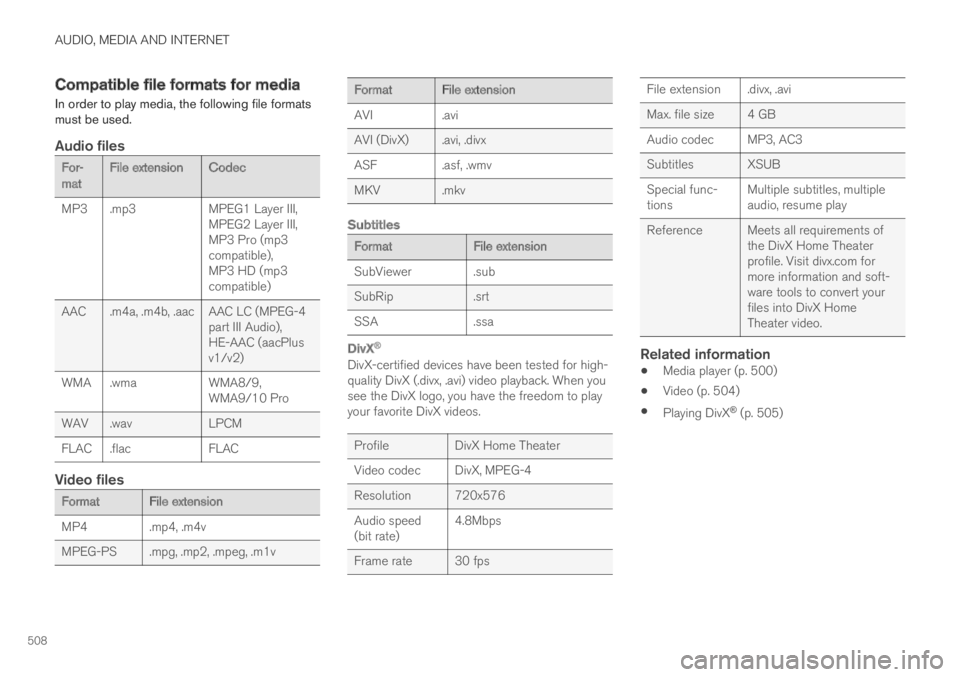

Compatible file formats for media
In order to play media, the following file formatsmust be used.

Audio files
For-matFile extension Codec
MP3 .mp3MPEG1 Layer III,MPEG2 Layer III,MP3 Pro (mp3compatible),MP3 HD (mp3compatible)
AAC.m4a, .m4b, .aac AAC LC (MPEG-4part III Audio),HE-AAC (aacPlusv1/v2)
WMA .wmaWMA8/9,WMA9/10 Pro
WAV .wavLPCM
FLAC .flacFLAC

Video files
Format File extension
MP4 .mp4, .m4v
MPEG-PS.mpg, .mp2, .mpeg, .m1v
Format File extension
AVI.avi
AVI (DivX).avi, .divx
ASF.asf, .wmv
MKV .mkv
Subtitles
FormatFile extension
SubViewer .sub
SubRip.srt
SSA.ssa

DivX ®
DivX-certified devices have been tested for high-quality DivX (.divx, .avi) video playback. When yousee the DivX logo, you have the freedom to playyour favorite DivX videos.
ProfileDivX Home Theater
Video codec DivX, MPEG-4
Resolution720x576
Audio speed(bit rate)4.8Mbps
Frame rate 30 fps
File extension .divx, .avi
Max. file size 4 GB
Audio codecMP3, AC3
Subtitles XSUB
Special func-tionsMultiple subtitles, multipleaudio, resume play
Reference Meets all requirements ofthe DivX Home Theaterprofile. Visit divx.com formore information and soft-ware tools to convert yourfiles into DivX HomeTheater video.

Related information
Media player (p. 500)
Video (p. 504)
Playing DivX® (p. 505)

AUDIO, MEDIA AND INTERNET
}}
531
License agreement for audio andmedia
A license is an agreement on the right to con-duct a certain activity or the right to use some-one else's right according to terms and condi-tions specified in the agreement. The followingtexts are Volvo's agreements with manufactur-ers/developers.

Bowers & Wilkins
Bowers & Wilkins and B&W are trademarks ofthe B&W Group Ltd. Nautilus is a trademark ofB&W Group Ltd. Kevlar is a registered trademarkof DuPont.
Dirac Unison ®
Dirac Unison co-optimizes the loudspeakers infrequency, time and space for the best possiblebass integration and clarity. It enables a faithfulreproduction of the acoustic characteristics ofspecific performance venues. Using advancedalgorithms, Dirac Unison controls all loudspeak-ers digitally based on acoustic high-precisionmeasurements. Like a conductor of an orchestra,it guarantees that the loudspeakers perform inperfect unison.

DivX ®
DivX®, DivX Certified® and associated logos aretrademarks of DivX, LLC and are used underlicense.
This DivX Certified® device can play DivX® HomeTheater Home Theater video files up to 576p(including .avi, .divx). Download free software atwww.divx.com to create, play and stream digitalvideo.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX
Certified® device must be registered in order toplay purchased DivX Video-on-Demand (VOD)movies. To obtain your registration code, locatethe DivX VOD section in your device setup menu.Go to vod.divx.com for more information on com-pleting the registration process.
Patent number
Covered by one or more of the following patentsin the US: 7,295,673; 7,460,668; 7,515,710;8,656,183; 8,731,369; RE45,052.

Gracenote ®

MAINTENANCE AND SERVICE
}}
* Option/accessory.609
Fuse pliers are provided on the inside of the fusebox cover to assist in removing and insertingfuses.
There are also spaces for several extra fuses inthe fusebox.

Positions
There is a decal with a diagram of the locationsof the fuses on the inside of the cover.
Fuses 1–13, 18–30, 35–37 and 46–70 are"Micro" fuses.
Fuses 14–17, 31–34, 38–45 and 71–78 are"MCase" fuses and should only be replaced
by a workshop16.
FunctionAmpere
––
––
––
Control module for actuatorfor engaging/changing gears,automatic transmission
5
High-voltage coolant heatercontrol module5
FunctionAmpere
Control module for A/C; heatexchanger cut-off valve; cut-off valve for coolant throughthe climate system
5
Hybrid battery control module;high-voltage converter forcombined high-voltage gener-ator/starter motor with 500V–12 V voltage converter
5
––
Converter for controlling feedto rear axle electric motor10
Hybrid battery control module;high-voltage converter forcombined high-voltage gener-ator/starter motor with 500V–12 V voltage converter
10
Charge module5
Cut-off valve for hybrid batterycoolant; coolant pump 1 forhybrid battery
10
Coolant pump for electric drivesystem10
FunctionAmpere
Hybrid component cooling fan 25
––
––
––
––
––
––
––
––
Front USB port in tunnel con-sole, front*5
12 V outlet in tunnel console,front15
12 V outlet in tunnel console
between second-row seatsA
12 V outlet in tunnel console,
between rear seatsB; USBports in tunnel console
between rear seatsB
15
16An authorized Volvo workshop is recommended.

INDEX
651
1, 2, 3 ...
4WD444
A
ABS
anti-lock brakes431
AC (Air conditioning)223
ACC - Adaptive Cruise Control 292, 295,
296, 297, 298, 299, 301, 302, 303, 304,
305, 306
Accessories and extra equipment 35
installation36
Accessory installation warning 36, 37
Active Bending Lights155
Adapting driving characteristics 270, 446
Adaptive Cruise Control 292, 295, 296,
297, 298, 299, 301, 302, 303, 304, 305, 306
change cruise control functionality 305
function292
manage speed296, 297
pass301, 302
radar sensor324
set time interval298, 299
troubleshooting304
Adjusting the steering wheel193
Airbag52
activation/deactivation56
driver's side53
passenger side53, 56
Air bag, see Airbag52
Air conditioning223
Air conditioning, fluid
volume and grade648
Air distribution201
air vents201, 202
changing202
defrosting215
recirculation214
table showing options204
Air quality198, 200
allergy and asthma199
passenger compartment filter201
Air recirculation214
Alarm266
deactivating267
Allergy and asthma-inducing substances 199
All Wheel Drive, AWD444
All Wheel Drive (AWD)444
All Wheel Drive (four-wheel drive) 444
Android Auto512, 514
Antenna
location255
Apple CarPlay509, 511
Approach lighting157
Apps480
Assistance at risk of collision372, 373,
374, 375, 376, 377, 378, 379, 381
Audio and media478
Audio system
HD digital radio490
SiriusXM® Satellite radio 490, 491, 493
Auto-climate214
Auto hold437
Auto-hold brakes437
activate and deactivate438
after collision439
Automatic car wash627
Automatic high beam153
Automatic locking260
Automatic relocking240, 253
Automatic Speed Limiter 279, 281, 282, 283
Automatic transmission440
kickdown444
oil647
Auxiliary heater232
INDEX
