02 Instruments and controls
Instrument panel
02``51 Instrument panel
8
9
11
12
13
14
10
G031465
4 3 2
567
1
SpeedometerTurn signal, leftWarning symbol – See the following pages
for additional information.Information display – The display presents
information and warning messages, the
ambient temperature, clock, etc. When the
ambient temperature is between 23 °F and
36 °F (–5 °C and +2 °C), a snowflake sym-
bol is shown in the display. This symbol
serves as a warning for possible slippery
road surfaces. Please note that this symbol
does not indicate a fault with your car. At
low speeds, or when the car is not moving,the temperature readings may be slightly
higher than the actual ambient tempera-
ture.
Information symbol – See the following
pages for additional information.Turn signal, rightTachometer – Shows engine speed in
thousands of revolutions per minute (rpm).
Do not drive continuously with the needle
in the red area of the dial, which indicates
maximum allowable engine rpm range.
Instead, shift to a higher gear or slow the
vehicle down. The engine management
system will automatically prevent exces-sively high engines speeds. This will be
noticeable as a pronounced unevenness in
engine speed.
Indicator and warning symbolsFuel gauge, see page 267 for fuel tank vol-
ume. When a warning light in the gauge
comes on, the vehicle should be refueled
as soon as possible. see page 66 for
more information on fuel level and con-
sumption in the "Trip computer” section.High beam indicatorFunction display – This window displays
information on functions such as the

02 Instruments and controlsInstrument panel
0252
odometer, trip odometers, optional rain
sensor, and cruise control.Trip odometer reset button – The trip
odometers are used to measure short dis-
tances. Press the button briefly to switch
between the odometer for the car's total
mileage and the two trip odometers, T1
and T2. A long press (more than 2 seconds)
resets the currently selected trip odometer.Temperature gauge – The gauge indicates
the temperature of the engine cooling sys-
tem. If the temperature is abnormally high
and the needle enters the red zone, a mes-
sage is shown in the display. Bear in mind
that auxiliary lamps in front of the air intake
reduce the cooling capacity at high outside
temperatures and high engine loads.Indicator and warning symbols

02 Instruments and controls
Indicator and warning symbols
02``53 Function check
The indicator and warning symbols
1 light up
when you turn the ignition key or the optional
keyless drive start control to the driving posi-
tion (position II) before starting. This shows that
the symbols are functioning.
When the engine starts, all sym-
bols go out. If the engine is not
started within 5 seconds, all of the
symbols except the malfunction
indicator light (CHECK ENGINE)
and the oil pressure warning light
will go out. Certain symbols may
not have their functions illustrated, depending
on the car's equipment.
CHECK
ENGINEThePARK BRAKE symbol will not go out until
the parking brake has been released.
Symbols in the center of the instrument
panel
G026365
Warning symbol
The red warning symbol lights up
to indicate a fault that could affect
the car's drivability.This symbol
illuminates when the vehicle is
traveling at speeds above 5 mph
(7 km/h). A text explaining the nature of the fault
will also be shown in the information display.
The symbol and accompanying text will remain
on until the fault has been corrected. This sym-
bol may also light up in combination with other
indicator or warning symbols.
If the red warning symbol lights up:
1. Stop the car as soon as possible in a suit-
able location.
2. Read the message in the information dis-
play.
3. Follow the instructions provided, or con-
tact a trained and qualified Volvo service
technician. Erase the message by pressing
READ, see page 58.Information symbol
The yellow information symbol
lights up to alert the driver to a
message in the information dis-
play. This symbol illuminates when
the vehicle is traveling at speeds
below 5 mph (7 km/h).
The message can be erased by pressing the
READ button, see page 58, or will disappear
automatically (the length of time required for
the message to disappear varies, depending
on the function indicated).
When the message "
TIME FOR REGULAR
SERVICE
" is displayed, the text can be erased
and the information symbol light can be turned
off by pressing the READ button. The text will
disappear and the symbol light will go out auto-
matically after two minutes.
1On certain engines, the symbol for low oilpressure is not used. Instead, a text warningis provided in the information display, see page 216.

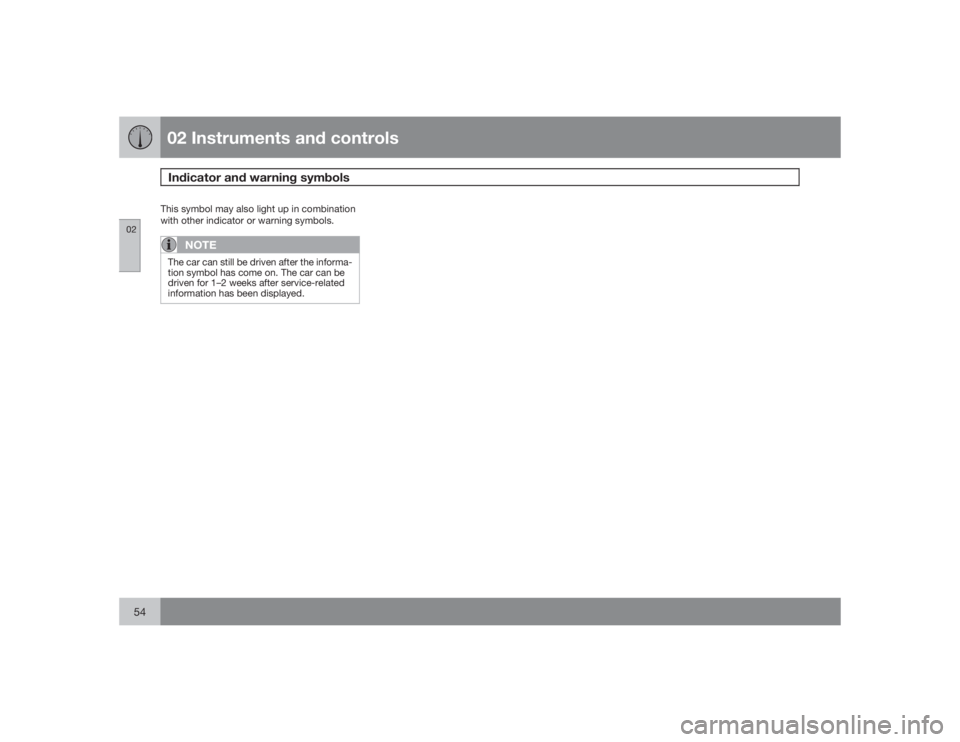

02 Instruments and controlsIndicator and warning symbols
0254
This symbol may also light up in combination
with other indicator or warning symbols.
NOTE
The car can still be driven after the informa-
tion symbol has come on. The car can be
driven for 1–2 weeks after service-related
information has been displayed.

02 Instruments and controls
Symbols – instrument panel
02``55 Symbols – left side
G026439
1. Malfunction indicator light
As you drive, a computer called
On-Board Diagnostics II (OBDII)
monitors your car's engine, trans-
mission, electrical and emission
systems.
TheCHECK ENGINE light will light
up if the computer senses a condition that
potentially may need correcting. When this
happens, please have your car checked by a
trained and qualified Volvo service technician
as soon as possible.
CHECK
ENGINEACHECK ENGINE light may have many cau-
ses. Sometimes, you may not notice a changein your car's behavior. Even so, an uncorrected
condition could hurt fuel economy, emission
controls, and drivability. Extended driving with-
out correcting the cause could even damage
other components in your car.
NOTE
Canadian models are equipped with the
second symbol.2. Anti-lock Brake system (ABS)
If the warning light comes on, there
is a malfunction of the ABS system
(the standard braking system will
still function).
The vehicle should be driven to a trained and
qualified Volvo service technician for inspec-
tion, see page 153 for additional information.
NOTE
Canadian models are equipped with the
second symbol.3. Rear fog light
This symbol indicates that the rear
fog light (located in the driver's
side taillight cluster) is on.
4. Stability system STC or DSTC
This indicator symbol flashes when
the STC (Stability and Traction
control system) or the DSTC
(Dynamic Stability and Traction
control system) is actively working
to stabilize the car, see page 155 for more
detailed information.
5. Tire Pressure Monitoring System
This system monitors inflation
pressure in the tires. See page
197 for more information.
6. Fuel level warning light
When this light comes on, the vehi-
cle should be refueled as soon as
possible.

02 Instruments and controlsSymbols – instrument panel
0256
Symbols – right side
G026438
1. Turn signal indicator for trailer (certain
markets only)
If you are towing a trailer, this light
will flash simultaneously with the
turn signals on the trailer. If the
light does not flash when signaling,
one of the turn signals on the trailer
or on the car are not functioning properly.
2. Parking brake applied
This light is on when the parking
brake (hand brake) is applied. The
parking brake lever is situated
between the front seats, see
page 74 for more information.
NOTE
Canadian models are equipped with the
second symbol.3. SRS system warning light
If this light comes on while the car
is being driven, or remains on for
longer than approximately 10 sec-
onds after the car has been
started, the SRS system's diag-
nostic functions have detected a fault in a seat
belt lock or pretensioner, a front airbag, side
impact airbag, and/or an inflatable curtain.
Have the system(s) inspected by a trained and
qualified Volvo service technician as soon as
possible.
4. Oil pressure warning light
1
If the light comes on while driving,
the car, stop the engine immedi-
ately, and check the engine oil
level. If the oil level is normal and
the light stays on after restart, have
the car towed to the nearest trained and quali-
fied Volvo service technician. After hard driv-
ing, the light may come on occasionally when
the engine is idling. This is normal, provided it
goes off when the engine speed is increased.
5. Seat belt reminder
This symbol (and the seat belt
reminder light above the rear view
mirror) will light up if either front
seat occupant has not buckled his/
her seat belt. If the car is not mov-
ing, the symbols will go out after approximately
6 seconds.
6. Generator warning light
If the light comes on while the
engine is running, have the charg-
ing system checked by an author-
ized Volvo workshop.
1On certain engines, this symbol is not used to indicate low oil pressure. Instead, a text warning is provided in the information display, see also page 216.

02 Instruments and controls
Symbols – instrument panel
0257
7. Brake failure warning light
If this light comes on while driving
or braking, stop the car as quickly
as possible in a safe place, open
the hood, and check the brake fluid
level in the reservoir, see
page 215 for the location of the reservoir.
NOTE
Canadian models are equipped with the
second symbol.
WARNING
If the fluid level is below the MIN mark in the
reservoir or if a
Brake failure – Service
urgent
message is displayed in the infor-
mation display: DO NOT DRIVE. Have the
car towed to a trained and qualified Volvo
service technician and have the brake sys-
tem inspected.
If the BRAKES and ABS warning lights come
on at the same time, this could indicate a fault
in the brake system.In this case:
1. Stop the car in a suitable place and switch
off the engine.
2. Restart the engine.
3. If both warning lights go off, no further
action is required and the car can be
driven.
4. If both lights remain on after the engine has
been restarted, switch off the engine again
and check the brake fluid level, see
page 215 for the location of the reservoir.
Door open warningThe driver will be alerted if one of the doors, the
hood or the tailgate are open or ajar.At low speeds
If the car is moving at a speed of
less than approximately 3 mph
(5 km/h), the Information symbol in
the instrument panel will light up
and a message will be shown in the
information display indicating which door(s),
etc is not completely closed.
At higher speeds
If the car is moving at a speed
above approximately 6 mph
(10 km/h), the Warning symbol in
the instrument panel will light up
and a message will be shown in the
information display indicating which door(s),
etc is not completely closed.
Hood and tailgate
If the hood and/or tailgate is not
completely closed, the Information
symbol in the instrument panel will
light up and a message will be dis-
played, regardless of the vehicle's
speed.

02 Instruments and controlsInformation display
0258

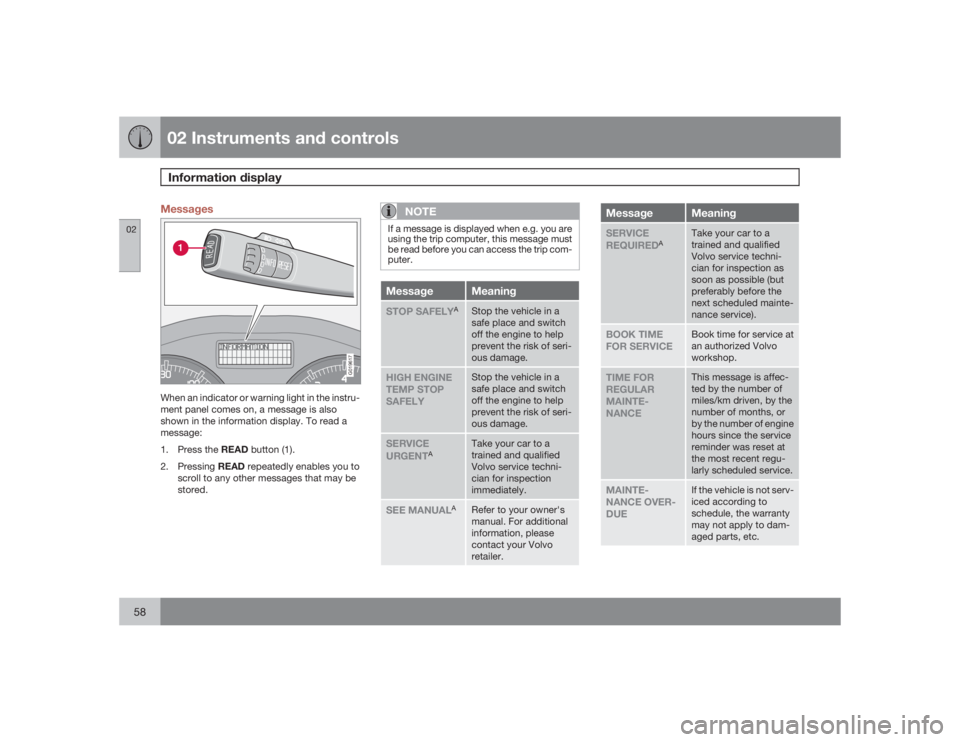

Messages
G019617
When an indicator or warning light in the instru-
ment panel comes on, a message is also
shown in the information display. To read a
message:
1.
Press the READ button (1).
2.
PressingREAD repeatedly enables you to
scroll to any other messages that may be
stored.
NOTE
If a message is displayed when e.g. you are
using the trip computer, this message must
be read before you can access the trip com-
puter.Message
Meaning
STOP SAFELY
A
Stop the vehicle in a
safe place and switch
off the engine to help
prevent the risk of seri-
ous damage.
HIGH ENGINE
TEMP STOP
SAFELY
Stop the vehicle in a
safe place and switch
off the engine to help
prevent the risk of seri-
ous damage.
SERVICE
URGENT
A
Take your car to a
trained and qualified
Volvo service techni-
cian for inspection
immediately.
SEE MANUAL
A
Refer to your owner's
manual. For additional
information, please
contact your Volvo
retailer.
Message
Meaning
SERVICE
REQUIRED
A
Take your car to a
trained and qualified
Volvo service techni-
cian for inspection as
soon as possible (but
preferably before the
next scheduled mainte-
nance service).
BOOK TIME
FOR SERVICE
Book time for service at
an authorized Volvo
workshop.
TIME FOR
REGULAR
MAINTE-
NANCE
This message is affec-
ted by the number of
miles/km driven, by the
number of months, or
by the number of engine
hours since the service
reminder was reset at
the most recent regu-
larly scheduled service.
MAINTE-
NANCE OVER-
DUE
If the vehicle is not serv-
iced according to
schedule, the warranty
may not apply to dam-
aged parts, etc.

02 Instruments and controls
Information display
0259
Message
Meaning

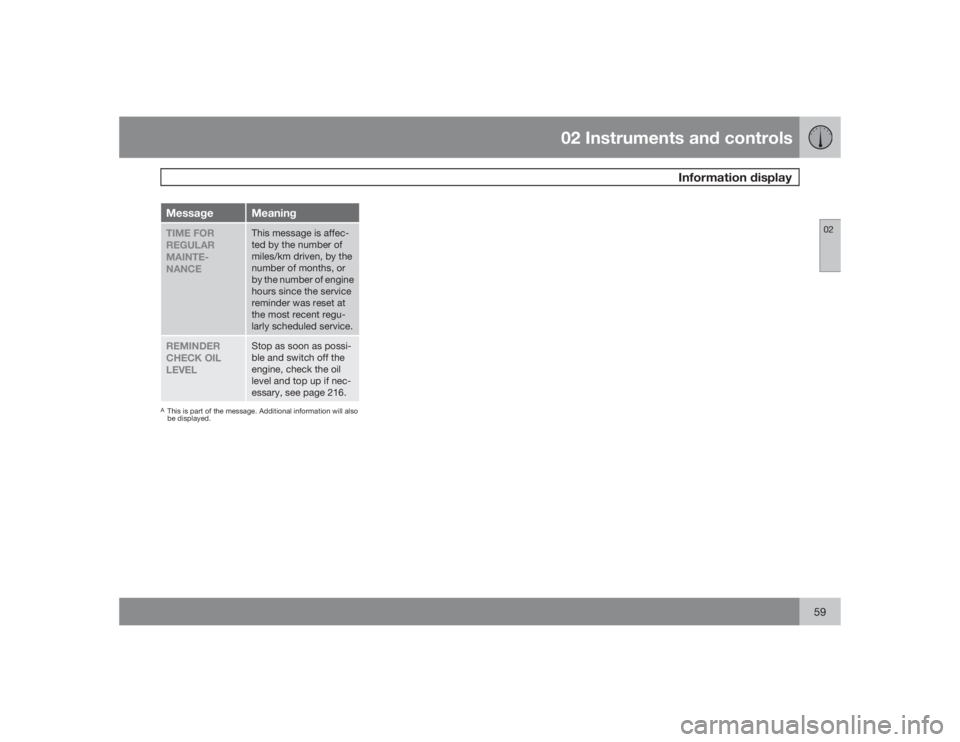

TIME FOR
REGULAR
MAINTE-
NANCE
This message is affec-
ted by the number of
miles/km driven, by the
number of months, or
by the number of engine
hours since the service
reminder was reset at
the most recent regu-
larly scheduled service.
REMINDER
CHECK OIL
LEVEL
Stop as soon as possi-
ble and switch off the
engine, check the oil
level and top up if nec-
essary, see page 216.
AThis is part of the message. Additional information will also
be displayed.

02 Instruments and controls12-volt sockets
0260
12-volt socket (front seat)
G026349
12-volt socket, auxiliary equipmentThe 12-volt socket can be used to plug in cer-
tain accessories such as cellular telephones,
etc. The maximum current is 10 A. The key
must be in position I (or higher) for the auxiliary
socket to function.Ashtrays/cigarette lighterThe auxiliary socket can also be used for a cig-
arette lighter
1, and ashtrays, which can be pur-
chased from your Volvo retailer.
NOTE
The cover should be kept on when the aux-
iliary socket is not in use.Auxiliary equipmentThe buttons to the left of the 12-volt socket can
be used for Volvo-installed optional or auxiliary
equipment.12-volt socket (rear seat)
G029082
NOTE
The 12-volt socket in the rear seat cannot
function as a cigarette lighter.
1Accessory.
