09 Maintenance and servicing
Engine compartment
09
215
G026456
Cooling system expansion tankPower steering fluid reservoir (concealed
behind the headlight)Dipstick – engine oilRadiatorCooling fanWasher fluid reservoirEngine oil filler capBrake/clutch fluid reservoirBattery
Relay/fuse boxAir cleanerWARNING
The cooling fan may start or continue to
operate (for up to 6 minutes) after the engine
has been switched off.

09 Maintenance and servicingFuses
09230
Replacing fusesThere are relay/fuse boxes located in the
engine compartment and the passenger com-
partment.
If an electrical component fails to function, this
may be due to a blown fuse. The easiest way
to see if a fuse is blown is to remove it.
To do so:
1. Pull the fuse straight out. If a fuse is difficult
to remove, special fuse removal tools are
located on the inside of the fuse box cov-
ers.
2. From the side, examine the curved metal
wire in the fuse to see if it is intact.
3. If the wire is broken, insert a new fuse of
thesame color and amperage (written on
the fuse).
If fuses burn out repeatedly, have the electrical
system inspected by a trained and qualified
Volvo service technician.
WARNING
Never use metal objects or fuses with higher
amperage than those stated on the follow-
ing pages. Doing so could seriously damage
or overload the vehicle's electrical system.

09 Maintenance and servicing
Fuses
09``231 Fuse box in the engine compartment
G007446
The fuse box in the engine compartment has
positions for 36 fuses.•
Fuses 1–18 are relays/circuit breakers and
should only be removed or replaced by an
authorized Volvo service technician.
•
Fuses 19–36 may be changed at any time
when necessary.
Several extra fuses and a fuse removal tool to
assist in removing/replacing fuses can be
found on the underside of the fuse box cover
in the engine compartment.

09 Maintenance and servicingFuses
09232

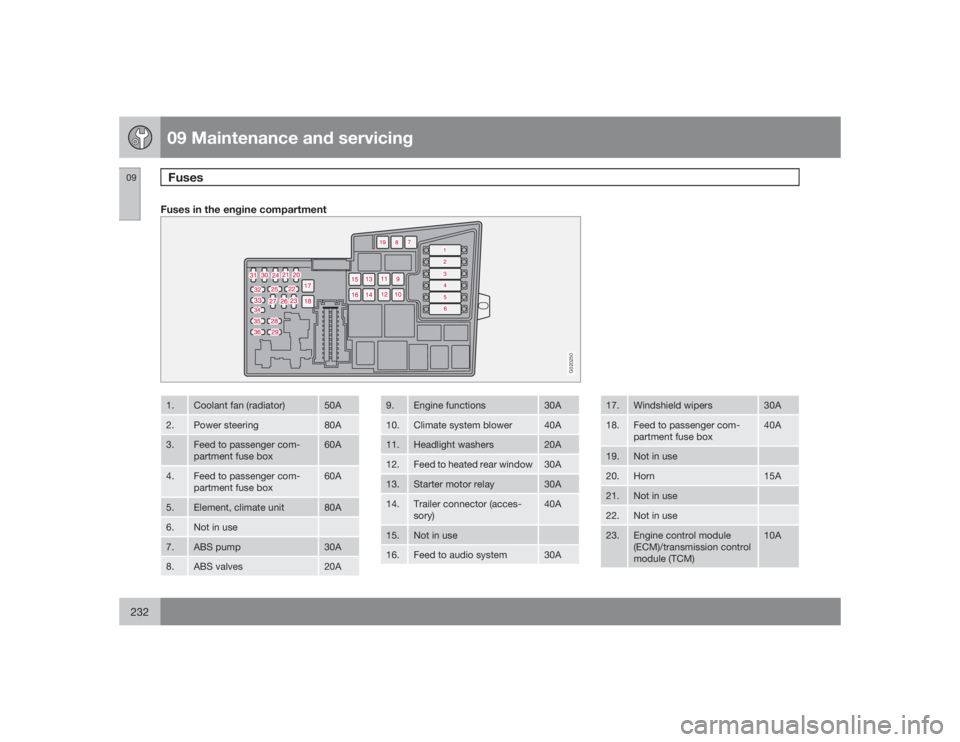

Fuses in the engine compartment
G020250
1.
Coolant fan (radiator)
50A
2.
Power steering
80A
3.
Feed to passenger com-
partment fuse box
60A
4.
Feed to passenger com-
partment fuse box
60A
5.
Element, climate unit
80A
6.
Not in use
7.
ABS pump
30A
8.
ABS valves
20A
9.
Engine functions
30A
10.
Climate system blower
40A
11.
Headlight washers
20A
12.
Feed to heated rear window
30A
13.
Starter motor relay
30A
14.
Trailer connector (acces-
sory)
40A
15.
Not in use
16.
Feed to audio system
30A
17.
Windshield wipers
30A
18.
Feed to passenger com-
partment fuse box
40A
19.
Not in use
20.
Horn
15A
21.
Not in use
22.
Not in use
23.
Engine control module
(ECM)/transmission control
module (TCM)
10A

09 Maintenance and servicing
Fuses
09``233
24.
Not in use
25.
Not in use
26.
Ignition switch
15A
27.
A/C compressor
10A
28.
Not in use
29.
Front fog lights (option)
15A
30.
Not in use
31.
Not in use
32.
Fuel injectors
10A
33.
Heated oxygen sensor, vac-
uum pump
20A
34.
Ignition coils, climate unit
pressure sensor
10A
35.
Engine sensor valves, A/C
relay, relay coil, PTC ele-
ment oil trap, canister, mass
air meter
15A
36.
Engine control module
(ECM), throttle sensor
10A

09 Maintenance and servicing
Fuses
09``235
Fuses in the passenger compartment
G020246
37.
Not in use
38.
Not in use
39.
Not in use
40.
Not in use
41.
Not in use
42.
Not in use
43.
Audio system, Volvo Navi-
gation system (option)
15A
44.
Supplemental Restrain Sys-
tem (SRS), engine control
module
10A
45.
12-volt socket in rear seat
15A
46.
Lighting – glove compart-
ment, instrument panel, and
footwells
5A
47.
Interior lighting
5A
48.
Tailgate window wiper/
washer
15A
49.
Supplemental Restrain Sys-
tem (SRS), Occupant
Weight Sensor (OWS)
10A
50.
Not in use
51.
AWD, fuel filter relay
10A
52.
Transmission control mod-
ule (TCM), ABS
5A
53.
Power steering
10A
54.
Park assist (option) Bi-
Xenon
Ÿ headlights (option)
10A
55.
Not in use

09 Maintenance and servicingFuses
09236
56.
Volvo Navigation System
remote control module
(option), alarm siren control
module
10A
57.
On-board diagnostic
socket, brake light switch
15A
58.
Right high beam, auxiliary
lights relay
7.5A
59.
Left high beam
7.5A
60.
Heated driver's seat
(option)
15A
61.
Heated passenger's seat
(option)
15A
62.
Moonroof (option)
20A
63.
Power window and door
lock – rear passenger's side
door
20A
64.
Audio system, Volvo Navi-
gation system (option)
5A
65.
Audio system
5A
66.
Audio system control mod-
ule (ICM), climate system
10A
67.
Not in use
68.
Cruise control
5A
69.
Climate system, rain sensor
(option), BLIS button
(option)
5A
70.
Not in use
71.
Not in use
72.
Not in use
73.
Moonroof, front ceiling
lighting, auto-dim mirror,
(option) seat belt reminder
5A
74.
Fuel pump relay
15A
75.
Not in use
76.
Not in use
77.
Auxiliary equipment control
module (AEM)
15A
78.
Not in use
79.
Back-up lights
5A
80.
Not in use
81.
Power window and door
lock – rear driver's side door
20A
82.
Power window – front pas-
senger's side door
25A
83.
Power window and door
lock – front driver's side
door
25A
84.
Power passenger's seat
25A
85.
Power driver's seat
25A
86.
Interior lighting relay, cargo
area light, power seats
5A
