VOLVO V50 2010 Owner´s Manual

05 Locks and alarm
Locking and unlocking
05
131 Locking/unlocking the vehicle from the
inside
G007451
The switches near the door opening handles on
the driver's and front passenger's doors can be
used to lock or unlock all doors and the tail-
gate, open the side windows
1, and to set the
alarm.

Unlocking: Press the upper section of the
switch. A long press (for several seconds)
also opens all the side windows.

Locking: Press the lower section of the
lock button.
NOTE
•The ignition key must be in position I or
higher (see page 145) before all side
windows can be opened using the
switches in the front doors.
•The doors cannot be opened by pulling
up the lock buttons.
•Each door can also be locked manually
using the lock button on that particular
door. This applies only if the car has not
been locked from the outside.
•The doors can also be unlocked (and
the door opened) by pulling the handle
in the door twice.
Locking the glove compartment
G020034
The glove compartment can only be locked
and unlocked using the detachable key blade
on the remote key, see page 123 for informa-
tion on removing the key blade from the remote
key.
Insert the key blade in the glove compart-
ment lock.
Turn the key blade 90 degrees clockwise.
Remove the key blade from the lock.
Unlock the glove compartment in the reverse
order.
1This function must be set to On in the Personal settings menu (see page 85)

05 Locks and alarm

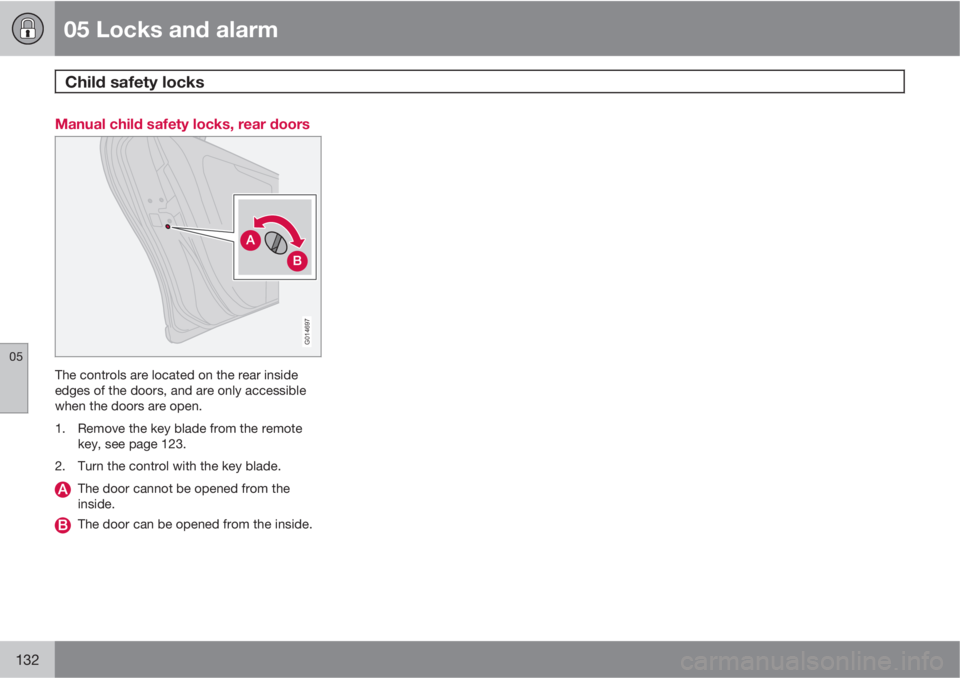

Child safety locks
05
132
Manual child safety locks, rear doors
G014697
The controls are located on the rear inside
edges of the doors, and are only accessible
when the doors are open.
1. Remove the key blade from the remote
key, see page 123.
2. Turn the control with the key blade.
The door cannot be opened from the
inside.
The door can be opened from the inside.

05 Locks and alarm
Alarm*
05

* Option/accessory, for more information, see Introduction.133 The alarm system
The alarm is automatically armed whenever the
car is locked with the remote key, or if a front
lock button is depressed.
When armed, the alarm continuously monitors
a number of points on the car. The following
conditions will trigger the alarm:
•The hood is forced open.
•The tailgate is forced open.
•A door is forced open.
•The ignition switch is tampered with
•An attempt is made to start the car with a
non-approved key (a key not coded to the
car's ignition).
•If there is movement in the passenger com-
partment (if the car is equipped with the
optional movement sensor).
•The car is lifted or towed (if the car is equip-
ped with the optional inclination sensor)
•The battery is disconnected (while the
alarm is armed).
•The siren is disconnected when the alarm
is disarmed.
The alarm indicator light
G020227
Alarm indicator light
The status of the alarm system is indicated by
the indicator light on at the top of the dash-
board (see the illustration):
•Indicator light off – the alarm is not armed
•The indicator light flashes every two sec-
onds – the alarm is armed
•The indicator light flashes rapidly before
the ignition is switched on – the alarm has
been triggered. The message
ALARM
TRIGGERED, CHECK CAR will also be
displayed.
•Fault in the alarm system: If a fault has
been detected in the alarm system, a mes-
sage will be shown in the information dis-
play. Contact your Volvo retailer to have
the alarm system inspected and repaired if
necessary.
Arming the alarm

Press the LOCK button on the remote key,
or press the central lock button on one of
the front doors with the door open. One
long flash of the turn signals will confirm
that the alarm is armed.
Disarming the alarm

Press the UNLOCK button on the remote
key or insert the key in the ignition1 to dis-
arm the alarm. Two short flashes from the
car's direction indicators confirm that the
alarm has been deactivated and that all
doors are unlocked.
1On vehicles with the optional keyless drive, press in the start control in the ignition switch.

05 Locks and alarm
Alarm*
05
134* Option/accessory, for more information, see Introduction.
Turning off (stopping) the alarm
If the alarm is sounding, it can be stopped by
pressing the UNLOCK button on the remote
key or by inserting the key in the ignition switch.
The driver's door must first be unlocked with
the key blade.
NOTE
On vehicles equipped with the optional key-
less drive, the start control must be
removed from the ignition switch before the
key can be inserted, see page 148 for
instructions.
Audible/visual alarm signal
An audible alarm signal is given by a battery
powered siren. The alarm cycle lasts for
30 seconds.
NOTE
The visual alarm signal is given by flashing
all turn signals and turning on the interior
lighting for approximately 5 minutes.
Temporarily turning off the accessory
alarm sensor(s)
G026313
Display
MENU
EXIT
ENTER
Menu navigation controlsIn certain situations it may be desirable to turn
off the accessory inclination and movement
alarm sensors if, for example, you drive your
vehicle onto a ferry where the rocking of the
boat could trigger the alarm or if a pet is left in
the vehicle with the doors locked.
To do so:
1.
Press MENU to enter the menu system and
scroll to
Car settings (for a more detailed
description of the menus, see page 84.
2.
Select
Reduced guard.
3.
Select
Activate once and the messageReduced guard – See manual will
appear in the information display. The
alarm sensors will be turned off when the
vehicle is locked.
or
Select
Ask on exit. Each time the ignition
key is turned to position 0, the message
Press ENTER to reduce guard until
engine is started. Press EXIT to
cancel
will be displayed. Select one of the
alternatives:
•If the alarm sensors are to be deactivated,
press ENTER and then lock the vehicle.
The next time the ignition key is turned to posi-
tion II, the sensors will be reactivated and
Full
guard will displayed.

05 Locks and alarm
Alarm*
05
* Option/accessory, for more information, see Introduction.135

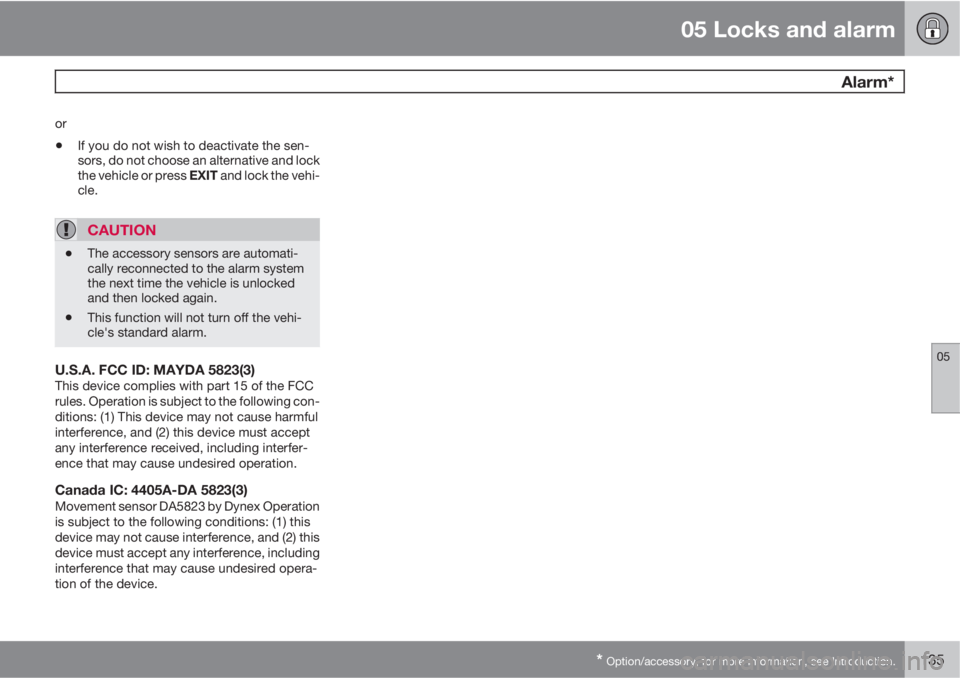

or
•If you do not wish to deactivate the sen-
sors, do not choose an alternative and lock
the vehicle or press EXIT and lock the vehi-
cle.
CAUTION
•The accessory sensors are automati-
cally reconnected to the alarm system
the next time the vehicle is unlocked
and then locked again.
•This function will not turn off the vehi-
cle's standard alarm.
U.S.A. FCC ID: MAYDA 5823(3)This device complies with part 15 of the FCC
rules. Operation is subject to the following con-
ditions: (1) This device may not cause harmful
interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.
Canada IC: 4405A-DA 5823(3)Movement sensor DA5823 by Dynex Operation
is subject to the following conditions: (1) this
device may not cause interference, and (2) this
device must accept any interference, including
interference that may cause undesired opera-
tion of the device.

G020912
136* Option/accessory, for more information, see Introduction.
General information............................................................................... 138
Fuel requirements................................................................................. 142
Ignition switch....................................................................................... 145
Starting the vehicle............................................................................... 146
Starting the vehicle with keyless drive*................................................. 148
Manual transmission, 5-speed*............................................................ 149
Manual transmission, 6-speed*............................................................ 150
Automatic transmission*....................................................................... 151
Shiftlock override.................................................................................. 153
All Wheel Drive*..................................................................................... 154
Brake system........................................................................................ 155
Stability system..................................................................................... 157
Towing.................................................................................................. 159
Jump starting........................................................................................ 161
Towing a trailer...................................................................................... 162
Detachable trailer hitch......................................................................... 164
Transporting loads................................................................................ 165
Blind Spot Information System (BLIS)*................................................. 166
Park assist*........................................................................................... 170

06
STARTING AND DRIVING

06 Starting and driving
General information
06
138
Economical driving conserves natural
resources
Better driving economy may be obtained by
thinking ahead, avoiding rapid starts and stops
and adjusting the speed of your vehicle to
immediate traffic conditions.
Observe the following rules:
•Bring the engine to normal operating tem-
perature as soon as possible by driving
with a light foot on the accelerator pedal for
the first few minutes of operation. A cold
engine uses more fuel and is subject to
increased wear.
•Whenever possible, avoid using the vehicle
for driving short distances. This does not
allow the engine to reach normal operating
temperature.
•Drive carefully and avoid rapid acceleration
and hard braking.
•Use the transmission's Drive (D) position
as often as possible and avoid using kick-
down.
•Do not exceed posted speed limits.
•Avoid carrying unnecessary items (extra
load) in the vehicle.
•Maintain correct tire pressure. Check tire
pressure regularly (when tires are cold).
•Remove snow tires when threat of snow or
ice has ended.
•Note that roof racks, ski racks, etc,
increase air resistance and also fuel con-
sumption.
•At highway driving speeds, fuel consump-
tion will be lower with the air conditioning
on and the windows closed than with the
air conditioning off and the windows open.
•Using the onboard trip computer's fuel
consumption modes can help you learn
how to drive more economically.
Other factors that decrease gas mileage
are:
•Dirty air cleaner
•Dirty engine oil and clogged oil filter
•Dragging brakes
•Incorrect front end alignment
Some of the above mentioned items and others
are checked at the standard maintenance
intervals.
WARNING
Driving with the tailgate open: Driving with
the tailgate open could lead to poisonous
exhaust gases entering the passenger com-
partment. If the tailgate must be kept open
for any reason, proceed as follows:
1. Close the windows.
2. Set the ventilation system control to air
flow to floor, windshield and side win-
dows and the blower control to its high-
est setting.
Weight distribution affects handling
At the specified curb weight your vehicle has a
tendency to understeer, which means that the
steering wheel has to be turned more than
might seem appropriate for the curvature of a
bend. This ensures good stability and reduces
the risk of rear wheel skid. Remember that
these properties can alter with the vehicle load.
The heavier the load in the cargo area, the less
the tendency to understeer.

06 Starting and driving
General information
06

139 Handling, roadholding
Vehicle load, tire design and inflation pressure
all affect vehicle handling. Therefore, check
that the tires are inflated to the recommended
pressure according to the vehicle load. See the
"Tire pressure" section. Loads should be dis-
tributed so that capacity weight or maximum
permissible axle loads are not exceeded.
Driving through water
The vehicle can be driven through water up to
a depth of approximately 9 in. (25 cm), at a
maximum speed of 6 mph (10 km/h).
•Take particular care when driving through
flowing water.
•Clean the electrical connections for trailer
wiring after driving in mud or water
•When driving through water, maintain low
speed and do not stop in the water.
WARNING
After driving through water, press lightly on
the brake pedal to ensure that the brakes
are functioning normally. Water or mud can
make the brake linings slippery, resulting in
delayed braking effect.
CAUTION
•Engine damage will occur if water is
drawn into the air cleaner.
•If the vehicle is driven through water
deeper than 9 in. (25 cm), water may
enter the differential and the transmis-
sion. This reduces the oil's lubricating
capacity and may shorten the service
life of these components.
•Do not allow the vehicle to stand in
water up to the door sills longer than
absolutely necessary. This could result
in electrical malfunctions.
•If the engine has been stopped while the
car is in water, do not attempt to restart
the engine. Have the car towed out of
the water.
Cold weather precautions
If you wish to check your vehicle before the
approach of cold weather, the following advice
is worth noting:
•Make sure that the engine coolant contains
50 percent antifreeze. Any other mixture
will reduce freeze protection. This gives
protection against freezing down to –31 °F
(–35 °C). See section "Coolant". The use of
"recycled" antifreeze is not approved byVolvo. Different types of antifreeze must
not be mixed.
•Volvo recommends using only genuine
Volvo antifreeze in your vehicle's radiator.
Your Volvo retailer stocks plenty of Volvo
engine coolant to help protect your vehicle
during cold weather.
•Try to keep the fuel tank well filled – this
prevents the formation of condensation in
the tank. In addition, in extremely cold
weather conditions it is worthwhile to add
fuel line de-icer before refueling.
•The viscosity of the engine oil is important.
Oil with low viscosity (thinner oil) improves
cold-weather starting as well as decreas-
ing fuel consumption while the engine is
warming up. For winter use, 5W-30 oil, par-
ticularly the synthetic type
1, is recom-
mended. Be sure to use good quality oil but
do not use cold-weather oil for hard driving
or in warm weather, see page 275 for more
information.
•The load placed on the battery is greater
during the winter since the windshield wip-
ers, lighting, etc. are used more often.
Moreover, the capacity of the battery
decreases as the temperature drops. In
very cold weather, a poorly charged bat-
tery can freeze and be damaged. It is there-
fore advisable to check the state of charge
1Synthetic oil is not used when the oil is changed at the normal maintenance intervals except at owner request and at additional charge. Please consult your Volvo retailer.

06 Starting and driving
General information
06
140
more frequently and spray an anti-rust oil
on the battery posts.
•Volvo recommends the use of snow tires
on all four wheels for winter driving – see
the chapter "Wheels and tires."
•To prevent the washer fluid reservoir from
freezing, add washer solvents containing
antifreeze (see page 217 for the location of
the washer fluid reservoir). This is impor-
tant since dirt is often splashed on the
windshield during winter driving, requiring
the frequent use of the washers and wip-
ers. Volvo Washer Solvent should be dilu-
ted as follows: Down to 14 °F (–10 °C):
1 part washer solvent and 4 parts water
Down to 5 °F (–15 °C): 1 part washer sol-
vent and 3 parts water Down to 0 °F
(–18 °C): 1 part washer solvent and 2 parts
water Down to –18 °F (–28 °C): 1 part
washer solvent and 1 part water.
•Use Volvo Teflon Lock Spray in the locks.
NOTE
Avoid using de-icing sprays as they can
cause damage to the locks.
Conserving electrical current
Keep the following in mind to help minimize
battery drain:
•When the engine is not running, avoid turn-
ing the ignition key to position II. Many
electrical systems (the audio system, the
optional navigation system, power win-
dows, etc) will function with the ignition key
in position I. This position reduces drain on
the battery.
•Please keep in mind that using systems,
accessories, etc that consume a great deal
of current when the engine is not running
could result in the battery being completely
drained.
•The optional 12 volt socket in the cargo
area (certain models only) provides electri-
cal current even with the ignition switched
off, which drains the battery.
NOTE
•If the ignition is switched on, a warning
message will be displayed in the text
window in the instrument panel when
the battery charge is low.
•An energy conserving function
designed into the vehicle's electrical
system will switch off certain functions
or reduce the load on the battery by,
e.g., reducing the audio system's vol-
ume.
Before a long distance trip
It is always worthwhile to have your vehicle
checked at a trained and qualified Volvo serv-
ice technician before driving long distances.
Your trained and qualified Volvo service tech-
nician will also be able to supply you with
bulbs, fuses, spark plugs and wiper blades for
your use in the event that problems occur.
As a minimum, the following items should be
checked before any long trip:
•Check that engine runs smoothly and that
fuel consumption is normal.
•Check for fuel, oil, and fluid leakage
•Have the transmission oil level checked2.
•Check condition of drive belts.
2To prevent injury from contact with hot surfaces, do not inspect your vehicle's transmission fluid yourself. Have your vehicle's transmission fluid level inspected by a qualified Volvo service technician.
