TPMS VOLVO V50 2010 Owner´s Manual

Contents
6* Option/accessory, for more information, see Introduction.
06
06 Starting and driving
General information................................138
Fuel requirements................................... 142
Ignition switch......................................... 145
Starting the vehicle................................. 146
Starting the vehicle with keyless drive*... 148
Manual transmission, 5-speed*.............. 149
Manual transmission, 6-speed*.............. 150
Automatic transmission*......................... 151
Shiftlock override.................................... 153
All Wheel Drive*....................................... 154
Brake system.......................................... 155
Stability system....................................... 157
Towing.................................................... 159
Jump starting.......................................... 161
Towing a trailer....................................... 162
Detachable trailer hitch........................... 164
Transporting loads.................................. 165
Blind Spot Information System (BLIS)*. . . 166
Park assist*............................................. 170
07
07 Wheels and tires
General information................................176
Tire inflation............................................. 179
Inflation pressure—U.S. models ............ 181
Inflation pressure—Canadian models .... 182
Tire designations..................................... 183
Glossary of tire terminology.................... 185
Vehicle loading........................................ 186
Uniform tire quality gradings................... 188
Snow chains, snow tires, studded tires. . 189
Temporary spare..................................... 190
Wheel nuts.............................................. 191
Changing a wheel................................... 192
Tire Sealing System ............................... 194
Tire Pressure Monitoring System (TPMS) 199
08
08 Car care
Washing and cleaning the car................. 204
Paint touch up......................................... 208

G020918

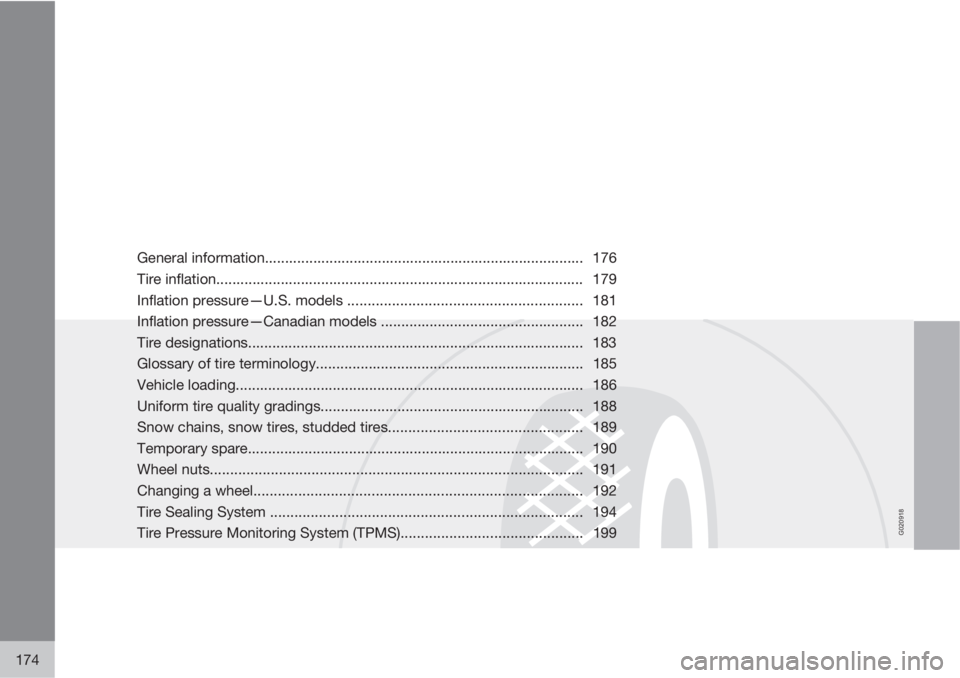

174
General information............................................................................... 176
Tire inflation........................................................................................... 179
Inflation pressure—U.S. models .......................................................... 181
Inflation pressure—Canadian models .................................................. 182
Tire designations................................................................................... 183
Glossary of tire terminology..................................................................185
Vehicle loading...................................................................................... 186
Uniform tire quality gradings................................................................. 188
Snow chains, snow tires, studded tires................................................ 189
Temporary spare................................................................................... 190
Wheel nuts............................................................................................ 191
Changing a wheel................................................................................. 192
Tire Sealing System ............................................................................. 194
Tire Pressure Monitoring System (TPMS).............................................199

07 Wheels and tires
Tire Sealing System
07

197
12. Switch off the compressor and disconnect
the electrical wire from the 12-volt socket.
13. Unscrew the hose from the tire’s inflation
valve and reinstall the valve cap.
14. Immediately drive the vehicle for approxi-
mately 2 miles (3 km) at a maximum speed
of 50 mph (80 km/h) to distribute the seal-
ing compound in the tire.
CAUTION
If your vehicle is equipped with the Tire
Pressure Monitoring System (TPMS), the
use of the sealing compound may lead to
incorrect tire pressure readings or in rare
cases, damage to the tire pressure sensor.
Use the tire sealing system to check and
adjust the damaged tire's inflation pressure.
NOTE
•Safely stow the tire sealing system in a
convenient place as it will soon be used
again to check the tire’s inflation pres-
sure.
•The empty bottle of sealing compound
cannot be removed from the bottle
holder. Consult a trained and qualified
Volvo service technician to have the
bottle removed and properly disposed
of.
WARNING
If heavy vibrations, unsteady steering
behavior, or noises should occur while driv-
ing, reduce speed and park the vehicle in a
safe place. Recheck the tire for bumps,
cracks, or other visible damage, and
recheck its inflation pressure. If the pressure
is below 19 psi (1.3 bar), do not continue
driving. Have the vehicle towed to a trained
and qualified Volvo service technician.
Stage 2: Checking inflation pressure1. Connect the tire sealing system as descri-
bed in stage 1.
2. Refer to the inflation pressure tables for the
correct inflation pressure. If the tire needs
to be inflated, start the tire sealing system’s
compressor. If necessary, release air from
the tire by turning the air release knob
counterclockwise.
CAUTION
The compressor should not be used for
more than 10 minutes at a time to avoid
overheating.
WARNING
If you interrupt your trip for more than 1
hour, check the inflation pressure in the
damaged tire again before continuing.
Replacing the sealing compound
container
The sealing compound container must be
replaced if:
•the tire sealing system has been used to
repair a tire
•the container’s expiration date has passed
(see the date on decal).
NOTE
•After use, the sealing compound bottle,
the hose, and certain other system
components must be replaced. Please
consult your Volvo retailer for replace-
ment parts.
•If the sealing compound bottle’s expi-
ration date has passed, please take it to
a Volvo retailer or a recycling station
that can properly dispose of harmful
substances.

07 Wheels and tires
Tire Pressure Monitoring System (TPMS)
07

199 Introduction
The tire pressure monitoring system uses sen-
sors mounted in the tire valves to check infla-
tion pressure levels. When the vehicle is mov-
ing at a speed of approximately 20 mph
(30 km/h) or faster, these sensors transmit
inflation pressure data to a receiver located in
the vehicle.
NOTE
USA – FCC ID: KR5S122780002
This device complies with part 15 of the
FCC rules. Operation is subject to the fol-
lowing conditions: (1) This device may not
cause harmful interference, and (2) this
device must accept any interference
received, including interference that may
cause undesired operation.
When low inflation pressure is detected, TPMS
will light up the tire pressure warning light
(also referred to as a telltale) in the instrument
panel and will display one of the following mes-
sages in the text window:
LOW TIRE PRESS.
CHECK TIRES or VERY LOW TIRE
PRESSURE.
NOTE
If a fault occurs in TPMS, the tire pressure
warning light will flash for approximately
1 minute and
TIRE PRESS SYST
SERVICE REQUIRED will be displayed.
Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recommended
by the vehicle manufacturer on the vehicle
placard or tire inflation pressure label. (If your
vehicle has tires of a different size than the size
indicated on the vehicle placard or tire inflation
pressure label, you should determine the
proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has
been equipped with a tire pressure monitoring
system (TPMS) that illuminates a low tire pres-
sure telltale when one or more of your tires is
significantly under-inflated. Accordingly, when
the low tire pressure telltale illuminates, you
should stop and check your tires as soon as
possible, and inflate them to the proper pres-
sure. Driving on a significantly under-inflated
tire causes the tire to overheat and can lead to
tire failure. Under-inflation also reduces fuel
efficiency and tire tread life, and may affect the
vehicle's handling and stopping ability.
Please note that the TPMS is not a substitute
for proper tire maintenance, and it is the driv-er's responsibility to maintain correct tire pres-
sure, even if under-inflation has not reached
the level to trigger illumination of the TPMS low
tire pressure telltale.
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate when
the system is not operating properly. The
TPMS malfunction indicator is combined with
the low tire pressure telltale . When the system
detects a malfunction, the telltale will flash for
approximately one minute and then remain
continuously illuminated. This sequence will
continue upon subsequent vehicle start-ups as
long as the malfunction exists. When the mal-
function indicator is illuminated, the system
may not be able to detect or signal low tire
pressure as intended. TPMS malfunctions may
occur for a variety of reasons, including the
installation of replacement or alternate tires or
wheels on the vehicle that prevent the TPMS
from functioning properly. Always check the
TPMS malfunction telltale after replacing one
or more tires or wheels on your vehicle to
ensure that the replacement or alternate tires
and wheels allow the TPMS to continue to
function properly.

07 Wheels and tires
Tire Pressure Monitoring System (TPMS)
07
200
NOTE
•TPMS indicates low tire pressure but
does not replace normal tire mainte-
nance. For information on correct tire
pressure, please refer to the tables
beginning on page 181, or consult your
Volvo retailer.
•The tire pressure warning light will not
identify which tire is underinflated. Be
sure to check all four tires.
•A certain amount of air seepage from
the tires occurs naturally and tire pres-
sure fluctuates with seasonal changes
in temperature. Always check tire pres-
sure regularly.
Erasing warning messagesWhen a low tire pressure warning message has
been displayed, and the tire pressure warning
light has come on:
1. Use a tire pressure gauge to check the
inflation pressure of all four tires.
2. Re-inflate the tire(s) to the correct pressure
(consult the tire pressure placard or the
tables, see page 181 ).
3. In certain cases, it may be necessary to
drive the vehicle for several minutes at a
speed of 20 mph (30 km/h) or faster. Thiswill erase the warning text and the warning
light will go out.
WARNING
Incorrect inflation pressure could lead to tire
failure, resulting in a loss of control of the
vehicle.
Changing wheels with TPMSPlease note the following when changing or
replacing the factory installed TPMS wheels/
tires on the vehicle:
•Only the factory-mounted wheels are
equipped with TPMS sensors in the valves.
•If the vehicle is equipped with a temporary
spare tire, this tire does not have a TPMS
sensor.
•If wheels without TPMS sensors are moun-
ted on the vehicle, TIRE PRESS SYST
SERVICE REQUIRED will be displayed
each time the vehicle is driven above
25 mph (40 km/h) for 10 minutes or more.
•Once TPMS sensors are properly installed,
the warning message should not reappear.
If the message is still displayed, drive the
vehicle for several minutes at a speed of
20 mph (30 km/h) or faster to erase the
message.
•Volvo recommends that TPMS sensors be
fitted on all wheels used on the vehicle.Volvo does not recommend moving sen-
sors back and forth between sets of
wheels.
NOTE
•If you change to tires with a different
recommended inflation pressure, the
TPMS system must be recalibrated to
these tires. This must be done by an
authorized Volvo retailer or workshop.
•If a tire is changed, or if the TPMS sen-
sor is moved to another wheel, the sen-
sor's seal, nut, and valve core should be
replaced.
•When installing TPMS sensors, the
vehicle must be parked for at least
15 minutes with the ignition off. If the
vehicle is driven within 15 minutes, a
TPMS error message will be displayed.
CAUTION
When inflating tires with TPMS valves, press
the pump's mouthpiece straight onto the
valve to help avoid bending or otherwise
damaging the valve.

12 Index
12
287
Refueling.................................................. 144
fuel tank volume.................................273
Registering child restraints........................ 46
Remote key.............................................. 122
battery replacement............................ 123
functions............................................. 122
key blade............................................ 124
Replacing fuses....................................... 232
Reporting safety defects
Canada................................................. 17
USA....................................................... 16
Roof loads............................................... 165
S
Safety, occupant........................................ 16
Safety defects, reporting
Canada................................................. 17
USA....................................................... 16
Safety locks, child.................................... 132
Seat belt
reminder................................................ 19
Seat belts................................................... 18
Automatic locking retractor/Emergency
locking retractor.................................... 35buckling................................................ 18
maintenance......................................... 20
pretensioners........................................ 18
unbuckling............................................ 18
use during pregnancy........................... 19
Seats, front.............................................. 104
Shiftlock
override............................................... 153
Side door mirrors....................................... 80
Side impact airbags................................... 29
Side impact protection (SIPS) airbags....... 29
Sirius satellite radio.................................. 251
Snow chains............................................ 189
Snow tires................................................ 189
Sound control, automatic........................246
Sound settings, audio system................. 244
Spare tire................................................. 190
Stability system....................................... 157
Dynamic Stability Traction Control
(DSTC)................................................ 157
Starting the engine..................................146
with keyless drive...............................148
Start inhibitor (immobilizer)..............122, 146
STC, stability system............................... 157Steering wheel
adjusting............................................... 75
keypad................................................ 243
Storage compartments............................ 111
Studded tires........................................... 189
Subwoofer............................................... 245
Sunroof (moonroof).................................... 82
Supplemental restraint system.................. 21
T
Tachometer................................................ 53
Tailgate wipers................................... 73, 222
Temporary spare tire...............................190
Three-way catalytic converter................. 280
Tire inflation............................................. 179
Tire inflation pressure
Canadian models................................ 182
US models.......................................... 181
Tire Pressure Monitoring System (TPMS) 199
Tires.........................................................176
age...................................................... 176
changing............................................. 192
changing from summer to winter........ 177
