05 Infotainment system
BluetoothŸŸ handsfree*
05

* Option/accessory, for more information, see Introduction.251
Version information BluetoothŸ
The car's current BluetoothŸ version can be
seen in phone mode under Phone main menu
Phone settingsBluetooth software
version in car.
Phone book
There are two phone books. These are merged
into one in the car and are displayed as a single
phone book in the car.
•The car downloads the mobile phone's
phone book and only displays this phone
book when the mobile phone from which
this phone book was downloaded is con-
nected.
•The car also has a built-in phone book. This
contains all the contacts stored in the car
irrespective of which phone was con-
nected when saving them. These contacts
are visible for all users, regardless of the
mobile phone that is connected to the car.
If a contact is saved in the car then the
symbol
is shown in front of the con-
tact in the phone book.
NOTE
Changes made from the car to a record in
the mobile phone's telephone book will
result in a new record in the car's telephone
book, i.e. changes will not be saved to the
phone. From the car, this will now look like
you have double records, with different
icons. Note also that when a shortcut num-
ber is saved or a change to a contact is
made, this will result in a new record in the
car's phone book.
All use of the phone book requires that the
symbol appears at the top of the TV
screen and that the handsfree function is in
phone mode.
The audio system stores a copy of the phone
book from each paired mobile phone. The
phone book can be copied automatically to the
audio system during each connection.

Activate/deactivate the function in phone
mode under Phone main menu
Phone
settings
Download phone book.
If the phone book contains a ringing caller's
contact information then this is shown in the TV
screen.
Quick search for contactsIn normal view turn TUNE to the right to obtain
a list of contacts. Turn TUNE to select and
press OK/MENU to call.
Under the name of the contact is the phone
number that is selected by default. If the sym-
bol
appears to the right of the contact then
there are several phone numbers stored for the
contact. Change and dial a different number
than the one that is selected by default by
pressing the button
on the control panel
in the centre console. Then turn TUNE to select
and press OK/MENU to call.
Search in the list of contacts by using the cen-
tre console's keypad to key in the start of the
contact's name (see "Character table keypad
in centre console" for button functions).
The list of contacts can also be accessed from
normal view by pressing and holding the button
on the centre console's keypad with the letter
that the contact searched for starts with. For
example, a long press on the button for 6 gives
instant access to that part of the list where the
contacts with the letter
M are located.
ProCarManuals.com

05 Infotainment system
BluetoothŸŸ handsfree*
05
252* Option/accessory, for more information, see Introduction.

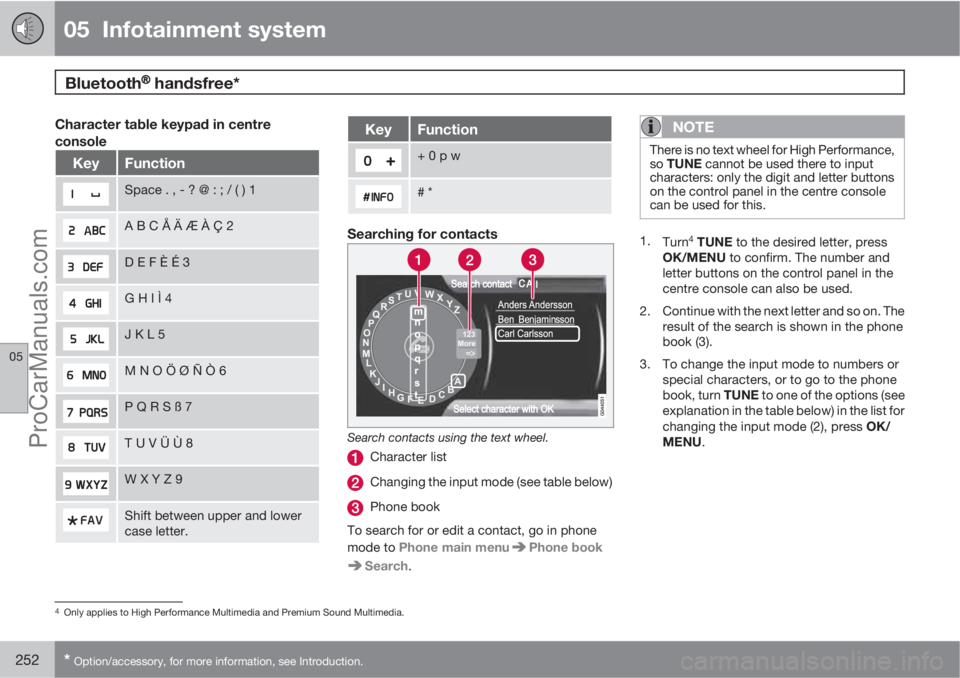

Character table keypad in centre
console
KeyFunction
Space . , - ? @ : ; / ( ) 1
A B C Å Ä Æ À Ç 2
D E F È É 3
G H I Ì 4
J K L 5
M N O Ö Ø Ñ Ò 6
P Q R S ß 7
T U V Ü Ù 8
W X Y Z 9
Shift between upper and lower
case letter.
KeyFunction
+ 0 p w
# *
Searching for contacts
Search contacts using the text wheel.
Character list
Changing the input mode (see table below)
Phone book
To search for or edit a contact, go in phone
mode to Phone main menu
Phone book
Search.
NOTE
There is no text wheel for High Performance,
so TUNE cannot be used there to input
characters: only the digit and letter buttons
on the control panel in the centre console
can be used for this.
1.
Turn4 TUNE to the desired letter, press
OK/MENU to confirm. The number and
letter buttons on the control panel in the
centre console can also be used.
2. Continue with the next letter and so on. The
result of the search is shown in the phone
book (3).
3. To change the input mode to numbers or
special characters, or to go to the phone
book, turn TUNE to one of the options (see
explanation in the table below) in the list for
changing the input mode (2), press OK/
MENU.
4Only applies to High Performance Multimedia and Premium Sound Multimedia.
ProCarManuals.com

05 Infotainment system
BluetoothŸŸ handsfree*
05

* Option/accessory, for more information, see Introduction.253

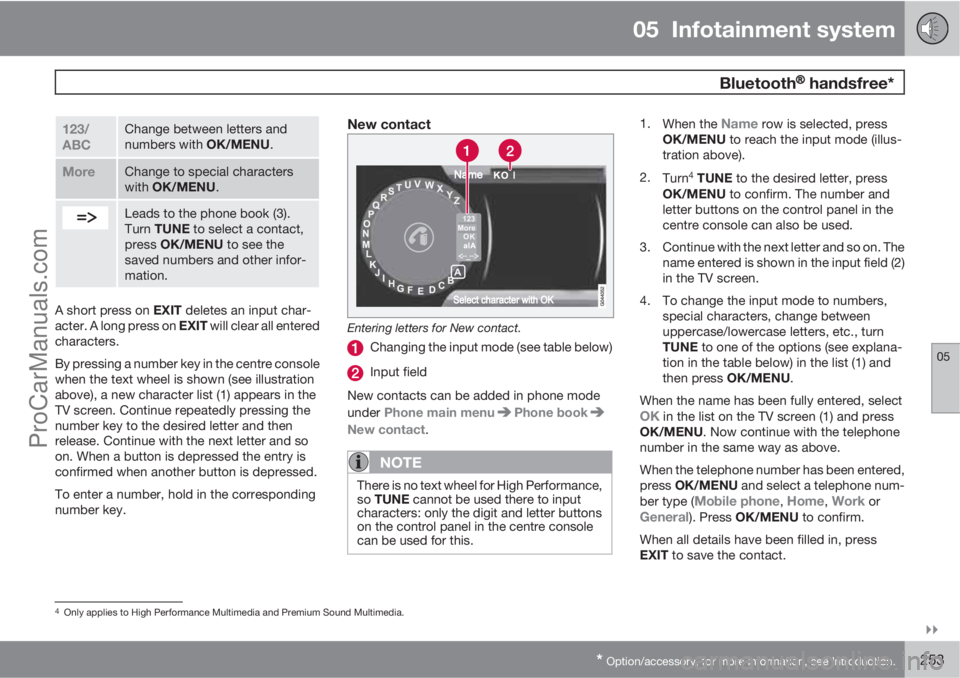

123/
ABCChange between letters and
numbers with OK/MENU.
MoreChange to special characters
with OK/MENU.
Leads to the phone book (3).
Turn TUNE to select a contact,
press OK/MENU to see the
saved numbers and other infor-
mation.
A short press on EXIT deletes an input char-
acter. A long press on EXIT will clear all entered
characters.
By pressing a number key in the centre console
when the text wheel is shown (see illustration
above), a new character list (1) appears in the
TV screen. Continue repeatedly pressing the
number key to the desired letter and then
release. Continue with the next letter and so
on. When a button is depressed the entry is
confirmed when another button is depressed.
To enter a number, hold in the corresponding
number key.
New contact
Entering letters for New contact.
Changing the input mode (see table below)
Input field
New contacts can be added in phone mode
under Phone main menu
Phone book
New contact.
NOTE
There is no text wheel for High Performance,
so TUNE cannot be used there to input
characters: only the digit and letter buttons
on the control panel in the centre console
can be used for this.
1.
When the Name row is selected, press
OK/MENU to reach the input mode (illus-
tration above).
2.
Turn
4 TUNE to the desired letter, press
OK/MENU to confirm. The number and
letter buttons on the control panel in the
centre console can also be used.
3. Continue with the next letter and so on. The
name entered is shown in the input field (2)
in the TV screen.
4. To change the input mode to numbers,
special characters, change between
uppercase/lowercase letters, etc., turn
TUNE to one of the options (see explana-
tion in the table below) in the list (1) and
then press OK/MENU.
When the name has been fully entered, select
OK in the list on the TV screen (1) and press
OK/MENU. Now continue with the telephone
number in the same way as above.
When the telephone number has been entered,
press OK/MENU and select a telephone num-
ber type (
Mobile phone, Home, Work orGeneral). Press OK/MENU to confirm.
When all details have been filled in, press
EXIT to save the contact.
4Only applies to High Performance Multimedia and Premium Sound Multimedia.
ProCarManuals.com

05 Infotainment system
BluetoothŸŸ handsfree*
05
254* Option/accessory, for more information, see Introduction.

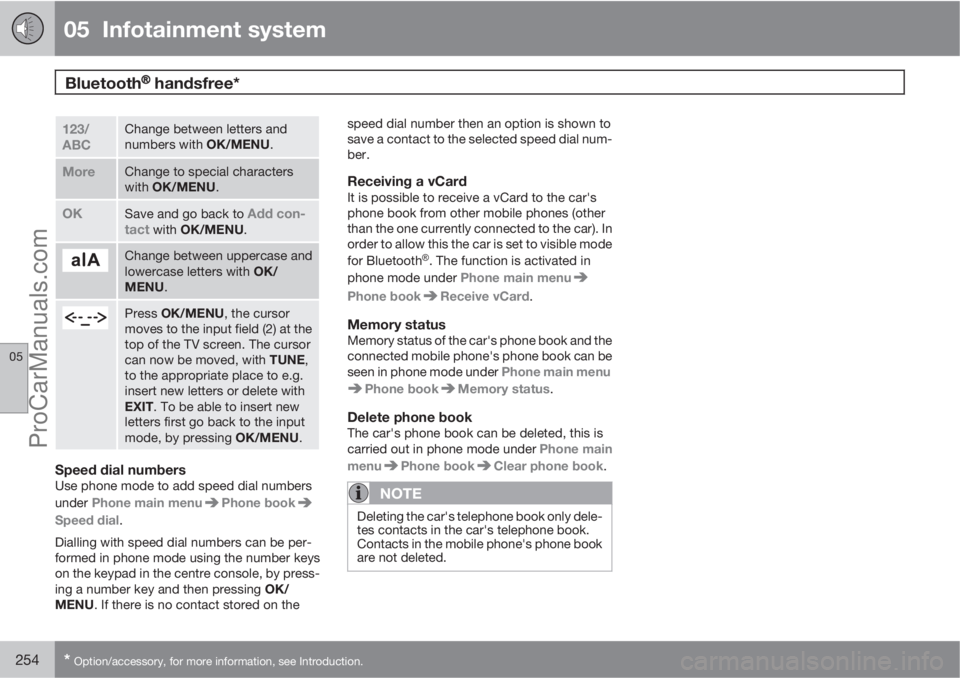

123/
ABCChange between letters and
numbers with OK/MENU.
MoreChange to special characters
with OK/MENU.
OKSave and go back to Add con-
tact with OK/MENU.
Change between uppercase and
lowercase letters with OK/
MENU.
Press OK/MENU, the cursor
moves to the input field (2) at the
top of the TV screen. The cursor
can now be moved, with TUNE,
to the appropriate place to e.g.
insert new letters or delete with
EXIT. To be able to insert new
letters first go back to the input
mode, by pressing OK/MENU.
Speed dial numbersUse phone mode to add speed dial numbers
under Phone main menu
Phone book
Speed dial.
Dialling with speed dial numbers can be per-
formed in phone mode using the number keys
on the keypad in the centre console, by press-
ing a number key and then pressing OK/
MENU. If there is no contact stored on thespeed dial number then an option is shown to
save a contact to the selected speed dial num-
ber.
Receiving a vCardIt is possible to receive a vCard to the car's
phone book from other mobile phones (other
than the one currently connected to the car). In
order to allow this the car is set to visible mode
for Bluetooth
Ÿ. The function is activated in
phone mode under Phone main menu
Phone bookReceive vCard.
Memory statusMemory status of the car's phone book and the
connected mobile phone's phone book can be
seen in phone mode under Phone main menu
Phone bookMemory status.
Delete phone bookThe car's phone book can be deleted, this is
carried out in phone mode under Phone main
menu
Phone bookClear phone book.
NOTE
Deleting the car's telephone book only dele-
tes contacts in the car's telephone book.
Contacts in the mobile phone's phone book
are not deleted.
ProCarManuals.com

05 Infotainment system
Voice recognition* mobile phone
05

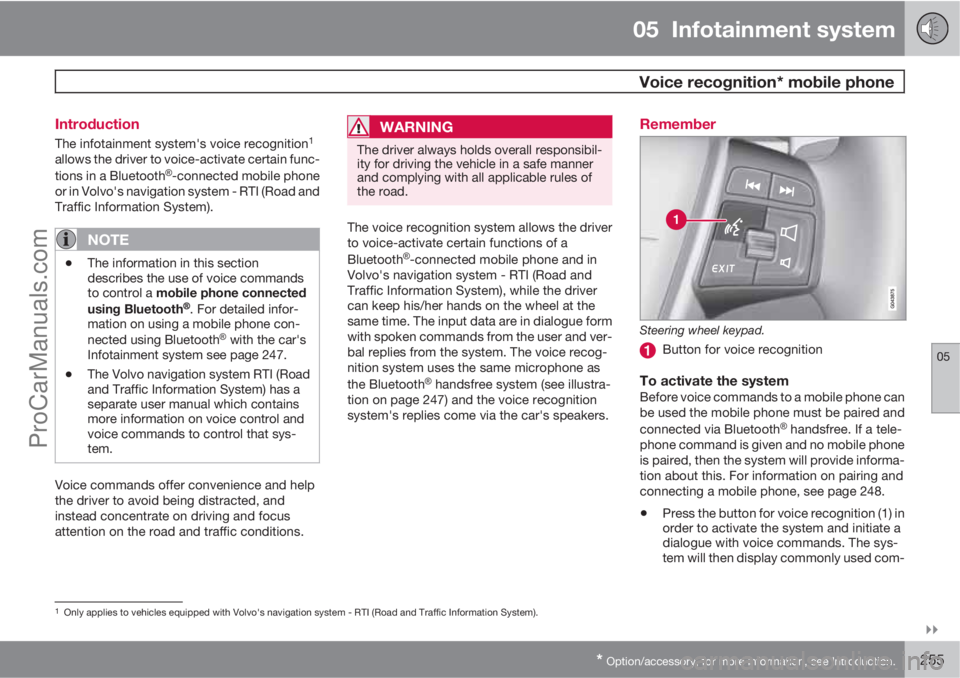

* Option/accessory, for more information, see Introduction.255 Introduction
The infotainment system's voice recognition1
allows the driver to voice-activate certain func-
tions in a BluetoothŸ-connected mobile phone
or in Volvo's navigation system - RTI (Road and
Traffic Information System).
NOTE
•The information in this section
describes the use of voice commands
to control a mobile phone connected
using Bluetooth
Ÿ. For detailed infor-
mation on using a mobile phone con-
nected using Bluetooth
Ÿ with the car's
Infotainment system see page 247.
•The Volvo navigation system RTI (Road
and Traffic Information System) has a
separate user manual which contains
more information on voice control and
voice commands to control that sys-
tem.
Voice commands offer convenience and help
the driver to avoid being distracted, and
instead concentrate on driving and focus
attention on the road and traffic conditions.
WARNING
The driver always holds overall responsibil-
ity for driving the vehicle in a safe manner
and complying with all applicable rules of
the road.
The voice recognition system allows the driver
to voice-activate certain functions of a
Bluetooth
Ÿ-connected mobile phone and in
Volvo's navigation system - RTI (Road and
Traffic Information System), while the driver
can keep his/her hands on the wheel at the
same time. The input data are in dialogue form
with spoken commands from the user and ver-
bal replies from the system. The voice recog-
nition system uses the same microphone as
the Bluetooth
Ÿ handsfree system (see illustra-
tion on page 247) and the voice recognition
system's replies come via the car's speakers.
Remember
Steering wheel keypad.
Button for voice recognition
To activate the systemBefore voice commands to a mobile phone can
be used the mobile phone must be paired and
connected via Bluetooth
Ÿ handsfree. If a tele-
phone command is given and no mobile phone
is paired, then the system will provide informa-
tion about this. For information on pairing and
connecting a mobile phone, see page 248.
•Press the button for voice recognition (1) in
order to activate the system and initiate a
dialogue with voice commands. The sys-
tem will then display commonly used com-
1Only applies to vehicles equipped with Volvo's navigation system - RTI (Road and Traffic Information System).
ProCarManuals.com

05 Infotainment system
Voice recognition* mobile phone
05

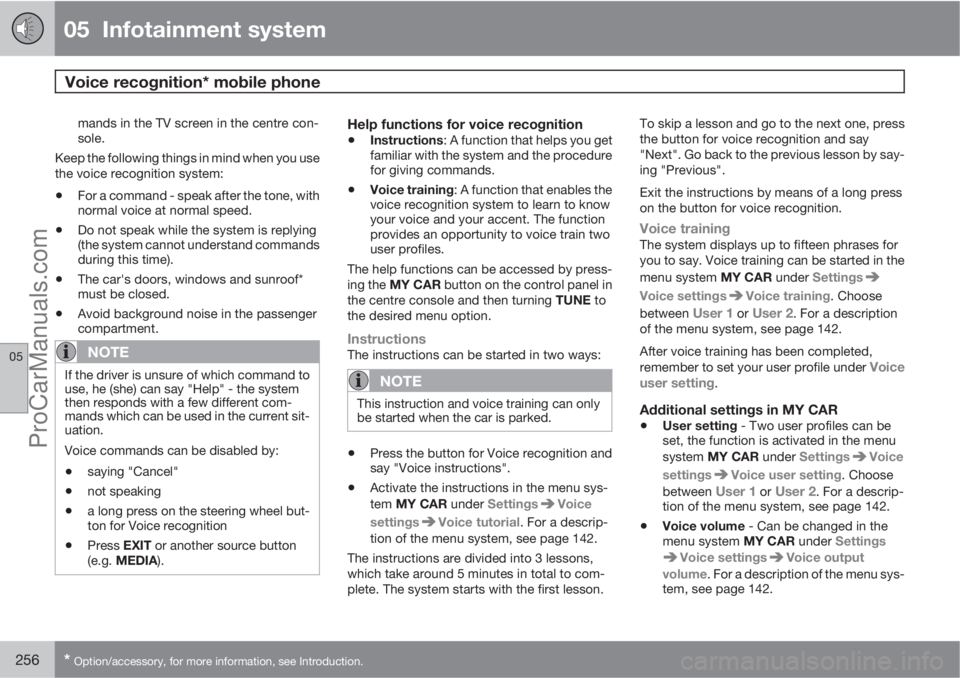

256* Option/accessory, for more information, see Introduction.
mands in the TV screen in the centre con-
sole.
Keep the following things in mind when you use
the voice recognition system:
•For a command - speak after the tone, with
normal voice at normal speed.
•Do not speak while the system is replying
(the system cannot understand commands
during this time).
•The car's doors, windows and sunroof*
must be closed.
•Avoid background noise in the passenger
compartment.
NOTE
If the driver is unsure of which command to
use, he (she) can say "Help" - the system
then responds with a few different com-
mands which can be used in the current sit-
uation.
Voice commands can be disabled by:
•saying "Cancel"
•not speaking
•a long press on the steering wheel but-
ton for Voice recognition
•Press EXIT or another source button
(e.g. MEDIA).
Help functions for voice recognition
•Instructions: A function that helps you get
familiar with the system and the procedure
for giving commands.
•Voice training: A function that enables the
voice recognition system to learn to know
your voice and your accent. The function
provides an opportunity to voice train two
user profiles.
The help functions can be accessed by press-
ing the MY CAR button on the control panel in
the centre console and then turning TUNE to
the desired menu option.
InstructionsThe instructions can be started in two ways:
NOTE
This instruction and voice training can only
be started when the car is parked.
•Press the button for Voice recognition and
say "Voice instructions".
•Activate the instructions in the menu sys-
tem MY CAR under Settings
Voice
settings
Voice tutorial. For a descrip-
tion of the menu system, see page 142.
The instructions are divided into 3 lessons,
which take around 5 minutes in total to com-
plete. The system starts with the first lesson.To skip a lesson and go to the next one, press
the button for voice recognition and say
"Next". Go back to the previous lesson by say-
ing "Previous".
Exit the instructions by means of a long press
on the button for voice recognition.
Voice trainingThe system displays up to fifteen phrases for
you to say. Voice training can be started in the
menu system MY CAR under Settings
Voice settingsVoice training. Choose
between
User 1 or User 2. For a description
of the menu system, see page 142.
After voice training has been completed,
remember to set your user profile under
Voice
user setting.
Additional settings in MY CAR
•User setting - Two user profiles can be
set, the function is activated in the menu
system MY CAR under Settings
Voice
settings
Voice user setting. Choose
between
User 1 or User 2. For a descrip-
tion of the menu system, see page 142.
•Voice volume - Can be changed in the
menu system MY CAR under Settings
Voice settingsVoice output
volume. For a description of the menu sys-
tem, see page 142.
ProCarManuals.com

05 Infotainment system
Voice recognition* mobile phone
05

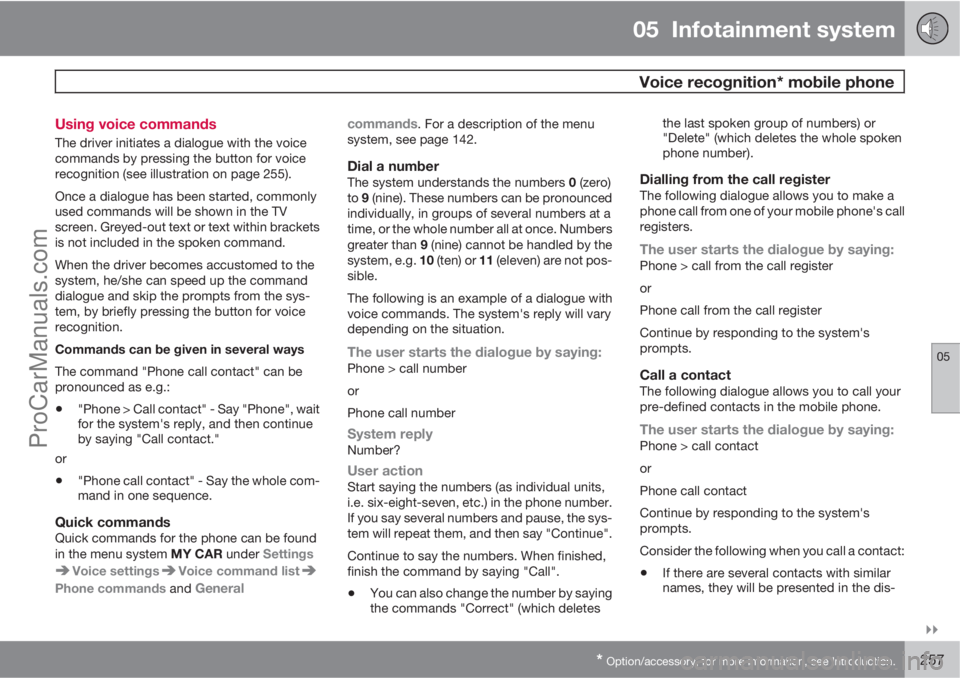

* Option/accessory, for more information, see Introduction.257 Using voice commands
The driver initiates a dialogue with the voice
commands by pressing the button for voice
recognition (see illustration on page 255).
Once a dialogue has been started, commonly
used commands will be shown in the TV
screen. Greyed-out text or text within brackets
is not included in the spoken command.
When the driver becomes accustomed to the
system, he/she can speed up the command
dialogue and skip the prompts from the sys-
tem, by briefly pressing the button for voice
recognition.
Commands can be given in several ways
The command "Phone call contact" can be
pronounced as e.g.:
•"Phone > Call contact" - Say "Phone", wait
for the system's reply, and then continue
by saying "Call contact."
or
•"Phone call contact" - Say the whole com-
mand in one sequence.
Quick commandsQuick commands for the phone can be found
in the menu system MY CAR under Settings
Voice settingsVoice command list
Phone commands and Generalcommands
. For a description of the menu
system, see page 142.
Dial a numberThe system understands the numbers 0 (zero)
to 9 (nine). These numbers can be pronounced
individually, in groups of several numbers at a
time, or the whole number all at once. Numbers
greater than 9 (nine) cannot be handled by the
system, e.g. 10 (ten) or 11 (eleven) are not pos-
sible.
The following is an example of a dialogue with
voice commands. The system's reply will vary
depending on the situation.
The user starts the dialogue by saying:Phone > call number
or
Phone call number
System replyNumber?
User actionStart saying the numbers (as individual units,
i.e. six-eight-seven, etc.) in the phone number.
If you say several numbers and pause, the sys-
tem will repeat them, and then say "Continue".
Continue to say the numbers. When finished,
finish the command by saying "Call".
•You can also change the number by saying
the commands "Correct" (which deletesthe last spoken group of numbers) or
"Delete" (which deletes the whole spoken
phone number).
Dialling from the call registerThe following dialogue allows you to make a
phone call from one of your mobile phone's call
registers.
The user starts the dialogue by saying:Phone > call from the call register
or
Phone call from the call register
Continue by responding to the system's
prompts.
Call a contactThe following dialogue allows you to call your
pre-defined contacts in the mobile phone.
The user starts the dialogue by saying:Phone > call contact
or
Phone call contact
Continue by responding to the system's
prompts.
Consider the following when you call a contact:
•If there are several contacts with similar
names, they will be presented in the dis-
ProCarManuals.com

05 Infotainment system
Voice recognition* mobile phone
05

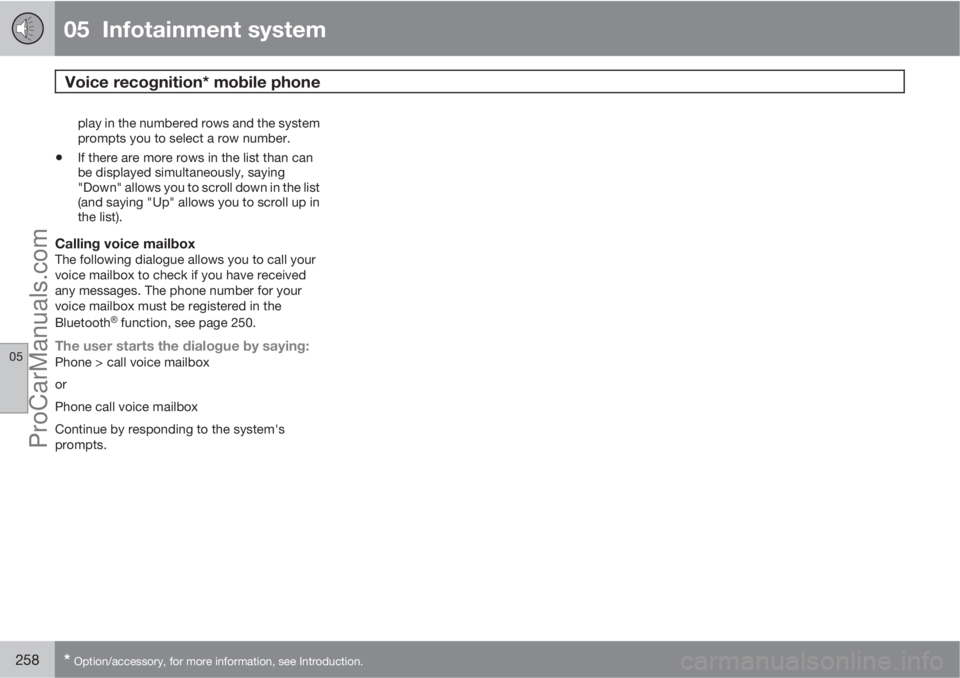

258* Option/accessory, for more information, see Introduction.
play in the numbered rows and the system
prompts you to select a row number.
•If there are more rows in the list than can
be displayed simultaneously, saying
"Down" allows you to scroll down in the list
(and saying "Up" allows you to scroll up in
the list).
Calling voice mailboxThe following dialogue allows you to call your
voice mailbox to check if you have received
any messages. The phone number for your
voice mailbox must be registered in the
Bluetooth
Ÿ function, see page 250.
The user starts the dialogue by saying:Phone > call voice mailbox
or
Phone call voice mailbox
Continue by responding to the system's
prompts.
ProCarManuals.com

05 Infotainment system
Menu navigation, Infotainment
05

* Option/accessory, for more information, see Introduction.259 To navigate in the menus
The infotainment system's functions are con-
trolled via the system's menus. Each source in
the infotainment system (e.g. RADIO, MEDIA)
has its own separate menus. In order to access
the menus and activate a function a source
must first have been selected (e.g.
RADIO/FM1). Then press OK/MENU for access into
the menu for the selected source.
The menu options are selected by means of the
buttons in the centre console or via the steering
wheel keypad*. The functions are described
under their respective sections.

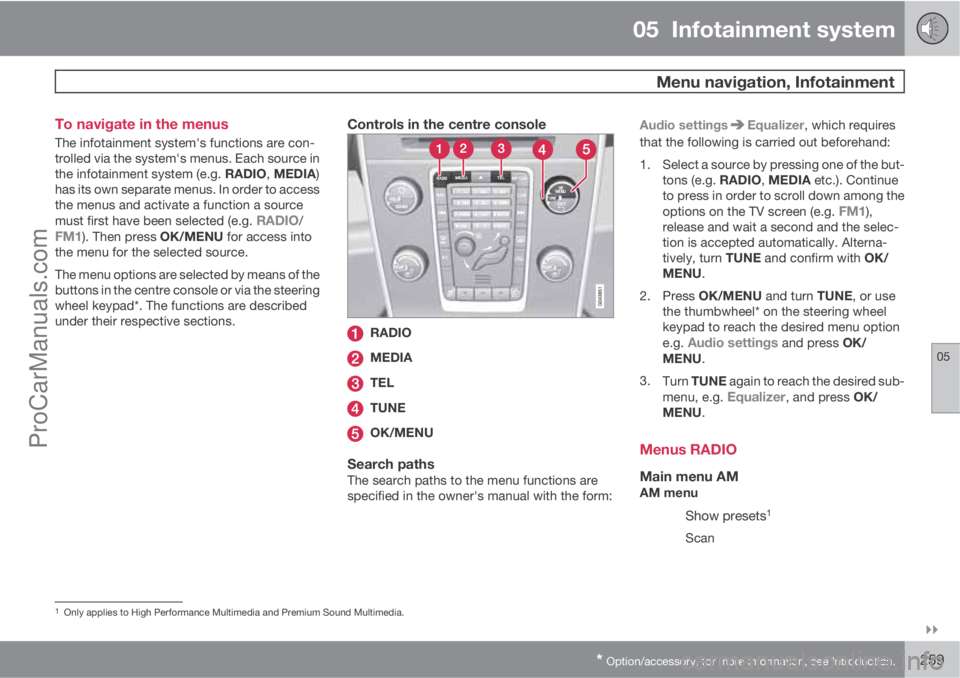

Controls in the centre console
RADIO
MEDIA
TEL
TUNE
OK/MENU
Search pathsThe search paths to the menu functions are
specified in the owner's manual with the form:Audio settings
Equalizer, which requires
that the following is carried out beforehand:
1. Select a source by pressing one of the but-
tons (e.g. RADIO, MEDIA etc.). Continue
to press in order to scroll down among the
options on the TV screen (e.g.
FM1),
release and wait a second and the selec-
tion is accepted automatically. Alterna-
tively, turn TUNE and confirm with OK/
MENU.
2.
Press OK/MENU and turn TUNE, or use
the thumbwheel* on the steering wheel
keypad to reach the desired menu option
e.g.
Audio settings and press OK/
MENU.
3.
Turn TUNE again to reach the desired sub-
menu, e.g.
Equalizer, and press OK/
MENU.
Menus RADIO
Main menu AMAM menu
Show presets1
Scan
1Only applies to High Performance Multimedia and Premium Sound Multimedia.
ProCarManuals.com

05 Infotainment system
Menu navigation, Infotainment
05
260* Option/accessory, for more information, see Introduction.

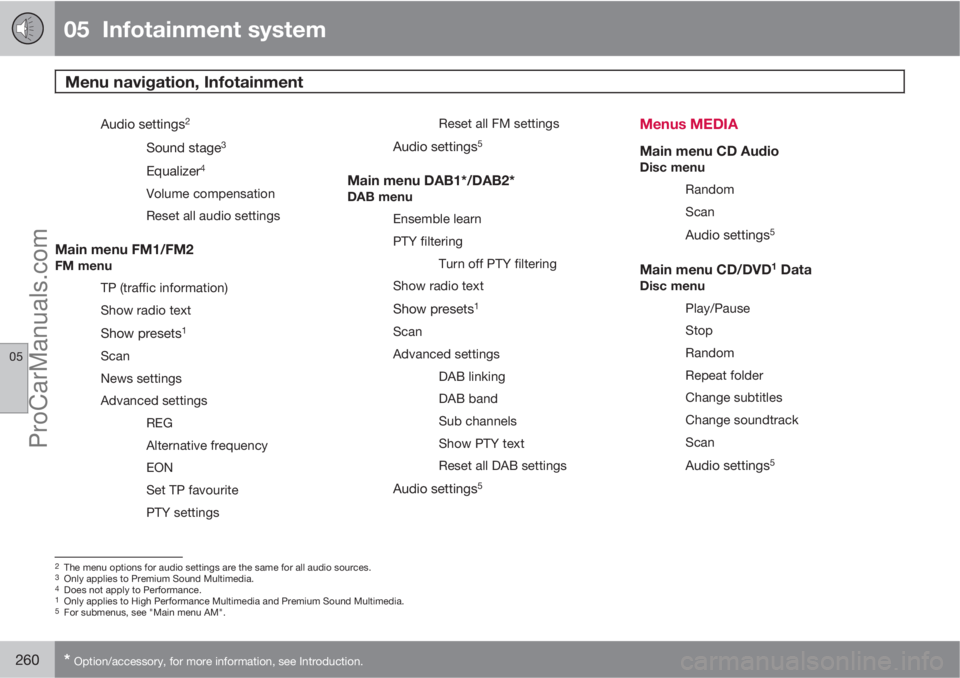

Audio settings2
Sound stage3
Equalizer4
Volume compensation
Reset all audio settings
Main menu FM1/FM2FM menu
TP (traffic information)
Show radio text
Show presets1
Scan
News settings
Advanced settings
REG
Alternative frequency
EON
Set TP favourite
PTY settingsReset all FM settings
Audio settings5
Main menu DAB1*/DAB2*DAB menu
Ensemble learn
PTY filtering
Turn off PTY filtering
Show radio text
Show presets1
Scan
Advanced settings
DAB linking
DAB band
Sub channels
Show PTY text
Reset all DAB settings
Audio settings5
Menus MEDIA
Main menu CD AudioDisc menu
Random
Scan
Audio settings5
Main menu CD/DVD1 DataDisc menu
Play/Pause
Stop
Random
Repeat folder
Change subtitles
Change soundtrack
Scan
Audio settings5
2The menu options for audio settings are the same for all audio sources.3Only applies to Premium Sound Multimedia.4Does not apply to Performance.1Only applies to High Performance Multimedia and Premium Sound Multimedia.5For submenus, see "Main menu AM".
ProCarManuals.com
