language VOLVO V60 2011 Owners Manual

04 Comfort and driving pleasure
Menu source MY CAR
04

145
For more information, see page 188.
Lane departure warning
Lane departure warning
On at start-up
Increased sensitivity
For more information, see page 198.
DSTC
For more information, see page 164.
City safety
For more information, see page 10 and 184.
BLIS
For more information, see page 207.
Distance Alert
For more information, see page 181.
Driver alert
For more information, see page 195.
MY CARSettingsSystem options
The instrument panel clock is set here.
Time
Time format
12 h24 h
For more information, see page 79.
Screensaver
The TV screen's current content fades out after
a period of inactivity and is replaced by a blank
screen if this option is selected. The current
screen content returns if any of the TV screen's
buttons or controls are actuated, see
page 142.
•If no screensaver is required - Deselect.
Language
Selects language for menu texts.
Show help text
Explanatory text for the display screen's cur-
rent content is shown if this option is selected.
Distance and fuel units
MPG (UK)
MPG (US)
km/l
l/100km
For more information on the trip computer, see
page 162.
Temperature unit
CelsiusFahrenheit
Selects the unit for the display of outside tem-
perature and setting of the climate control sys-
tem.
Volume levels
Voice output volume
Park assist front volume
Park assist rear volume
Phone ringing volume
Reset system options
This option resets the menu system to the orig-
inal factory settings in System settings.
MY CARSettingsVoice settingsA.
AOnly in combination with Volvo's navigation system RTI
(Road and Traffic Information) and/or BluetoothŸ-enabled
mobile phone
Voice tutorial
This menu option + OK provides spoken infor-
mation about how the system works.
Voice command list
Phone commands
Phone
Phone call contact
ProCarManuals.com

05 Infotainment system
Radio
05
231
NOTE
Only one of the functions "Show radio
text" and "Show presets" can be acti-
vated at a time. If one of them is activated
when the other is already activated, then the
previously activated function is deactivated
automatically. Both functions can be deac-
tivated.
Advanced settings
DAB to DAB link
It is possible to exit a channel with poor or no
reception to the same channel in another chan-
nel group with better reception. There may be
a certain delay when changing channel group.
There may be a period of silence between the
current channel no longer being available to the
new channel becoming available.
The function can be activated/deactivated in
DAB mode under DAB menu
Advanced
settings
DAB linking.
Wavelength
DAB can be transmitted on two5 wavelengths:
•Band III - covers areas outside big cities
•LBand - mainly in large cities
By selecting for example
Band III on its own,
channel programming takes place morequickly than if both
Band III and LBand have
been selected. It is not certain that all channel
groups will be found. Wavelength selection
does not affect the stored memories.
Wavelengths can be deactivated/activated in
DAB mode under DAB menu
Advanced
settings
DAB band.
SubchannelSecondary components are usually named
subchannels. These are temporary and can
contain e.g. translations of the main pro-
gramme into other languages.
If one or more subchannels are broadcast then
the
> symbol is shown to the left of the channel
name in the TV screen. A subchannel is indi-
cated by the
- symbol appearing to the left of
the channel name in the TV screen.
Subchannels can only be accessed on the
selected main channel and not on any other
channel without selecting it.
Display of subchannels can be deactivated/
activated in DAB mode under DAB menu
Advanced settingsSub channels
Programme type textSome radio stations broadcast information
about programme type and programme cate-gory. This information is shown on the TV
screen.
The function is activated/deactivated in DAB
mode under DAB menu
Advanced
settings
Show PTY text.
Resetting the DAB settingsAll DAB settings can be reset to the original
factory settings.

The reset is carried out in DAB mode under
DAB menu
Advanced settings
Reset all DAB settings.
5Not all areas/countries use both wavelengths.
ProCarManuals.com

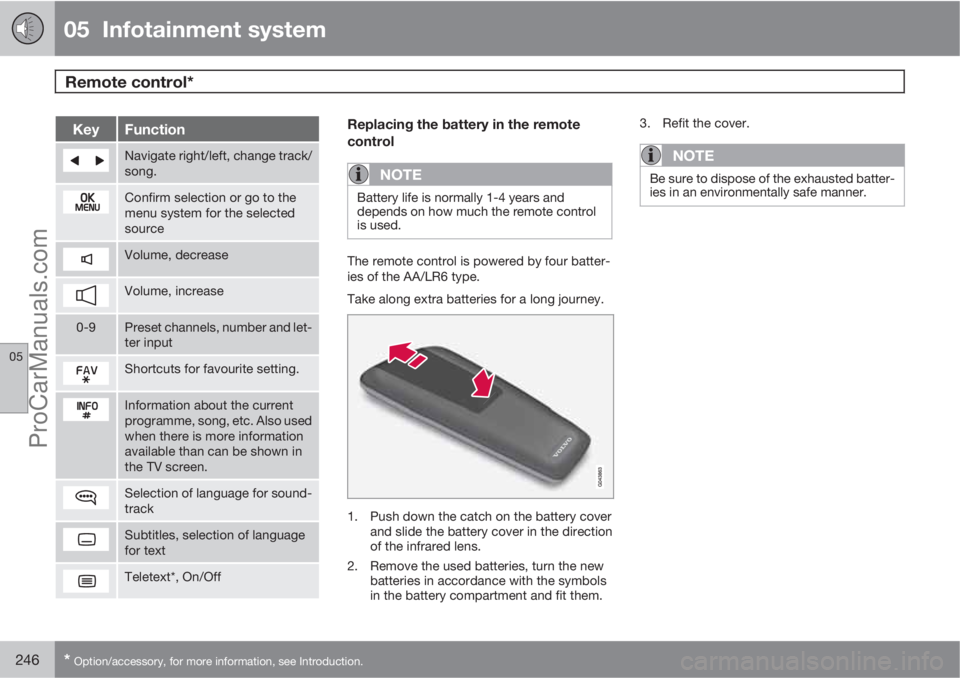

05 Infotainment system
Remote control*
05
246* Option/accessory, for more information, see Introduction.
KeyFunction
Navigate right/left, change track/
song.
Confirm selection or go to the
menu system for the selected
source
Volume, decrease
Volume, increase
0-9Preset channels, number and let-
ter input
Shortcuts for favourite setting.
Information about the current
programme, song, etc. Also used
when there is more information
available than can be shown in
the TV screen.
Selection of language for sound-
track
Subtitles, selection of language
for text
Teletext*, On/Off
Replacing the battery in the remote
control
NOTE
Battery life is normally 1-4 years and
depends on how much the remote control
is used.
The remote control is powered by four batter-
ies of the AA/LR6 type.
Take along extra batteries for a long journey.
1. Push down the catch on the battery cover
and slide the battery cover in the direction
of the infrared lens.
2. Remove the used batteries, turn the new
batteries in accordance with the symbols
in the battery compartment and fit them.3. Refit the cover.
NOTE
Be sure to dispose of the exhausted batter-
ies in an environmentally safe manner.
