VOLVO V60 2013 Owners Manual

SPECIFICATIONS
ProCarManuals.com

10 Specifications
Type designations
10
370
Label location
ProCarManuals.com

10 Specifications
Type designations
10
371
Knowing the car's type designation, vehicle
identification and engine numbers can facili-
tate all contact with an authorised Volvo dealer
regarding the car and when ordering spare
parts and accessories.
Type designation, vehicle identification
number, maximum permissible weights,
codes for colour and upholstery and type
approval number. The label is visible when
the right rear door is opened.
Label for parking heater.
Engine code and engine serial number.
6-cyl.
4-cyl / 5-cyl
Label for engine oil.
Gearbox type designation and serial num-
ber.
Manual gearbox
Automatic gearbox
Car's identification number. (VIN Vehicle
Identification Number)
Further information on the car is presented in
the registration document.
NOTE
The labels shown in the owner's manual are
not provided as exact reproductions of
those in the car. The purpose is to show
their approximate appearance and location
in the car. The information that applies to
your car in particular is available on the label
in question in your car.
ProCarManuals.com

10 Specifications
Dimensions and weights
10
372

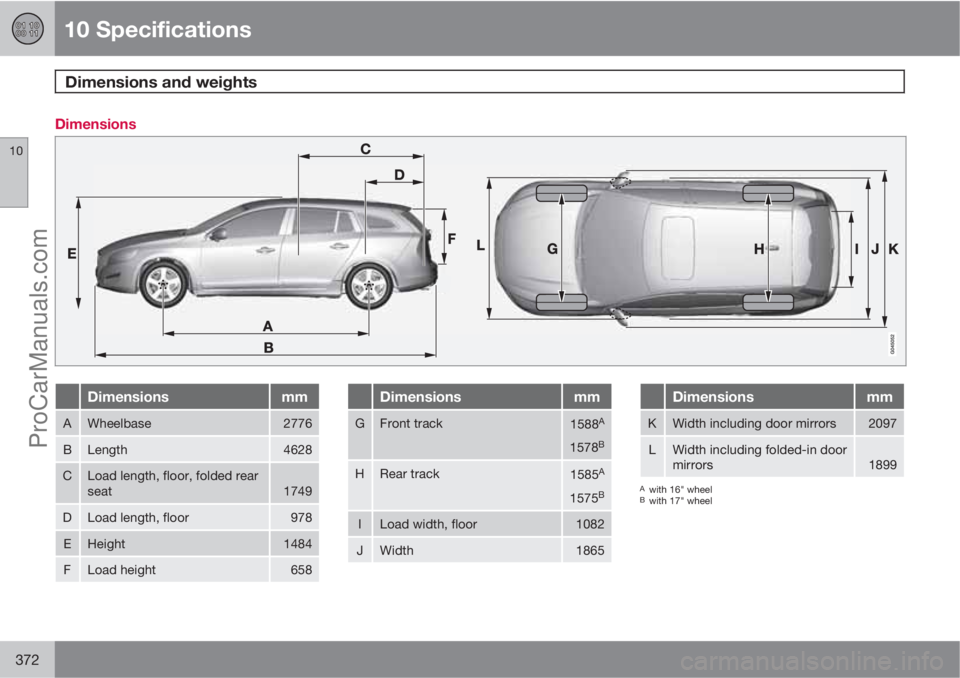

Dimensions
Dimensionsmm
AWheelbase2776
BLength4628
CLoad length, floor, folded rear
seat1749
DLoad length, floor978
EHeight1484
FLoad height658
Dimensionsmm
GFront track1588A
1578B
HRear track1585A
1575B
ILoad width, floor1082
JWidth1865
Dimensionsmm
KWidth including door mirrors2097
LWidth including folded-in door
mirrors1899
Awith 16" wheelBwith 17" wheel
ProCarManuals.com

10 Specifications
Dimensions and weights
10
373 Weights
Kerb weight includes the driver, the fuel tank
90% full and all fluids.
The weight of passengers and accessories,
and towball load (when a trailer is hitched, see
table page 374) influences the payload and is
not included in the kerb weight.
Permitted max. load = Gross vehicle weight -
Kerb weight.
NOTE
The documented kerb weight applies to
cars in the standard version - i.e. a car with-
out extra equipment or accessories. This
means that for every accessory added the
loading capacity of the car is reduced cor-
respondingly by the weight of the acces-
sory.
Examples of accessories that reduce load-
ing capacity are the Kinetic/Momentum/
Summum equipment levels, as well as other
accessories such as Towbar, Load carriers,
Space box, Audio system, Auxiliary lamps,
GPS, Fuel-driven heater, Safety grille, Car-
pets, Cargo cover, Power seats, etc.
Weighing the car is a certain way of ascer-
taining the kerb weight of your own partic-
ular car.
WARNING
The car's driving characteristics change
depending on how heavily it is loaded and
how the load is distributed.
For information on decal location, see page 370.
Max. gross vehicle weight
Max. train weight (car+trailer)
Max. front axle load
Max. rear axle load
Equipment level
Max. load: See registration document.
Max. roof load: 75 kg.
ProCarManuals.com

10 Specifications
Dimensions and weights
10
374

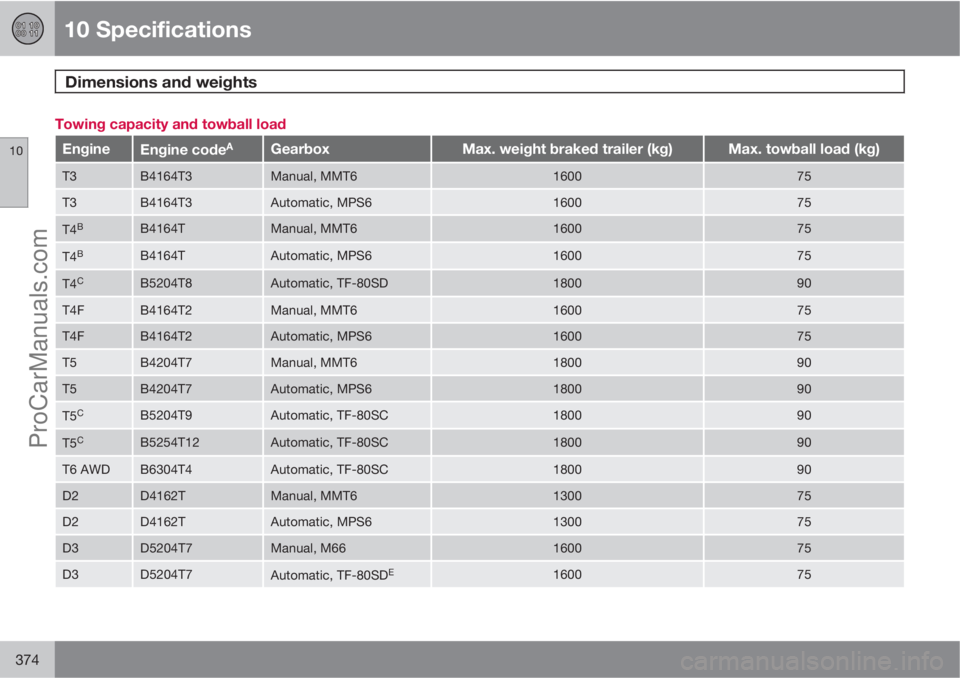

Towing capacity and towball load
EngineEngine codeAGearboxMax. weight braked trailer (kg)Max. towball load (kg)
T3B4164T3Manual, MMT6160075
T3B4164T3Automatic, MPS6160075
T4BB4164TManual, MMT6160075
T4BB4164TAutomatic, MPS6160075
T4CB5204T8Automatic, TF-80SD180090
T4FB4164T2Manual, MMT6160075
T4FB4164T2Automatic, MPS6160075
T5B4204T7Manual, MMT6180090
T5B4204T7Automatic, MPS6180090
T5CB5204T9Automatic, TF-80SC180090
T5CB5254T12Automatic, TF-80SC180090
T6 AWDB6304T4Automatic, TF-80SC180090
D2D4162TManual, MMT6130075
D2D4162TAutomatic, MPS6130075
D3D5204T7Manual, M66160075
D3D5204T7Automatic, TF-80SDE160075
ProCarManuals.com

10 Specifications
Dimensions and weights
10
375

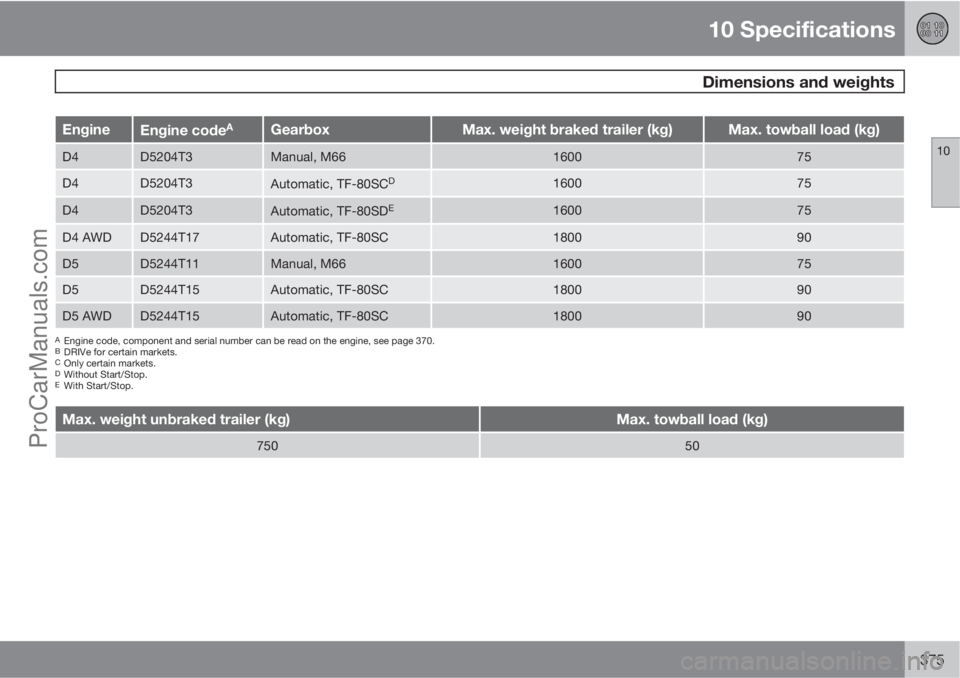

EngineEngine codeAGearboxMax. weight braked trailer (kg)Max. towball load (kg)
D4D5204T3Manual, M66160075
D4D5204T3Automatic, TF-80SCD160075
D4D5204T3Automatic, TF-80SDE160075
D4 AWDD5244T17Automatic, TF-80SC180090
D5D5244T11Manual, M66160075
D5D5244T15Automatic, TF-80SC180090
D5 AWDD5244T15Automatic, TF-80SC180090
AEngine code, component and serial number can be read on the engine, see page 370.BDRIVe for certain markets.COnly certain markets.DWithout Start/Stop.EWith Start/Stop.
Max. weight unbraked trailer (kg)Max. towball load (kg)
75050
ProCarManuals.com

10 Specifications
Engine specifications
10
376

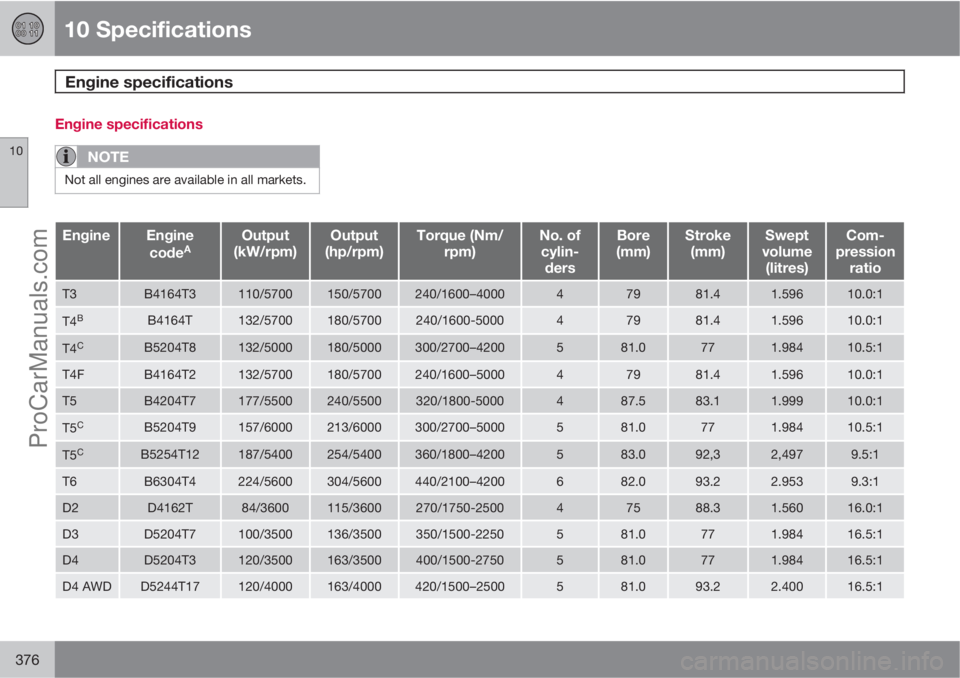

Engine specifications
NOTE
Not all engines are available in all markets.
EngineEngine
codeAOutput
(kW/rpm)Output
(hp/rpm)Torque (Nm/
rpm)No. of
cylin-
dersBore
(mm)Stroke
(mm)Swept
volume
(litres)Com-
pression
ratio
T3B4164T3110/5700150/5700240/1600–400047981.41.59610.0:1
T4BB4164T132/5700180/5700240/1600-500047981.41.59610.0:1
T4CB5204T8132/5000180/5000300/2700–4200581.0771.98410.5:1
T4FB4164T2132/5700180/5700240/1600–500047981.41.59610.0:1
T5B4204T7177/5500240/5500320/1800-5000487.583.11.99910.0:1
T5CB5204T9157/6000213/6000300/2700–5000581.0771.98410.5:1
T5CB5254T12187/5400254/5400360/1800–4200583.092,32,4979.5:1
T6B6304T4224/5600304/5600440/2100–4200682.093.22.9539.3:1
D2D4162T84/3600115/3600270/1750-250047588.31.56016.0:1
D3D5204T7100/3500136/3500350/1500-2250581.0771.98416.5:1
D4D5204T3120/3500163/3500400/1500-2750581.0771.98416.5:1
D4 AWDD5244T17120/4000163/4000420/1500–2500581.093.22.40016.5:1
ProCarManuals.com

10 Specifications
Engine specifications
10
377

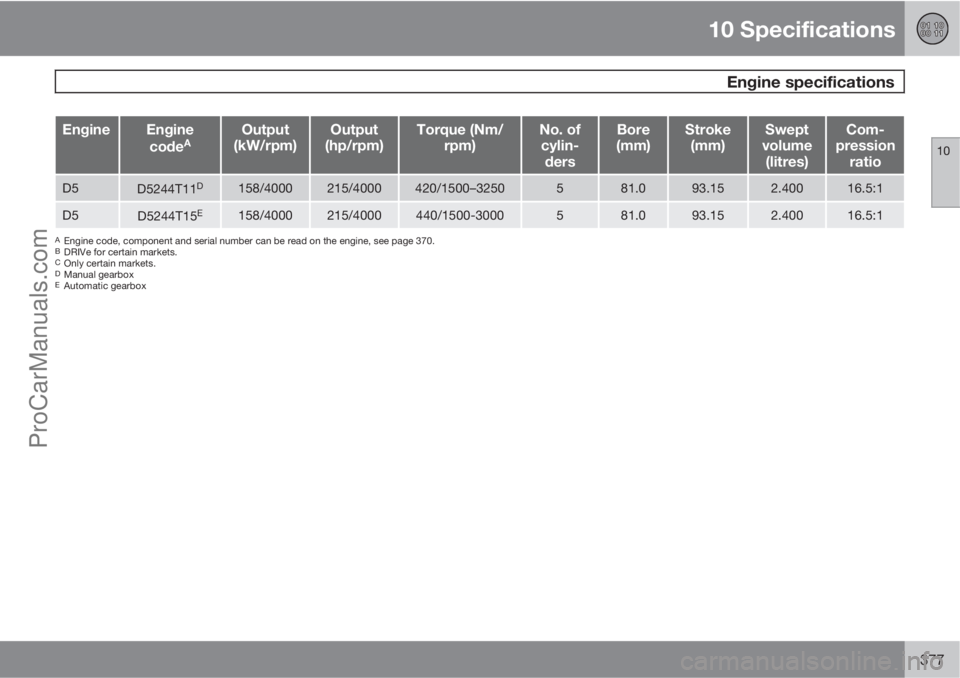

EngineEngine
codeAOutput
(kW/rpm)Output
(hp/rpm)Torque (Nm/
rpm)No. of
cylin-
dersBore
(mm)Stroke
(mm)Swept
volume
(litres)Com-
pression
ratio
D5D5244T11D158/4000215/4000420/1500–3250581.093.152.40016.5:1
D5D5244T15E158/4000215/4000440/1500-3000581.093.152.40016.5:1
AEngine code, component and serial number can be read on the engine, see page 370.BDRIVe for certain markets.COnly certain markets.DManual gearboxEAutomatic gearbox
ProCarManuals.com

10 Specifications
Engine oil
10
378
Adverse driving conditions
Adverse driving conditions can lead to abnor-
mally high oil temperature or oil consumption.
Below are some examples of adverse driving
conditions.
Check the oil level more frequently for long
journeys:
•towing a caravan or trailer
•in mountainous regions
•at high speeds
•in temperatures colder than -30 °C or hot-
ter than +40 °C
The above also apply to shorter driving dis-
tances at low temperatures.Choose a fully synthetic engine oil for adverse
driving conditions. It provides extra protection
for the engine.
Volvo recommends Castrol oil products.
IMPORTANT
In order to fulfil the requirements for the
engine's service intervals all engines are
filled with a specially adapted synthetic
engine oil at the factory. The choice of oil
has been made very carefully with regard to
service life, starting characteristics, fuel
consumption and environmental impact.
An approved engine oil must be used in
order that the recommended service inter-
vals can be applied. Only use a prescribed
grade of oil for both filling and oil change,
otherwise you will risk affecting service life,
starting characteristics, fuel consumption
and environmental impact.
Volvo Car Corporation disclaims all war-
ranty liability if engine oil of the prescribed
grade and viscosity is not used.
Volvo recommends that oil changes are car-
ried out at an authorised Volvo workshop.
