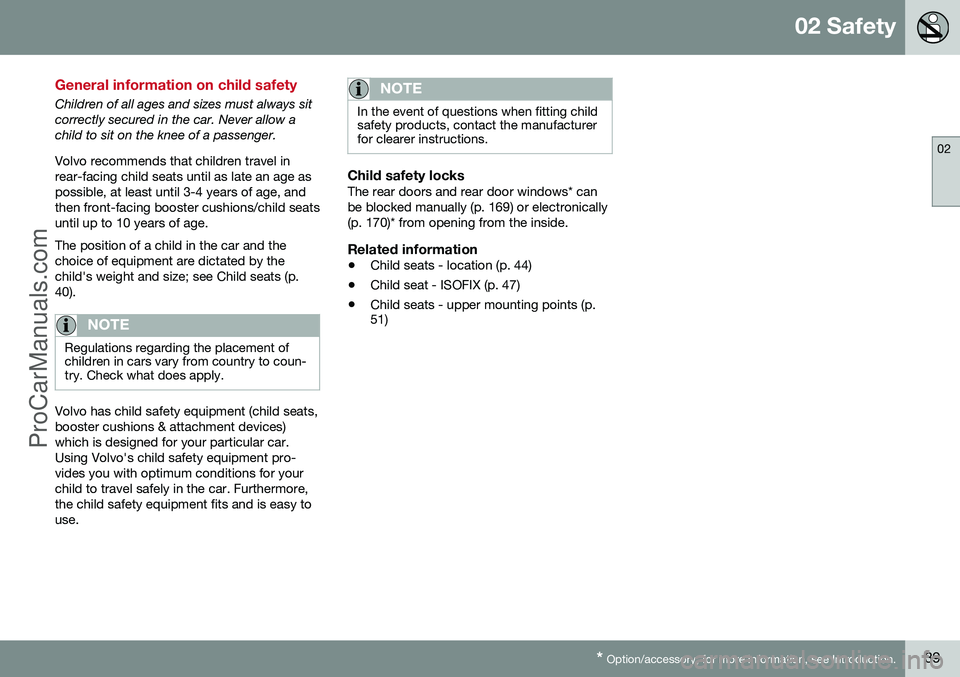

General information on child safety
Children of all ages and sizes must always sit correctly secured in the car. Never allow achild to sit on the knee of a passenger. Volvo recommends that children travel in rear-facing child seats until as late an age aspossible, at least until 3-4 years of age, andthen front-facing booster cushions/child seatsuntil up to 10 years of age. The position of a child in the car and the choice of equipment are dictated by thechild's weight and size; see Child seats (p.40).
NOTE
Regulations regarding the placement of children in cars vary from country to coun-try. Check what does apply.
Volvo has child safety equipment (child seats, booster cushions & attachment devices)which is designed for your particular car.Using Volvo's child safety equipment pro-vides you with optimum conditions for yourchild to travel safely in the car. Furthermore,the child safety equipment fits and is easy touse.
NOTE
In the event of questions when fitting child safety products, contact the manufacturerfor clearer instructions.
Child safety locksThe rear doors and rear door windows* can be blocked manually (p. 169) or electronically(p. 170)* from opening from the inside.
Related information
• Child seats - location (p. 44)
• Child seat - ISOFIX (p. 47)
• Child seats - upper mounting points (p. 51)
ProCarManuals.co’

02 Safety
02
40

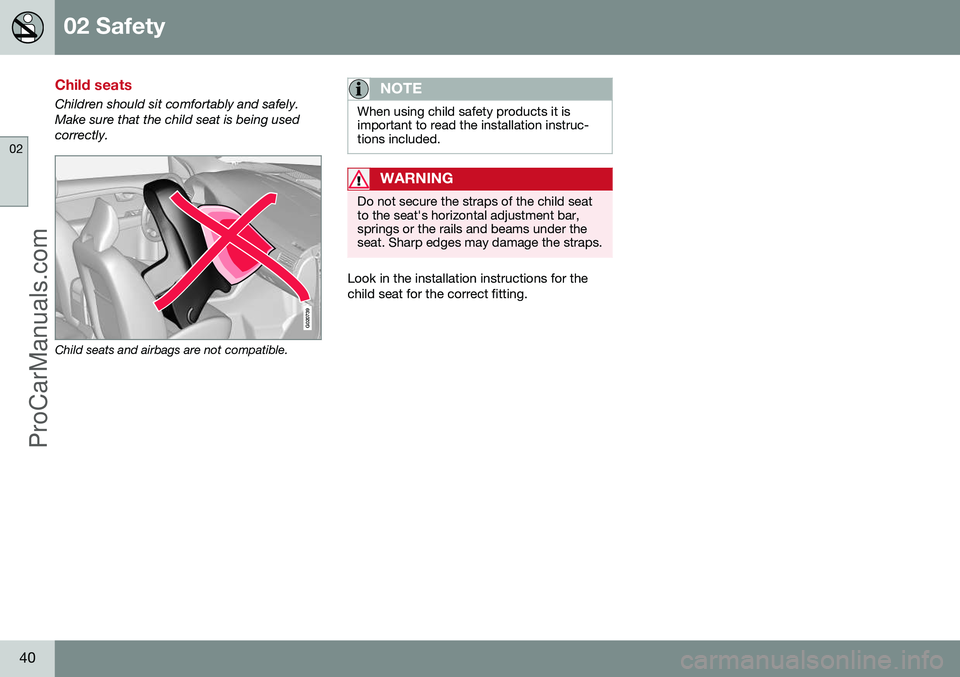

Child seats
Children should sit comfortably and safely. Make sure that the child seat is being usedcorrectly.
G020739
Child seats and airbags are not compatible.
NOTE
When using child safety products it is important to read the installation instruc-tions included.
WARNING
Do not secure the straps of the child seat to the seat's horizontal adjustment bar,springs or the rails and beams under theseat. Sharp edges may damage the straps.
Look in the installation instructions for the child seat for the correct fitting.
ProCarManuals.co’

02 Safety
02
}}
41

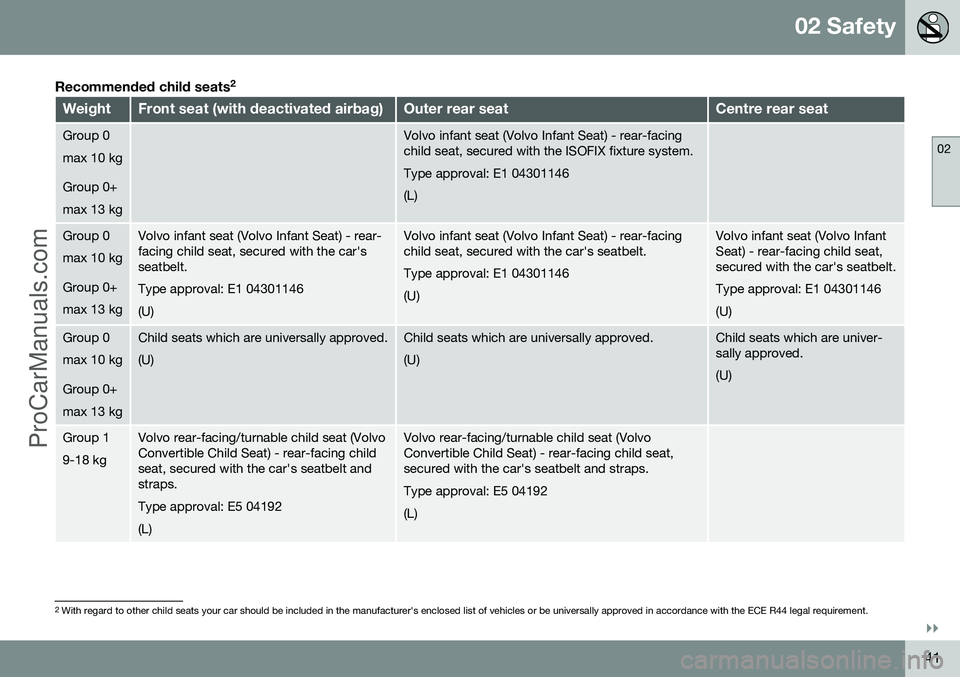

Recommended child seats2
WeightFront seat (with deactivated airbag)Outer rear seatCentre rear seat
Group 0 max 10 kg Group 0+ max 13 kgVolvo infant seat (Volvo Infant Seat) - rear-facing child seat, secured with the ISOFIX fixture system. Type approval: E1 04301146(L)
Group 0 max 10 kg Group 0+ max 13 kgVolvo infant seat (Volvo Infant Seat) - rear- facing child seat, secured with the car'sseatbelt. Type approval: E1 04301146(U)Volvo infant seat (Volvo Infant Seat) - rear-facing child seat, secured with the car's seatbelt. Type approval: E1 04301146(U)Volvo infant seat (Volvo Infant Seat) - rear-facing child seat,secured with the car's seatbelt. Type approval: E1 04301146(U)
Group 0 max 10 kg Group 0+ max 13 kgChild seats which are universally approved. (U)Child seats which are universally approved. (U)Child seats which are univer- sally approved. (U)
Group 1 9-18 kgVolvo rear-facing/turnable child seat (Volvo Convertible Child Seat) - rear-facing childseat, secured with the car's seatbelt andstraps. Type approval: E5 04192(L)Volvo rear-facing/turnable child seat (Volvo Convertible Child Seat) - rear-facing child seat,secured with the car's seatbelt and straps. Type approval: E5 04192(L)
2
With regard to other child seats your car should be included in the manufacturer's enclosed list of vehicles or be universally approved in accordance with the ECE R44 legal requirement.
ProCarManuals.co’

||
02 Safety
02
42

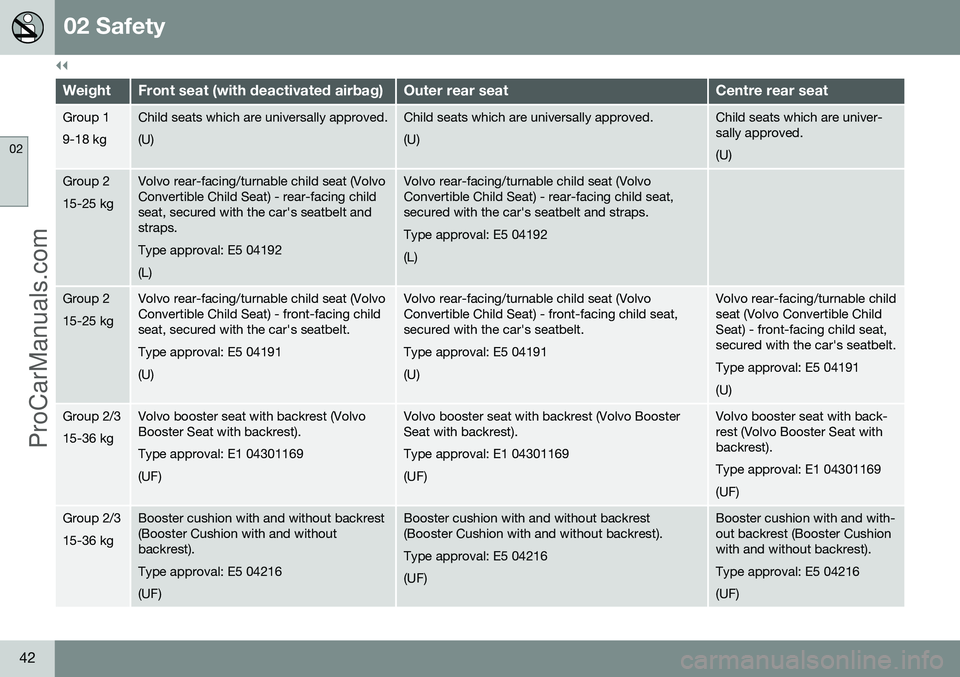

WeightFront seat (with deactivated airbag)Outer rear seatCentre rear seat
Group 1 9-18 kgChild seats which are universally approved. (U)Child seats which are universally approved. (U)Child seats which are univer- sally approved. (U)
Group 2 15-25 kgVolvo rear-facing/turnable child seat (Volvo Convertible Child Seat) - rear-facing childseat, secured with the car's seatbelt andstraps. Type approval: E5 04192(L)Volvo rear-facing/turnable child seat (Volvo Convertible Child Seat) - rear-facing child seat,secured with the car's seatbelt and straps. Type approval: E5 04192(L)
Group 2 15-25 kgVolvo rear-facing/turnable child seat (Volvo Convertible Child Seat) - front-facing childseat, secured with the car's seatbelt. Type approval: E5 04191(U)Volvo rear-facing/turnable child seat (Volvo Convertible Child Seat) - front-facing child seat,secured with the car's seatbelt. Type approval: E5 04191(U)Volvo rear-facing/turnable child seat (Volvo Convertible ChildSeat) - front-facing child seat,secured with the car's seatbelt. Type approval: E5 04191(U)
Group 2/3 15-36 kgVolvo booster seat with backrest (Volvo Booster Seat with backrest). Type approval: E1 04301169(UF)Volvo booster seat with backrest (Volvo Booster Seat with backrest). Type approval: E1 04301169(UF)Volvo booster seat with back- rest (Volvo Booster Seat withbackrest). Type approval: E1 04301169(UF)
Group 2/3 15-36 kgBooster cushion with and without backrest (Booster Cushion with and withoutbackrest). Type approval: E5 04216(UF)Booster cushion with and without backrest (Booster Cushion with and without backrest). Type approval: E5 04216(UF)Booster cushion with and with- out backrest (Booster Cushionwith and without backrest). Type approval: E5 04216(UF)
ProCarManuals.co’

02 Safety
02
43
WeightFront seat (with deactivated airbag)Outer rear seatCentre rear seat

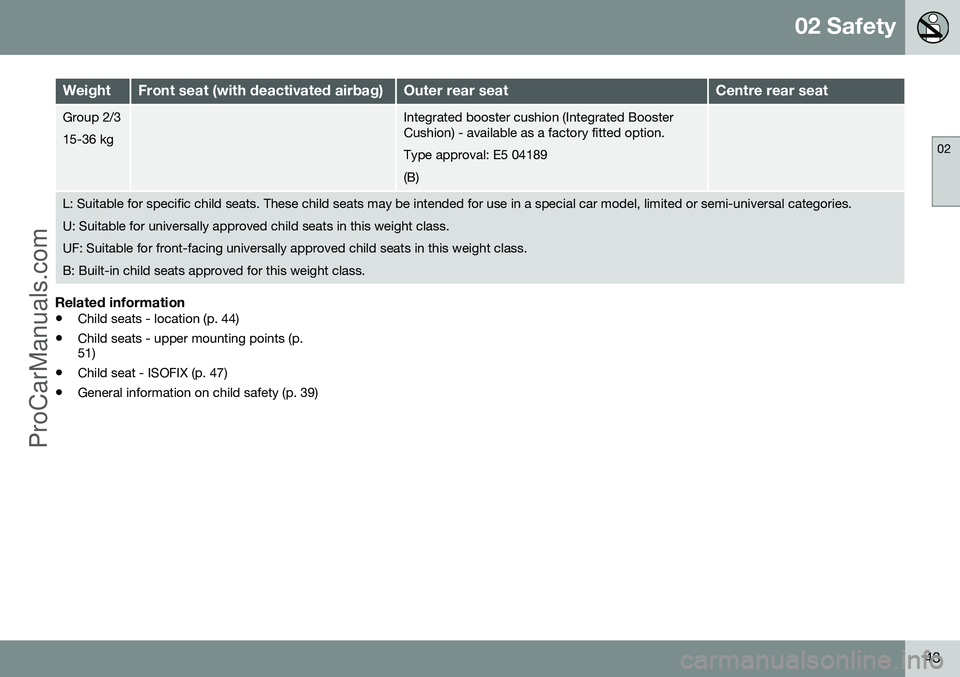

Group 2/3 15-36 kgIntegrated booster cushion (Integrated Booster Cushion) - available as a factory fitted option. Type approval: E5 04189(B)
L: Suitable for specific child seats. These child seats may be intended for use in a special car model, limited or semi-universal categories. U: Suitable for universally approved child seats in this weight class.UF: Suitable for front-facing universally approved child seats in this weight class.B: Built-in child seats approved for this weight class.
Related information
•Child seats - location (p. 44)
• Child seats - upper mounting points (p. 51)
• Child seat - ISOFIX (p. 47)
• General information on child safety (p. 39)
ProCarManuals.co’

02 Safety
02
44* Option/accessory, for more information, see Introduction.

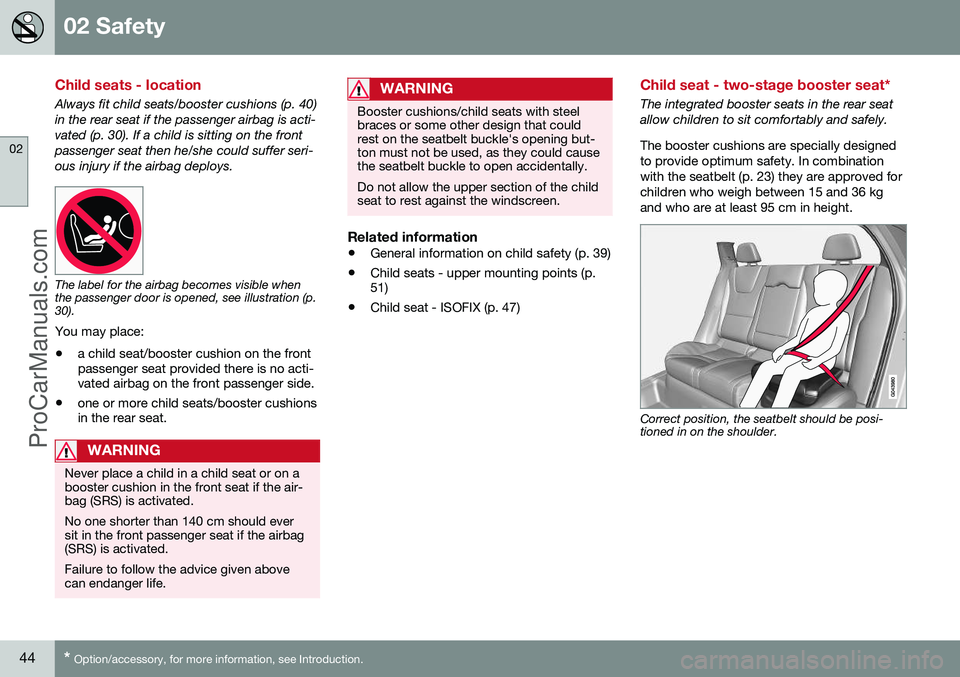

Child seats - location
Always fit child seats/booster cushions (p. 40) in the rear seat if the passenger airbag is acti-vated (p. 30). If a child is sitting on the frontpassenger seat then he/she could suffer seri-ous injury if the airbag deploys.
The label for the airbag becomes visible when the passenger door is opened, see illustration (p.30). You may place:
• a child seat/booster cushion on the front passenger seat provided there is no acti-vated airbag on the front passenger side.
• one or more child seats/booster cushionsin the rear seat.
WARNING
Never place a child in a child seat or on a booster cushion in the front seat if the air-bag (SRS) is activated. No one shorter than 140 cm should ever sit in the front passenger seat if the airbag(SRS) is activated. Failure to follow the advice given above can endanger life.
WARNING
Booster cushions/child seats with steel braces or some other design that couldrest on the seatbelt buckle's opening but-ton must not be used, as they could causethe seatbelt buckle to open accidentally. Do not allow the upper section of the child seat to rest against the windscreen.
Related information
•
General information on child safety (p. 39)
• Child seats - upper mounting points (p. 51)
• Child seat - ISOFIX (p. 47)
Child seat - two-stage booster seat*
The integrated booster seats in the rear seat allow children to sit comfortably and safely. The booster cushions are specially designed to provide optimum safety. In combinationwith the seatbelt (p. 23) they are approved forchildren who weigh between 15 and 36 kgand who are at least 95 cm in height.
Correct position, the seatbelt should be posi- tioned in on the shoulder.
ProCarManuals.com

02 Safety
02
* Option/accessory, for more information, see Introduction.45

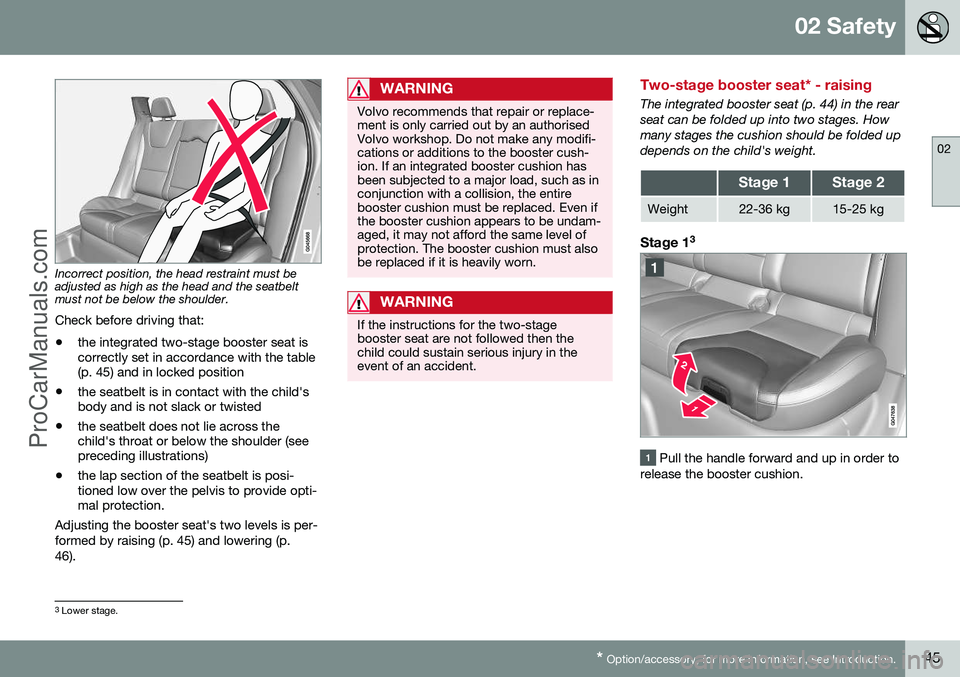

Incorrect position, the head restraint must be adjusted as high as the head and the seatbeltmust not be below the shoulder.
Check before driving that:
• the integrated two-stage booster seat is correctly set in accordance with the table(p. 45) and in locked position
• the seatbelt is in contact with the child'sbody and is not slack or twisted
• the seatbelt does not lie across thechild's throat or below the shoulder (seepreceding illustrations)
• the lap section of the seatbelt is posi-tioned low over the pelvis to provide opti-mal protection.
Adjusting the booster seat's two levels is per-
formed by raising (p. 45) and lowering (p. 46).
WARNING
Volvo recommends that repair or replace- ment is only carried out by an authorisedVolvo workshop. Do not make any modifi-cations or additions to the booster cush-ion. If an integrated booster cushion hasbeen subjected to a major load, such as inconjunction with a collision, the entirebooster cushion must be replaced. Even ifthe booster cushion appears to be undam-aged, it may not afford the same level ofprotection. The booster cushion must alsobe replaced if it is heavily worn.
WARNING
If the instructions for the two-stage booster seat are not followed then thechild could sustain serious injury in theevent of an accident.
Two-stage booster seat* - raising
The integrated booster seat (p. 44) in the rear seat can be folded up into two stages. Howmany stages the cushion should be folded updepends on the child's weight.
Stage 1Stage 2
Weight22-36 kg15-25 kg
Stage 1 3
Pull the handle forward and up in order to
release the booster cushion.
3 Lower stage.
ProCarManuals.co’

||
02 Safety
02
46* Option/accessory, for more information, see Introduction.
Press the booster cushion backwards to
lock.

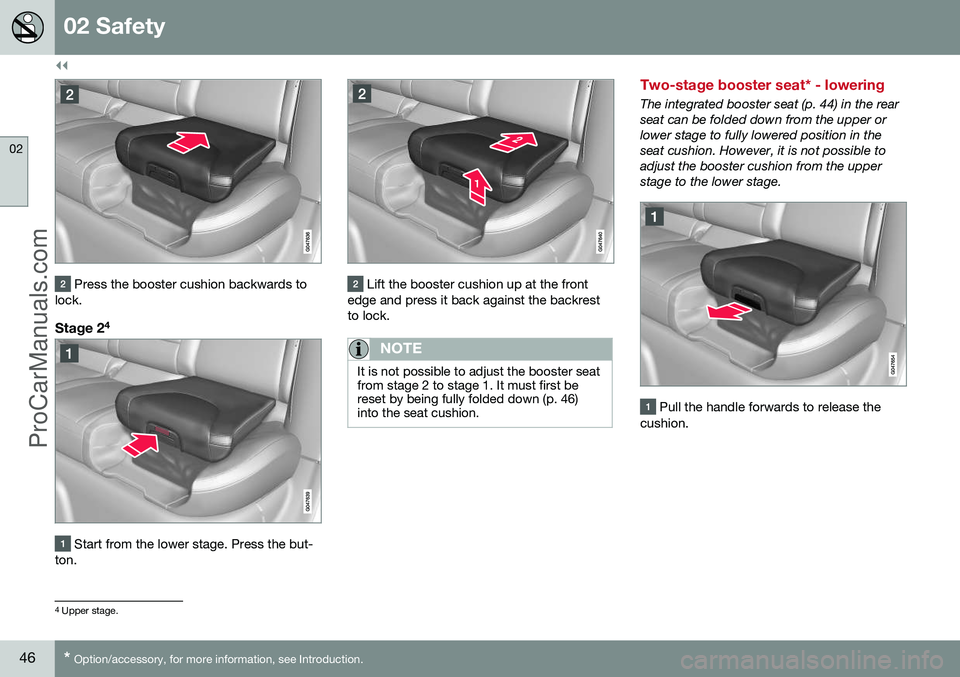

Stage 2 4
Start from the lower stage. Press the but-
ton.
Lift the booster cushion up at the front
edge and press it back against the backrest to lock.
NOTE
It is not possible to adjust the booster seat from stage 2 to stage 1. It must first bereset by being fully folded down (p. 46)into the seat cushion.
Two-stage booster seat* - lowering
The integrated booster seat (p. 44) in the rear seat can be folded down from the upper orlower stage to fully lowered position in theseat cushion. However, it is not possible toadjust the booster cushion from the upperstage to the lower stage.
Pull the handle forwards to release the
cushion.
4 Upper stage.
ProCarManuals.co’

02 Safety
02
* Option/accessory, for more information, see Introduction.47

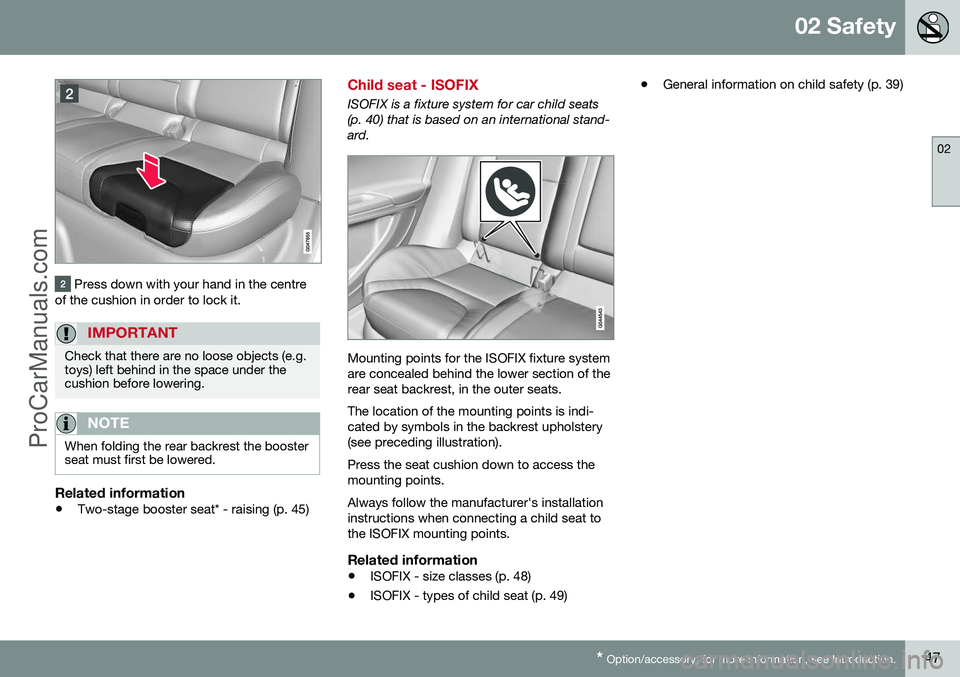

Press down with your hand in the centre
of the cushion in order to lock it.
IMPORTANT
Check that there are no loose objects (e.g. toys) left behind in the space under thecushion before lowering.
NOTE
When folding the rear backrest the booster seat must first be lowered.
Related information
• Two-stage booster seat* - raising (p. 45)
Child seat - ISOFIX
ISOFIX is a fixture system for car child seats (p. 40) that is based on an international stand-ard.
Mounting points for the ISOFIX fixture system are concealed behind the lower section of therear seat backrest, in the outer seats. The location of the mounting points is indi- cated by symbols in the backrest upholstery(see preceding illustration). Press the seat cushion down to access the mounting points. Always follow the manufacturer's installation instructions when connecting a child seat tothe ISOFIX mounting points.
Related information
•ISOFIX - size classes (p. 48)
• ISOFIX - types of child seat (p. 49) •
General information on child safety (p. 39)
ProCarManuals.co’

02 Safety
02
48

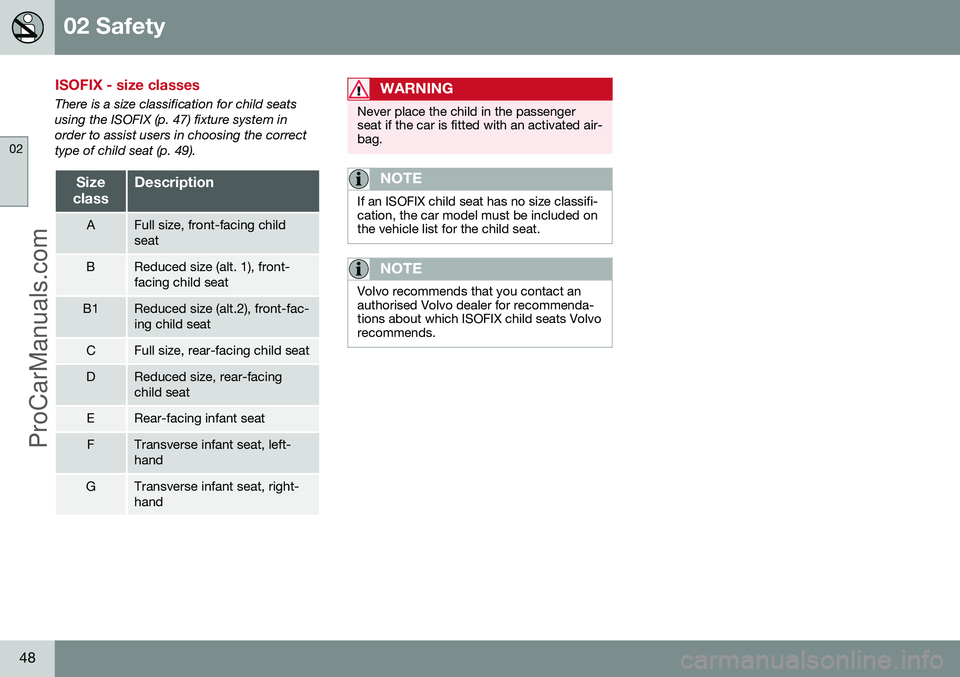

ISOFIX - size classes
