11 Specifications
11
426* Option/accessory, for more information, see Introduction.
SymbolSpecificationSee
Stability system, DSTC, Trailerstability assist(p. 64), (p. 178), (p.312)
Stability system, sport mode(p. 64), (p. 178)
Engine preheater (diesel)(p. 64)
Low level in fuel tank(p. 64), (p. 132)
Information, read display text(p. 64)
Main beam On(p. 64), (p. 81)
Left-hand direc- tion indicators(p. 64)
Right-hand direction indica-tors(p. 64)
Start/Stop*, engine auto-stopped(p. 64), (p. 286)
ECO function* on(p. 64), (p. 288)
Tyre pressure system*(p. 64), (p. 330)

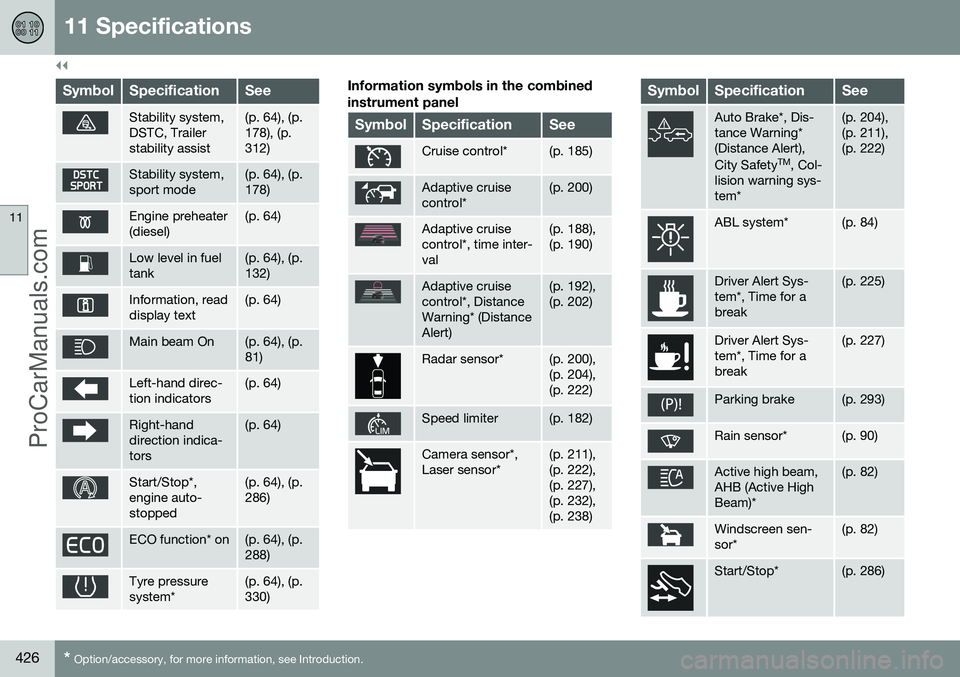

Information symbols in the combined instrument panel
SymbolSpecificationSee
Cruise control*(p. 185)
Adaptive cruise control*(p. 200)
Adaptive cruise control*, time inter-val(p. 188), (p. 190)
Adaptive cruise control*, DistanceWarning* (DistanceAlert)(p. 192), (p. 202)
Radar sensor*(p. 200), (p. 204),(p. 222)
Speed limiter(p. 182)
Camera sensor*, Laser sensor*(p. 211), (p. 222),(p. 227),(p. 232),(p. 238)
SymbolSpecificationSee
Auto Brake*, Dis- tance Warning*(Distance Alert), City Safety TM
, Col-
lision warning sys- tem*(p. 204), (p. 211),(p. 222)
ABL system*(p. 84)
Driver Alert Sys- tem*, Time for abreak(p. 225)
Driver Alert Sys- tem*, Time for abreak(p. 227)
Parking brake(p. 293)
Rain sensor*(p. 90)
Active high beam, AHB (Active HighBeam)*(p. 82)
Windscreen sen- sor*(p. 82)
Start/Stop*(p. 286)
