Label information
10
389

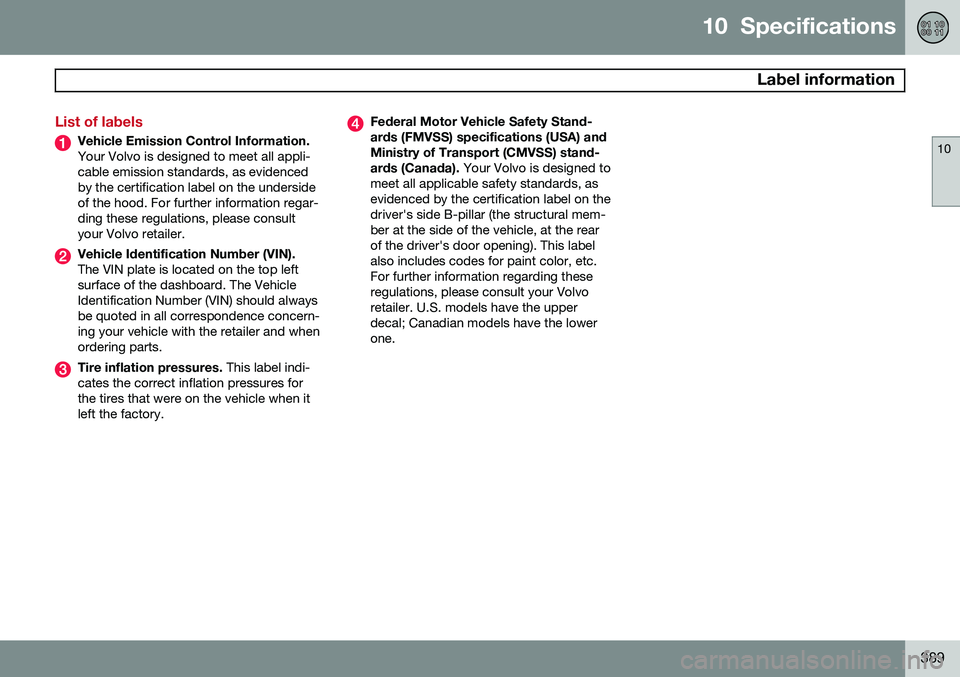

List of labels
Vehicle Emission Control Information. Your Volvo is designed to meet all appli- cable emission standards, as evidencedby the certification label on the undersideof the hood. For further information regar-ding these regulations, please consultyour Volvo retailer.
Vehicle Identification Number (VIN). The VIN plate is located on the top left surface of the dashboard. The VehicleIdentification Number (VIN) should alwaysbe quoted in all correspondence concern-ing your vehicle with the retailer and whenordering parts.
Tire inflation pressures. This label indi-
cates the correct inflation pressures for the tires that were on the vehicle when itleft the factory.
Federal Motor Vehicle Safety Stand- ards (FMVSS) specifications (USA) andMinistry of Transport (CMVSS) stand- ards (Canada). Your Volvo is designed to
meet all applicable safety standards, as evidenced by the certification label on thedriver's side B-pillar (the structural mem-ber at the side of the vehicle, at the rearof the driver's door opening). This labelalso includes codes for paint color, etc.For further information regarding theseregulations, please consult your Volvoretailer. U.S. models have the upperdecal; Canadian models have the lowerone.

10 Specifications
Specifications
10
390

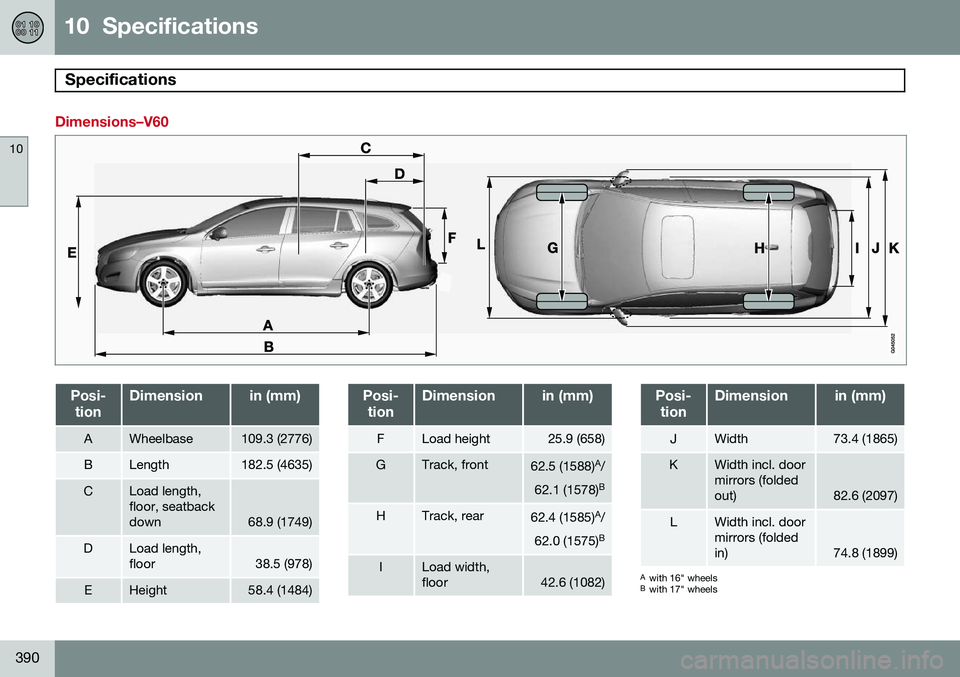

Dimensions–V60
Posi-tionDimensionin (mm)
AWheelbase109.3 (2776)
BLength182.5 (4635)
CLoad length, floor, seatbackdown
68.9 (1749)
DLoad length, floor38.5 (978)
EHeight58.4 (1484)
Posi-tionDimensionin (mm)
FLoad height25.9 (658)
GTrack, front62.5 (1588) A
/
62.1 (1578) B
HTrack, rear62.4 (1585)A
/
62.0 (1575) B
ILoad width, floor42.6 (1082)
Posi-
tionDimensionin (mm)
JWidth73.4 (1865)
KWidth incl. door mirrors (foldedout)
82.6 (2097)
LWidth incl. door mirrors (foldedin)
74.8 (1899)
A with 16" wheels
B with 17" wheels

10 Specifications
Specifications
10
}}
391

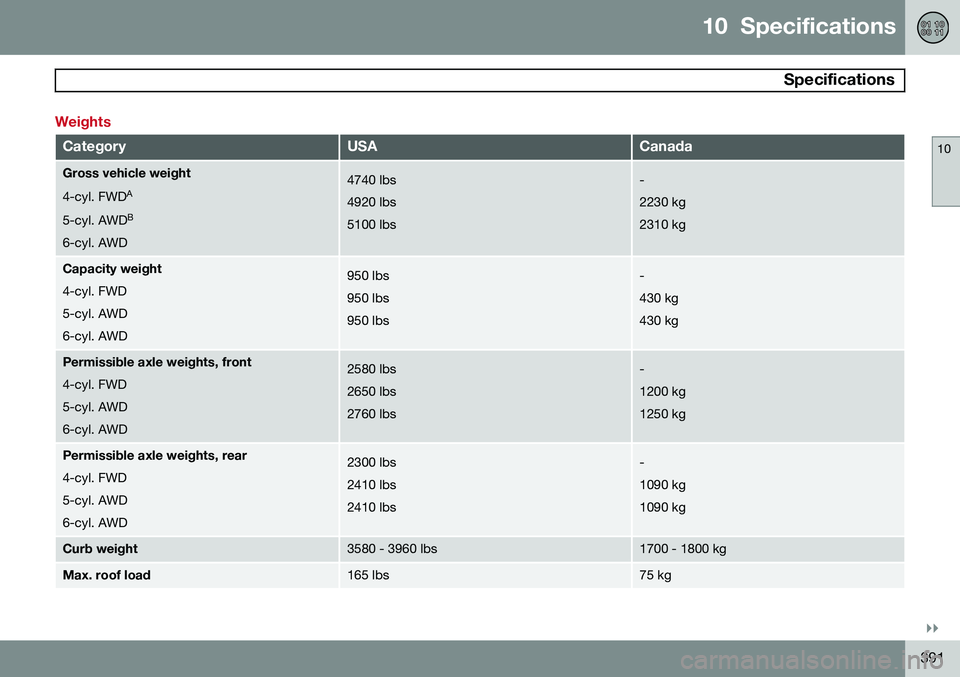

Weights
CategoryUSACanada
Gross vehicle weight 4-cyl. FWDA
5-cyl. AWD B
6-cyl. AWD4740 lbs 4920 lbs5100 lbs- 2230 kg2310 kg
Capacity weight 4-cyl. FWD 5-cyl. AWD6-cyl. AWD950 lbs 950 lbs950 lbs- 430 kg430 kg
Permissible axle weights, front 4-cyl. FWD 5-cyl. AWD6-cyl. AWD2580 lbs 2650 lbs2760 lbs- 1200 kg1250 kg
Permissible axle weights, rear 4-cyl. FWD 5-cyl. AWD6-cyl. AWD2300 lbs 2410 lbs2410 lbs- 1090 kg1090 kg
Curb weight3580 - 3960 lbs1700 - 1800 kg
Max. roof load165 lbs75 kg

10 Specifications
Specifications
10
392
CategoryUSACanada

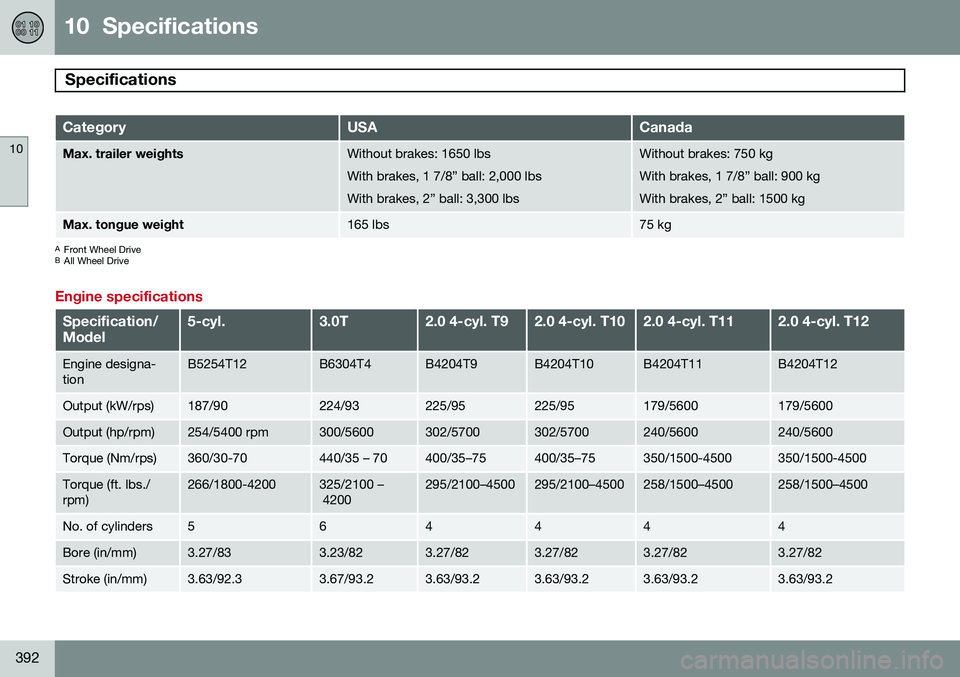

Max. trailer weightsWithout brakes: 1650 lbs With brakes, 1 7/8” ball: 2,000 lbsWith brakes, 2” ball: 3,300 lbsWithout brakes: 750 kg With brakes, 1 7/8” ball: 900 kgWith brakes, 2” ball: 1500 kg
Max. tongue weight165 lbs75 kg
AFront Wheel Drive
B All Wheel Drive
Engine specifications
Specification/ Model5-cyl.3.0T2.0 4-cyl. T92.0 4-cyl. T102.0 4-cyl. T112.0 4-cyl. T12
Engine designa- tionB5254T12B6304T4B4204T9B4204T10B4204T11B4204T12
Output (kW/rps)187/90224/93225/95225/95179/5600179/5600
Output (hp/rpm)254/5400 rpm300/5600302/5700302/5700240/5600240/5600
Torque (Nm/rps)360/30-70440/35 – 70400/35–75400/35–75350/1500-4500350/1500-4500
Torque (ft. lbs./ rpm)266/1800-4200325/2100 – 4200295/2100–4500295/2100–4500258/1500–4500258/1500–4500
No. of cylinders564444
Bore (in/mm)3.27/833.23/823.27/823.27/823.27/823.27/82
Stroke (in/mm)3.63/92.33.67/93.23.63/93.23.63/93.23.63/93.23.63/93.2

10 Specifications
Specifications
10
}}
393
Specification/ Model5-cyl.3.0T2.0 4-cyl. T92.0 4-cyl. T102.0 4-cyl. T112.0 4-cyl. T12

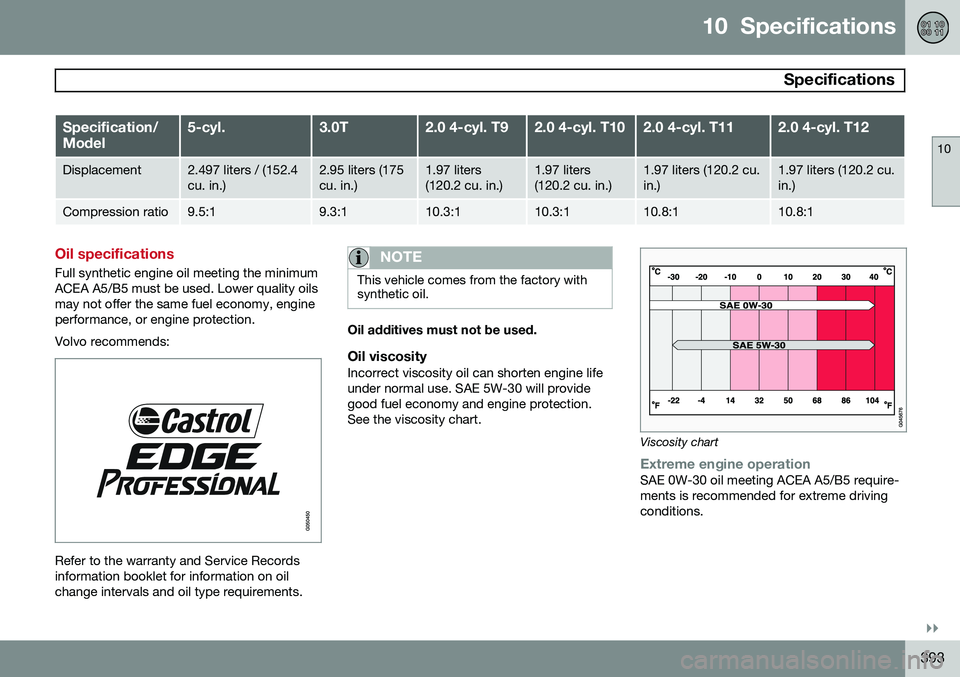

Displacement2.497 liters / (152.4 cu. in.)2.95 liters (175 cu. in.)1.97 liters (120.2 cu. in.)1.97 liters (120.2 cu. in.)1.97 liters (120.2 cu. in.)1.97 liters (120.2 cu. in.)
Compression ratio9.5:19.3:110.3:110.3:110.8:110.8:1
Oil specifications
Full synthetic engine oil meeting the minimum ACEA A5/B5 must be used. Lower quality oilsmay not offer the same fuel economy, engineperformance, or engine protection. Volvo recommends:
Refer to the warranty and Service Records information booklet for information on oilchange intervals and oil type requirements.
NOTE
This vehicle comes from the factory with synthetic oil.
Oil additives must not be used.
Oil viscosityIncorrect viscosity oil can shorten engine life under normal use. SAE 5W-30 will providegood fuel economy and engine protection.See the viscosity chart.
Viscosity chart
Extreme engine operationSAE 0W-30 oil meeting ACEA A5/B5 require- ments is recommended for extreme drivingconditions.

10 Specifications
Specifications
10
394
CAUTION
4-cylinder engines only: Volvo oil VCC
RBS0-2AE/SAE 0W20 is recommended for extreme driving conditions. This oil must never be used in 5- or 6-cyl-
inder engines.

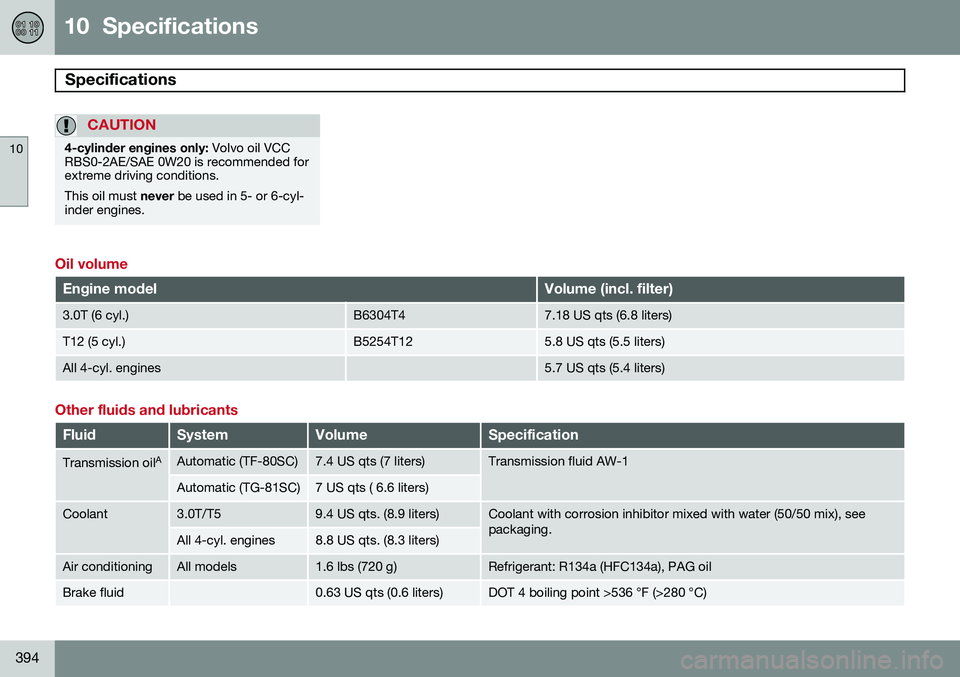

Oil volume
Engine modelVolume (incl. filter)
3.0T (6 cyl.)B6304T47.18 US qts (6.8 liters)
T12 (5 cyl.)B5254T125.8 US qts (5.5 liters)
All 4-cyl. engines5.7 US qts (5.4 liters)
Other fluids and lubricants
FluidSystemVolumeSpecification
Transmission oil AAutomatic (TF-80SC)7.4 US qts (7 liters)Transmission fluid AW-1
Automatic (TG-81SC)7 US qts ( 6.6 liters)
Coolant3.0T/T59.4 US qts. (8.9 liters)Coolant with corrosion inhibitor mixed with water (50/50 mix), see packaging.
All 4-cyl. engines8.8 US qts. (8.3 liters)
Air conditioningAll models1.6 lbs (720 g)Refrigerant: R134a (HFC134a), PAG oil
Brake fluid0.63 US qts (0.6 liters)DOT 4 boiling point >536 °F (>280 °C)

10 Specifications
Specifications
10
}}
395
FluidSystemVolumeSpecification

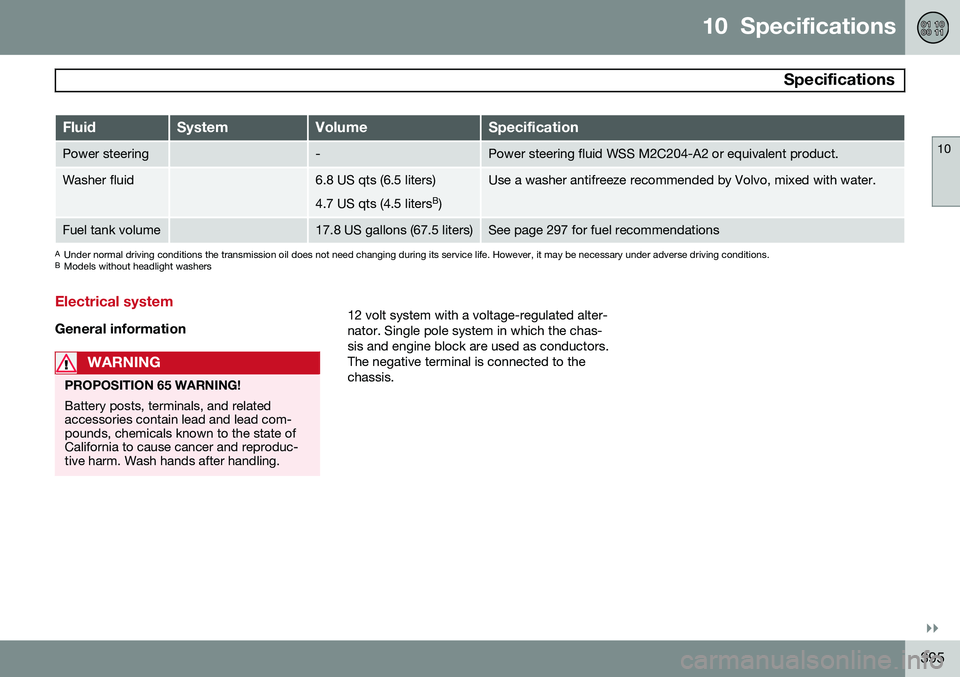

Power steering-Power steering fluid WSS M2C204-A2 or equivalent product.
Washer fluid6.8 US qts (6.5 liters) 4.7 US qts (4.5 litersB
)Use a washer antifreeze recommended by Volvo, mixed with water.
Fuel tank volume17.8 US gallons (67.5 liters)See page 297 for fuel recommendations
A Under normal driving conditions the transmission oil does not need changing during its service life. However, it may be necessary under adverse driving conditions.
B Models without headlight washers
Electrical system
General information
WARNING
PROPOSITION 65 WARNING! Battery posts, terminals, and related accessories contain lead and lead com-pounds, chemicals known to the state ofCalifornia to cause cancer and reproduc-tive harm. Wash hands after handling.
12 volt system with a voltage-regulated alter- nator. Single pole system in which the chas-sis and engine block are used as conductors.The negative terminal is connected to thechassis.

10 Specifications
Specifications
10
396* Option/accessory, for more information, see Introduction.

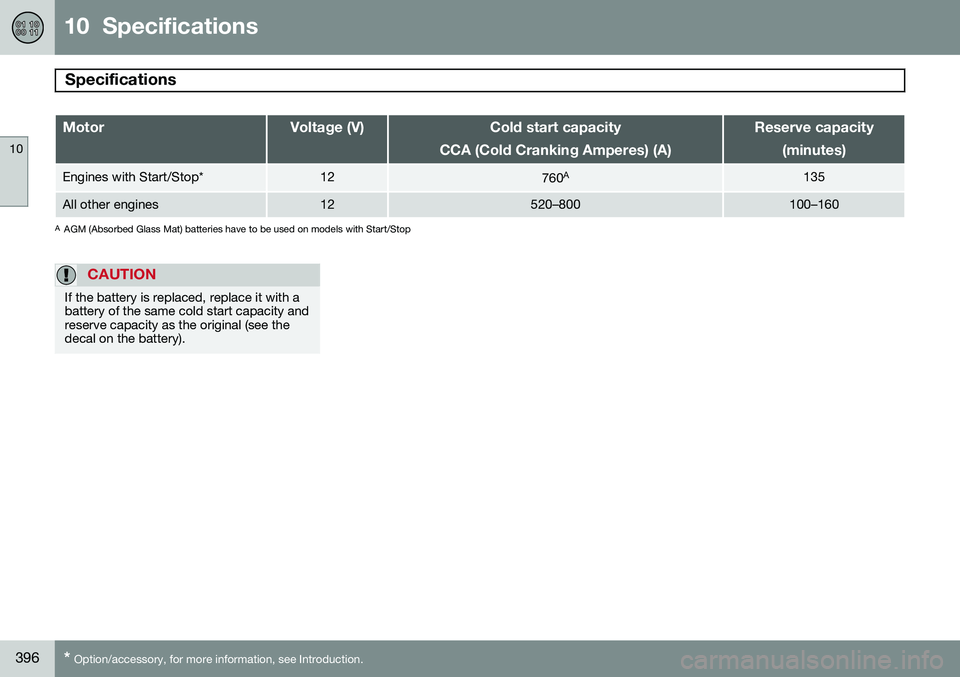

MotorVoltage (V)Cold start capacity
CCA (Cold Cranking Amperes) (A)Reserve capacity (minutes)
Engines with Start/Stop*12760A135
All other engines12520–800100–160
A
AGM (Absorbed Glass Mat) batteries have to be used on models with Start/Stop
CAUTION
If the battery is replaced, replace it with a battery of the same cold start capacity andreserve capacity as the original (see thedecal on the battery).

10 Specifications
Overview of information and warning symbols
10
}}
* Option/accessory, for more information, see Introduction.397
Introduction
The symbols in the vehicle's various displays are divided into three main categories:
• Warning symbols
• Indicator symbols
• Information symbols
The following tables list the most commonsymbols, their meaning and the pages in thismanual that provide more detailed informa-tion.
NOTE
Not all of the symbols shown in the follow- ing tables are available in all models or onall markets. Local variations may occur.
Warning symbol
: The red warning symbol illuminates to
indicate a problem related to safety and/or drivability. A message will also appear in themain instruments panel's display.
Information symbol
: The information symbol illuminates
and a text message is displayed to provide the driver with necessary information aboutone of the vehicle's systems.

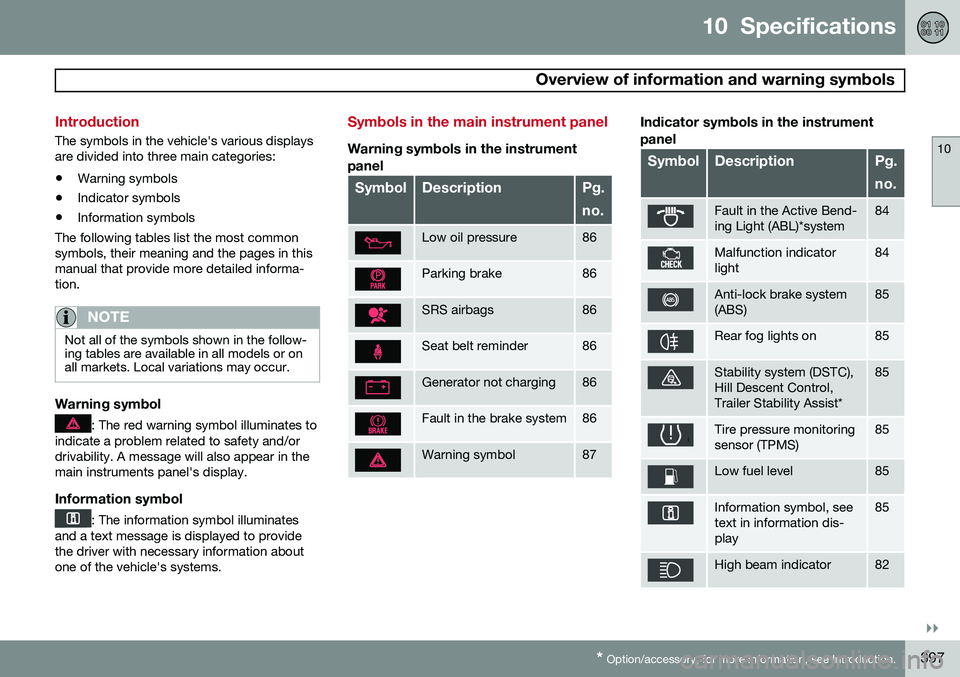

Symbols in the main instrument panel
Warning symbols in the instrument
panel
SymbolDescriptionPg. no.
Low oil pressure86
Parking brake86
SRS airbags86
Seat belt reminder86
Generator not charging86
Fault in the brake system86
Warning symbol87
Indicator symbols in the instrument panel
SymbolDescriptionPg. no.
Fault in the Active Bend- ing Light (ABL)*system84
Malfunction indicator light84
Anti-lock brake system (ABS)85
Rear fog lights on85
Stability system (DSTC), Hill Descent Control,Trailer Stability Assist*85
Tire pressure monitoring sensor (TPMS)85
Low fuel level85
Information symbol, see text in information dis-play85
High beam indicator82

10 Specifications
Overview of information and warning symbols
10
398* Option/accessory, for more information, see Introduction.
SymbolDescriptionPg. no.
Left turn signal indicator82
Right turn signal indica- tor82
Stability system , Sport mode152

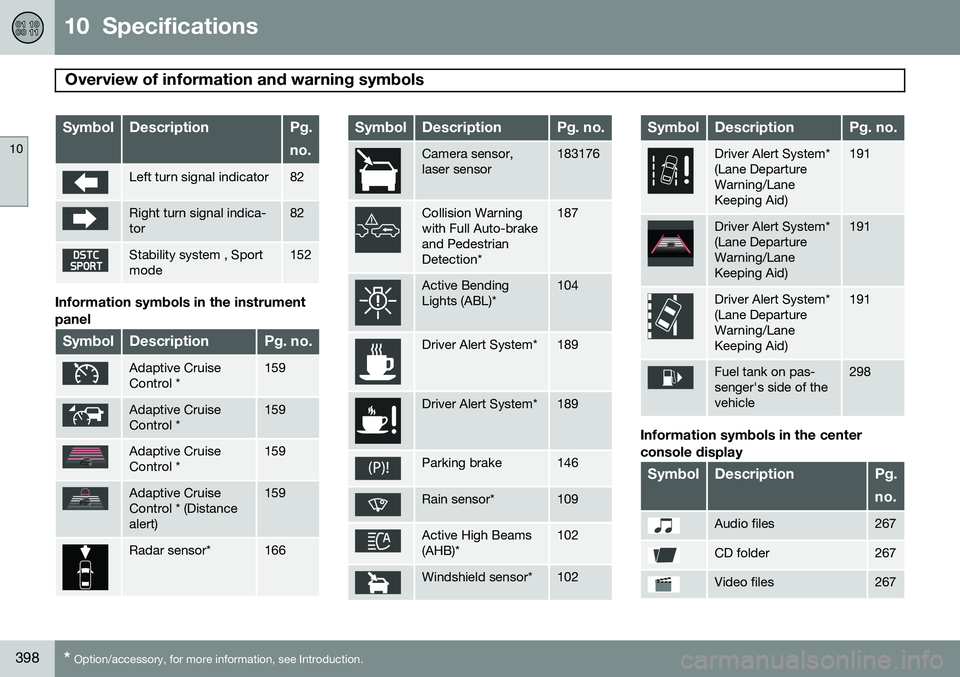

Information symbols in the instrument panel
SymbolDescriptionPg. no.
Adaptive Cruise Control *159
Adaptive Cruise Control *159
Adaptive Cruise Control *159
Adaptive Cruise Control * (Distancealert)159
Radar sensor*166
SymbolDescriptionPg. no.
Camera sensor, laser sensor183176
Collision Warning with Full Auto-brakeand PedestrianDetection*187
Active Bending Lights (ABL)*104
Driver Alert System*189
Driver Alert System*189
Parking brake146
Rain sensor*109
Active High Beams (AHB)*102
Windshield sensor*102
SymbolDescriptionPg. no.
Driver Alert System* (Lane DepartureWarning/LaneKeeping Aid)191
Driver Alert System* (Lane DepartureWarning/LaneKeeping Aid)191
Driver Alert System* (Lane DepartureWarning/LaneKeeping Aid)191
Fuel tank on pas- senger's side of thevehicle298
Information symbols in the center console display
SymbolDescriptionPg. no.
Audio files267
CD folder267
Video files267
