VOLVO V60 2016 Owner´s Manual

10 Maintenance and servicing
10
369
Repairing stone chips
G021832
1. Place a strip of masking tape over thedamaged surface. Pull the tape off so that any loose flakes of paint adhere to it.
2. Thoroughly mix the primer and apply it with a small brush.
3. When the primer surface is dry, the paint can be applied using a brush. Mix thepaint thoroughly; apply several thin paintcoats and let dry after each application.
4. If there is a longer scratch, you may want to protect surrounding paint by masking itoff
5. After a few days, polish the touched-up areas. Use a soft rag and a small amountof polish.
Related information
• Label information (p. 371)

S P E C I F I C A T I O N S

11 Specifications
11
}}
371
Label information
The labels in your vehicle provide information such as the chassis number, paint code, tireinflation pressure, etc.

||
11 Specifications
11
372

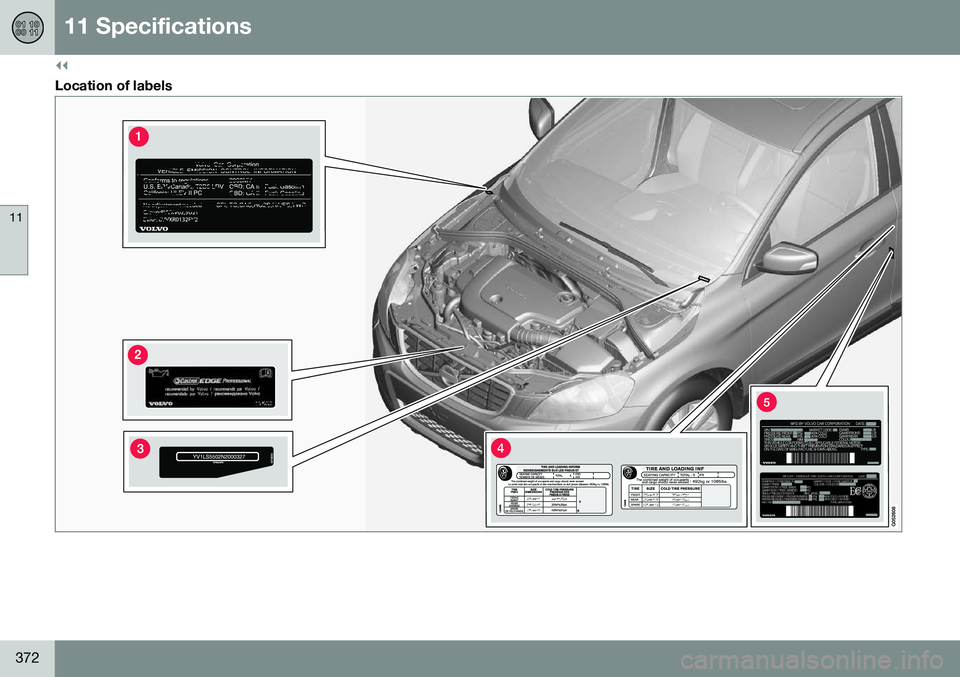

Location of labels

11 Specifications
11
373

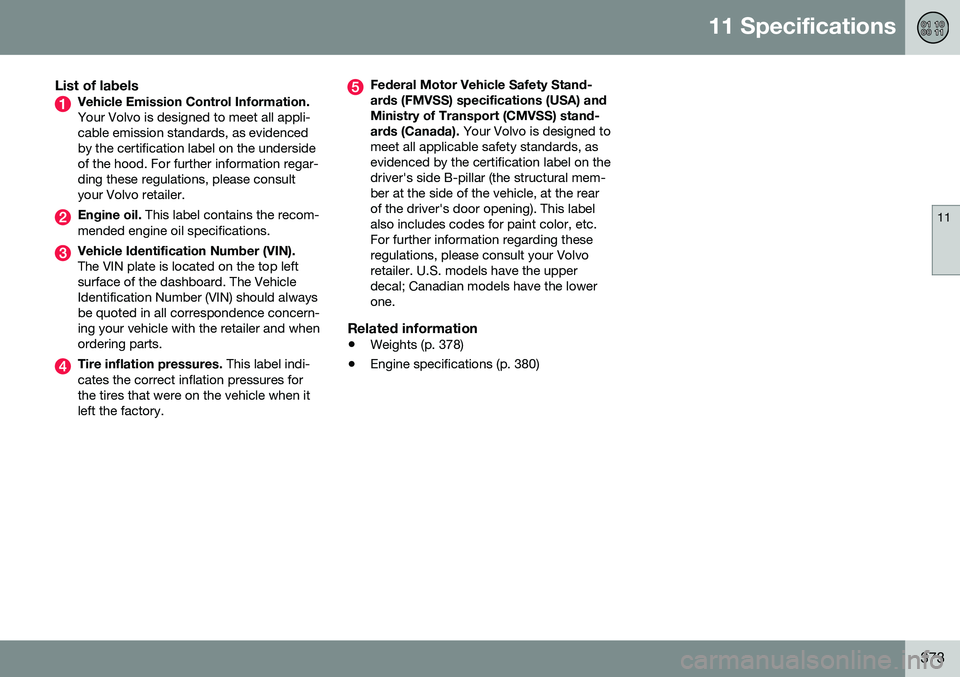

List of labelsVehicle Emission Control Information. Your Volvo is designed to meet all appli- cable emission standards, as evidencedby the certification label on the undersideof the hood. For further information regar-ding these regulations, please consultyour Volvo retailer.
Engine oil. This label contains the recom-
mended engine oil specifications.
Vehicle Identification Number (VIN). The VIN plate is located on the top left surface of the dashboard. The VehicleIdentification Number (VIN) should alwaysbe quoted in all correspondence concern-ing your vehicle with the retailer and whenordering parts.
Tire inflation pressures. This label indi-
cates the correct inflation pressures for the tires that were on the vehicle when itleft the factory.
Federal Motor Vehicle Safety Stand- ards (FMVSS) specifications (USA) andMinistry of Transport (CMVSS) stand- ards (Canada). Your Volvo is designed to
meet all applicable safety standards, as evidenced by the certification label on thedriver's side B-pillar (the structural mem-ber at the side of the vehicle, at the rearof the driver's door opening). This labelalso includes codes for paint color, etc.For further information regarding theseregulations, please consult your Volvoretailer. U.S. models have the upperdecal; Canadian models have the lowerone.
Related information
• Weights (p. 378)
• Engine specifications (p. 380)

11 Specifications
11
374

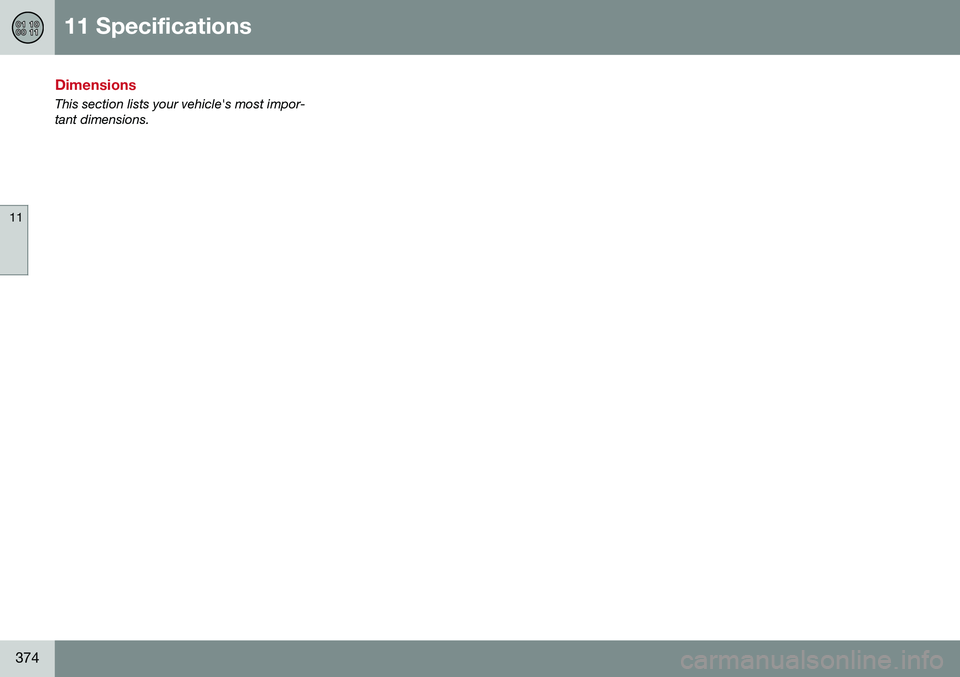

Dimensions
This section lists your vehicle's most impor- tant dimensions.

11 Specifications
11
}}
375

||
11 Specifications
11
376

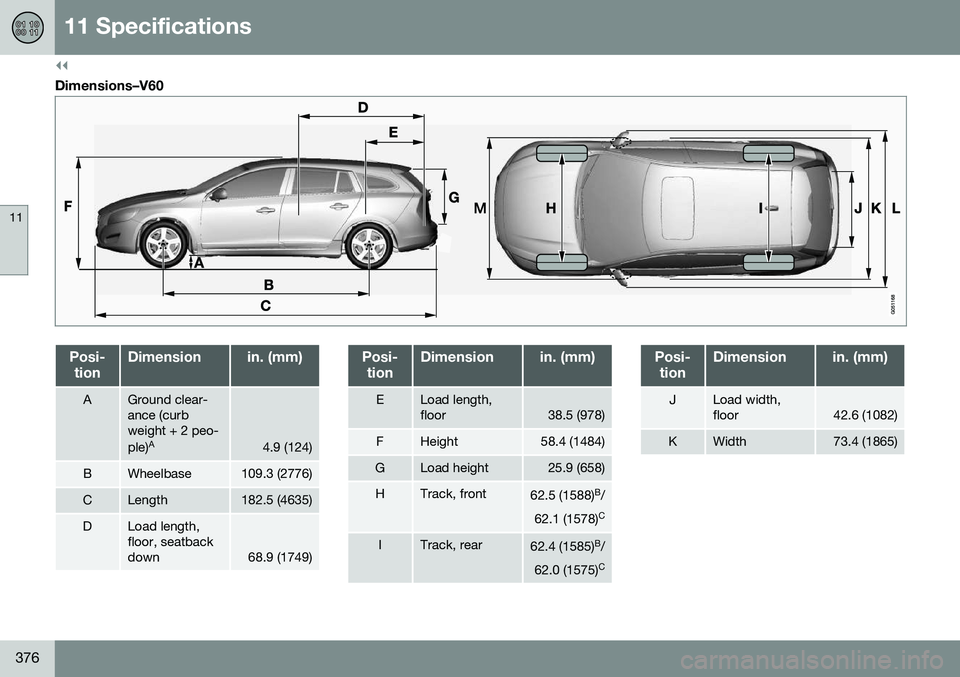

Dimensions–V60
Posi-tionDimensionin. (mm)
AGround clear- ance (curbweight + 2 peo- ple) A
4.9 (124)
BWheelbase109.3 (2776)
CLength182.5 (4635)
DLoad length, floor, seatbackdown
68.9 (1749)
Posi-
tionDimensionin. (mm)
ELoad length, floor38.5 (978)
FHeight58.4 (1484)
GLoad height25.9 (658)
HTrack, front62.5 (1588) B
/
62.1 (1578) C
ITrack, rear62.4 (1585)
B
/
62.0 (1575) C
Posi-
tionDimensionin. (mm)
JLoad width, floor42.6 (1082)
KWidth73.4 (1865)

11 Specifications
11
377

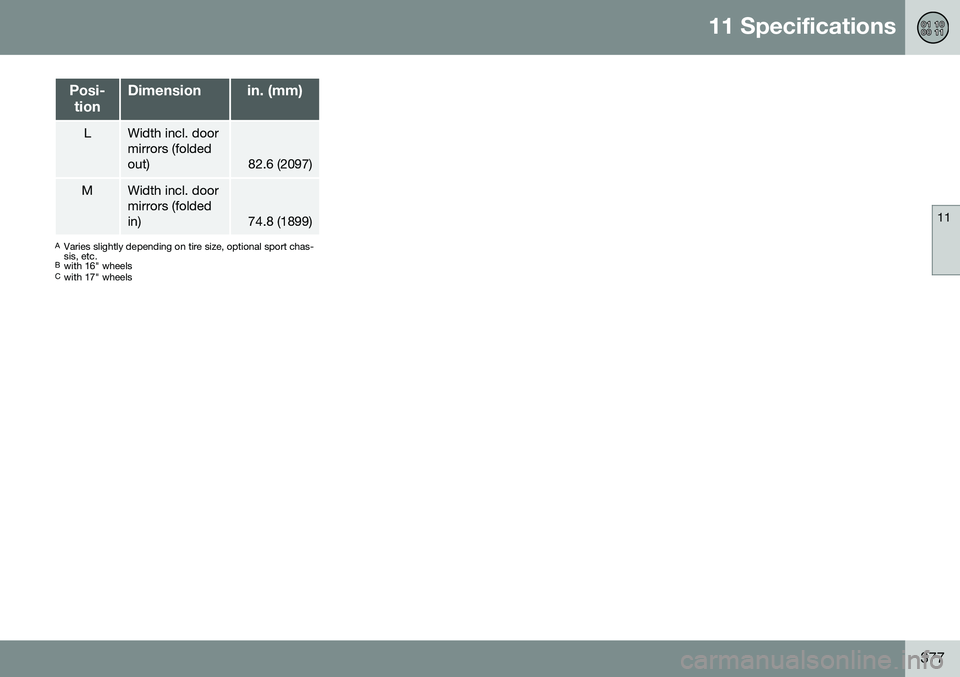

Posi-tionDimensionin. (mm)
LWidth incl. door mirrors (foldedout)
82.6 (2097)
MWidth incl. door mirrors (foldedin)
74.8 (1899)
A Varies slightly depending on tire size, optional sport chas- sis, etc.
B with 16" wheels
C with 17" wheels

11 Specifications
11
378

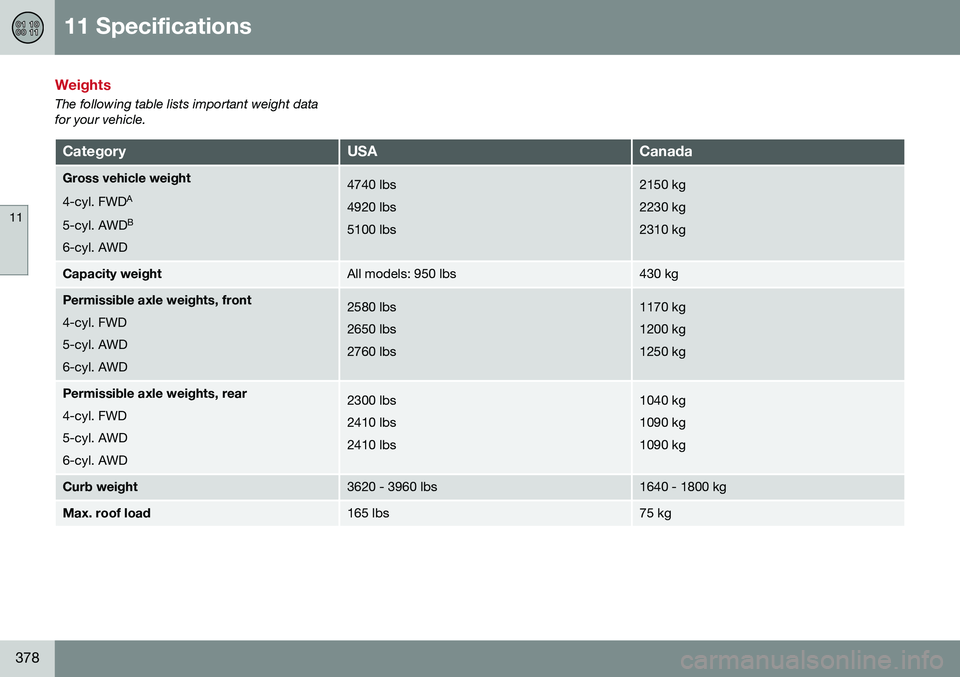

Weights
The following table lists important weight data for your vehicle.
CategoryUSACanada
Gross vehicle weight 4-cyl. FWDA
5-cyl. AWD B
6-cyl. AWD4740 lbs 4920 lbs5100 lbs2150 kg 2230 kg2310 kg
Capacity weightAll models: 950 lbs430 kg
Permissible axle weights, front 4-cyl. FWD 5-cyl. AWD6-cyl. AWD2580 lbs 2650 lbs2760 lbs1170 kg 1200 kg1250 kg
Permissible axle weights, rear 4-cyl. FWD 5-cyl. AWD6-cyl. AWD2300 lbs 2410 lbs2410 lbs1040 kg 1090 kg1090 kg
Curb weight3620 - 3960 lbs1640 - 1800 kg
Max. roof load165 lbs75 kg
